IslandPathversion 1.0

IslandPath Analysis: Rhodopseudomonas palustris CGA009

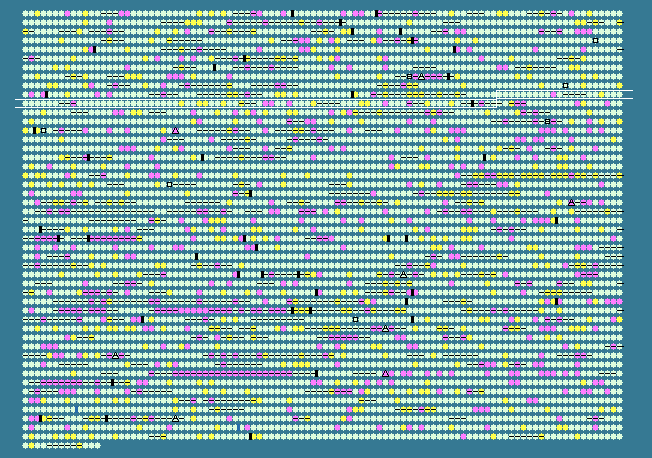

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.23 STD DEV: 3.17
Rhodopseudomonas palustris CGA009, complete genome - 1..5459213
4813 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
980	 62.57	0	1088146..1089318	+	390	39934060	-	RPA0985	-	putative branched-chain amino acid transport system substrate-binding protein
981	 63.32	0	1089530..1090396	+	288	39934061	-	RPA0986	-	urea/short-chain amide transport system permease protein
982	 66.57	0	1090399..1091397	+	332	39934062	-	RPA0987	-	branched chain amino acid ABC transporter permease
983	 65.10	0	1091394..1092158	+	254	39934063	-	RPA0988	-	putative branched-chain amino acid ABC transporter, ATP-binding protein
984	 67.79	0	1092139..1092852	+	237	39934064	-	RPA0989	-	putative ATP-binding component of ABC transporter
985	 65.45	0	1092866..1095403	-	845	39934065	phyB5	RPA0990	-	bacteriophytochrome PhyB
986	 64.63	0	1095619..1096404	+	261	39934066	-	RPA0991	-	Crp/FNR family transcriptional regulator
987	 62.30	0	1096426..1097157	-	243	39934067	-	RPA0992	-	Crp/FNR family transcriptional regulator
988	 66.67	0	1097324..1097899	+	191	39934068	-	RPA0993	-	alpha-ribazole-5`-phosphate phosphatase CobC
989	 61.31	-1	1098342..1098677	+	111	39934069	-	RPA0994	-	hypothetical protein
990	 63.70	0	1098742..1099887	-	381	39934070	-	RPA0995	-	acyl-CoA dehydrogenase
991	 65.49	0	1100262..1101284	-	340	39934071	-	RPA0996	-	Alpha/beta hydrolase fold
992	 65.03	0	1101329..1101757	+	142	39934072	-	RPA0997	-	ArsR family transcriptional regulator
993	 67.45	0	1101771..1102151	-	126	39934073	-	RPA0998	-	rhodanese-like protein
994	 64.07	0	1102360..1102974	+	204	39934074	PA5115	RPA0999	-	hypothetical protein
995	 66.41	0	1102982..1103377	-	131	39934075	-	RPA1000	-	nitrogenase-associated protein
996	 68.19	0	1103391..1103981	-	196	39934076	-	RPA1001	-	hypothetical protein
997	 70.78	+1	1104195..1105070	+	291	39934077	modD	RPA1002	-	pyrophosphorylase ModD
998	 66.36	0	1105201..1106835	-	544	39934078	-	RPA1003	-	putative acyl-CoA synthase
999	 65.70	0	1107079..1107285	+	68	39934079	-	RPA1004	-	hypothetical protein
1000	 65.90	0	1107364..1108014	+	216	39934080	-	RPA1005	-	NUDIX hydrolase
1001	 64.18	0	1108128..1108529	+	133	39934081	-	RPA1006	-	protocatechuate 4,5-dioxygenase subunit alpha
1002	 65.27	0	1108545..1109402	+	285	39934082	mhpB	RPA1007	-	protocatechuate 4,5-dioxygenase subunit beta
1003	 65.88	0	1109469..1110359	-	296	39934083	-	RPA1008	-	AraC family transcriptional regulator
1004	 66.16	0	1110510..1111697	+	395	39934084	-	RPA1009	-	cytochrome P450
1005	 65.54	0	1111734..1113680	-	648	39934085	-	RPA1010	-	Beta-lactamase-like protein
1006	 64.37	0	1113940..1114593	+	217	39934086	-	RPA1011	-	DSBA oxidoreductase
1007	 64.44	0	1114724..1115488	+	254	39934087	-	RPA1012	-	integral membrane protein
1008	 64.86	0	1115514..1116956	-	480	39934088	fixG	RPA1013	-	nitrogen fixation protein FixG
1009	 60.54	-1	1117075..1117368	-	97	39934089	-	RPA1014	-	hypothetical protein
1010	 67.17	0	1117580..1118170	+	196	39934090	-	RPA1015	-	PadR family transcriptional regulator
1011	 66.67	0	1118259..1118792	+	177	39934091	petA	RPA1016	-	ubiquinol-cytochrome-c reductase, Rieske iron-sulfur protein
1012	 66.67	0	1119042..1119434	+	130	39934092	-	RPA1017	-	nitrogen fixation-related protein
1013	 62.69	0	1119616..1119816	-	66	39934093	-	RPA1018	-	hypothetical protein
1014	 63.45	0	1119897..1120238	+	113	39934094	-	RPA1019	-	NolR/HlyU transcriptional regulator
1015	 66.67	0	1120240..1121235	+	331	39934095	-	RPA1020	-	secretion protein HlyD
1016	 65.58	0	1121232..1124456	+	1074	39934096	-	RPA1021	-	AcrB/AcrD/AcrF family transporter
1017	 64.68	0	1124518..1125171	+	217	39934097	-	RPA1022	-	outer membrane protein
1018	 66.03	0	1125380..1125691	+	103	39934098	-	RPA1023	-	hypothetical protein
1019	 67.46	0	1125696..1126958	+	420	39934099	-	RPA1024	-	putative oxidoreductase
1020	 63.93	0	1126955..1127320	+	121	39934100	-	RPA1025	-	cytochrome b5
1021	 62.33	0	1127420..1128550	-	376	39934101	-	RPA1026	-	DNA methylase N-4/N-6
1022	 65.90	0	1128929..1129846	+	305	39934102	-	RPA1027	-	hypothetical protein
1023	 64.66	0	1129985..1130533	+	182	39934103	moaB	RPA1028	-	molybdopterin biosynthesis, protein B
1024	 66.80	0	1130697..1131464	+	255	39934104	-	RPA1029	-	CoA transferase, subunit A
1025	 66.67	0	1131461..1132213	+	250	39934105	-	RPA1030	-	CoA transferase, subunit B
1026	 66.67	0	1132371..1133378	-	335	39934106	-	RPA1031	-	MarR family transcriptional regulator
1027	 70.90	+1	1133477..1134043	-	188	39934107	-	RPA1032	-	glycosyl transferase family protein
1028	 66.06	0	1134224..1135384	+	386	39934108	-	RPA1033	-	radical SAM family protein
1029	 67.87	0	1135479..1136393	+	304	39934109	rnh2	RPA1034	-	ribonuclease H
1030	 69.95	+1	1136390..1137973	+	527	39934110	-	RPA1035	-	hypothetical protein
1031	 70.76	+1	1138032..1138862	-	276	39934111	polN	RPA1036	-	phage SPO1 DNA polymerase-related protein
1032	 63.53	0	1139064..1140722	+	552	39934112	-	RPA1037	-	electron-transferring-flavoprotein dehydrogenase
1033	 64.65	0	1140980..1142764	+	594	39934113	-	RPA1038	-	TPR repeat-containing protein
1034	 71.89	+2	1142869..1143768	+	299	39934114	ispE	RPA1039	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
1035	 66.17	0	1143914..1144924	-	336	39934115	-	RPA1040	-	farnesyltranstransferase
1036	 66.67	0	1145132..1145359	+	75	39934116	-	RPA1041	-	hypothetical protein
1037	 69.49	+1	1145352..1146131	+	259	39934117	-	RPA1042	-	methyltransferase small
1038	 66.45	0	1146377..1147279	+	300	39934118	-	RPA1043	-	peptidase S49
1039	 68.27	0	1147380..1147691	-	103	39934119	-	RPA1044	-	hypothetical protein
1040	 64.77	0	1147992..1148942	+	316	39934120	glyQ	RPA1045	-	glycyl-tRNA synthetase subunit alpha
1041	 60.46	-1	1149072..1149506	+	144	39934121	-	RPA1046	-	hypothetical protein
1042	 61.35	-1	1149506..1151836	+	776	39934122	glyS	RPA1047	-	glycyl-tRNA synthetase subunit beta
1043	 67.30	0	1152596..1153699	+	367	39934123	-	RPA1048	-	hypothetical protein
1044	 67.60	0	1153713..1155209	-	498	39934124	-	RPA1049	-	hypothetical protein
1045	 53.85	-2	1155473..1155628	+	51	39934125	-	RPA1050	-	hypothetical protein
1046	 67.14	0	1156005..1158746	+	913	39934126	-	RPA1051	-	pyruvate phosphate dikinase
1047	 66.74	0	1159062..1160492	+	476	39934127	-	RPA1052	-	cell wall hydrolase, SleB
1048	 68.26	0	1161049..1161924	-	291	39934128	nadC	RPA1053	-	nicotinate-nucleotide pyrophosphorylase
1049	 71.06	+1	1161941..1163557	-	538	39934129	nadB	RPA1054	-	L-aspartate oxidase
1050	 64.24	0	1163651..1164763	-	370	39934130	nadA	RPA1055	-	quinolinate synthetase
1051	 66.46	0	1165116..1166102	+	328	39934131	-	RPA1056	-	putative dehydrogenase (zinc-binding alcohol dehydrogenase, NADPH quinone oxidoreductase, oxidoreductase)
1052	 65.44	0	1166217..1166786	+	189	39934132	-	RPA1057	-	hypothetical protein
1053	 66.03	0	1167398..1168333	+	311	39934133	-	RPA1058	-	AraC family transcriptional regulator
1054	 62.56	0	1168419..1170635	+	738	39934134	-	RPA1059	-	outer membrane protein, TonB-dependent receptor
1055	 64.19	0	1170643..1171086	+	147	39934135	-	RPA1060	-	hypothetical protein
1056	 67.02	0	1171079..1171933	+	284	39934136	tcmP	RPA1061	-	polyketide synthesis protein
1057	 68.72	+1	1171930..1174602	-	890	39934137	-	RPA1062	-	hypothetical protein
1058	 69.48	+1	1174654..1175649	-	331	39934138	-	RPA1063	-	hypothetical protein
1059	 66.27	0	1175646..1176152	-	168	39934139	-	RPA1064	-	hypothetical protein
1060	 66.18	0	1176219..1176836	-	205	39934140	-	RPA1065	-	metal dependent phosphohydrolase
1061	 61.17	-1	1176912..1177184	+	90	39934141	-	RPA1066	-	hypothetical protein
1062	 63.77	0	1177191..1177847	-	218	39934142	tag	RPA1067	-	DNA-3-methyladenine glycosylase I
1063	 67.57	0	1177844..1178725	-	293	39934143	-	RPA1068	-	glycine cleavage T protein (aminomethyl transferase)
1064	 65.77	0	1178873..1180207	+	444	39934144	pyrC	RPA1069	-	dihydroorotase
1065	 61.54	-1	1180716..1180871	+	51	39934145	-	RPA1070	-	hypothetical protein
1066	 63.26	0	1180892..1181155	-	87	39934146	-	RPA1071	-	hypothetical protein
1067	 67.57	0	1181286..1181726	-	146	39934147	-	RPA1072	-	hypothetical protein
1068	 69.66	+1	1181726..1182160	-	144	39934148	-	RPA1073	-	NUDIX hydrolase
1069	 61.90	-1	1182166..1182522	-	118	39934149	-	RPA1074	-	hypothetical protein
1070	 67.96	0	1182725..1183498	+	257	39934150	-	RPA1075	-	hypothetical protein
1071	 66.11	0	1183607..1185034	-	475	39934151	-	RPA1076	-	FAD linked oxidase-like
1072	 68.77	+1	1185153..1186199	-	348	39934152	-	RPA1077	-	SUA5/yciO/yrdC domain-containing protein
1073	 67.77	0	1186379..1187281	+	300	39934153	-	RPA1078	-	AraC family transcriptional regulator
1074	 66.51	0	1187407..1188693	+	428	39934154	-	RPA1079	-	4-methylmuconolactone transporter
1075	 67.00	0	1188686..1189588	+	300	39934155	-	RPA1080	-	2-pyrone-4,6-dicarboxylate hydrolase
1076	 66.51	0	1189896..1190549	-	217	39934156	-	RPA1081	-	hypothetical protein
1077	 58.05	-2	1190900..1192234	+	444	39934157	-	RPA1082	-	hypothetical protein
1078	 64.49	0	1192349..1192669	+	106	39934158	-	RPA1083	-	hypothetical protein
1079	 63.21	0	1192666..1193157	+	163	39934159	csgB	RPA1084	-	minor curlin subunit precursor (fimbrin sef17 minor subunit)
65.23	MEAN

3.17	STD DEV
