IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

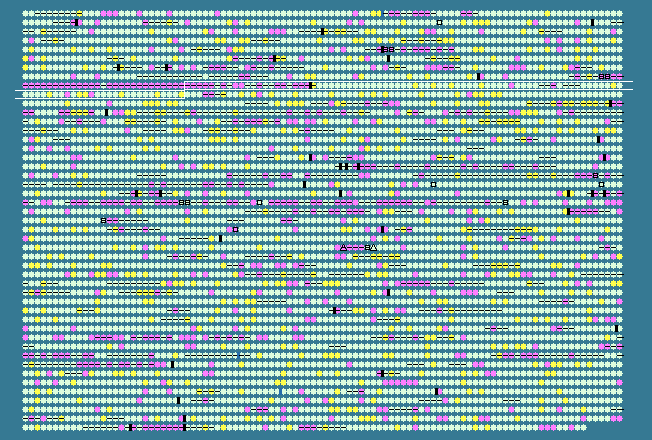

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.51   STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
828	 54.71	-2	893034..894137	-	367	116250594	-	RL0822	-	DegT family aminotransferase
829	 55.76	-1	894348..894833	-	161	116250595	-	RL0823	-	hexapeptide repeat-containing acetyltransferase
830	 51.48	-2	894830..895909	-	359	116250596	-	RL0824	-	putative oxidoreductase
831	 51.74	-2	895930..897048	-	372	116250597	gmd	RL0825	-	putative GDP-mannose 4,6-dehydratase (GDP-d-mannose dehydratase)
832	 52.60	-2	897048..898028	-	326	116250598	fcl	RL0826	-	putative GDP-L-fucose synthetase
833	 62.94	0	898612..899040	+	142	116250599	-	RL0827	-	putative insertion sequence-related protein
834	 57.92	-1	899278..899517	+	79	116250600	-	RL0828	-	putative transmembrane protein
835	 58.27	0	899910..900290	-	126	116250601	-	RL0829	-	hypothetical protein
836	 56.36	-1	900366..900821	-	151	116250602	-	RL0830	-	hypothetical protein
837	 53.83	-2	901034..901477	-	147	116250603	-	RL0831	-	hypothetical protein
838	 60.98	0	901614..902405	+	263	116250604	-	RL0832	-	putative DNA ligase
839	 59.26	0	902806..902940	+	44	116250605	-	RL0833	-	putative transmembrane protein
840	 57.04	-1	903345..903479	-	44	116250606	-	RL0834	-	putative transmembrane protein
841	 58.04	-1	903597..904106	+	169	116250607	-	RL0835	-	hypothetical protein
842	 58.99	0	904103..906172	+	689	116250608	-	RL0836	-	putative insertion sequence ATP-binding protein
843	 49.79	-2	906202..906675	-	157	116250609	-	RL0836A	-	hypothetical protein
844	 51.69	-2	906688..906894	-	68	116250610	-	RL0837	-	hypothetical protein
845	 58.08	-1	906928..907218	-	96	116250611	-	RL0838	-	hypothetical protein
846	 53.85	-2	907278..907433	-	51	116250612	-	RL0839	-	hypothetical protein
847	 50.45	-2	908003..908224	+	73	116250613	-	RL0840	-	hypothetical protein
848	 55.27	-1	908253..908840	+	195	116250614	-	RL0841	-	hypothetical protein
849	 66.98	+1	909333..910913	+	526	116250615	-	RL0842	-	putative guanosine-5'-triphosphate,3'-diphosphate pyrophosphatase
850	 62.22	0	910916..911635	+	239	116250616	-	RL0843	-	putative ribosomal RNA methyltransferase/cell division FtsJ protein
851	 63.28	0	911794..912177	+	127	116250617	-	RL0844	-	hypothetical protein
852	 63.51	0	912289..913713	-	474	116250618	-	RL0845	-	MFS family permease
853	 59.62	0	913965..914972	+	335	116250619	-	RL0846	-	hypothetical protein
854	 64.24	0	915252..916736	+	494	116250620	guaB	RL0847	-	inositol-5-monophosphate dehydrogenase
855	 61.62	0	916739..917293	+	184	116250621	-	RL0848	-	putative transmembrane protein
856	 58.27	0	917458..917874	+	138	116250622	-	RL0849	-	putative transmembrane protein
857	 62.62	0	918152..918793	+	213	116250623	-	RL0850	-	TetR family transcriptional regulator
858	 63.85	0	918798..919754	-	318	116250624	-	RL0851	-	LysR family transcriptional regulator
859	 61.22	0	919969..920280	+	103	116250625	-	RL0852	-	hypothetical protein
860	 60.78	0	920536..921402	-	288	116250626	-	RL0853	-	hypothetical protein
861	 62.82	0	921599..922483	+	294	116250627	-	RL0854	-	hypothetical protein
862	 62.45	0	922548..923921	-	457	116250628	-	RL0855	-	putative gamma-glutamylcysteine synthetase precursor
863	 63.96	0	924069..924806	-	245	116250629	-	RL0856	-	hypothetical protein
864	 64.47	0	924824..926323	-	499	116250630	pit	RL0857	-	putative transmembrane inorganic phosphate transporter
865	 59.51	0	926386..926916	-	176	116250631	-	RL0858	-	putative NUDIX family protein
866	 67.58	+1	927182..928057	+	291	116250632	-	RL0859	-	putative HTH-type transcriptional regulator
867	 64.08	0	928156..929313	+	385	116250633	-	RL0860	-	putative adenosylhomocysteinase (S-adenosyl-L-homocysteine hydrolase)
868	 64.16	0	929348..930343	-	331	116250634	-	RL0861	-	putative alcohol dehydrogenase
869	 65.73	+1	930487..931338	+	283	116250635	-	RL0862	-	LysR family transcriptional regulator
870	 64.41	0	931352..932194	-	280	116250636	-	RL0863	-	LysR family transcriptional regulator
871	 64.65	0	932409..933848	+	479	116250637	glcD	RL0864	-	putative glycolate oxidase subunit
872	 67.67	+1	933845..935044	+	399	116250638	glcE	RL0865	-	putative glycolate oxidase subunit
873	 64.76	0	935101..936411	+	436	116250639	glcF	RL0866	-	putative glycolate oxidase iron-sulfur subunit
874	 60.09	0	936477..936917	+	146	116250640	-	RL0867	-	hypothetical protein
875	 60.15	0	936939..937613	-	224	116250641	-	RL0868	-	lipid A oxidase
876	 63.20	0	937733..938425	-	230	116250642	-	RL0869	-	putative exported ErfK/YbiS/YhnG protein
877	 65.33	+1	938664..939410	-	248	116250643	-	RL0870	-	putative ErfK/YbiS/YhnG family protein
878	 59.37	0	939664..940293	+	209	116250644	tag	RL0871	-	putative DNA-3-methyladenine glycosylase I
879	 63.01	0	940305..940796	+	163	116250645	-	RL0872	-	hypothetical protein
880	 60.28	0	940816..941520	-	234	116250646	-	RL0873	-	putative haloacid dehydrogenase hydrolase
881	 63.05	0	941749..942798	+	349	116250647	-	RL0874	-	putative aldo/keto reductase
882	 56.76	-1	942866..943279	-	137	116250648	-	RL0875	-	hypothetical protein
883	 64.30	0	943720..944481	-	253	116250650	-	RL0876	-	hypothetical protein
884	 62.98	0	944612..946183	+	523	116250651	hisS	RL0877	-	histidyl-tRNA synthetase
885	 64.80	+1	946364..947485	+	373	116250652	hisZ	RL0878	-	ATP phosphoribosyltransferase regulatory subunit
886	 64.22	0	947482..948177	+	231	116250653	hisG	RL0879	-	ATP phosphoribosyltransferase catalytic subunit
887	 63.01	0	948256..948693	-	145	116250654	-	RL0880	-	putative transmembrane quinol oxidase subunit
888	 58.65	0	949008..949718	+	236	116250655	-	RL0881	-	putative glutathione S-transferase
889	 57.05	-1	949782..950228	-	148	116250656	-	RL0882	-	hypothetical protein
890	 60.28	0	950963..952606	-	547	116250657	groEL	RL0883	-	chaperonin GroEL
891	 61.62	0	952679..952975	-	98	116250658	groS	RL0884	-	putative 10 kDa chaperonin (protein cpn10)
892	 63.37	0	953370..954218	+	282	116250659	-	RL0885	-	putative hydrolase
893	 61.59	0	954249..955232	+	327	116250660	ribF	RL0886	-	bifunctional riboflavin kinase/FMN adenylyltransferase
894	 58.17	-1	955245..955703	-	152	116250661	-	RL0887	-	putative plasmid stability-like protein
895	 58.33	0	955700..955963	-	87	116250662	-	RL0888	-	hypothetical protein
896	 61.21	0	956316..959264	+	982	116250663	ileS	RL0889	-	isoleucyl-tRNA synthetase
897	 61.64	0	959271..960026	+	251	116250664	-	RL0890	-	hypothetical protein
898	 63.16	0	960076..960531	-	151	116250665	-	RL0891	-	putative nitrogen fixation symbiosis related protein
899	 69.09	+2	960604..962709	+	701	116250666	-	RL0892	-	putative ribosomal large subunit pseudouridine synthase B
900	 63.64	0	962690..963250	+	186	116250667	-	RL0893	-	hypothetical protein
901	 64.17	0	963263..964144	+	293	116250668	-	RL0894	-	putative patatin family protein
902	 63.36	0	964158..964610	-	150	116250669	-	RL0895	-	hypothetical protein
903	 61.57	0	964624..965997	-	457	116250670	-	RL0896	-	putative transmembrane transporter
904	 63.97	0	966087..966494	-	135	116250671	-	RL0897	-	hypothetical protein
905	 65.23	+1	966586..968400	-	604	116250672	-	RL0898	-	putative glutathione-regulated cation-efflux system protein
906	 64.07	0	968519..969865	+	448	116250673	-	RL0899	-	putative maturation protein
907	 64.32	0	969882..970691	+	269	116250674	-	RL0900	-	putative inositol monophosphate family protein
908	 55.12	-1	970660..970962	-	100	116250675	-	RL0901	-	hypothetical protein
909	 64.92	+1	971171..972490	+	439	116250676	-	RL0902	-	3-deoxy-D-manno-octulosonic-acid transferase
910	 65.28	+1	972500..973222	+	240	116250677	gph	RL0903	-	putative phosphoglycolate phosphatase
911	 65.55	+1	973405..974478	+	357	116250678	lpxK	RL0904	-	tetraacyldisaccharide 4'-kinase
912	 54.58	-2	974801..975685	-	294	116250679	-	RL0905	-	GntR family transcriptional regulator
913	 58.64	0	975785..976843	+	352	116250680	-	RL0906	-	putative transmembrane component of ABC transporter
914	 59.08	0	976840..977604	+	254	116250681	-	RL0907	-	putative ATP-binding component of ABC transporter
915	 58.39	0	977683..978600	+	305	116250682	-	RL0908	-	putative solute-binding component of ABC transporter
916	 58.27	0	978735..979115	-	126	116250683	-	RL0909	-	hypothetical protein
917	 66.61	+1	979136..980938	-	600	116250684	mutL	RL0910	-	DNA mismatch repair protein
918	 61.44	0	981122..982843	+	573	116250685	-	RL0911	-	putative two-component sensor histidine kinase transcriptional regulatory protein
919	 62.34	0	982997..984361	+	454	116250686	-	RL0912	-	putative GGDEF/EAL sensory box protein
920	 62.21	0	984436..985041	-	201	116250687	-	RL0913	-	putative PRC family protein
921	 61.60	0	985276..986163	-	295	116250688	-	RL0914	-	hypothetical protein
922	 64.64	0	986160..986801	-	213	116250689	dgoA	RL0915	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
923	 67.97	+1	986815..987732	-	305	116250690	dgoK	RL0916	-	putative 2-dehydro-3-deoxygalactonokinase
924	 64.18	0	987732..988496	-	254	116250691	-	RL0917	-	putative nodulation protein, 3-oxoacyl-(Acyl carrier protein) reductase
925	 62.91	0	988608..989405	+	265	116250692	-	RL0918	-	IclR family transcriptional regulator
926	 60.43	0	989655..990392	+	245	116250693	-	RL0919	-	LuxR/GerE family transcriptional regulator
927	 65.55	+1	990927..992087	+	386	116250694	-	RL0920	-	putative ATP-binding mrp family protein
61.51	MEAN

3.25	STD DEV
