IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

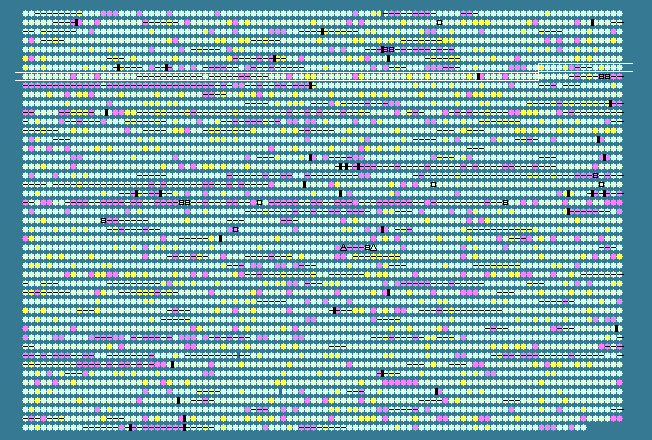

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
687	 65.95	+1	732334..732753	-	139	116250453	-	RL0681	-	putative transmembrane protein
688	 64.36	0	732769..734592	-	607	116250454	-	RL0682	-	putative transmembrane ion efflux system protein
689	 62.00	0	734624..734923	+	99	116250455	-	RL0683	-	hypothetical protein
690	 61.46	0	735005..736426	-	473	116250456	-	RL0684	-	putative transmembrane protein
691	 66.91	+1	737039..738685	+	548	116250457	-	RL0685	-	putative chemoreceptor protein
692	 57.24	-1	738749..739045	+	98	116250458	cheX	RL0686	-	putative chemotaxis related CheX protein
693	 57.92	-1	739042..739407	+	121	116250459	cheY	RL0687	-	putative CheY response regulator transcriptional regulatory protein
694	 63.30	0	739425..741710	+	761	116250460	cheA	RL0688	-	putative CheA chemotaxis protein
695	 60.04	0	741715..742182	+	155	116250461	cheW	RL0689	-	CheW family chemotaxis protein
696	 59.30	0	742179..743087	+	302	116250462	cheR	RL0690	-	putative chemotaxis protein methyltransferase
697	 65.13	+1	743084..744127	+	347	116250463	cheB	RL0691	-	chemotaxis-specific methylesterase
698	 59.23	0	744128..744517	+	129	116250464	cheY	RL0692	-	putative chemotaxis protein
699	 61.98	0	744514..745068	+	184	116250465	cheD	RL0693	-	chemoreceptor glutamine deamidase CheD
700	 60.26	0	745085..745474	+	129	116250466	-	RL0694	-	hypothetical protein
701	 61.68	0	745789..747474	+	561	116250467	fliF	RL0695	-	flagellar MS-ring protein
702	 58.30	0	747835..748623	+	262	116250468	-	RL0696	-	GerE/LuxR family transcriptional regulator
703	 61.85	0	748632..749378	+	248	116250469	luxR	RL0697	-	LuxR family transcriptional regulator
704	 58.78	0	749461..749904	-	147	116250470	-	RL0698	-	hypothetical protein
705	 59.84	0	749910..751007	-	365	116250471	flhB	RL0699	-	flagellar biosynthesis protein FlhB
706	 62.14	0	751223..752260	-	345	116250472	fliG	RL0700	-	flagellar motor switch protein G
707	 61.39	0	752292..752879	-	195	116250473	fliN	RL0701	-	putative flagellar motor switch protein
708	 59.73	0	752945..753895	-	316	116250474	fliM	RL0702	-	putative flagella motor switch protein
709	 57.73	-1	753896..754768	-	290	116250475	motA	RL0703	-	flagellar motor protein MotA
710	 61.22	0	755023..755757	+	244	116250476	flgF	RL0704	-	flagellar basal body rod protein FlgF
711	 64.45	0	755871..757271	+	466	116250477	fliI	RL0705	-	flagellum-specific ATP synthase
712	 61.14	0	757274..757816	+	180	116250478	-	RL0706	-	putative flagella related protein
713	 57.25	-1	758071..758463	+	130	116250479	flgB	RL0707	-	flagellar basal body rod protein FlgB
714	 60.43	0	758468..758884	+	138	116250480	flgC	RL0708	-	flagellar basal body rod protein FlgC
715	 62.42	0	758923..759228	+	101	116250481	fliE	RL0709	-	flagellar hook-basal body protein FliE
716	 60.96	0	759248..760036	+	262	116250482	flgG	RL0710	-	flagellar basal body rod protein FlgG
717	 63.35	0	760053..760535	+	160	116250483	flgA	RL0711	-	flagellar basal body P-ring biosynthesis protein FlgA
718	 64.71	0	760532..761653	+	373	116250484	flgI	RL0712	-	flagellar basal body P-ring protein
719	 61.51	0	761650..762192	+	180	116250485	-	RL0713	-	putative exported flagella related protein
720	 64.02	0	762189..762905	+	238	116250486	flgH	RL0714	-	flagellar basal body L-ring protein
721	 59.57	0	762918..763424	+	168	116250487	fliL	RL0715	-	orfc; method: conceptual translation supplied by author (flil)
722	 59.76	0	763421..764158	+	245	116250488	fliP	RL0716	-	flagellar biosynthesis protein FliP
723	 60.79	0	764304..766277	-	657	116250489	-	RL0717	-	TPR repeat-containing protein
724	 60.49	0	766707..767612	+	301	116250490	flaA1	RL0718	-	putative flagellin A protein
725	 60.51	0	767895..768803	+	302	116250491	flaB	RL0719	-	putative flagellin B
726	 59.21	0	769048..769959	+	303	116250492	flaA2	RL0720	-	putative flagellin A
727	 58.88	0	770260..771222	+	320	116250493	flaC	RL0721	-	putative flagellin C
728	 61.27	0	771424..772053	+	209	116250494	-	RL0722	-	hypothetical protein
729	 61.86	0	772050..773381	+	443	116250495	motB	RL0723	-	flagellar motor protein MotB
730	 61.88	0	773386..774681	+	431	116250496	motC	RL0724	-	chemotaxis protein
731	 63.67	0	774678..776111	+	477	116250497	motD	RL0725	-	putative chemotaxis MotD protein (motility protein D)
732	 59.07	0	776038..776616	+	192	116250498	-	RL0726	-	hypothetical protein
733	 60.42	0	776897..777568	+	223	116250499	-	RL0727	-	putative two-component regulator transcriptional regulatory protein
734	 62.14	0	777694..778995	+	433	116250500	flgE	RL0728	-	flagellar hook protein FlgE
735	 60.82	0	779015..780502	+	495	116250501	flgK	RL0729	-	flagellar hook-associated protein FlgK
736	 58.83	0	780506..781552	+	348	116250502	flgL	RL0730	-	flagellar hook-associated protein FlgL
737	 52.01	-2	781587..781934	+	115	116250503	flaF	RL0731	-	flagellar biosynthesis regulatory protein FlaF
738	 57.56	-1	781931..782380	+	149	116250504	flbT	RL0732	-	flagellar biosynthesis repressor FlbT
739	 58.04	-1	782371..782799	+	142	116250505	flgD	RL0733	-	flagellar basal body rod modification protein
740	 60.67	0	782899..783165	+	88	116250506	fliQ	RL0734	-	flagellar biosynthesis protein FliQ
741	 61.59	0	783357..785444	+	695	116250507	flhA	RL0735	-	flagellar biosynthesis protein FlhA
742	 58.70	0	785441..786193	+	250	116250508	fliR	RL0736	-	flagellar biosynthesis protein FliR
743	 60.63	0	786201..786614	+	137	116250509	-	RL0737	-	hypothetical protein
744	 59.22	0	786647..787210	+	187	116250510	-	RL0738	-	hypothetical protein
745	 55.63	-1	787266..787700	+	144	116250511	-	RL0739	-	hypothetical protein
746	 59.63	0	787700..788239	+	179	116250512	-	RL0740	-	putative transmembrane protein
747	 62.03	0	788357..789370	+	337	116250513	-	RL0741	-	WecB family glycosyltransferase
748	 67.37	+1	789670..791364	+	564	116250514	-	RL0742	-	putative transmembrane succinoglycan biosynthesis transport protein
749	 65.22	+1	791485..792384	+	299	116250515	-	RL0743	-	putative folate-dependent dehydrogenase/hydrolase/synthetase protein
750	 64.62	0	792398..793423	-	341	116250516	aglR	RL0744	-	HTH LacI family transcriptional regulator
751	 61.01	0	793733..795094	+	453	116250517	aglE	RL0745	-	ABC transporter substrate-binding protein
752	 59.27	0	795284..796297	+	337	116250518	aglF	RL0746	-	putative alpha-glucoside transport system transmembrane component of ABC transporter
753	 62.46	0	796299..797462	+	387	116250519	aglG	RL0747	-	putative alpha-glucoside transport system transmembrane component of ABC transporter
754	 61.28	0	797497..799149	+	550	116250520	aglA	RL0748	-	putative alpha-glucosidase
755	 60.97	0	799169..800257	+	362	116250521	aglK	RL0749	-	putative alpha-glucoside transport ATP-binding protein
756	 57.49	-1	800374..800787	+	137	116250522	-	RL0750	-	hypothetical protein
757	 66.39	+1	800868..802691	-	607	116250523	edd	RL0751	-	phosphogluconate dehydratase
758	 62.66	0	802768..803466	-	232	116250524	pgl	RL0752	-	putative 6-phosphogluconolactonase
759	 62.74	0	803477..804952	-	491	116250525	zwf	RL0753	-	glucose-6-phosphate 1-dehydrogenase
760	 63.59	0	805087..806385	-	432	116250526	ordL	RL0754	-	putative oxidoreductase
761	 61.66	0	806396..807832	-	478	116250527	glnA	RL0755	-	putative glutamine synthetase
762	 62.18	0	807894..809141	+	415	116250528	-	RL0756	-	hypothetical protein
763	 63.19	0	809810..812341	+	843	116250529	-	RL0757	-	putative methyl-accepting chemotaxis protein
764	 63.69	0	812573..814420	+	615	116250530	-	RL0758	-	putative methyl-accepting chemotaxis protein
765	 65.86	+1	814720..815589	+	289	116250531	-	RL0759	-	putative HTH transcription regulator protein
766	 64.56	0	815723..815959	-	78	116250532	-	RL0760	-	hypothetical protein
767	 62.64	0	815983..817272	-	429	116250533	-	RL0761	-	putative isocitrate lyase
768	 66.95	+1	817461..818870	+	469	116250534	-	RL0762	-	putative HTH transcriptional regulator
769	 59.29	0	818997..820094	+	365	116250535	-	RL0763	-	putative putrescine-binding periplasmic component of ABC transporter
770	 61.77	0	820184..821326	+	380	116250536	-	RL0764	-	putrescine ABC transporter ATP-binding protein
771	 58.99	0	821331..822242	+	303	116250537	-	RL0765	-	putrescine ABC transporter permease
772	 63.74	0	822246..823064	+	272	116250538	-	RL0766	-	putrescine ABC transporter permease
773	 63.76	0	823081..824973	-	630	116250539	-	RL0767	-	hypothetical protein
774	 63.49	0	825249..827201	+	650	116250540	acsA	RL0768	-	acetoacetyl-CoA synthetase
775	 65.04	+1	827417..831349	-	1310	116250541	-	RL0769	-	putative two-component regulator sensor histidine kinase protein
776	 58.89	0	831563..832012	+	149	116250542	-	RL0770	-	hypothetical protein
777	 54.14	-2	832545..833558	-	337	116250543	-	RL0771	-	putative nucleotidyltransferase
778	 63.64	0	833874..838499	+	1541	116250544	traA	RL0772	-	putative conjugal transfer protein
779	 62.16	0	838811..839254	+	147	116250545	-	RL0773	-	hypothetical protein
780	 62.13	0	839475..840356	-	293	116250546	-	RL0774	-	LysR family transcriptional regulator protein
781	 55.87	-1	840353..840667	-	104	116250547	-	RL0775	-	hypothetical protein
782	 62.12	0	840861..842357	+	498	116250548	iolA	RL0776	-	malonic semialdehyde oxidative decarboxylase
783	 59.01	0	842702..843184	+	160	116250549	rirA	RL0777	-	iron-responsive transcriptional regulator
784	 58.46	0	843524..845119	+	531	116250550	dppA	RL0778	-	putative dipeptide binding component of ABC transporter
785	 58.91	0	845207..846211	+	334	116250551	dppB	RL0779	-	putative dipeptide permease component of ABC transporter
786	 63.75	0	846221..847111	+	296	116250552	dppC	RL0780	-	putative didpeptide permease component of ABC transporter
61.51	MEAN

3.25	STD DEV
