IslandPathversion 1.0

IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

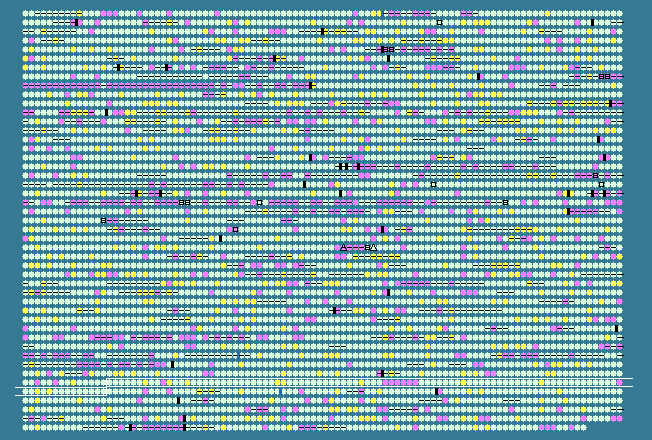

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4115	 63.33	0	4396386..4397375	+	329	116253886	-	RL4149	-	hypothetical protein
4116	 61.74	0	4397382..4397888	+	168	116253887	-	RL4150	-	putative acetyltransferase
4117	 63.22	0	4398032..4399366	+	444	116253888	-	RL4151	-	putative transposon-related protein
4118	 63.61	0	4399657..4400475	+	272	116253889	cysE	RL4152	-	putative serine acetyltransferase
4119	 61.23	0	4400572..4401729	-	385	116253890	-	RL4153	-	GGDEF domain-containing regulatory protein
4120	 64.07	0	4401885..4402964	-	359	116253891	-	RL4154	-	hypothetical protein
4121	 65.82	+1	4403165..4403755	-	196	116253892	-	RL4155	-	putative acetyltransferase protein
4122	 61.90	0	4403850..4404983	-	377	116253893	-	RL4156	-	putative lysine/ornithine decarboxylase
4123	 60.51	0	4405512..4406405	+	297	116253894	-	RL4157	-	LysR family transcriptional regulator
4124	 57.17	-1	4406628..4407269	+	213	116253895	-	RL4158	-	hypothetical protein
4125	 65.18	+1	4407263..4408339	+	358	116253896	-	RL4159	-	putative transmembrane protein
4126	 59.91	0	4408545..4409240	-	231	116253897	-	RL4160	-	hypothetical protein
4127	 63.89	0	4409304..4410023	-	239	116253898	-	RL4161	-	hypothetical protein
4128	 66.04	+1	4410279..4410917	-	212	116253899	eda	RL4162	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
4129	 59.10	0	4411072..4411560	+	162	116253900	-	RL4163	-	hypothetical protein
4130	 63.92	0	4411538..4412446	+	302	116253901	-	RL4164	-	hypothetical protein
4131	 61.22	0	4412594..4413070	+	158	116253902	-	RL4165	-	putative glyoxalase family protein
4132	 61.40	0	4413142..4414071	+	309	116253903	-	RL4166	-	hypothetical protein
4133	 63.23	0	4414090..4416303	-	737	116253904	-	RL4167	-	putative transmembrane sensory box GGDEF/EAL family protein
4134	 60.84	0	4416417..4417790	-	457	116253905	abg	RL4168	-	putative beta-glucosidase
4135	 60.99	0	4418028..4418432	+	134	116253906	-	RL4169	-	putative transmembrane DoxD family protein
4136	 63.72	0	4418509..4419696	-	395	116253907	-	RL4170	-	GFO/IDH/MocA family oxidoreductase
4137	 61.82	0	4419922..4420974	-	350	116253908	-	RL4171	-	putative endonuclease
4138	 61.60	0	4421224..4422171	-	315	116253909	-	RL4172	-	putative solute-binding component of ABC transporter
4139	 62.69	0	4422287..4423291	-	334	116253910	-	RL4173	-	putative transmembrane component of ABC transporter
4140	 61.43	0	4423369..4424895	-	508	116253911	-	RL4174	-	putative ATP-binding component of ABC transporter
4141	 62.89	0	4425065..4426096	+	343	116253912	-	RL4175	-	LacI family transcriptional regulator
4142	 60.56	0	4426174..4427484	-	436	116253913	xylA	RL4176	-	xylose isomerase
4143	 65.98	+1	4427533..4428984	-	483	116253914	xylB	RL4177	-	putative xylulose kinase
4144	 65.11	+1	4429006..4430031	-	341	116253915	-	RL4178	-	LacI family transcriptional regulator
4145	 61.16	0	4430233..4431831	-	532	116253916	-	RL4179	-	putative transmembrane transporter
4146	 64.36	0	4431859..4433070	-	403	116253917	-	RL4180	-	putative HlyD secretion protein
4147	 62.56	0	4433222..4433902	+	226	116253918	-	RL4181	-	TetR family transcriptional regulator
4148	 60.36	0	4434008..4434847	+	279	116253919	-	RL4182	-	AraC family transcriptional regulator
4149	 61.11	0	4435078..4435815	+	245	116253920	-	RL4183	-	putative transmembrane protein
4150	 61.42	0	4436061..4437527	+	488	116253921	gltX	RL4184	-	glutamyl-tRNA synthetase
4151	 60.86	0	4437550..4439046	+	498	116253922	lysS	RL4185	-	putative lysyl-tRNA synthetase
4152	 60.29	0	4439213..4439965	-	250	116253923	-	RL4186	-	putative oxidoreductase
4153	 61.28	0	4440098..4440988	+	296	116253924	-	RL4187	-	AraC family transcriptional regulator
4154	 62.77	0	4441001..4441693	-	230	116253925	-	RL4188	-	hypothetical protein
4155	 64.36	0	4441873..4442781	+	302	116253926	-	RL4189	-	LysR family transcriptional regulator
4156	 62.27	0	4442899..4444059	+	386	116253927	-	RL4190	-	putative solute-binding component of ABC transporter
4157	 66.77	+1	4444272..4445258	+	328	116253928	-	RL4191	-	putative ATP-binding component of ABC transporter
4158	 59.94	0	4445255..4446220	+	321	116253929	-	RL4192	-	putative transmembrane component of ABC transporter
4159	 64.21	0	4446210..4447022	+	270	116253930	-	RL4193	-	putative transmembrane component of ABC transporter
4160	 62.25	0	4447036..4448463	+	475	116253931	-	RL4194	-	gamma-aminobutyraldehyde dehydrogenase
4161	 55.40	-1	4448575..4448787	+	70	116253932	-	RL4195	-	hypothetical protein
4162	 55.89	-1	4448867..4449562	-	231	116253933	-	RL4196	-	hypothetical protein
4163	 56.79	-1	4449686..4451062	-	458	116253934	-	RL4197	-	putative transmembrane two-component sensor histidine kinase transcriptional regulatory protein
4164	 57.95	-1	4451059..4451781	-	240	116253935	-	RL4198	-	putative two-component response regulator transcriptional regulatory protein
4165	 55.31	-1	4451988..4452260	+	90	116253936	-	RL4199	-	hypothetical protein
4166	 55.69	-1	4452440..4452931	-	163	116253937	-	RL4200	-	hypothetical protein
4167	 59.11	0	4453058..4453507	-	149	116253938	-	RL4201	-	DoxD family transmembrane protein
4168	 58.74	0	4453557..4454225	-	222	116253939	-	RL4202	-	putative transmembrane protein
4169	 62.14	0	4454319..4455290	-	323	116253940	talB	RL4203	-	transaldolase B
4170	 61.50	0	4455711..4456736	+	341	116253941	-	RL4204	-	putative transcriptional regulator
4171	 63.26	0	4456769..4457707	-	312	116253942	-	RL4205	-	putative DNA repair methyltransferase
4172	 59.24	0	4457721..4458218	-	165	116253943	-	RL4206	-	putative transmembrane protein
4173	 64.06	0	4458217..4459023	+	268	116253944	-	RL4207	-	putative endonuclease III
4174	 65.47	+1	4458988..4459572	-	194	116253945	-	RL4208	-	TetR family transcriptional regulator
4175	 59.62	0	4459650..4460075	+	141	116253946	-	RL4209	-	putative glyoxalase protein
4176	 59.24	0	4460079..4460792	-	237	116253947	cysZ	RL4210	-	CysZ-like protein
4177	 63.04	0	4461027..4461881	+	284	116253948	-	RL4211	-	putative transcriptional regulator
4178	 64.78	+1	4461933..4463519	-	528	116253949	araB	RL4212	-	putative ribulokinase
4179	 60.00	0	4463516..4464205	-	229	116253950	-	RL4213	-	putative hydrolase family protein
4180	 60.46	0	4464300..4465781	-	493	116253951	mtlK	RL4214	-	putative mannitol 2-dehydrogenase
4181	 62.76	0	4465866..4466864	-	332	116253952	-	RL4215	-	putative ATP-binding component of mannitol ABC transport protein
4182	 60.65	0	4466885..4467715	-	276	116253953	mtlG	RL4216	-	putative mannitol transmembrane permease component of ABC transporter
4183	 59.48	0	4467717..4468676	-	319	116253954	mtlF	RL4217	-	putative mannitol transmembrane permease component of ABC transporter
4184	 61.48	0	4468731..4470041	-	436	116253955	mtlE	RL4218	-	putative mannitol-binding component of ABC transporter
4185	 62.89	0	4470188..4471141	-	317	116253956	-	RL4219	-	putative transcriptional regulator
4186	 63.39	0	4471291..4471869	-	192	116253957	exoD	RL4220	-	putative exopolysaccharide biosynthesis protein
4187	 68.19	+2	4472260..4473180	+	306	116253958	-	RL4221	-	putative kinase
4188	 63.32	0	4473177..4475087	-	636	116253959	exoI	RL4222	-	putative beta-hexosaminidase
4189	 63.65	0	4475300..4478446	-	1048	116253960	-	RL4223	-	Acr/RND family transmembrane transporter
4190	 62.02	0	4478473..4479612	-	379	116253961	-	RL4224	-	HlyD family secretion transport protein
4191	 58.78	0	4479663..4480271	-	202	116253962	-	RL4225	-	TetR family transcriptional regulator
4192	 62.04	0	4480544..4480975	-	143	116253963	osmC	RL4226	-	putative osmotically inducible protein C
4193	 61.41	0	4481184..4481963	-	259	116253964	-	RL4227	-	short chain dehydrogenase
4194	 62.18	0	4481964..4482854	-	296	116253965	-	RL4228	-	putative epimerase
4195	 60.04	0	4482851..4483801	-	316	116253966	araH	RL4229	-	L-arabinose transporter permease protein
4196	 61.37	0	4483819..4485327	-	502	116253967	araG	RL4230	-	L-arabinose transporter ATP-binding protein
4197	 61.59	0	4485395..4486378	-	327	116253968	-	RL4231	-	putative solute-binding component of ABC transporter
4198	 63.89	0	4486591..4487346	+	251	116253969	-	RL4232	-	GntR family transcriptional regulator
4199	 61.10	0	4487413..4488561	+	382	116253970	-	RL4233	-	putative epimerase
4200	 56.57	-1	4488715..4489110	+	131	116253971	-	RL4234	-	putative transmembrane protein
4201	 63.97	0	4489192..4489971	+	259	116253972	fabG	RL4235	-	3-ketoacyl-(acyl-carrier-protein) reductase
4202	 61.69	0	4489989..4491275	-	428	116253973	cyaB	RL4236	-	aputative adenylate/guanylate cyclase
4203	 66.37	+1	4491272..4492297	-	341	116253974	-	RL4237	-	hypothetical protein
4204	 62.71	0	4492393..4493580	+	395	116253975	-	RL4238	-	hypothetical protein
4205	 65.21	+1	4493783..4494604	+	273	116253976	-	RL4239	-	short chain dehydrogenase
4206	 61.40	0	4494700..4495611	+	303	116253977	-	RL4240	-	hypothetical protein
4207	 61.60	0	4495613..4496362	-	249	116253978	-	RL4241	-	hypothetical protein
4208	 62.51	0	4496381..4497463	-	360	116253979	-	RL4242	-	putative ATP-binding component of ABC transporter
4209	 63.05	0	4497483..4498394	-	303	116253980	-	RL4243	-	putative transmembrane component of ABC transporter
4210	 61.49	0	4498396..4499283	-	295	116253981	-	RL4244	-	putative transmembrane component of ABC transporter
4211	 60.25	0	4499387..4500679	-	430	116253982	-	RL4245	-	putative solute-binding component of ABC transporter
4212	 62.29	0	4500861..4501889	+	342	116253983	-	RL4246	-	GFO/IDH/MocA family oxidoreductase
4213	 63.16	0	4501899..4502897	+	332	116253984	-	RL4247	-	LacI family transcriptional regulatory protein
4214	 62.83	0	4503100..4505343	+	747	116253985	lacZ	RL4248	-	putative beta-galactosidase
61.51	MEAN

3.25	STD DEV
