IslandPathversion 1.0

IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

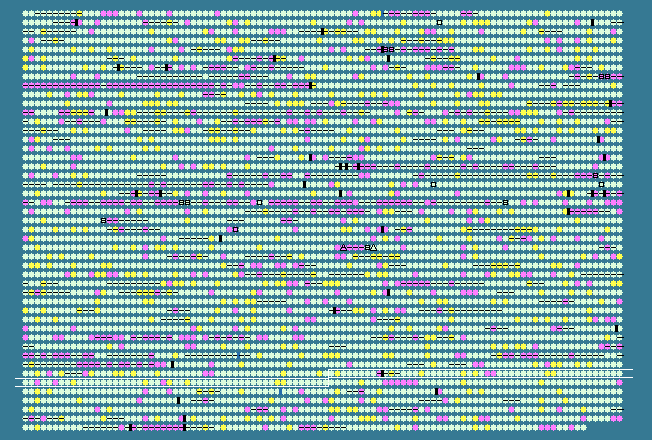

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4052	 63.53	0	4321701..4322753	+	350	116253823	ltaE	RL4086	-	putative low-specificity l-threonine aldolase
4053	 65.96	+1	4322805..4323659	-	284	116253824	-	RL4087	-	LysR family transcriptional regulator
4054	 62.22	0	4323720..4324754	+	344	116253825	-	RL4088	-	putative transmembrane protein
4055	 58.17	-1	4324830..4325300	-	156	116253826	ibpA	RL4089	-	putative heat shock protein A
4056	 63.38	0	4325556..4326680	+	374	116253827	-	RL4090	-	putative lysophospholipase
4057	 64.21	0	4326728..4327501	-	257	116253828	-	RL4091	-	putative inositol mono-phosphatase family protein
4058	 62.36	0	4327773..4328654	-	293	116253829	-	RL4092	-	putative N-formylglutamate deformylase
4059	 59.23	0	4328842..4329204	+	120	116253830	-	RL4093	-	putative two component response regulator transcriptional regulatory protein
4060	 57.36	-1	4329314..4329646	-	110	116253831	-	RL4094	-	hypothetical protein
4061	 63.12	0	4329854..4330360	+	168	116253832	-	RL4095	-	hypothetical protein
4062	 68.32	+2	4330367..4331092	-	241	116253833	-	RL4096	-	hypothetical protein
4063	 61.18	0	4331325..4331834	+	169	116253834	-	RL4097	-	putative transmembrane cation transporter protein
4064	 58.08	-1	4331921..4332118	-	65	116253835	-	RL4098	-	hypothetical protein
4065	 60.17	0	4332155..4332385	-	76	116253836	-	RL4099	-	hypothetical protein
4066	 61.80	0	4332738..4333826	+	362	116253837	-	RL4100	-	putative transmembrane protein
4067	 65.81	+1	4334353..4335870	-	505	116253838	-	RL4101	-	putative transmembrane protein
4068	 62.40	0	4335959..4336450	-	163	116253839	-	RL4102	-	putative transmembrane protein
4069	 64.02	0	4336447..4337391	-	314	116253840	-	RL4103	-	hypothetical protein
4070	 62.85	0	4337774..4338820	-	348	116253841	-	RL4104	-	putative solute-binding component of ABC transporter
4071	 62.47	0	4338982..4339743	-	253	116253842	argF	RL4105	-	putative ornithine carbamoyltransferase
4072	 62.01	0	4340178..4342046	+	622	116253843	cya	RL4106	-	putative adenylate/guanylate cyclase
4073	 63.72	0	4342245..4342922	+	225	116253844	-	RL4107	-	putative two-component response regulator transcriptional regulatory protein
4074	 66.74	+1	4342919..4344301	+	460	116253845	-	RL4108	-	putative two-component sensor histidine kinase transcriptional regulatory protein
4075	 64.11	0	4344405..4347731	+	1108	116253846	-	RL4109	-	putative transglutaminase family protein
4076	 66.09	+1	4347772..4350189	+	805	116253847	-	RL4110	-	hypothetical protein
4077	 64.05	0	4350195..4351073	+	292	116253848	-	RL4111	-	transglutaminase domain-containing protein
4078	 55.97	-1	4351189..4352385	+	398	116253849	-	RL4112	-	hypothetical protein
4079	 46.49	-2	4352382..4352609	+	75	116253850	-	RL4113	-	hypothetical protein
4080	 62.00	0	4352662..4355124	+	820	116253851	glgP	RL4114	-	putative glycogen phosphorylase
4081	 61.73	0	4355121..4357328	+	735	116253852	glgB	RL4115	-	glycogen branching enzyme
4082	 61.20	0	4357348..4358610	+	420	116253853	glgC	RL4116	-	glucose-1-phosphate adenylyltransferase
4083	 61.47	0	4358614..4360056	+	480	116253854	glgA	RL4117	-	glycogen synthase
4084	 62.07	0	4360063..4361694	+	543	116253855	pgm	RL4118	-	phosphoglucomutase
4085	 63.63	0	4361707..4363683	+	658	116253856	glgX	RL4119	-	putative glycogen debranching enzyme
4086	 61.76	0	4363774..4364262	+	162	116253857	nodN	RL4120	-	putative nodulation protein N
4087	 63.41	0	4364278..4364676	-	132	116253858	-	RL4121	-	putative glyoxylase
4088	 66.48	+1	4364721..4365269	-	182	116253859	soxG	RL4122	-	putative sarcosine oxidase gamma subunit
4089	 65.00	+1	4365262..4368255	-	997	116253860	soxA	RL4123	-	putative sarcosine oxidase alpha subunit
4090	 59.65	0	4368252..4368593	-	113	116253861	soxD	RL4124	-	putative sarcosine oxidase delta subunit
4091	 59.20	0	4368606..4369007	-	133	116253862	-	RL4125	-	hypothetical protein
4092	 63.56	0	4369007..4370260	-	417	116253863	soxB	RL4126	-	putative sarcosine oxidase beta subunit
4093	 62.44	0	4370544..4371536	+	330	116253864	-	RL4127	-	hypothetical protein
4094	 63.37	0	4371543..4373759	-	738	116253865	cyaA	RL4128	-	putative transmembrane adenylate/guanylate cyclase
4095	 60.49	0	4374011..4375597	+	528	116253866	cyaB1	RL4129	-	putative transmembrane adenylate cyclase
4096	 58.33	0	4375777..4375992	+	71	161501790	rpsU	RL4130	-	30S ribosomal protein S21
4097	 60.46	0	4376128..4376997	+	289	116253868	-	RL4131	-	TPR repeat-containing protein
4098	 63.94	0	4377517..4379169	+	550	116253869	-	RL4132	-	putative two-component sensor histidine kinase transcriptional regulatory protein
4099	 62.11	0	4379284..4379766	+	160	116253870	-	RL4133	-	hypothetical protein
4100	 62.51	0	4379853..4381247	-	464	116253871	pntB	RL4134	-	putative transmembrane NAD(P) transhydrogenase subunit beta
4101	 64.16	0	4381255..4381653	-	132	116253872	pntAB	RL4135	-	putative transmembrane NAD(P) transhydrogenase subunit alpha part 2
4102	 63.53	0	4381653..4382801	-	382	116253873	pntAA	RL4136	-	putative NAD(P) transhydrogenase subunit alpha part 1
4103	 55.96	-1	4382957..4383283	-	108	116253874	-	RL4137	-	putative transmembrane protein
4104	 58.43	0	4383428..4384180	-	250	116253875	-	RL4138	-	hypothetical protein
4105	 62.28	0	4384323..4386626	-	767	116253876	-	RL4139	-	putative transmembrane sensory box GGDEF/EAL protein
4106	 56.32	-1	4386887..4387495	+	202	116253877	-	RL4140	-	putative transmembrane transporter component
4107	 62.32	0	4387517..4389010	+	497	116253878	-	RL4141	-	TRAP family transmembrane transporter protein
4108	 59.71	0	4389361..4390467	-	368	116253879	-	RL4142	-	putative solute-binding component of transporter
4109	 65.13	+1	4390761..4391540	+	259	116253880	-	RL4143	-	putative glutamine amidotransferase
4110	 63.01	0	4391607..4392563	-	318	116253881	-	RL4144	-	putative oxidoreductase/dehydrogenase
4111	 63.93	0	4392593..4393615	-	340	116253882	-	RL4145	-	LacI family HTH-type transcriptional repressor
4112	 62.77	0	4393733..4394245	-	170	116253883	-	RL4146	-	MarR family transcriptional regulator
4113	 62.48	0	4394331..4395119	+	262	116253884	-	RL4147	-	hypothetical protein
4114	 61.30	0	4395268..4396386	+	372	116253885	-	RL4148	-	putative cobalamin synthesis protein
4115	 63.33	0	4396386..4397375	+	329	116253886	-	RL4149	-	hypothetical protein
4116	 61.74	0	4397382..4397888	+	168	116253887	-	RL4150	-	putative acetyltransferase
4117	 63.22	0	4398032..4399366	+	444	116253888	-	RL4151	-	putative transposon-related protein
4118	 63.61	0	4399657..4400475	+	272	116253889	cysE	RL4152	-	putative serine acetyltransferase
4119	 61.23	0	4400572..4401729	-	385	116253890	-	RL4153	-	GGDEF domain-containing regulatory protein
4120	 64.07	0	4401885..4402964	-	359	116253891	-	RL4154	-	hypothetical protein
4121	 65.82	+1	4403165..4403755	-	196	116253892	-	RL4155	-	putative acetyltransferase protein
4122	 61.90	0	4403850..4404983	-	377	116253893	-	RL4156	-	putative lysine/ornithine decarboxylase
4123	 60.51	0	4405512..4406405	+	297	116253894	-	RL4157	-	LysR family transcriptional regulator
4124	 57.17	-1	4406628..4407269	+	213	116253895	-	RL4158	-	hypothetical protein
4125	 65.18	+1	4407263..4408339	+	358	116253896	-	RL4159	-	putative transmembrane protein
4126	 59.91	0	4408545..4409240	-	231	116253897	-	RL4160	-	hypothetical protein
4127	 63.89	0	4409304..4410023	-	239	116253898	-	RL4161	-	hypothetical protein
4128	 66.04	+1	4410279..4410917	-	212	116253899	eda	RL4162	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
4129	 59.10	0	4411072..4411560	+	162	116253900	-	RL4163	-	hypothetical protein
4130	 63.92	0	4411538..4412446	+	302	116253901	-	RL4164	-	hypothetical protein
4131	 61.22	0	4412594..4413070	+	158	116253902	-	RL4165	-	putative glyoxalase family protein
4132	 61.40	0	4413142..4414071	+	309	116253903	-	RL4166	-	hypothetical protein
4133	 63.23	0	4414090..4416303	-	737	116253904	-	RL4167	-	putative transmembrane sensory box GGDEF/EAL family protein
4134	 60.84	0	4416417..4417790	-	457	116253905	abg	RL4168	-	putative beta-glucosidase
4135	 60.99	0	4418028..4418432	+	134	116253906	-	RL4169	-	putative transmembrane DoxD family protein
4136	 63.72	0	4418509..4419696	-	395	116253907	-	RL4170	-	GFO/IDH/MocA family oxidoreductase
4137	 61.82	0	4419922..4420974	-	350	116253908	-	RL4171	-	putative endonuclease
4138	 61.60	0	4421224..4422171	-	315	116253909	-	RL4172	-	putative solute-binding component of ABC transporter
4139	 62.69	0	4422287..4423291	-	334	116253910	-	RL4173	-	putative transmembrane component of ABC transporter
4140	 61.43	0	4423369..4424895	-	508	116253911	-	RL4174	-	putative ATP-binding component of ABC transporter
4141	 62.89	0	4425065..4426096	+	343	116253912	-	RL4175	-	LacI family transcriptional regulator
4142	 60.56	0	4426174..4427484	-	436	116253913	xylA	RL4176	-	xylose isomerase
4143	 65.98	+1	4427533..4428984	-	483	116253914	xylB	RL4177	-	putative xylulose kinase
4144	 65.11	+1	4429006..4430031	-	341	116253915	-	RL4178	-	LacI family transcriptional regulator
4145	 61.16	0	4430233..4431831	-	532	116253916	-	RL4179	-	putative transmembrane transporter
4146	 64.36	0	4431859..4433070	-	403	116253917	-	RL4180	-	putative HlyD secretion protein
4147	 62.56	0	4433222..4433902	+	226	116253918	-	RL4181	-	TetR family transcriptional regulator
4148	 60.36	0	4434008..4434847	+	279	116253919	-	RL4182	-	AraC family transcriptional regulator
4149	 61.11	0	4435078..4435815	+	245	116253920	-	RL4183	-	putative transmembrane protein
4150	 61.42	0	4436061..4437527	+	488	116253921	gltX	RL4184	-	glutamyl-tRNA synthetase
4151	 60.86	0	4437550..4439046	+	498	116253922	lysS	RL4185	-	putative lysyl-tRNA synthetase
61.51	MEAN

3.25	STD DEV
