IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

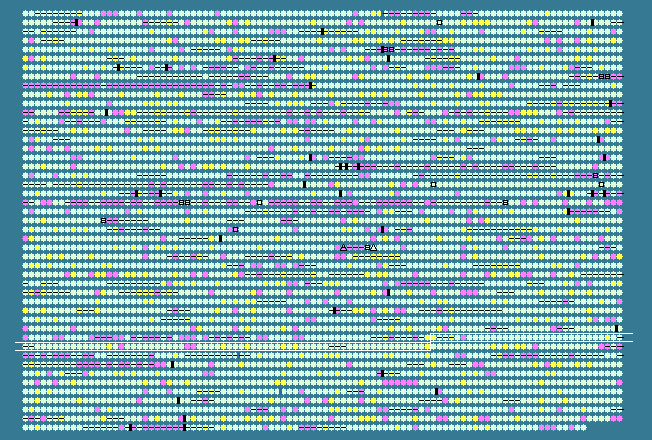

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3669	 66.94	+1	3895655..3896767	+	370	116253439	hmuU	RL3699	-	transmembrane permease component of haem ABC transporter
3670	 64.59	0	3896768..3897586	+	272	116253440	hmuV	RL3700	-	hemin importer ATP-binding subunit
3671	 63.19	0	3897735..3898079	+	114	116253441	-	RL3701	-	putative transmembrane protein
3672	 66.17	+1	3898089..3898490	+	133	116253442	-	RL3702	-	putative transmembrane protein
3673	 61.47	0	3898747..3899304	-	185	116253443	-	RL3703	-	RNA polymerase sigma factor
3674	 55.56	-1	3899314..3899520	-	68	116253444	-	RL3704	-	hypothetical protein
3675	 58.36	0	3899790..3900584	+	264	116253445	-	RL3705	-	two-component response regulator
3676	 59.07	0	3900786..3901772	+	328	116253446	-	RL3706	-	putative two-component regulator sensor histidine kinase transcriptional regulatory protein
3677	 63.00	0	3902180..3903541	+	453	116253447	gltB	RL3707	-	putative oxidoreductase
3678	 63.39	0	3903557..3904870	+	437	116253448	pydA	RL3708	-	dihydropyrimidine dehydrogenase
3679	 64.53	0	3904946..3905926	-	326	116253449	ftrA	RL3709	-	transcriptional activator FtrA
3680	 63.26	0	3906016..3906426	+	136	116253450	-	RL3710	-	putative rhodanese protein
3681	 62.76	0	3906484..3907506	-	340	116253451	-	RL3711	-	putative alcohol dehydrogenase
3682	 63.56	0	3907609..3908508	+	299	116253452	-	RL3712	-	LysR family transcriptional regulator
3683	 63.18	0	3908613..3909185	+	190	116253453	-	RL3713	-	putative heme oxygenase
3684	 62.11	0	3909182..3911749	+	855	116253454	-	RL3714	-	putative phytochrome/sensor histidine kinase
3685	 61.29	0	3911755..3912405	-	216	116253455	-	RL3715	-	TetR family transcriptional regulator
3686	 63.16	0	3912707..3913960	+	417	116253456	atcC	RL3716	-	allantoate amidohydrolase
3687	 58.12	-1	3913960..3914544	+	194	116253457	-	RL3717	-	hypothetical protein
3688	 62.41	0	3914547..3916001	+	484	116253458	dht	RL3718	-	dihydropyrimidinase
3689	 64.01	0	3916063..3916476	-	137	116253459	-	RL3719	-	hypothetical protein
3690	 62.44	0	3916568..3917347	+	259	116253460	-	RL3720	-	putative ATP-binding component of ABC transporter
3691	 63.01	0	3917409..3918338	+	309	116253461	-	RL3721	-	putative transmembrane component of ABC transporter
3692	 64.72	0	3918335..3919462	+	375	116253462	-	RL3722	-	putative transmembrane component of ABC transporter
3693	 60.19	0	3919522..3920493	+	323	116253463	-	RL3723	-	putative periplasmic-component of ABC transporter
3694	 63.39	0	3921000..3922190	+	396	116253464	-	RL3724	-	putative efflux protein
3695	 62.07	0	3922203..3925529	+	1108	116253465	-	RL3725	-	RND family transmembrane transporter
3696	 61.99	0	3925694..3926377	+	227	116253466	-	RL3726	-	putative FNR-like transcriptional regulator
3697	 61.60	0	3926436..3927047	-	203	116253467	ureG	RL3727	-	putative urease accessory protein
3698	 65.62	+1	3927238..3927909	-	223	116253468	ureF	RL3727A	-	putative urease accessory protein
3699	 60.30	0	3927916..3928512	-	198	116253469	ureE	RL3728	-	putative urease accessory protein
3700	 60.76	0	3928599..3929462	-	287	116253470	-	RL3729	-	putative transmembrane GGDEF sensory box protein
3701	 61.16	0	3929794..3930465	-	223	116253471	-	RL3730	-	hypothetical protein
3702	 63.34	0	3930497..3932209	-	570	116253472	ureC	RL3731	-	urease subunit alpha
3703	 62.18	0	3932213..3932836	-	207	116253473	ureY	RL3732	-	putative urease operon 23 kDa accessory protein (orf6)
3704	 61.03	0	3932853..3933260	-	135	116253474	-	RL3733	-	hypothetical protein
3705	 63.73	0	3933283..3933588	-	101	116253475	ureB	RL3734	-	urease subunit beta
3706	 63.04	0	3933861..3934163	-	100	116253476	ureA	RL3735	-	urease subunit gamma
3707	 63.50	0	3934275..3935096	-	273	116253477	ureD	RL3736	-	putative urease accessory protein
3708	 62.50	0	3935257..3935952	-	231	116253478	-	RL3737	-	putative ATP-binding component of ABC transporter
3709	 61.31	0	3936151..3936915	-	254	116253479	-	RL3738	-	putative ATP-binding component of ABC transporter
3710	 61.08	0	3936912..3938075	-	387	116253480	-	RL3739	-	putative transmembrane component of ABC transporter
3711	 61.10	0	3938072..3939724	-	550	116253481	-	RL3740	-	putative transmembrane component of ABC transporter
3712	 58.08	-1	3939840..3941132	-	430	116253482	-	RL3741	-	putative solute-binding component of ABC transporter
3713	 63.76	0	3941328..3943355	-	675	116253483	-	RL3742	-	hypothetical protein
3714	 63.30	0	3943413..3946799	+	1128	116253484	-	RL3743	-	putative two-component sensor histidine kinase transcriptional regulatory protein
3715	 65.58	+1	3946792..3947709	+	305	116253485	-	RL3744	-	LuxR family transcriptional regulator
3716	 61.05	0	3948027..3949148	-	373	116253486	-	RL3745	-	putative solute-binding component of ABC transporter
3717	 55.93	-1	3949269..3949622	-	117	116253487	-	RL3746	-	putative transmembrane protein
3718	 62.90	0	3949642..3950385	-	247	116253488	-	RL3747	-	putative ATP-binding component of ABC transporter
3719	 59.95	0	3950385..3951263	-	292	116253489	-	RL3748	-	putative ATP-binding component of ABC transporter
3720	 59.48	0	3951260..3952651	-	463	116253490	-	RL3749	-	putative transmembrane component of ABC transporter
3721	 58.69	0	3952656..3953558	-	300	116253491	-	RL3750	-	putative transmembrane component of ABC transporter
3722	 63.41	0	3954101..3954898	+	265	116253492	pssB	RL3751	-	putative inositol monophosphatase involved in exopolysaccharide production
3723	 61.62	0	3955482..3956273	+	263	116253493	pssA	RL3752	-	putative transferase involved in exopolysaccharide biosynthesis
3724	 59.49	0	3956576..3957202	-	208	116253494	-	RL3753	-	hypothetical protein
3725	 60.51	0	3957597..3957872	+	91	116253495	-	RL3754	-	hypothetical protein
3726	 61.73	0	3957896..3958462	-	188	116253496	-	RL3755	-	putative transmembrane protein
3727	 62.37	0	3958518..3958796	+	92	116253497	-	RL3756	-	hypothetical protein
3728	 55.18	-1	3959004..3959360	-	118	116253498	-	RL3757	-	hypothetical protein
3729	 57.55	-1	3959791..3960492	+	233	116253499	-	RL3758	-	putative two-component response regulator transcriptional regulatory protein
3730	 60.61	0	3960731..3961093	-	120	116253500	-	RL3759	-	putative two-component response regulator transcriptional regulatory protein
3731	 62.37	0	3961215..3961865	-	216	116253501	-	RL3760	-	hypothetical protein
3732	 62.93	0	3962057..3962644	+	195	116253502	-	RL3761	-	hypothetical protein
3733	 63.92	0	3962761..3963924	+	387	116253503	-	RL3762	-	hypothetical protein
3734	 67.24	+1	3964009..3964704	-	231	116253504	-	RL3763	-	putative rRNA methyltransferase
3735	 62.02	0	3964841..3965227	-	128	116253505	-	RL3764	-	putative transmembrane protein
3736	 64.91	+1	3965270..3966295	+	341	116253506	rLuD	RL3765	-	putative ribosomal large subunit pseudouridine synthase D
3737	 61.94	0	3966486..3967394	+	302	116253507	rpoH	RL3766	-	RNA polymerase factor sigma-32
3738	 65.02	+1	3967501..3970056	-	851	116253508	-	RL3767	-	putative transmembrane protein
3739	 62.59	0	3970117..3971415	-	432	116253509	purA	RL3768	-	adenylosuccinate synthetase
3740	 62.53	0	3971607..3972524	+	305	116253510	-	RL3769	-	putative transmembrane protein
3741	 62.90	0	3972550..3973398	-	282	116253511	-	RL3770	-	putative acetyltransferase
3742	 62.21	0	3973767..3975584	-	605	116253512	-	RL3771	-	putative GGDEF/EAL sensory box protein
3743	 64.48	0	3975716..3977500	-	594	116253513	ilvD	RL3772	-	dihydroxy-acid dehydratase
3744	 65.02	+1	3977497..3978408	-	303	116253514	-	RL3773	-	putative 2-hydroxy-3-oxopropionate reductase
3745	 62.39	0	3978570..3981770	-	1066	116253515	-	RL3774	-	AcrB/D/F RND family transporter
3746	 66.08	+1	3981890..3983080	-	396	116253516	-	RL3775	-	HlyD family secretion protein
3747	 60.48	0	3983127..3984080	-	317	116253517	-	RL3776	-	putative lipase
3748	 61.51	0	3984104..3985015	+	303	116253518	-	RL3777	-	LysR family transcriptional regulator
3749	 64.67	0	3985284..3986186	-	300	116253519	-	RL3778	-	putative short-chain dehydrogenase/reductase
3750	 62.63	0	3986273..3987016	-	247	116253520	-	RL3779	-	short chain dehydrogenase
3751	 63.04	0	3987136..3988044	+	302	116253521	-	RL3780	-	LysR family transcriptional regulator
3752	 62.54	0	3988084..3988398	+	104	116253522	-	RL3781	-	hypothetical protein
3753	 62.14	0	3988444..3989040	+	198	116253523	-	RL3782	-	3-methyladenine DNA glycosylase
3754	 61.67	0	3989164..3990705	-	513	116253524	-	RL3783	-	putative transmembrane efflux/multidrug resistance protein
3755	 62.65	0	3990698..3991792	-	364	116253525	-	RL3784	-	putative efflux pump protein
3756	 61.94	0	3991920..3992384	-	154	116253526	-	RL3785	-	MarR family transcriptional regulator
3757	 63.69	0	3992927..3994102	+	391	116253527	-	RL3786	-	HlyD family secretion efflux protein
3758	 59.71	0	3994099..3997287	+	1062	116253528	-	RL3787	-	putative transmembrane efflux transporter
3759	 60.30	0	3997317..3998054	-	245	116253529	-	RL3788	-	putative serine/threonine protein phosphatase
3760	 64.18	0	3998258..3999382	+	374	116253530	-	RL3789	-	hypothetical protein
3761	 64.09	0	3999384..3999848	-	154	116253531	-	RL3790	-	putative Rrf2 family protein
3762	 63.24	0	4000025..4000813	-	262	116253532	-	RL3791	-	putative short-chain dehydrogenase/reductase
3763	 64.85	+1	4000956..4001726	+	256	116253533	-	RL3792	-	putative hydroxypyruvate isomerase
3764	 64.71	0	4001723..4002742	-	339	116253534	-	RL3793	-	LacI family transcriptional regulator
3765	 60.49	0	4002922..4004847	+	641	116253535	-	RL3794	-	putative solute-binding component of ABC transporter
3766	 63.06	0	4004933..4007041	+	702	116253536	-	RL3795	-	hypothetical protein
3767	 59.98	0	4007146..4008132	+	328	116253537	-	RL3796	-	putative transmembrane component of ABC transporter
3768	 65.16	+1	4008143..4009333	+	396	116253538	-	RL3797	-	putative transmembrane component of ABC transporter
61.51	MEAN

3.25	STD DEV
