IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

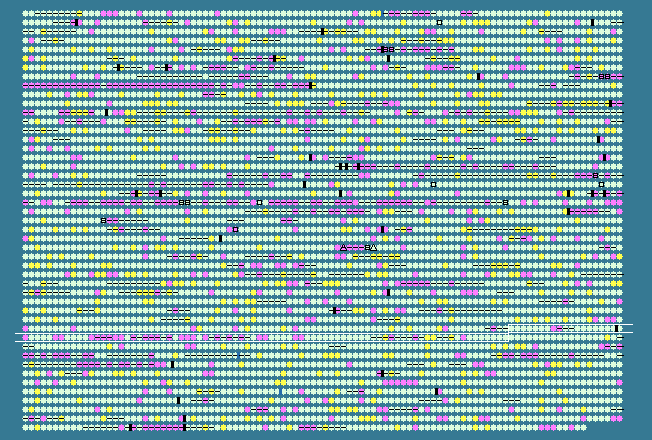

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3582	 59.77	0	3795148..3796089	+	313	116253352	-	RL3609	-	hypothetical protein
3583	 62.79	0	3796102..3796926	+	274	116253353	-	RL3610	-	hypothetical protein
3584	 62.90	0	3797297..3798358	+	353	116253354	-	RL3611	-	putative two-component response regulator transcriptional regulatory protein
3585	 62.99	0	3798644..3800383	-	579	116253355	ilvD	RL3612	-	dihydroxy-acid dehydratase
3586	 62.90	0	3800445..3801878	-	477	116253356	-	RL3613	-	putative aldehyde dehydrogenase
3587	 61.65	0	3801947..3802942	-	331	116253357	-	RL3614	-	hypothetical protein
3588	 59.20	0	3803061..3804266	-	401	116253358	-	RL3615	-	putative transmembrane component of ABC transporter
3589	 57.44	-1	3804263..3805801	-	512	116253359	-	RL3616	-	putative ATP-binding component of ABC transporter protein
3590	 57.93	-1	3805894..3806958	-	354	116253360	-	RL3617	-	putative solute-binding component of ABC transporter
3591	 61.25	0	3807257..3808234	+	325	116253361	-	RL3618	-	LysR family transcriptional regulator
3592	 63.80	0	3808297..3808785	+	162	116253362	-	RL3619	-	hypothetical protein
3593	 60.64	0	3809094..3809972	+	292	116253363	-	RL3620	-	hypothetical protein
3594	 64.54	0	3810296..3810577	-	93	116253364	-	RL3621	-	putative transmembrane protein
3595	 63.24	0	3810859..3811851	+	330	116253365	-	RL3622	-	putative inositol 2-dehydrogenase
3596	 62.99	0	3812017..3813267	-	416	116253366	-	RL3623	-	hypothetical protein
3597	 61.58	0	3813495..3814535	+	346	116253367	-	RL3624	-	putative solute-binding component of ABC transporter
3598	 64.38	0	3814802..3816115	+	437	116253368	-	RL3625	-	putative transmembrane component of ABC transporter
3599	 63.73	0	3816130..3816912	+	260	116253369	-	RL3626	-	putative component of ABC transporter
3600	 61.56	0	3818170..3819540	+	456	116253370	-	RL3627	-	hypothetical protein
3601	 56.92	-1	3820328..3821281	+	317	116253371	-	RL3628	-	putative sugar decarboxylase
3602	 59.21	0	3821313..3822533	+	406	116253372	-	RL3629	-	putative glycosyltransferase
3603	 60.31	0	3822527..3825529	+	1000	116253373	-	RL3630	-	putative glycosyltransferase
3604	 58.57	0	3825537..3826610	+	357	116253374	-	RL3631	-	putative glycosyltransferase
3605	 59.77	0	3826607..3828361	+	584	116253375	-	RL3632	-	putative ATP-binding and permease component of ABC transporter protein
3606	 55.38	-1	3828358..3829482	+	374	116253376	exoU	RL3633	-	putative UDP-hexose transferase
3607	 50.19	-2	3830739..3831005	+	88	116253377	-	RL3634	-	hypothetical protein
3608	 58.63	0	3831407..3831655	-	82	116253378	-	RL3635	-	hypothetical protein
3609	 62.85	0	3831759..3832466	-	235	116253379	-	RL3636	-	putative antibiotic resistance protein
3610	 62.45	0	3832463..3833671	-	402	116253380	-	RL3637	-	hypothetical protein
3611	 60.39	0	3833947..3835794	-	615	116253381	-	RL3638	-	putative peptide antibiotic resistance protein
3612	 54.93	-2	3835804..3836229	-	141	116253382	-	RL3639	-	putative transcriptional regulator
3613	 53.88	-2	3837644..3838081	-	145	116253383	-	RL3641	-	putative transmembrane protein
3614	 55.43	-1	3838212..3839297	+	361	116253384	-	RL3642	-	putative glycosyl hydrolase
3615	 57.55	-1	3839329..3840480	+	383	116253385	-	RL3643	-	putative glycosyl transferase
3616	 57.99	-1	3840480..3840986	+	168	116253386	-	RL3644	-	putative polysaccharide acetyltransferase protein
3617	 56.70	-1	3840983..3841885	+	300	116253387	exoV	RL3645	-	putative succinoglycan biosynthesis protein
3618	 58.21	-1	3841980..3843539	+	519	116253388	-	RL3646	-	putative transmembrane polysaccharide synthesis protein
3619	 57.61	-1	3843572..3844576	+	334	116253389	-	RL3647	-	putative polysaccharide polymerisation protein
3620	 58.52	0	3844616..3845437	+	273	116253390	-	RL3648	-	putative galactosyl transferase
3621	 55.98	-1	3845521..3846465	+	314	116253391	-	RL3649	-	putative glycosyltransferase
3622	 54.08	-2	3846637..3847605	+	322	116253392	-	RL3650	-	putative glycosyltransferase
3623	 54.57	-2	3847688..3848671	+	327	116253393	-	RL3651	-	putative glycosyl transferase
3624	 58.64	0	3848668..3849552	+	294	116253394	-	RL3652	-	putative glycosyl transferase
3625	 57.29	-1	3849549..3850529	+	326	116253395	exoM	RL3653	-	putative succinoglycan biosynthesis protein
3626	 58.17	-1	3850739..3851197	+	152	116253396	-	RL3654	-	putative polysaccharide biosynthesis protein
3627	 55.56	-1	3851194..3851670	+	158	116253397	-	RL3655	-	putative glycosyltransferase
3628	 56.94	-1	3851713..3852483	-	256	116253398	-	RL3656	-	putative lipase
3629	 57.03	-1	3852559..3853866	-	435	116253399	prsE	RL3657	-	HlyD family secretion protein
3630	 58.52	0	3853882..3855648	-	588	116253400	prsD	RL3658	-	putative transmembrane ABC transporter component
3631	 55.41	-1	3856114..3857739	-	541	116253401	-	RL3659	-	hypothetical protein
3632	 58.44	0	3859245..3859949	-	234	116253402	-	RL3661	-	hypothetical protein
3633	 57.18	-1	3859949..3862225	-	758	116253403	exoP	RL3662	-	putative succinoglycan biosynthesis transport protein
3634	 61.20	0	3862277..3862990	-	237	116253404	pssO	RL3663	-	putative polysaccharide transport outer membrane protein
3635	 56.34	-1	3863065..3864333	-	422	116253405	pssN	RL3664	-	putative capsule polysaccharide export protein
3636	 58.67	0	3864565..3865989	-	474	116253406	pssT	RL3665	-	putative polysaccharide export protein
3637	 56.13	-1	3866161..3866862	-	233	116253407	-	RL3666	-	hypothetical protein
3638	 60.57	0	3867167..3868495	+	442	116253408	-	RL3667	-	putative UDP-glucose 6-dehydrogenase
3639	 58.21	-1	3868612..3869403	-	263	116253409	-	RL3668	-	putative serine/threonine protein phosphatase
3640	 57.69	-1	3869404..3869793	-	129	116253410	-	RL3669	-	hypothetical protein
3641	 51.85	-2	3870078..3870320	+	80	116253411	-	RL3670	-	hypothetical protein
3642	 60.89	0	3870425..3871030	-	201	116253412	-	RL3671	-	hypothetical protein
3643	 62.27	0	3871042..3871974	-	310	116253413	-	RL3672	-	hypothetical protein
3644	 60.73	0	3872104..3872811	-	235	116253414	ung	RL3673	-	uracil-DNA glycosylase
3645	 60.96	0	3872979..3875942	+	987	116253415	noeK	RL3674	-	putative phosphomannomutase
3646	 52.43	-2	3876058..3876366	+	102	116253416	-	RL3675	-	hypothetical protein
3647	 55.49	-1	3876404..3877360	-	318	116253417	-	RL3676	-	putative transmembrane exo/endo phosphatase protein
3648	 58.90	0	3877641..3878657	+	338	116253418	lspL	RL3677	-	putative UDP-glucuronate 5'-epimerase
3649	 63.82	0	3878703..3879089	-	128	116253419	-	RL3678	-	hypothetical protein
3650	 63.25	0	3879851..3880552	+	233	116253420	-	RL3679	-	TetR family transcriptional regulator
3651	 64.00	0	3880549..3881562	+	337	116253421	-	RL3680	-	hypothetical protein
3652	 64.55	0	3881559..3883304	+	581	116253422	-	RL3681	-	putative ATP-binding component of ABC transporter
3653	 63.56	0	3883301..3884428	+	375	116253423	-	RL3682	-	putative transmembrane component of ABC transporter
3654	 62.61	0	3884430..3885539	+	369	116253424	-	RL3683	-	putative transmembrane component of ABC transporter
3655	 63.89	0	3885660..3886055	+	131	116253425	-	RL3684	-	putative transmembrane protein
3656	 62.64	0	3886150..3887193	-	347	116253426	-	RL3685	-	GFO/IDH/MocA family oxidoreductase
3657	 61.20	0	3887203..3887988	-	261	116253427	-	RL3686	-	putative transporter component protein
3658	 59.06	0	3888180..3888521	-	113	116253428	-	RL3687	-	putative transmembrane efflux protein
3659	 62.77	0	3888540..3889103	-	187	116253429	-	RL3688	-	TetR family transcriptional regulator
3660	 62.53	0	3889272..3889682	+	136	116253430	-	RL3689	-	putative globin family protein
3661	 65.86	+1	3889679..3890050	+	123	116253431	-	RL3690	-	putative transmembrane protein
3662	 57.46	-1	3890389..3890703	-	104	116253432	-	RL3691	-	hypothetical protein
3663	 60.44	0	3890713..3890985	-	90	116253433	-	RL3692	-	hypothetical protein
3664	 60.54	0	3890982..3891389	-	135	116253434	-	RL3693	-	hypothetical protein
3665	 58.92	0	3892871..3893296	-	141	116253435	-	RL3695	-	hypothetical protein
3666	 54.10	-2	3893471..3893653	+	60	116253436	hmuP	RL3696	-	hemin uptake protein
3667	 60.76	0	3893662..3894711	+	349	116253437	hmuS	RL3697	-	putative haem iron transport component
3668	 66.34	+1	3894723..3895652	+	309	116253438	hmuT	RL3698	-	hemin-binding component of ABC transporter
3669	 66.94	+1	3895655..3896767	+	370	116253439	hmuU	RL3699	-	transmembrane permease component of haem ABC transporter
3670	 64.59	0	3896768..3897586	+	272	116253440	hmuV	RL3700	-	hemin importer ATP-binding subunit
3671	 63.19	0	3897735..3898079	+	114	116253441	-	RL3701	-	putative transmembrane protein
3672	 66.17	+1	3898089..3898490	+	133	116253442	-	RL3702	-	putative transmembrane protein
3673	 61.47	0	3898747..3899304	-	185	116253443	-	RL3703	-	RNA polymerase sigma factor
3674	 55.56	-1	3899314..3899520	-	68	116253444	-	RL3704	-	hypothetical protein
3675	 58.36	0	3899790..3900584	+	264	116253445	-	RL3705	-	two-component response regulator
3676	 59.07	0	3900786..3901772	+	328	116253446	-	RL3706	-	putative two-component regulator sensor histidine kinase transcriptional regulatory protein
3677	 63.00	0	3902180..3903541	+	453	116253447	gltB	RL3707	-	putative oxidoreductase
3678	 63.39	0	3903557..3904870	+	437	116253448	pydA	RL3708	-	dihydropyrimidine dehydrogenase
3679	 64.53	0	3904946..3905926	-	326	116253449	ftrA	RL3709	-	transcriptional activator FtrA
3680	 63.26	0	3906016..3906426	+	136	116253450	-	RL3710	-	putative rhodanese protein
3681	 62.76	0	3906484..3907506	-	340	116253451	-	RL3711	-	putative alcohol dehydrogenase
61.51	MEAN

3.25	STD DEV
