IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

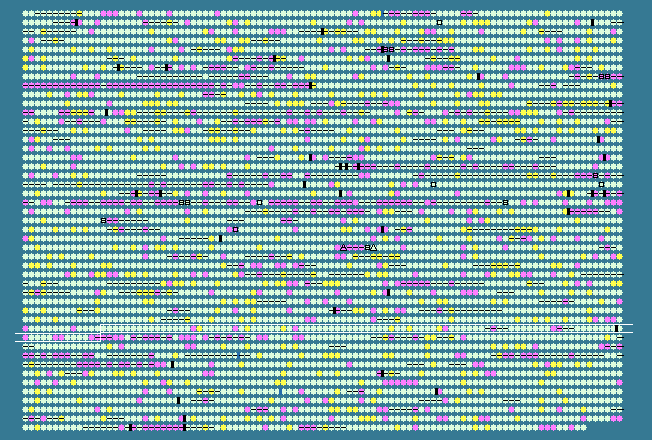

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3514	 62.60	0	3719506..3721152	-	548	116253284	aglA	RL3542	-	putative alpha-glucosidase
3515	 58.51	0	3721439..3723019	+	526	116253285	-	RL3543	-	putative solute-binding component of ABC transporter
3516	 59.42	0	3723068..3723991	+	307	116253286	-	RL3544	-	putative transmembrane component of ABC transporter protein
3517	 62.53	0	3723988..3724905	+	305	116253287	-	RL3545	-	putative transmembrane component of ABC transporter protein
3518	 63.59	0	3724908..3725915	+	335	116253288	-	RL3546	-	putative ATP-binding component of ABC transporter protein
3519	 63.93	0	3725908..3726894	+	328	116253289	-	RL3547	-	putative ATP-binding component of ABC transporter protein
3520	 63.08	0	3727126..3728046	+	306	116253290	kdgK	RL3548	-	putative 2-dehydro-3-deoxygluconokinase
3521	 59.65	0	3728908..3729948	+	346	116253291	glnII	RL3549	-	putative glutamine synthetase II
3522	 63.46	0	3730197..3731381	+	394	116253292	-	RL3550	-	putative glycosylltransferase
3523	 63.51	0	3731388..3732401	-	337	116253293	-	RL3551	-	putative exported lipase/esterase
3524	 60.27	0	3732563..3733000	+	145	116253294	-	RL3552	-	MarR family transcriptional regulator
3525	 64.06	0	3733251..3734672	-	473	116253295	engA	RL3553	-	GTP-binding protein EngA
3526	 63.30	0	3734691..3735374	-	227	116253296	-	RL3554	-	putative transmembrane protein
3527	 59.49	0	3735682..3736266	-	194	116253297	-	RL3555	-	putative transmembrane protein
3528	 61.40	0	3736388..3737374	+	328	116253298	-	RL3556	-	hypothetical protein
3529	 56.56	-1	3737598..3738863	-	421	116253299	bacA	RL3557	-	transport protein
3530	 65.84	+1	3738988..3740202	-	404	116253300	-	RL3558	-	putative transmembrane MFS permease protein
3531	 63.19	0	3740340..3740915	+	191	116253301	-	RL3559	-	PadR family transcriptional regulator
3532	 63.90	0	3740988..3741746	-	252	116253302	map	RL3560	-	methionine aminopeptidase
3533	 64.24	0	3741894..3742964	-	356	116253303	-	RL3561	-	putative luciferase family protein
3534	 61.54	0	3743211..3743678	-	155	116253304	-	RL3562	-	hypothetical protein
3535	 62.06	0	3743780..3745039	-	419	116253305	-	RL3563	-	putative RNA polymerase ECF sigma factor
3536	 57.60	-1	3745036..3745410	-	124	116253306	-	RL3564	-	hypothetical protein
3537	 60.44	0	3745546..3746187	-	213	116253307	-	RL3565	-	sensory box HD domain-containing protein
3538	 66.57	+1	3746297..3747283	+	328	116253308	-	RL3566	-	AraC family transcriptional regulator
3539	 58.18	-1	3747419..3748372	+	317	116253309	-	RL3567	-	hypothetical protein
3540	 63.99	0	3748423..3749916	-	497	116253310	glpK	RL3568	-	putative glycerol kinase
3541	 59.72	0	3750074..3750850	+	258	116253311	bdhA	RL3569	-	putative D-beta-hydroxybutyrate dehydrogenase
3542	 63.46	0	3750878..3752344	+	488	116253312	xdhA	RL3570	-	putative xanthine dehydrogenase
3543	 63.21	0	3752559..3754898	+	779	116253313	xdhB	RL3571	-	putative xanthine dehydrogenase
3544	 66.18	+1	3755195..3756010	+	271	116253314	xdhC	RL3572	-	putative xanthine dehydrogenase cofactor insertion
3545	 63.88	0	3756279..3757175	+	298	116253315	-	RL3573	-	LysR family transcriptional regulator
3546	 56.64	-1	3757263..3757601	-	112	116253316	-	RL3573A	-	hypothetical protein
3547	 62.73	0	3757759..3758139	-	126	116253317	-	RL3574	-	hypothetical protein
3548	 59.05	0	3758233..3758547	-	104	116253318	-	RL3575	-	hypothetical protein
3549	 60.13	0	3758661..3759899	+	412	116253319	-	RL3576	-	putative transmembrane protein
3550	 61.86	0	3759896..3761206	+	436	116253320	guaD	RL3577	-	guanine deaminase
3551	 63.17	0	3761330..3762472	+	380	116253321	lldD	RL3578	-	putative L-lactate dehydrogenase
3552	 63.56	0	3762603..3763760	+	385	116253322	-	RL3579	-	putative phage-related protein
3553	 60.96	0	3763765..3764412	+	215	116253323	-	RL3580	-	putative transmembrane protein
3554	 62.21	0	3764409..3766112	+	567	116253324	-	RL3581	-	hypothetical protein
3555	 61.13	0	3766248..3766988	-	246	116253325	-	RL3582	-	putative DNA repair protein
3556	 59.94	0	3766992..3767348	-	118	116253326	-	RL3583	-	putative purine catabolism protein
3557	 61.79	0	3767345..3767857	-	170	116253327	allA	RL3584	-	ureidoglycolate hydrolase
3558	 60.61	0	3767850..3768212	-	120	116253328	-	RL3585	-	hypothetical protein
3559	 64.06	0	3768209..3768706	-	165	116253329	-	RL3586	-	putative uricase
3560	 60.61	0	3768709..3769632	-	307	116253330	-	RL3587	-	putative polysaccharide deacetylase family protein
3561	 58.90	0	3769748..3770455	-	235	116253331	-	RL3588	-	hypothetical protein
3562	 65.56	+1	3770570..3771748	-	392	116253332	goxB	RL3589	-	putative glycine oxidase
3563	 64.16	0	3771747..3772505	+	252	116253333	-	RL3590	-	hypothetical protein
3564	 62.82	0	3772520..3775876	-	1118	116253334	-	RL3591	-	putative two-component sensor histidine kinase transcriptional regulatory protein
3565	 65.37	+1	3776197..3776505	+	102	116253335	-	RL3592	-	hypothetical protein
3566	 59.52	0	3776631..3778016	-	461	116253336	-	RL3593	-	putative transmembrane transporter
3567	 59.28	0	3778204..3779151	-	315	116253337	dapA	RL3594	-	putative dihydrodipicolinate synthase
3568	 60.16	0	3779313..3780341	+	342	116253338	-	RL3595	-	putative HTH-type transcriptional regulator
3569	 62.72	0	3780494..3781609	+	371	116253339	-	RL3596	-	hypothetical protein
3570	 65.22	+1	3781859..3783589	+	576	116253340	-	RL3597	-	putative DEAD box ATP-dependent RNA helicase protein
3571	 57.88	-1	3783966..3785285	-	439	116253341	-	RL3598	-	putative two-component sensor histidine kinase transcriptional regulatory protein
3572	 58.84	0	3785327..3786220	-	297	116253342	-	RL3599	-	putative two-component response regulator transcriptional regulatory protein
3573	 59.47	0	3786660..3787562	+	300	116253343	-	RL3600	-	putative transmembrane fatty acid synthesis protein
3574	 60.20	0	3787600..3787893	+	97	116253344	-	RL3601	-	hypothetical protein
3575	 61.74	0	3787898..3789196	+	432	116253345	-	RL3602	-	putative efflux RND transporter protein
3576	 58.59	0	3789193..3790356	+	387	116253346	-	RL3603	-	putative transmembrane transporter
3577	 63.57	0	3790791..3791081	-	96	116253347	-	RL3604	-	hypothetical protein
3578	 61.76	0	3791196..3791888	+	230	116253348	-	RL3605	-	putative transmembrane protein
3579	 53.14	-2	3791942..3792148	-	68	116253349	-	RL3606	-	hypothetical protein
3580	 64.77	+1	3792373..3793269	-	298	116253350	-	RL3607	-	putative transmembrane protein
3581	 59.25	0	3793679..3795148	+	489	116253351	-	RL3608	-	hypothetical protein
3582	 59.77	0	3795148..3796089	+	313	116253352	-	RL3609	-	hypothetical protein
3583	 62.79	0	3796102..3796926	+	274	116253353	-	RL3610	-	hypothetical protein
3584	 62.90	0	3797297..3798358	+	353	116253354	-	RL3611	-	putative two-component response regulator transcriptional regulatory protein
3585	 62.99	0	3798644..3800383	-	579	116253355	ilvD	RL3612	-	dihydroxy-acid dehydratase
3586	 62.90	0	3800445..3801878	-	477	116253356	-	RL3613	-	putative aldehyde dehydrogenase
3587	 61.65	0	3801947..3802942	-	331	116253357	-	RL3614	-	hypothetical protein
3588	 59.20	0	3803061..3804266	-	401	116253358	-	RL3615	-	putative transmembrane component of ABC transporter
3589	 57.44	-1	3804263..3805801	-	512	116253359	-	RL3616	-	putative ATP-binding component of ABC transporter protein
3590	 57.93	-1	3805894..3806958	-	354	116253360	-	RL3617	-	putative solute-binding component of ABC transporter
3591	 61.25	0	3807257..3808234	+	325	116253361	-	RL3618	-	LysR family transcriptional regulator
3592	 63.80	0	3808297..3808785	+	162	116253362	-	RL3619	-	hypothetical protein
3593	 60.64	0	3809094..3809972	+	292	116253363	-	RL3620	-	hypothetical protein
3594	 64.54	0	3810296..3810577	-	93	116253364	-	RL3621	-	putative transmembrane protein
3595	 63.24	0	3810859..3811851	+	330	116253365	-	RL3622	-	putative inositol 2-dehydrogenase
3596	 62.99	0	3812017..3813267	-	416	116253366	-	RL3623	-	hypothetical protein
3597	 61.58	0	3813495..3814535	+	346	116253367	-	RL3624	-	putative solute-binding component of ABC transporter
3598	 64.38	0	3814802..3816115	+	437	116253368	-	RL3625	-	putative transmembrane component of ABC transporter
3599	 63.73	0	3816130..3816912	+	260	116253369	-	RL3626	-	putative component of ABC transporter
3600	 61.56	0	3818170..3819540	+	456	116253370	-	RL3627	-	hypothetical protein
3601	 56.92	-1	3820328..3821281	+	317	116253371	-	RL3628	-	putative sugar decarboxylase
3602	 59.21	0	3821313..3822533	+	406	116253372	-	RL3629	-	putative glycosyltransferase
3603	 60.31	0	3822527..3825529	+	1000	116253373	-	RL3630	-	putative glycosyltransferase
3604	 58.57	0	3825537..3826610	+	357	116253374	-	RL3631	-	putative glycosyltransferase
3605	 59.77	0	3826607..3828361	+	584	116253375	-	RL3632	-	putative ATP-binding and permease component of ABC transporter protein
3606	 55.38	-1	3828358..3829482	+	374	116253376	exoU	RL3633	-	putative UDP-hexose transferase
3607	 50.19	-2	3830739..3831005	+	88	116253377	-	RL3634	-	hypothetical protein
3608	 58.63	0	3831407..3831655	-	82	116253378	-	RL3635	-	hypothetical protein
3609	 62.85	0	3831759..3832466	-	235	116253379	-	RL3636	-	putative antibiotic resistance protein
3610	 62.45	0	3832463..3833671	-	402	116253380	-	RL3637	-	hypothetical protein
3611	 60.39	0	3833947..3835794	-	615	116253381	-	RL3638	-	putative peptide antibiotic resistance protein
3612	 54.93	-2	3835804..3836229	-	141	116253382	-	RL3639	-	putative transcriptional regulator
3613	 53.88	-2	3837644..3838081	-	145	116253383	-	RL3641	-	putative transmembrane protein
61.51	MEAN

3.25	STD DEV
