IslandPathversion 1.0

IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

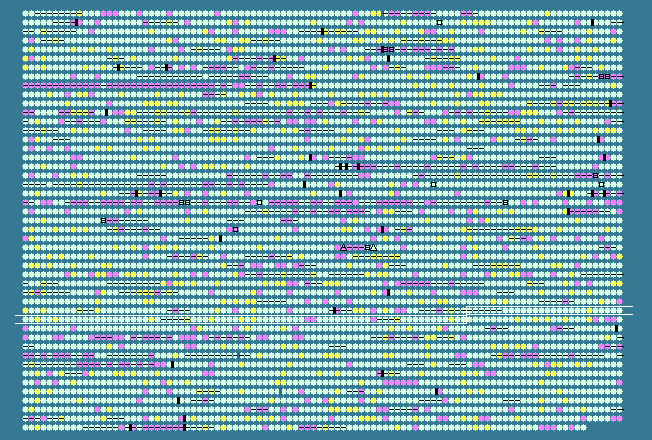

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3375	 60.92	0	3571006..3571353	-	115	116253145	-	RL3403	-	hypothetical protein
3376	 62.14	0	3571363..3572400	-	345	116253146	tdh	RL3404	-	L-threonine 3-dehydrogenase
3377	 62.04	0	3572590..3573777	-	395	116253147	kbl	RL3405	-	2-amino-3-ketobutyrate coenzyme A ligase
3378	 60.91	0	3573843..3574571	-	242	116253148	-	RL3406	-	putative biotin synthesis protein
3379	 64.58	0	3574641..3576509	-	622	116253149	recQ	RL3407	-	putative ATP-dependent DNA helicase RecQ
3380	 63.93	0	3576509..3578518	-	669	116253150	dnaG	RL3408	-	DNA primase
3381	 61.62	0	3579189..3580079	+	296	116253151	-	RL3409	-	hypothetical protein
3382	 60.75	0	3580083..3580538	-	151	116253152	-	RL3410	-	putative GatB/Yqey family protein
3383	 62.94	0	3580808..3582013	+	401	161501792	carA	RL3411	-	carbamoyl phosphate synthase small subunit
3384	 58.88	0	3582288..3582608	+	106	116253154	-	RL3412	-	hypothetical protein
3385	 63.96	0	3582626..3584029	-	467	116253155	norM	RL3413	-	putative multidrug resistance protein NorM (Na(+)/drug antiporter) (multidrug-efflux transporter)
3386	 64.66	0	3584172..3585416	-	414	116253156	tetA	RL3414	-	putative tetracycline resistance protein
3387	 64.96	+1	3585812..3586807	+	331	116253157	-	RL3415	-	putative oxidoreductase
3388	 61.78	0	3587106..3588026	-	306	116253158	-	RL3416	-	putative transmembrane protease protein
3389	 63.01	0	3588103..3588594	-	163	116253159	-	RL3417	-	putative transmembrane protein
3390	 63.06	0	3588681..3589457	+	258	116253160	-	RL3418	-	hypothetical protein
3391	 63.54	0	3589727..3593215	+	1162	116253161	carB	RL3419	-	carbamoyl phosphate synthase large subunit
3392	 62.68	0	3593271..3594725	-	484	116253162	-	RL3420	-	putative helicase/glycosylase
3393	 60.26	0	3594725..3595957	-	410	116253163	-	RL3421	-	hypothetical protein
3394	 61.64	0	3596211..3596687	+	158	116253164	greA	RL3422	-	transcription elongation factor GreA
3395	 65.63	+1	3596715..3597773	+	352	116253165	-	RL3423	-	putative lipopolysaccharide core biosynthesis protein
3396	 61.57	0	3597988..3599322	-	444	116253166	dctA	RL3424	-	C4-dicarboxylate transporter DctA
3397	 63.14	0	3599547..3601415	+	622	116253167	dctB	RL3425	-	putative C4-dicarboxylate transport two-component sensor histidine kinase transcriptional regulatory protein
3398	 63.03	0	3601420..3602766	+	448	116253168	dctD	RL3426	-	putative C4-dicarboxylate transport two-component response regulator sigma 54 transcriptional regulatory protein
3399	 62.39	0	3602798..3603265	-	155	116253169	-	RL3427	-	AsnC family transcriptional regulator
3400	 61.74	0	3603496..3604470	+	324	116253170	trxB	RL3428	-	putative thioredoxin reductase
3401	 60.75	0	3604478..3605389	+	303	116253171	-	RL3429	-	LysR family transcriptional regulator
3402	 58.84	0	3605944..3606237	+	97	116253172	-	RL3430	-	ArsR family transcriptional regulator
3403	 65.47	+1	3606239..3607405	+	388	116253173	-	RL3431	-	MFS family transporter
3404	 61.87	0	3607431..3608555	+	374	116253174	-	RL3432	-	putative glycerol trinitrate reductase
3405	 63.17	0	3608631..3609431	+	266	116253175	str	RL3433	-	putative streptomycin 3''-kinase
3406	 65.98	+1	3609428..3610450	-	340	116253176	-	RL3434	-	hypothetical protein
3407	 63.86	0	3610545..3611471	+	308	116253177	-	RL3435	-	LysR family transcriptional regulator
3408	 59.30	0	3611449..3611964	+	171	116253178	-	RL3436	-	hypothetical protein
3409	 62.85	0	3611961..3612248	-	95	116253179	-	RL3437	-	hypothetical protein
3410	 62.11	0	3612480..3613577	+	365	116253180	-	RL3438	-	putative transmembrane cation transporter
3411	 60.00	0	3613688..3614557	-	289	116253181	lpcB	RL3439	-	putative CMP KDO transferase
3412	 61.60	0	3614604..3615590	-	328	116253182	gspA	RL3440	-	putative general stress protein A
3413	 59.43	0	3615691..3616077	-	128	116253183	-	RL3441	-	hypothetical protein
3414	 58.24	-1	3616080..3616340	-	86	116253184	-	RL3442	-	hypothetical protein
3415	 60.76	0	3616441..3617643	-	400	116253185	-	RL3443	-	aspartate aminotransferase
3416	 63.49	0	3618022..3620415	+	797	116253186	-	RL3444	-	putative transmembrane protein
3417	 63.51	0	3620483..3621178	+	231	116253187	-	RL3445	-	putative transmembrane sortase-like protein
3418	 63.69	0	3621239..3622381	+	380	116253188	-	RL3446	-	putative quinoprotein glucose dehydrogenase-B
3419	 61.15	0	3622386..3622856	-	156	116253189	-	RL3447	-	hypothetical protein
3420	 62.74	0	3622955..3623845	+	296	116253190	-	RL3448	-	MFS family transporter
3421	 58.80	0	3624333..3624548	+	71	116253191	cspA	RL3449	-	putative cold shock protein
3422	 65.13	+1	3624690..3625145	+	151	116253192	-	RL3450	-	putative transmembrane protein
3423	 64.99	+1	3625215..3626108	-	297	116253193	-	RL3451	-	putative short-chain dehydrogenase/reductase
3424	 61.94	0	3626221..3626601	+	126	116253194	-	RL3452	-	hypothetical protein
3425	 61.29	0	3626598..3627974	-	458	116253195	-	RL3453	-	putative two-component sensor histidine kinase transcriptional regulatory protein
3426	 62.82	0	3627999..3628700	-	233	116253196	-	RL3454	-	putative two-component response regulator transcriptional regulatory protein
3427	 58.22	-1	3628701..3629138	-	145	116253197	-	RL3455	-	MarR family transcriptional regulator
3428	 65.19	+1	3629756..3630025	-	89	116253198	-	RL3456	-	putative transmembrane protein
3429	 63.32	0	3630209..3630925	-	238	116253199	-	RL3457	-	hypothetical protein
3430	 61.24	0	3631114..3631758	+	214	116253200	-	RL3458	-	putative beta-lactamase family protein
3431	 59.94	0	3631796..3632137	-	113	116253201	csaA	RL3459	-	putative chaperone protein
3432	 66.43	+1	3632148..3632975	-	275	116253202	proC	RL3460	-	pyrroline-5-carboxylate reductase
3433	 58.68	0	3632977..3633477	-	166	116253203	-	RL3461	-	hypothetical protein
3434	 62.50	0	3633825..3634184	+	119	116253204	-	RL3462	-	hypothetical protein
3435	 63.00	0	3634359..3635177	+	272	116253205	lgt	RL3463	-	prolipoprotein diacylglyceryl transferase
3436	 64.40	0	3635196..3636296	+	366	116253206	-	RL3464	-	hypothetical protein
3437	 65.91	+1	3636408..3637202	+	264	116253207	-	RL3465	-	hypothetical protein
3438	 63.54	0	3637208..3638359	+	383	116253208	-	RL3466	-	putative Xaa-Pro dipeptidase
3439	 68.25	+2	3638451..3639272	+	273	116253209	-	RL3467	-	hypothetical protein
3440	 60.24	0	3639378..3640310	+	310	116253210	prs	RL3468	-	ribose-phosphate pyrophosphokinase
3441	 58.89	0	3640531..3642150	-	539	116253211	-	RL3469	-	hypothetical protein
3442	 61.87	0	3642184..3644268	-	694	116253212	-	RL3470	-	putative GGDEF/EAL transmembrane sensory box protein
3443	 58.46	0	3644565..3645173	+	202	116253213	-	RL3471	-	50S ribosomal protein L25/general stress protein Ctc
3444	 60.84	0	3645358..3647709	+	783	116253214	-	RL3472	-	putative GGDEF/EAL transmembrane sensory box protein
3445	 60.17	0	3647726..3648448	+	240	116253215	-	RL3473	-	putative solute-binding component of ABC transporter
3446	 62.43	0	3648639..3649370	+	243	116253216	pth	RL3474	-	peptidyl-tRNA hydrolase
3447	 62.12	0	3649367..3649828	+	153	116253217	-	RL3475	-	putative acetyltransferase
3448	 55.45	-1	3649860..3650171	-	103	116253218	clpS	RL3476	-	ATP-dependent Clp protease adaptor
3449	 55.64	-1	3650267..3650665	-	132	116253219	-	RL3477	-	hypothetical protein
3450	 58.06	-1	3650655..3650933	-	92	116253220	-	RL3478	-	hypothetical protein
3451	 62.19	0	3651075..3652190	+	371	116253221	-	RL3479	-	translation-associated GTPase
3452	 63.70	0	3652359..3653471	-	370	116253222	-	RL3480	-	putative transmembrane protein
3453	 62.60	0	3653553..3654044	+	163	116253223	-	RL3481	-	putative MaoC family protein
3454	 61.97	0	3654061..3654528	+	155	116253224	-	RL3482	-	putative MaoC family protein
3455	 63.90	0	3654553..3655095	-	180	116253225	apt	RL3483	-	adenine phosphoribosyltransferase
3456	 61.24	0	3655211..3656095	-	294	116253226	petC	RL3484	-	putative cytochrome c1 precursor
3457	 59.26	0	3656121..3657389	-	422	116253227	petB	RL3485	-	putative cytochrome b
3458	 60.71	0	3657404..3657991	-	195	116253228	petA	RL3486	-	putative ubiquinol-cytochrome c reductase iron-sulfur subunit
3459	 57.88	-1	3658266..3659198	+	310	116253229	-	RL3487	-	putative transmembrane exo/endo phosphatase family protein
3460	 62.33	0	3659154..3661067	-	637	116253230	-	RL3488	-	putative ATP-binding component of ABC transporter
3461	 61.56	0	3661167..3661460	+	97	116253231	-	RL3489	-	hypothetical protein
3462	 62.04	0	3661573..3663429	-	618	116253232	-	RL3490	-	putative ATP-binding component of ABC transporter
3463	 65.15	+1	3663815..3664276	+	153	116253233	-	RL3491	-	putative aminotransferase/methyltransferase
3464	 63.75	0	3664492..3666138	+	548	116253234	-	RL3492	-	putative transmembrane transporter
3465	 59.39	0	3666142..3666402	-	86	116253235	-	RL3493	-	hypothetical protein
3466	 61.62	0	3666581..3667492	+	303	116253236	hemF	RL3494	-	coproporphyrinogen III oxidase
3467	 58.75	0	3667563..3667865	+	100	116253237	-	RL3495	-	hypothetical protein
3468	 64.11	0	3668166..3669419	-	417	116253238	papS	RL3496	-	putative poly(A) polymerase
3469	 62.52	0	3669416..3670066	-	216	116253239	-	RL3497	-	putative NUDIX/MutT family protein
3470	 61.38	0	3670063..3670686	-	207	116253240	-	RL3498	-	hypothetical protein
3471	 64.89	+1	3670845..3671855	+	336	116253241	-	RL3499	-	hypothetical protein
3472	 66.56	+1	3671869..3672789	+	306	116253242	-	RL3500	-	hypothetical protein
3473	 64.32	0	3672786..3675599	+	937	116253243	-	RL3501	-	putative transmembrane protein
3474	 64.35	0	3675601..3677670	+	689	116253244	-	RL3502	-	putative transmembrane protein
61.51	MEAN

3.25	STD DEV
