IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

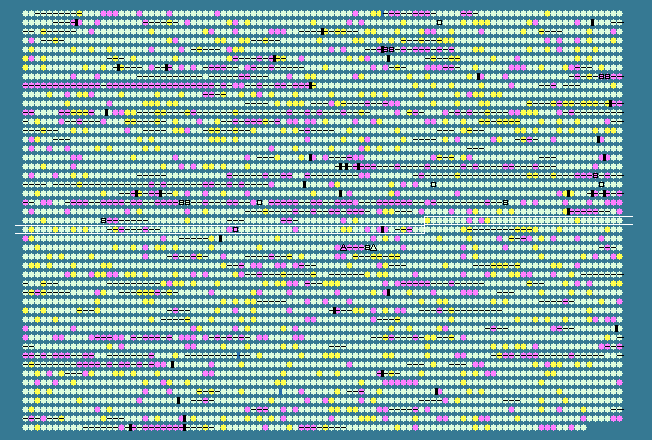

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2368	 66.19	+1	2507724..2509829	-	701	116252136	recG	RL2384	-	putative ATP-dependent DNA helicase
2369	 62.42	0	2509922..2510227	+	101	116252137	-	RL2385	-	hypothetical protein
2370	 64.47	0	2510224..2513724	+	1166	116252138	mfd	RL2386	-	putative transcription-repair coupling factor
2371	 62.18	0	2513789..2514256	+	155	116252139	-	RL2387	-	hypothetical protein
2372	 63.24	0	2514274..2514945	-	223	116252140	-	RL2388	-	Dsb family thioredoxin protein
2373	 61.51	0	2515012..2516814	-	600	116252141	-	RL2389	-	hypothetical protein
2374	 62.01	0	2517131..2517796	+	221	116252142	-	RL2390	-	putative invasion-associated protein
2375	 54.55	-2	2517910..2518239	-	109	116252143	-	RL2391	-	hypothetical protein
2376	 59.29	0	2518499..2519908	-	469	116252144	glnA	RL2392	-	putative glutamine synthetase I
2377	 57.82	-1	2519987..2520325	-	112	116252145	glnB	RL2393	-	putative nitrogen regulatory protein p-II
2378	 67.41	+1	2520669..2522141	+	490	116252146	-	RL2394	-	putative carbohydrate kinase protein
2379	 61.36	0	2522455..2523471	+	338	116252147	-	RL2395	-	putative transmembrane protein
2380	 60.84	0	2523502..2524308	-	268	116252148	-	RL2396	-	hypothetical protein
2381	 63.64	0	2524333..2524794	-	153	116252149	-	RL2397	-	putative acetyltransferase
2382	 62.97	0	2524791..2527712	-	973	116252150	uvrA	RL2398	-	excinuclease ABC subunit A
2383	 62.94	0	2527975..2528484	+	169	116252151	ssb	RL2399	-	single-strand DNA-binding protein
2384	 64.66	0	2528609..2529256	-	215	116252152	-	RL2400	-	MarC family transmembrane protein
2385	 63.32	0	2529493..2532330	+	945	116252153	gyrA	RL2401	-	DNA gyrase subunit A
2386	 60.97	0	2532975..2533553	-	192	116252154	-	RL2402	-	hypothetical protein
2387	 62.63	0	2533660..2534154	+	164	116252155	coaD	RL2403	-	phosphopantetheine adenylyltransferase
2388	 58.46	0	2534197..2534769	+	190	116252156	-	RL2404	-	putative peptidyl-prolyl cis-trans isomerase (cyclophilin)
2389	 60.59	0	2534799..2535308	+	169	116252157	-	RL2405	-	putative peptidyl-prolyl cis-trans isomerase B (cyclophilin-related protein)
2390	 64.55	0	2535384..2536469	+	361	116252158	queA	RL2406	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2391	 63.04	0	2536466..2537596	+	376	116252159	tgt	RL2407	-	queuine tRNA-ribosyltransferase
2392	 61.31	0	2537628..2538056	-	142	116252160	-	RL2408	-	hypothetical protein
2393	 66.90	+1	2538138..2539403	-	421	116252161	fabF	RL2409	-	3-oxoacyl-(acyl carrier protein) synthase II
2394	 62.13	0	2539417..2539923	-	168	116252162	-	RL2410	-	putative transcriptional regulatory protein
2395	 61.39	0	2540002..2540304	-	100	116252163	-	RL2411	-	putative transmembrane protein
2396	 58.83	0	2540434..2542296	-	620	116252164	-	RL2412	-	putative calcium binding protein
2397	 60.60	0	2542554..2544926	+	790	116252165	-	RL2413	-	putative glycosidase
2398	 59.82	0	2544941..2545159	-	72	116252166	-	RL2414	-	hypothetical protein
2399	 62.05	0	2545282..2545584	-	100	116252167	-	RL2415	-	hypothetical protein
2400	 59.60	0	2545741..2546136	+	131	116252168	-	RL2416	-	hypothetical protein
2401	 62.94	0	2546357..2547187	+	276	116252169	-	RL2417	-	hypothetical protein
2402	 66.83	+1	2547184..2548410	+	408	116252170	-	RL2418	-	putative solute-binding component of ABC transporter
2403	 60.93	0	2548403..2549326	+	307	116252171	-	RL2419	-	putative transmembrane component of ABC transporter
2404	 61.77	0	2549323..2550159	+	278	116252172	-	RL2420	-	putative transmembrane component of ABC transporter
2405	 62.16	0	2550186..2551451	+	421	116252173	-	RL2421	-	putative solute-binding component of ABC transporter
2406	 67.48	+1	2551523..2552503	-	326	116252174	-	RL2422	-	putative HTH-type transcriptional regulator
2407	 61.49	0	2552733..2555651	+	972	116252175	-	RL2423	-	peptidase/protease
2408	 63.29	0	2555666..2556346	-	226	116252176	-	RL2424	-	putative acetyltransferase
2409	 65.04	+1	2556343..2556834	-	163	116252177	-	RL2425	-	MarR family transcriptional regulator
2410	 64.20	0	2556951..2558126	-	391	116252178	-	RL2426	-	putative transmembrane protein
2411	 65.79	+1	2558360..2559271	+	303	116252179	-	RL2427	-	putative arginase family protein
2412	 59.24	0	2559323..2559982	-	219	116252180	-	RL2428	-	putative transmembrane protein
2413	 62.82	0	2560142..2561650	+	502	116252181	cya	RL2429	-	putative adenylate cyclase
2414	 59.42	0	2561677..2562297	-	206	116252182	-	RL2430	-	hypothetical protein
2415	 62.42	0	2562488..2562817	-	109	116252183	-	RL2430A	-	hypothetical protein
2416	 66.67	+1	2563080..2563538	-	152	116252184	-	RL2431	-	hypothetical protein
2417	 55.21	-1	2563594..2563881	-	95	116252185	-	RL2432	-	hypothetical protein
2418	 59.17	0	2563904..2564383	-	159	116252186	copC	RL2433	-	putative copper oxidase
2419	 61.17	0	2564416..2565762	-	448	116252187	copA	RL2434	-	putative copper-containing oxidase subunit
2420	 61.55	0	2565776..2567242	-	488	116252188	-	RL2435	-	putative efflux protein
2421	 58.00	-1	2567560..2568009	-	149	116252189	-	RL2436	-	putative transmembrane protein
2422	 61.53	0	2568043..2568645	-	200	116252190	-	RL2437	-	putative transmembrane cytochrome b562
2423	 62.75	0	2568734..2569090	-	118	116252191	-	RL2438	-	hypothetical protein
2424	 62.11	0	2569561..2570241	-	226	116252192	-	RL2440	-	putative peroxiredoxin
2425	 63.38	0	2570316..2573570	-	1084	116252193	-	RL2441	-	putative adenylate cyclase
2426	 60.87	0	2573933..2575639	-	568	116252194	ilvI	RL2442	-	putative acetolactate synthase
2427	 60.13	0	2575931..2576833	-	300	116252195	-	RL2443	-	LysR family transcriptional regulator
2428	 62.47	0	2576941..2577750	+	269	116252196	-	RL2444	-	hypothetical protein
2429	 61.18	0	2577900..2579174	+	424	116252197	-	RL2445	-	MFS family sugar transporter
2430	 61.40	0	2579267..2582914	+	1215	116252198	hyuA	RL2446	-	putative hydantoin utilization protein A
2431	 61.11	0	2582932..2583975	-	347	116252199	-	RL2447	-	LacI family transcriptional regulator
2432	 60.33	0	2584365..2585327	+	320	116252200	-	RL2448	-	putative solute-binding component of ABC transporter
2433	 60.77	0	2585407..2586948	+	513	116252201	-	RL2449	-	putative ATP-binding component of ABC transporter
2434	 59.84	0	2586989..2588014	+	341	116252202	-	RL2450	-	putative transmembrane component of ABC transporter
2435	 56.55	-1	2588804..2589574	+	256	116252203	-	RL2452	-	hypothetical protein
2436	 56.92	-1	2589674..2590648	-	324	116252204	-	RL2453	-	putative transposase-related protein
2437	 59.37	0	2590998..2593148	-	716	116252205	-	RL2454	-	putative transmembrane transporter
2438	 61.71	0	2593270..2594580	-	436	116252206	-	RL2455	-	putative epoxide hydrolase
2439	 62.61	0	2594648..2595091	-	147	116252207	-	RL2456	-	putative dioxygenase
2440	 58.81	0	2595394..2596347	+	317	116252208	-	RL2457	-	putative hydrolase
2441	 62.49	0	2596360..2597244	-	294	116252209	-	RL2458	-	LysR family transcriptional regulator
2442	 60.38	0	2597405..2598088	-	227	116252210	-	RL2459	-	putative transmembrane protein
2443	 63.64	0	2598209..2599165	-	318	116252211	-	RL2460	-	hypothetical protein
2444	 62.01	0	2599153..2599860	-	235	116252212	-	RL2461	-	putative kinase inhibitor
2445	 64.10	0	2599972..2600751	-	259	116252213	-	RL2462	-	hypothetical protein
2446	 55.24	-1	2601053..2601577	+	174	116252214	-	RL2463	-	hypothetical protein
2447	 58.59	0	2602753..2604015	+	420	116252215	-	RL2463B	-	putative transmembrane protein
2448	 63.91	0	2604012..2604446	+	144	116252216	-	RL2467	-	hypothetical protein
2449	 62.04	0	2605450..2606076	+	208	116252217	-	RL2470	-	TerC family transmembrane efflux protein
2450	 59.83	0	2606426..2607244	-	272	116252218	-	RL2471	-	hypothetical protein
2451	 62.58	0	2607249..2608031	-	260	116252219	-	RL2472	-	putative DNAse
2452	 62.15	0	2608036..2609586	-	516	116252220	metG	RL2473	-	methionyl-tRNA synthetase
2453	 64.13	0	2609821..2610609	+	262	116252221	-	RL2474	-	putative transmembrane protein
2454	 65.30	+1	2610649..2611674	-	341	116252222	holB	RL2475	-	DNA polymerase III subunit delta'
2455	 65.64	+1	2611683..2612363	-	226	116252223	tmk	RL2476	-	putative thymidylate kinase (dTMP kinase)
2456	 63.99	0	2612494..2613687	-	397	116252224	dacF	RL2477	-	putative penicillin-binding protein
2457	 62.69	0	2613759..2614865	-	368	116252225	-	RL2478	-	putative outer membrane protein
2458	 54.22	-2	2615225..2615473	+	82	116252226	-	RL2479	-	hypothetical protein
2459	 60.24	0	2615574..2615900	-	108	116252227	-	RL2480	-	hypothetical protein
2460	 56.04	-1	2616115..2617290	+	391	116252228	-	RL2481	-	GGDEF family sensory box protein
2461	 55.87	-1	2617724..2618038	-	104	116252229	-	RL2482	-	hypothetical protein
2462	 62.81	0	2618551..2619276	+	241	116252230	-	RL2483	-	hypothetical protein
2463	 64.77	+1	2619621..2621045	-	474	116252231	-	RL2485	-	putative transmembrane transport protein
2464	 67.89	+1	2621189..2622085	+	298	116252232	-	RL2486	-	LysR family transcriptional regulator
2465	 54.65	-2	2622149..2622406	+	85	116252233	-	RL2487	-	putative alkylphosphonate uptake related protein
2466	 62.20	0	2622473..2623300	-	275	116252234	-	RL2488	-	hypothetical protein
2467	 61.28	0	2623439..2624311	-	290	116252235	-	RL2489	-	hypothetical protein
61.51	MEAN

3.25	STD DEV
