IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

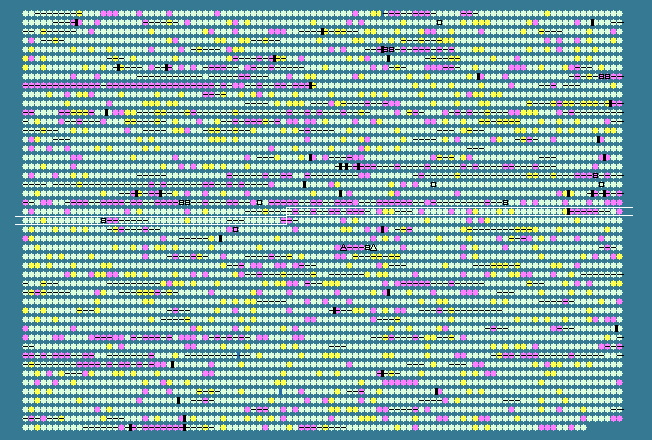

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2245	 64.12	0	2376790..2378241	+	483	116252013	glnG	RL2257	-	two component response regulator nitrogen regulation protein NR(I)
2246	 55.56	-1	2378446..2378625	-	59	116252014	-	RL2258	-	hypothetical protein
2247	 61.22	0	2378661..2379449	-	262	116252015	-	RL2259	-	hypothetical protein
2248	 64.32	0	2379689..2379901	-	70	116252016	-	RL2260	-	hypothetical protein
2249	 57.53	-1	2379898..2380707	-	269	116252017	-	RL2261	-	hypothetical protein
2250	 60.63	0	2380866..2382704	-	612	116252018	cya3	RL2262	-	putative adenylate cyclase
2251	 63.43	0	2382965..2383396	-	143	116252019	-	RL2263	-	putative transmembrane protein
2252	 57.84	-1	2383440..2385638	-	732	116252020	-	RL2264	-	putative arylsulfatase
2253	 57.46	-1	2386321..2386635	-	104	116252021	-	RL2265	-	hypothetical protein
2254	 62.89	0	2386889..2387842	-	317	116252022	-	RL2266	-	hypothetical protein
2255	 56.96	-1	2388299..2389957	+	552	116252023	-	RL2267	-	putative arylsulfatase
2256	 57.38	-1	2390165..2390401	+	78	116252024	-	RL2268	-	putative transmembrane protein
2257	 56.31	-1	2390739..2391626	-	295	116252025	-	RL2269	-	hypothetical protein
2258	 63.94	0	2391887..2392582	+	231	116252026	-	RL2270	-	putative nodulin-related transmembrane protein
2259	 58.28	0	2392627..2393079	-	150	116252027	-	RL2271	-	hypothetical protein
2260	 55.56	-1	2393076..2393534	-	152	116252028	-	RL2272	-	hypothetical protein
2261	 65.47	+1	2393581..2394501	-	306	116252029	apbE	RL2273	-	putative thiamine biosynthesis protein
2262	 65.08	+1	2394503..2396701	-	732	116252030	-	RL2274	-	putative NAD binding flavoprotein
2263	 60.59	0	2396720..2397196	-	158	116252031	-	RL2275	-	hypothetical protein
2264	 62.89	0	2397222..2397857	-	211	116252032	-	RL2276	-	putative transmembrane protein
2265	 60.76	0	2397998..2398657	+	219	116252033	-	RL2277	-	putative two-component response regulator transcriptional regulatory protein
2266	 61.49	0	2398654..2400024	+	456	116252034	-	RL2278	-	putative two-component sensor histidine kinase transcriptional regulatory protein
2267	 56.41	-1	2399984..2400490	+	168	116252035	-	RL2279	-	hypothetical protein
2268	 60.04	0	2401066..2402061	+	331	116252036	-	RL2280	-	putative aldo-keto oxidoreductase
2269	 64.55	0	2402293..2404563	+	756	116252037	ntrY	RL2281	-	two component regulator response regulator putative nitrogen regulation protein
2270	 63.96	0	2404553..2405917	+	454	116252038	ntrX	RL2282	-	putative two component response regulator nitrogen assimilation regulatory protein
2271	 62.04	0	2405983..2406846	+	287	116252039	-	RL2283	-	D-amino acid aminotransferase
2272	 48.97	-2	2406959..2407201	+	80	116252040	hfq	RL2284	-	RNA-binding protein Hfq
2273	 64.71	0	2407279..2408604	+	441	116252041	hflX	RL2285	-	putative GTP-binding protein
2274	 62.14	0	2408830..2409669	-	279	116252042	mazG	RL2286	-	nucleoside triphosphate pyrophosphohydrolase
2275	 57.82	-1	2409720..2410307	-	195	116252043	-	RL2287	-	putative guanine/cytosine deaminase
2276	 65.35	+1	2410570..2412012	+	480	116252044	cysG2	RL2288	-	putative siroheme synthase
2277	 62.54	0	2412015..2412329	+	104	116252045	-	RL2289	-	hypothetical protein
2278	 62.78	0	2412338..2414008	+	556	116252046	cysI	RL2290	-	putative sulfite reductase
2279	 61.99	0	2414019..2414531	+	170	116252047	-	RL2291	-	hypothetical protein
2280	 66.34	+1	2414570..2415781	+	403	116252048	ubiF	RL2292	-	2-octaprenyl-6-methoxyphenyl hydroxylase
2281	 62.62	0	2415749..2416711	-	320	116252049	-	RL2293	-	putative transmembrane transporter
2282	 66.35	+1	2416936..2417871	-	311	116252050	-	RL2294	-	putative beta-lactamase/hydrolase
2283	 62.12	0	2418142..2418933	-	263	116252051	-	RL2295	-	putative short-chain dehydrogenase/reductase
2284	 63.66	0	2419288..2420817	-	509	116252052	aldH	RL2296	-	putative aldehyde dehydrogenase
2285	 62.13	0	2420953..2421327	-	124	116252053	-	RL2297	-	hypothetical protein
2286	 63.67	0	2421344..2422444	+	366	116252054	-	RL2298	-	putative dioxygenase
2287	 61.60	0	2422737..2423783	-	348	116252055	-	RL2299	-	luciferase family oxidoreductase
2288	 61.27	0	2424171..2425208	-	345	116252056	-	RL2300	-	putative dehalogenase/hydrolase
2289	 59.37	0	2425786..2426580	-	264	116252057	-	RL2301	-	putative ionic voltage-gated channel protein
2290	 60.21	0	2426692..2427465	-	257	116252058	-	RL2302	-	putative 3-oxoacyl-[acyl-carrier-protein] reductase
2291	 65.07	+1	2427551..2428300	-	249	116252059	ccdA	RL2303	-	putative cytochrome c-type biogenesis protein
2292	 54.25	-2	2428805..2429110	-	101	116252060	-	RL2304	-	hypothetical protein
2293	 53.33	-2	2429391..2429630	+	79	116252061	-	RL2305	-	hypothetical protein
2294	 48.89	-2	2429676..2429900	-	74	116252062	-	RL2306	-	hypothetical protein
2295	 55.39	-1	2430124..2430327	+	67	116252063	-	RL2307	-	hypothetical protein
2296	 52.91	-2	2430703..2431218	+	171	116252064	-	RL2308	-	hypothetical protein
2297	 63.74	0	2431721..2431891	+	56	116252065	-	RL2309	-	hypothetical protein
2298	 61.11	0	2433713..2434306	-	197	116252066	-	RL2313	-	hypothetical protein
2299	 60.28	0	2434652..2435230	+	192	116252067	-	RL2314	-	hypothetical protein
2300	 54.30	-2	2436077..2436367	+	96	116252068	-	RL2315	-	hypothetical protein
2301	 61.32	0	2436547..2437443	-	298	116252069	-	RL2316	-	putative cyclase/kinase
2302	 62.40	0	2437820..2438077	+	85	116252070	-	RL2317	-	hypothetical protein
2303	 63.67	0	2438355..2438621	+	88	116252071	-	RL2318	-	hypothetical protein
2304	 65.26	+1	2438795..2440291	-	498	116252072	-	RL2319	-	hypothetical protein
2305	 61.52	0	2440336..2440860	+	174	116252073	-	RL2320	-	MarR family transcriptional regulator
2306	 63.94	0	2440972..2441448	+	158	116252074	-	RL2321	-	putative transmembrane protein
2307	 60.12	0	2441629..2442270	-	213	116252075	-	RL2322	-	hypothetical protein
2308	 62.13	0	2442289..2443389	-	366	116252076	-	RL2323	-	putative GFO/IDH/MocA dehydrogenase
2309	 64.50	0	2443435..2444634	-	399	116252077	-	RL2324	-	ROK family transcriptional regulator
2310	 61.00	0	2444838..2446142	+	434	116252078	-	RL2325	-	putative solute-binding component of ABC transporter
2311	 59.96	0	2446220..2447158	+	312	116252079	-	RL2326	-	putative transmembrane component of ABC transporter
2312	 59.05	0	2447160..2447999	+	279	116252080	-	RL2327	-	putative transmembrane component of ABC transporter
2313	 63.97	0	2448023..2449096	+	357	116252081	-	RL2328	-	putative ATP-binding component of ABC transporter
2314	 60.91	0	2449372..2449788	+	138	116252082	-	RL2329	-	putative transposase-related protein
2315	 50.00	-2	2450545..2450922	+	125	116252083	-	RL2330	-	putative insertion sequence related protein
2316	 56.64	-1	2451012..2451779	+	255	116252084	attS	RL2331	-	putative attachment to host cell protein
2317	 61.68	0	2451868..2452368	+	166	116252085	-	RL2332	-	hypothetical protein
2318	 61.09	0	2452502..2453272	-	256	116252086	-	RL2333	-	hypothetical protein
2319	 60.85	0	2453493..2454437	+	314	116252087	-	RL2334	-	AraC family transcriptional regulator
2320	 61.27	0	2454659..2455585	-	308	116252088	kdgD	RL2335	-	5-dehydro-4-deoxyglucarate dehydratase
2321	 59.69	0	2455618..2456592	-	324	116252089	uxuA	RL2336	-	putative mannonate dehydratase
2322	 62.87	0	2456658..2457368	-	236	116252090	-	RL2337	-	GntR family transcriptional regulator
2323	 60.03	0	2457502..2459097	+	531	116252091	-	RL2338	-	putative solute-binding component of ABC transporter
2324	 59.86	0	2459119..2460147	+	342	116252092	-	RL2339	-	putative transmembrane component of ABC transporter
2325	 63.46	0	2460144..2461046	+	300	116252093	-	RL2340	-	putative transmembrane component of ABC transporter
2326	 63.13	0	2461003..2461878	+	291	116252094	-	RL2341	-	putative ABC transporter component
2327	 60.62	0	2461875..2462618	+	247	116252095	-	RL2342	-	putative component of ABC transporter
2328	 65.15	+1	2462843..2463898	-	351	116252096	-	RL2343	-	LacI family transcriptional regulator
2329	 64.72	0	2464085..2466607	+	840	116252097	-	RL2344	-	hypothetical protein
2330	 62.94	0	2466672..2467931	+	419	116252098	-	RL2345	-	putative solute-binding component of ABC transporter
2331	 61.75	0	2467943..2468980	+	345	116252099	-	RL2346	-	putative transmembrane component of ABC transporter
2332	 61.90	0	2468977..2470026	+	349	116252100	-	RL2347	-	putative transmembrane component of ABC transporter
2333	 63.33	0	2470058..2471137	+	359	116252101	-	RL2348	-	putative ATP-binding component of ABC transporter
2334	 61.28	0	2473639..2474622	-	327	116252102	-	RL2350	-	putative amidohydrolase/decarboxylase
2335	 64.35	0	2474639..2475328	-	229	116252103	-	RL2351	-	putative DJ-1/PfpI family protein
2336	 60.90	0	2475477..2476031	-	184	116252104	-	RL2352	-	hypothetical protein
2337	 62.58	0	2476107..2477012	+	301	116252105	-	RL2353	-	LysR family transcriptional regulator
2338	 58.95	0	2477095..2477988	-	297	116252106	-	RL2354	-	LysR family transcriptional regulator
2339	 62.92	0	2478130..2478957	-	275	116252107	-	RL2355	-	putative carboxymuconolactone decarboxylase
2340	 62.40	0	2479062..2480045	-	327	116252108	-	RL2356	-	putative aldo/keto reductase protein
2341	 62.73	0	2480138..2480518	-	126	116252109	-	RL2357	-	hypothetical protein
2342	 60.86	0	2481002..2481742	+	246	116252110	-	RL2358	-	putative short-chain dehydrogenase/reductase
2343	 59.38	0	2482086..2483018	+	310	116252111	-	RL2359	-	putative alcohol dehydrogenase
2344	 57.34	-1	2483015..2483722	+	235	116252112	-	RL2360	-	hypothetical protein
61.51	MEAN

3.25	STD DEV
