IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

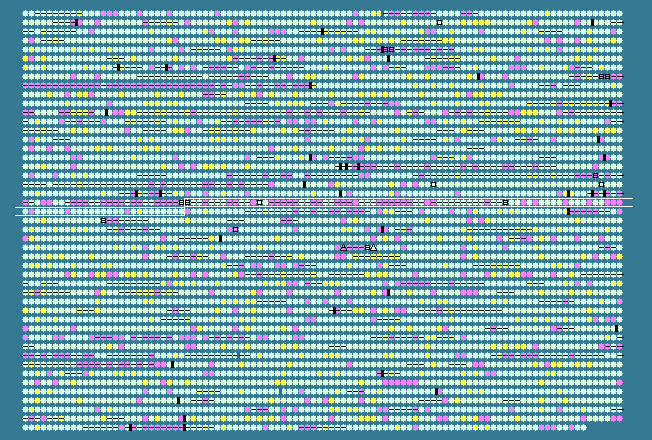

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2128	 60.45	0	2257380..2257733	+	117	116251896	-	RL2136	-	putative transposase-related protein
2129	 58.99	0	2259186..2261255	-	689	116251897	-	RL2138	-	putative transoposon resolvase
2130	 58.24	-1	2261252..2261797	-	181	116251898	-	RL2139	-	hypothetical protein
2131	 57.80	-1	2262055..2263092	+	345	116251899	-	RL2140	-	hypothetical protein
2132	 58.79	0	2263521..2264333	-	270	116251900	-	RL2141	-	hypothetical protein
2133	 61.39	0	2264345..2265253	-	302	116251901	-	RL2142	-	hypothetical protein
2134	 59.56	0	2265590..2265772	+	60	116251902	-	RL2144	-	hypothetical protein
2135	 57.41	-1	2265769..2266092	+	107	116251903	-	RL2145	-	hypothetical protein
2136	 57.76	-1	2266527..2268917	-	796	116251904	-	RL2146	-	putative transmembrane protein
2137	 58.20	-1	2269023..2269400	+	125	116251905	-	RL2147	-	hypothetical protein
2138	 61.05	0	2269384..2269650	-	88	116251906	-	RL2148	-	hypothetical protein
2139	 56.60	-1	2269842..2270129	-	95	116251907	-	RL2149	-	hypothetical protein
2140	 60.02	0	2270747..2271814	-	355	116251908	-	RL2150	-	putative transposase-related protein
2141	 58.65	0	2272138..2272374	+	78	116251909	-	RL2151	-	hypothetical protein
2142	 48.24	-2	2272525..2272779	+	84	116251910	-	RL2152	-	hypothetical protein
2143	 56.48	-1	2273066..2273281	+	71	116251911	-	RL2153	-	hypothetical protein
2144	 57.14	-1	2273578..2274060	-	160	116251912	-	RL2154	-	hypothetical protein
2145	 50.76	-2	2274008..2274334	-	108	116251913	-	RL2155	-	putative transmembrane protein
2146	 53.88	-2	2274708..2276561	-	617	116251914	-	RL2156	-	hypothetical protein
2147	 60.76	0	2276778..2277539	-	253	116251915	-	RL2157	-	hypothetical protein
2148	 58.15	-1	2277660..2279420	-	586	116251916	-	RL2158	-	hypothetical protein
2149	 57.86	-1	2279417..2279575	-	52	116251917	-	RL2159	-	hypothetical protein
2150	 56.02	-1	2279655..2280593	-	312	116251918	-	RL2160	-	hypothetical protein
2151	 59.61	0	2281039..2283504	+	821	116251919	-	RL2161	-	hypothetical protein
2152	 58.85	0	2283499..2284074	-	191	116251920	-	RL2162	-	hypothetical protein
2153	 53.23	-2	2285582..2285968	+	128	116251921	-	RL2163	-	hypothetical protein
2154	 54.01	-2	2285949..2286272	-	107	116251922	-	RL2164	-	hypothetical protein
2155	 57.10	-1	2286391..2287143	-	250	116251923	-	RL2165	-	hypothetical protein
2156	 55.22	-1	2287327..2288121	-	264	116251924	-	RL2166	-	hypothetical protein
2157	 59.40	0	2288144..2288707	+	187	116251925	-	RL2167	-	putative DNA-invertase
2158	 61.05	0	2288820..2289389	+	189	116251926	-	RL2168	-	hypothetical protein
2159	 58.13	-1	2289829..2291082	+	417	116251927	-	RL2169	-	hypothetical protein
2160	 56.62	-1	2291261..2291479	-	72	116251928	-	RL2170	-	hypothetical protein
2161	 55.70	-1	2293244..2295076	-	610	116251929	-	RL2172	-	putative peptidase
2162	 56.30	-1	2295054..2295410	-	118	116251930	-	RL2173	-	hypothetical protein
2163	 54.90	-2	2295429..2296397	-	322	116251931	-	RL2174	-	hypothetical protein
2164	 51.60	-2	2297765..2298421	-	218	116251932	-	RL2175	-	hypothetical protein
2165	 55.81	-1	2298695..2299228	-	177	116251933	-	RL2176	-	hypothetical protein
2166	 60.63	0	2299629..2299976	-	115	116251934	-	RL2177	-	hypothetical protein
2167	 58.83	0	2300118..2302031	+	637	116251935	-	RL2178	-	putative cell division protein
2168	 57.16	-1	2302028..2302795	+	255	116251936	-	RL2179	-	putative phosphatase
2169	 53.82	-2	2302955..2303281	+	108	116251937	-	RL2180	-	putative helix-turn-helix transcriptional regulatory protein
2170	 60.09	0	2303278..2304189	+	303	116251938	-	RL2181	-	hypothetical protein
2171	 59.62	0	2304214..2305704	-	496	116251939	-	RL2182	-	hypothetical protein
2172	 60.66	0	2305729..2306610	-	293	116251940	-	RL2183	-	hypothetical protein
2173	 58.84	0	2306607..2307104	-	165	116251941	-	RL2184	-	hypothetical protein
2174	 60.78	0	2307106..2307564	-	152	116251942	-	RL2185	-	hypothetical protein
2175	 62.00	0	2307561..2308439	-	292	116251943	-	RL2186	-	ATPase
2176	 60.84	0	2308849..2309277	-	142	116251944	-	RL2187	-	hypothetical protein
2177	 59.23	0	2310014..2311330	-	438	116251945	-	RL2188	-	hypothetical protein
2178	 49.77	-2	2311725..2311937	-	70	116251946	-	RL2189	-	hypothetical protein
2179	 60.65	0	2311968..2312183	+	71	116251947	-	RL2190	-	hypothetical protein
2180	 61.03	0	2312221..2312859	+	212	116251948	-	RL2191	-	hypothetical protein
2181	 60.21	0	2312904..2315132	+	742	116251949	-	RL2192	-	putative transposase-related protein
2182	 59.68	0	2315135..2316121	+	328	116251950	-	RL2193	-	hypothetical protein
2183	 59.42	0	2316091..2317938	+	615	116251951	-	RL2194	-	hypothetical protein
2184	 55.77	-1	2318370..2319158	+	262	116251952	-	RL2195	-	hypothetical protein
2185	 59.45	0	2319389..2319679	-	96	116251953	-	RL2196	-	hypothetical protein
2186	 56.41	-1	2320452..2320763	-	103	116251954	-	RL2198	-	hypothetical protein
2187	 62.89	0	2320910..2321359	-	149	116251955	-	RL2199	-	hypothetical protein
2188	 62.39	0	2321449..2322429	+	326	116251956	-	RL2200	-	hypothetical protein
2189	 59.30	0	2322591..2323364	-	257	116251957	aapP	RL2201	-	general L-amino acid transport ATP-binding subunit
2190	 60.43	0	2323400..2324554	-	384	116251958	aapM	RL2202	-	general L-amino acid transport system permease protein
2191	 57.94	-1	2324556..2325758	-	400	116251959	aapQ	RL2203	-	general L-amino acid transport system permease
2192	 58.67	0	2325861..2326886	-	341	116251960	aapJ	RL2204	-	general L-amino acid substrate binding protein
2193	 62.22	0	2327247..2328437	+	396	116251961	metC	RL2205	-	cystathionine beta-lyase
2194	 64.76	0	2328468..2329622	-	384	116251962	-	RL2206	-	putative salicylate hydroxylase
2195	 57.72	-1	2329650..2329895	-	81	116251963	-	RL2207	-	hypothetical protein
2196	 63.49	0	2330054..2330839	+	261	116251964	-	RL2208	-	putative hydrolase
2197	 63.31	0	2330968..2331801	+	277	116251965	cysE	RL2209	-	putative serine acetyltransferase
2198	 52.94	-2	2331942..2332145	+	67	116251966	-	RL2210	-	hypothetical protein
2199	 54.58	-2	2332311..2332790	+	159	116251967	-	RL2211	-	hypothetical protein
2200	 51.52	-2	2333088..2333417	+	109	116251968	clpS	RL2212	-	ATP-dependent Clp protease adaptor protein ClpS
2201	 61.89	0	2333428..2335920	+	830	116251969	clpA	RL2213	-	putative ATP-dependent Clp protease ATP-binding subunit
2202	 57.39	-1	2335994..2336284	-	96	116251970	-	RL2214	-	hypothetical protein
2203	 62.07	0	2336342..2336776	-	144	116251971	-	RL2215	-	HIT family protein
2204	 61.96	0	2336928..2338118	-	396	116251972	-	RL2216	-	hypothetical protein
2205	 61.11	0	2338298..2339017	-	239	116251973	-	RL2217	-	putative glycerophosphoryl diester phosphodiesterase
2206	 62.21	0	2339014..2339484	-	156	116251974	-	RL2218	-	putative endoribonuclease-L-PSP family protein
2207	 60.93	0	2339621..2340457	+	278	116251975	-	RL2219	-	hypothetical protein
2208	 57.05	-1	2340464..2340775	+	103	116251976	-	RL2220	-	hypothetical protein
2209	 61.46	0	2340782..2341549	+	255	116251977	rpsB	RL2221	-	30S ribosomal protein S2
2210	 63.32	0	2341791..2342717	+	308	116251978	tsf	RL2222	-	elongation factor Ts
2211	 61.55	0	2342814..2343536	+	240	116251979	pyrH	RL2223	-	uridylate kinase
2212	 60.25	0	2343701..2344261	+	186	116251980	frr	RL2224	-	ribosome recycling factor
2213	 62.63	0	2344299..2345042	+	247	116251981	uppS	RL2225	-	putative undecaprenyl pyrophosphate synthetase
2214	 61.13	0	2345042..2345872	+	276	116251982	cdsA	RL2226	-	putative phosphatidate cytidylyltransferase
2215	 61.11	0	2345901..2347034	+	377	116251983	ecfE	RL2227	-	putative transmembrane protease
2216	 59.84	0	2347225..2349567	+	780	116251984	-	RL2228	-	putative outer membrane protein
2217	 61.50	0	2349618..2350682	+	354	116251985	lpxD	RL2229	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
2218	 55.34	-1	2350675..2351142	+	155	116251986	fabZ	RL2230	-	(3R)-hydroxymyristoyl-ACP dehydratase
2219	 64.84	+1	2351139..2351957	+	272	116251987	lpxA	RL2231	-	UDP-N-acetylglucosamine acyltransferase
2220	 68.59	+2	2351961..2352842	+	293	116251988	-	RL2232	-	hypothetical protein
2221	 63.61	0	2352839..2354017	+	392	116251989	lpxB	RL2233	-	lipid-A-disaccharide synthase
2222	 60.00	0	2354049..2355338	-	429	116251990	gltA	RL2234	-	type II citrate synthase
2223	 64.02	0	2355569..2358061	+	830	116251991	-	RL2235	-	putative transmembrane DNA uptake competence-related protein
2224	 62.22	0	2358042..2358761	-	239	116251992	lexA	RL2236	-	LexA repressor
2225	 62.89	0	2358956..2359855	+	299	116251993	-	RL2237	-	hypothetical protein
2226	 62.29	0	2359852..2360697	+	281	116251994	kdsA	RL2238	-	2-dehydro-3-deoxyphosphooctonate aldolase
2227	 62.82	0	2360835..2362109	+	424	116251995	eno	RL2239	-	putative enolase
61.51	MEAN

3.25	STD DEV
