IslandPathversion 1.0

IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

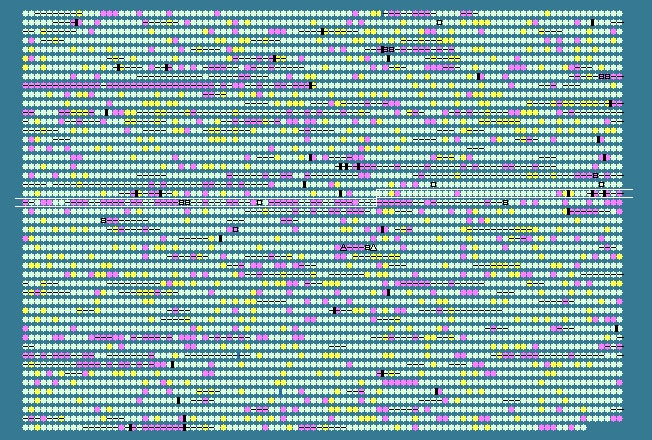

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2060	 62.56	0	2185542..2186369	-	275	116251828	radC	RL2068	-	DNA repair protein RadC
2061	 63.20	0	2186377..2187213	-	278	116251829	map	RL2069	-	methionine aminopeptidase
2062	 66.21	+1	2187461..2188120	+	219	116251830	-	RL2070	-	TetR family transcriptional regulator
2063	 57.92	-1	2188242..2188424	+	60	116251831	-	RL2071	-	putative transmembrane protein
2064	 60.66	0	2188421..2188753	+	110	116251832	-	RL2072	-	putative transmembrane protein
2065	 62.22	0	2188690..2189184	-	164	116251833	ruvX	RL2073	-	putative Holliday junction resolvase
2066	 59.72	0	2189466..2190170	+	234	116251834	-	RL2074	-	metal-dependent hydrolase
2067	 60.07	0	2190240..2190527	+	95	116251835	gatC	RL2075	-	putative glutamyl-tRNA(Gln) amidotransferase subunit C
2068	 62.62	0	2190584..2192065	+	493	116251836	gatA	RL2076	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
2069	 60.88	0	2192056..2192556	+	166	116251837	-	RL2077	-	putative acetyltransferase
2070	 64.49	0	2192579..2192854	+	91	116251838	-	RL2078	-	hypothetical protein
2071	 59.30	0	2192904..2193161	-	85	116251839	-	RL2079	-	hypothetical protein
2072	 60.30	0	2193448..2193981	+	177	116251840	-	RL2080	-	putative acetyltransferase
2073	 57.05	-1	2193986..2194297	-	103	116251841	-	RL2081	-	putative transmembrane protein
2074	 61.14	0	2194427..2195929	+	500	116251842	gatB	RL2082	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
2075	 60.12	0	2195933..2196436	+	167	116251843	-	RL2083	-	putative acetyltransferase
2076	 63.29	0	2196441..2196914	+	157	116251844	-	RL2084	-	putative acetyltransferase
2077	 61.65	0	2197018..2197416	+	132	116251845	-	RL2085	-	NADH dehydrogenase
2078	 62.13	0	2197532..2197972	+	146	116251846	-	RL2086	-	hypothetical protein
2079	 60.00	0	2198104..2198718	-	204	116251847	aat	RL2087	-	leucyl/phenylalanyl-tRNA--protein transferase
2080	 62.39	0	2198726..2200081	-	451	116251848	accC	RL2088	-	acetyl-CoA carboxylase biotin carboxylase subunit
2081	 62.00	0	2200086..2200556	-	156	116251849	accB	RL2089	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
2082	 58.90	0	2200577..2201014	-	145	116251850	-	RL2090	-	3-dehydroquinate dehydratase
2083	 59.55	0	2201176..2201934	-	252	116251851	-	RL2091	-	putative outer membrane protein
2084	 62.71	0	2202116..2203303	+	395	116251852	aspB	RL2092	-	putative aspartate aminotransferase
2085	 64.80	+1	2203343..2204683	-	446	116251853	-	RL2093	-	hypothetical protein
2086	 59.60	0	2204891..2206771	-	626	116251854	phaC	RL2094	-	putative poly(3-hydroxyalkanoate) polymerase (PHA synthase)
2087	 64.98	+1	2206877..2207290	+	137	116251855	-	RL2095	-	hypothetical protein
2088	 61.63	0	2207500..2208729	+	409	116251856	-	RL2096	-	aminotransferase
2089	 62.52	0	2208796..2210121	+	441	116251857	hom	RL2097	-	homoserine dehydrogenase
2090	 56.91	-1	2210281..2210526	+	81	116251858	-	RL2098	-	putative transmembrane protein
2091	 66.61	+1	2210649..2212409	+	586	116251859	recJ	RL2099	-	putative single-stranded-DNA-specific exonuclease
2092	 65.92	+1	2213207..2214274	-	355	116251860	-	RL2100	-	hypothetical protein
2093	 58.73	0	2214442..2214882	-	146	116251861	-	RL2101	-	putative glyoxalase
2094	 63.04	0	2215078..2215656	+	192	116251862	cspA	RL2102	-	putative cold shock protein
2095	 58.90	0	2215659..2216147	+	162	116251863	-	RL2103	-	hypothetical protein
2096	 54.92	-2	2216288..2216602	+	104	116251864	-	RL2103A	-	hypothetical protein
2097	 59.15	0	2216924..2217229	+	101	116251865	-	RL2104	-	putative NADH-ubiquinone oxidoreductase subunit
2098	 55.51	-1	2217727..2222280	+	1517	116251866	-	RL2105	-	hypothetical protein
2099	 60.54	0	2222591..2223145	-	184	116251867	-	RL2105A	-	hypothetical protein
2100	 53.49	-2	2223311..2224471	-	386	116251868	-	RL2107	-	hypothetical protein
2101	 53.23	-2	2224850..2225809	+	319	116251869	-	RL2108	-	putative transmembrane protein
2102	 63.73	0	2226822..2227127	+	101	116251870	-	RL2109	-	hypothetical protein
2103	 64.09	0	2227238..2229484	+	748	116251871	-	RL2110	-	hypothetical protein
2104	 54.46	-2	2230160..2230495	-	111	116251872	-	RL2113	-	hypothetical protein
2105	 54.04	-2	2230492..2230776	-	94	116251873	-	RL2114	-	hypothetical protein
2106	 64.72	0	2230954..2231724	+	256	116251874	-	RL2115	-	hypothetical protein
2107	 63.17	0	2231816..2233159	+	447	116251875	-	RL2116	-	hypothetical protein
2108	 60.47	0	2233156..2236416	+	1086	116251876	dnaE	RL2117	-	putative DNA polymerase III subunit
2109	 49.71	-2	2236744..2237256	-	170	116251877	-	RL2117A	-	hypothetical protein
2110	 57.57	-1	2237653..2238696	+	347	116251878	-	RL2118	-	putative transmembrane protein
2111	 52.21	-2	2239042..2239629	+	195	116251879	-	RL2119	-	hypothetical protein
2112	 59.30	0	2240197..2240970	+	257	116251880	-	RL2120	-	hypothetical protein
2113	 58.75	0	2241358..2242203	+	281	116251881	-	RL2121	-	putative transmembrane protein
2114	 55.40	-1	2242289..2243344	+	351	116251882	-	RL2122	-	putative transmembrane protein
2115	 47.22	-2	2243365..2243544	+	59	116251883	-	RL2123	-	hypothetical protein
2116	 55.06	-1	2243632..2244174	+	180	116251884	-	RL2124	-	putative transmembrane protein
2117	 51.37	-2	2244332..2244952	+	206	116251885	-	RL2125	-	hypothetical protein
2118	 59.26	0	2245152..2245340	+	62	116251886	-	RL2126	-	hypothetical protein
2119	 52.31	-2	2245494..2245925	-	143	116251887	-	RL2127	-	putative transmembrane protein
2120	 52.04	-2	2246396..2247325	+	309	116251888	-	RL2128	-	hypothetical protein
2121	 62.18	0	2247554..2248288	+	244	116251889	-	RL2129	-	hypothetical protein
2122	 61.06	0	2248300..2248959	+	219	116251890	-	RL2130	-	hypothetical protein
2123	 53.65	-2	2249238..2250551	+	437	116251891	-	RL2131	-	hypothetical protein
2124	 57.94	-1	2250685..2256162	+	1825	116251892	-	RL2132	-	hypothetical protein
2125	 53.92	-2	2256297..2256500	+	67	116251893	-	RL2133	-	hypothetical protein
2126	 57.38	-1	2256617..2256982	-	121	116251894	-	RL2134	-	hypothetical protein
2127	 64.87	+1	2256994..2257383	+	129	116251895	-	RL2135	-	putative transposase-related protein
2128	 60.45	0	2257380..2257733	+	117	116251896	-	RL2136	-	putative transposase-related protein
2129	 58.99	0	2259186..2261255	-	689	116251897	-	RL2138	-	putative transoposon resolvase
2130	 58.24	-1	2261252..2261797	-	181	116251898	-	RL2139	-	hypothetical protein
2131	 57.80	-1	2262055..2263092	+	345	116251899	-	RL2140	-	hypothetical protein
2132	 58.79	0	2263521..2264333	-	270	116251900	-	RL2141	-	hypothetical protein
2133	 61.39	0	2264345..2265253	-	302	116251901	-	RL2142	-	hypothetical protein
2134	 59.56	0	2265590..2265772	+	60	116251902	-	RL2144	-	hypothetical protein
2135	 57.41	-1	2265769..2266092	+	107	116251903	-	RL2145	-	hypothetical protein
2136	 57.76	-1	2266527..2268917	-	796	116251904	-	RL2146	-	putative transmembrane protein
2137	 58.20	-1	2269023..2269400	+	125	116251905	-	RL2147	-	hypothetical protein
2138	 61.05	0	2269384..2269650	-	88	116251906	-	RL2148	-	hypothetical protein
2139	 56.60	-1	2269842..2270129	-	95	116251907	-	RL2149	-	hypothetical protein
2140	 60.02	0	2270747..2271814	-	355	116251908	-	RL2150	-	putative transposase-related protein
2141	 58.65	0	2272138..2272374	+	78	116251909	-	RL2151	-	hypothetical protein
2142	 48.24	-2	2272525..2272779	+	84	116251910	-	RL2152	-	hypothetical protein
2143	 56.48	-1	2273066..2273281	+	71	116251911	-	RL2153	-	hypothetical protein
2144	 57.14	-1	2273578..2274060	-	160	116251912	-	RL2154	-	hypothetical protein
2145	 50.76	-2	2274008..2274334	-	108	116251913	-	RL2155	-	putative transmembrane protein
2146	 53.88	-2	2274708..2276561	-	617	116251914	-	RL2156	-	hypothetical protein
2147	 60.76	0	2276778..2277539	-	253	116251915	-	RL2157	-	hypothetical protein
2148	 58.15	-1	2277660..2279420	-	586	116251916	-	RL2158	-	hypothetical protein
2149	 57.86	-1	2279417..2279575	-	52	116251917	-	RL2159	-	hypothetical protein
2150	 56.02	-1	2279655..2280593	-	312	116251918	-	RL2160	-	hypothetical protein
2151	 59.61	0	2281039..2283504	+	821	116251919	-	RL2161	-	hypothetical protein
2152	 58.85	0	2283499..2284074	-	191	116251920	-	RL2162	-	hypothetical protein
2153	 53.23	-2	2285582..2285968	+	128	116251921	-	RL2163	-	hypothetical protein
2154	 54.01	-2	2285949..2286272	-	107	116251922	-	RL2164	-	hypothetical protein
2155	 57.10	-1	2286391..2287143	-	250	116251923	-	RL2165	-	hypothetical protein
2156	 55.22	-1	2287327..2288121	-	264	116251924	-	RL2166	-	hypothetical protein
2157	 59.40	0	2288144..2288707	+	187	116251925	-	RL2167	-	putative DNA-invertase
2158	 61.05	0	2288820..2289389	+	189	116251926	-	RL2168	-	hypothetical protein
2159	 58.13	-1	2289829..2291082	+	417	116251927	-	RL2169	-	hypothetical protein
61.51	MEAN

3.25	STD DEV
