IslandPathversion 1.0

IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

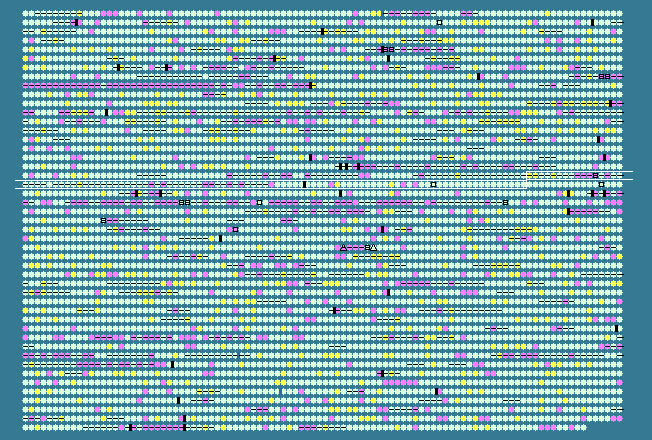

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1885	 66.93	+1	1983953..1984330	+	125	116251653	-	RL1888	-	hypothetical protein
1886	 67.07	+1	1984442..1985920	+	492	116251654	-	RL1889	-	putative multicopper oxidase
1887	 59.77	0	1985977..1986237	+	86	116251655	-	RL1890	-	putative transmembrane protein
1888	 63.42	0	1986230..1986907	+	225	116251656	-	RL1891	-	putative transmembrane protein
1889	 67.34	+1	1986900..1989122	+	740	116251657	-	RL1892	-	putative cation transporting P-type ATPase
1890	 63.41	0	1989134..1989655	+	173	116251658	-	RL1893	-	putative transmembrane protein
1891	 63.96	0	1989754..1990122	+	122	116251659	-	RL1894	-	hypothetical protein
1892	 64.63	0	1990257..1990649	+	130	116251660	-	RL1895	-	hypothetical protein
1893	 54.43	-2	1991107..1992111	+	334	116251661	-	RL1896	-	hypothetical protein
1894	 57.13	-1	1992151..1993974	-	607	116251662	-	RL1897	-	hypothetical protein
1895	 56.26	-1	1993971..1995017	-	348	116251663	-	RL1898	-	hypothetical protein
1896	 57.87	-1	1995014..1997263	-	749	116251664	-	RL1899	-	putative transposase related protein
1897	 58.86	0	1997268..1997984	-	238	116251665	-	RL1900	-	hypothetical protein
1898	 52.27	-2	1997998..1998129	-	43	116251666	-	RL1901	-	hypothetical protein
1899	 62.70	0	1998227..1998655	-	142	116251667	-	RL1902	-	hypothetical protein
1900	 62.48	0	1999427..2000239	-	270	116251668	-	RL1904	-	hypothetical protein
1901	 60.91	0	2000319..2000909	-	196	116251669	-	RL1905	-	hypothetical protein
1902	 58.45	0	2001387..2001800	+	137	116251670	-	RL1906	-	hypothetical protein
1903	 61.11	0	2001843..2002976	-	377	116251671	-	RL1907	-	putative transmembrane protein
1904	 64.59	0	2002978..2004900	-	640	116251672	-	RL1908	-	putative transmembrane ion channel protein
1905	 59.57	0	2004907..2005920	-	337	116251673	-	RL1909	-	putative nonspecific acid phosphataser
1906	 64.08	0	2005917..2006960	-	347	116251674	-	RL1910	-	hypothetical protein
1907	 58.32	0	2006989..2008605	-	538	116251675	-	RL1911	-	putative arylsulfatase
1908	 64.36	0	2008848..2010149	-	433	116251676	-	RL1912	-	hypothetical protein
1909	 63.96	0	2010146..2011699	-	517	116251677	-	RL1913	-	putative transmembrane protein
1910	 65.05	+1	2011696..2012685	-	329	116251678	-	RL1914	-	putative transmembrane protein
1911	 63.60	0	2012672..2013193	-	173	116251679	-	RL1915	-	hypothetical protein
1912	 64.43	0	2013193..2014131	-	312	116251680	-	RL1916	-	hypothetical protein
1913	 60.84	0	2014128..2015105	-	325	116251681	-	RL1917	-	hypothetical protein
1914	 60.55	0	2015162..2016811	-	549	116251682	-	RL1918	-	putative exported arylsulfatase protein
1915	 63.75	0	2016978..2018210	-	410	116251683	-	RL1919	-	hypothetical protein
1916	 62.94	0	2018211..2019203	-	330	116251684	-	RL1920	-	hypothetical protein
1917	 64.63	0	2019225..2021822	-	865	116251685	-	RL1921	-	hypothetical protein
1918	 64.40	0	2021906..2023627	-	573	116251686	-	RL1922	-	hypothetical protein
1919	 60.66	0	2023719..2024051	-	110	116251687	-	RL1923	-	hypothetical protein
1920	 61.65	0	2024203..2025000	+	265	116251688	-	RL1924	-	hypothetical protein
1921	 60.86	0	2025163..2026677	+	504	116251689	-	RL1925	-	hypothetical protein
1922	 57.51	-1	2026740..2027777	+	345	116251690	-	RL1926	-	hypothetical protein
1923	 64.60	0	2028304..2032176	+	1290	116251691	-	RL1927	-	putative adhesin autotransporter
1924	 57.92	-1	2032252..2032434	+	60	116251692	-	RL1928	-	hypothetical protein
1925	 59.78	0	2032564..2033187	+	207	116251693	-	RL1929	-	hypothetical protein
1926	 62.14	0	2033184..2035061	+	625	116251694	-	RL1930	-	putative ATP-dependent hydrolase protein
1927	 59.74	0	2035058..2035360	+	100	116251695	-	RL1931	-	hypothetical protein
1928	 60.57	0	2035350..2037350	-	666	116251696	-	RL1932	-	putative modification methylase
1929	 58.44	0	2037505..2038914	+	469	116251697	-	RL1933	-	hypothetical protein
1930	 60.30	0	2038918..2039451	-	177	116251698	-	RL1934	-	hypothetical protein
1931	 56.74	-1	2039564..2040631	-	355	116251699	-	RL1935	-	hypothetical protein
1932	 56.46	-1	2040618..2041430	-	270	116251700	-	RL1936	-	hypothetical protein
1933	 60.85	0	2041740..2041928	-	62	116251701	-	RL1937	-	hypothetical protein
1934	 59.83	0	2041993..2042826	-	277	116251702	-	RL1938	-	putative phosphatase
1935	 55.81	-1	2042946..2043341	+	131	116251703	-	RL1939	-	hypothetical protein
1936	 58.36	0	2043391..2044413	-	340	116251704	-	RL1940	-	hypothetical protein
1937	 53.37	-2	2045372..2045890	+	172	116251705	-	RL1941	-	hypothetical protein
1938	 60.29	0	2046069..2046680	-	203	116251706	-	RL1942	-	hypothetical protein
1939	 61.06	0	2046747..2047994	-	415	116251707	-	RL1943	-	hypothetical protein
1940	 60.13	0	2048005..2049198	-	397	116251708	-	RL1944	-	hypothetical protein
1941	 62.13	0	2049554..2053369	-	1271	116251709	-	RL1945	-	ribonucleotide-diphosphate reductase subunit alpha
1942	 48.94	-2	2053492..2053773	+	93	116251710	-	RL1946	-	hypothetical protein
1943	 58.04	-1	2054009..2054599	-	196	116251711	-	RL1947	-	hypothetical protein
1944	 61.21	0	2054896..2055390	-	164	116251712	gpt	RL1948	-	xanthine-guanine phosphoribosyltransferase
1945	 61.21	0	2055572..2056414	-	280	116251713	-	RL1949	-	putative universal stress family protein
1946	 62.29	0	2056523..2057299	-	258	116251714	-	RL1950	-	putative molybdenum cofactor biosynthesis protein
1947	 64.15	0	2057585..2058181	+	198	116251715	wrbA	RL1951	-	TrpR binding protein WrbA
1948	 58.39	0	2058772..2059206	-	144	116251716	-	RL1952	-	putative transmembrane protein
1949	 61.87	0	2059345..2060595	+	416	116251717	ilvA	RL1953	-	threonine dehydratase
1950	 58.72	0	2060633..2060959	+	108	116251718	-	RL1954	-	hypothetical protein
1951	 60.85	0	2061195..2062466	+	423	116251719	-	RL1955	-	putative transmembrane GGDEF sensory box protein
1952	 57.60	-1	2062636..2063892	+	418	116251720	-	RL1956	-	putative transmembrane protein
1953	 65.12	+1	2063951..2064727	-	258	116251721	-	RL1957	-	putative short-chain dehydrogenase/oxidoreductase
1954	 63.19	0	2064890..2065465	+	191	116251722	-	RL1958	-	TetR family transcriptional regulator
1955	 62.93	0	2065513..2066127	-	204	116251723	acpD	RL1959	-	putative acyl carrier protein phosphodiesterase
1956	 62.33	0	2066267..2067235	+	322	116251724	-	RL1960	-	LysR family transcriptional regulator
1957	 61.45	0	2067278..2069290	-	670	116251725	cpdB	RL1961	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
1958	 62.66	0	2069446..2070168	+	240	116251726	-	RL1962	-	putative transmembrane protein
1959	 58.77	0	2070138..2070542	-	134	116251727	-	RL1963	-	hypothetical protein
1960	 59.98	0	2070628..2071509	-	293	116251728	-	RL1964	-	putative transmembrane protein
1961	 59.09	0	2071689..2072150	-	153	116251729	-	RL1965	-	AsnC family transcriptional regulator
1962	 65.33	+1	2072307..2073425	+	372	116251730	ald	RL1966	-	putative alanine dehydrogenase
1963	 58.19	-1	2073556..2074581	+	341	116251731	-	RL1967	-	AraC family transcriptional regulator
1964	 55.28	-1	2074610..2074732	+	40	116251732	-	RL1968	-	hypothetical protein
1965	 59.07	0	2074736..2075485	+	249	116251733	-	RL1969	-	putative short-chain dehydrogenase/reductase
1966	 57.74	-1	2075552..2076100	+	182	116251734	-	RL1970	-	putative flavin reductase
1967	 60.00	0	2076164..2076448	+	94	116251735	-	RL1971	-	hypothetical protein
1968	 62.70	0	2076502..2077005	-	167	116251736	-	RL1972	-	hypothetical protein
1969	 60.02	0	2077277..2078344	-	355	116251737	-	RL1973	-	putative transposase for insertion sequence element
1970	 59.64	0	2078881..2079705	+	274	116251738	-	RL1974	-	hypothetical protein
1971	 59.56	0	2079730..2079954	+	74	116251739	-	RL1975	-	hypothetical protein
1972	 60.96	0	2079985..2080545	-	186	116251740	-	RL1976	-	hypothetical protein
1973	 64.71	0	2080551..2081420	-	289	116251741	sseA	RL1977	-	putative 3-mercaptopyruvate sulfurtransferase
1974	 62.33	0	2082183..2083220	-	345	116251742	cysB	RL1979	-	cysteine synthase A
1975	 63.48	0	2083447..2084106	+	219	116251743	-	RL1980	-	putative transcriptional regulator
1976	 61.15	0	2084206..2085039	+	277	116251744	-	RL1981	-	putative short-chain dehydrogenase/oxiroreductase
1977	 60.32	0	2085040..2086173	-	377	116251745	cfa	RL1982	-	putative cyclopropane-fatty-acyl-phospholipid synthase
1978	 62.32	0	2086499..2087350	-	283	116251746	-	RL1983	-	hypothetical protein
1979	 61.50	0	2087347..2088681	-	444	116251747	-	RL1984	-	hypothetical protein
1980	 62.05	0	2088678..2090129	-	483	116251748	phr	RL1985	-	putative deoxyribodipyrimidine photo-lyase
1981	 62.29	0	2090280..2090576	-	98	116251749	-	RL1986	-	hypothetical protein
1982	 61.01	0	2090819..2091136	+	105	116251750	-	RL1987	-	hypothetical protein
1983	 62.54	0	2091250..2091927	+	225	116251751	-	RL1988	-	putative glycerol phosphatase
1984	 63.92	0	2091965..2094622	-	885	116251752	nasA	RL1989	-	putative assimilatory nitrate reductase
61.51	MEAN

3.25	STD DEV
