IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

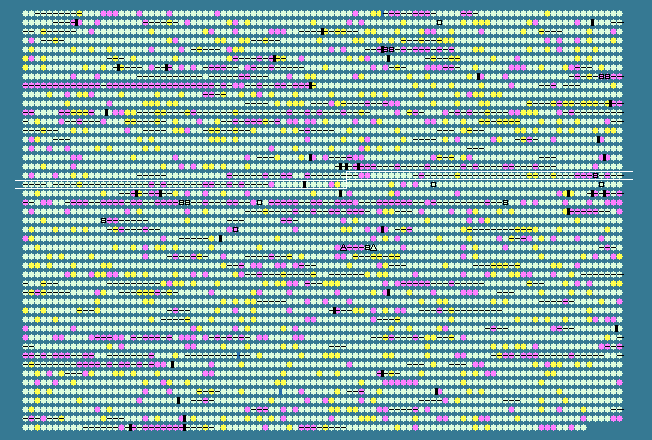

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1855	 58.63	0	1950120..1951475	-	451	116251623	-	RL1858	-	putative protease
1856	 58.51	0	1952152..1953942	+	596	116251624	-	RL1859	-	hypothetical protein
1857	 57.45	-1	1954004..1954795	-	263	116251625	phhA	RL1860	-	phenylalanine 4-monooxygenase
1858	 57.79	-1	1954919..1955380	+	153	116251626	-	RL1861	-	AsnC family transcriptional regulator
1859	 58.54	0	1955429..1955908	-	159	116251627	-	RL1862	-	AsnC family transcriptional regulator
1860	 58.65	0	1956039..1957148	+	369	116251628	-	RL1863	-	putative 4-hydroxyphenylpyruvate dioxygenase
1861	 59.84	0	1957210..1958571	+	453	116251629	hmgA	RL1864	-	homogentisate 1,2-dioxygenase
1862	 63.65	0	1958612..1959637	+	341	116251630	-	RL1865	-	putative hydrolase
1863	 58.77	0	1959634..1960266	+	210	116251631	-	RL1866	-	putative maleylacetoacetate isomerase
1864	 59.67	0	1960624..1961952	+	442	116251632	-	RL1867	-	hypothetical protein
1865	 59.23	0	1962155..1962988	-	277	116251633	-	RL1868	-	putative universal stress related protein
1866	 62.71	0	1963055..1965736	-	893	116251634	-	RL1869	-	putative cation-transporting ATPase
1867	 57.41	-1	1965973..1966296	+	107	116251635	dksA	RL1870	-	putative DNAK suppressor protein
1868	 63.77	0	1966325..1968187	+	620	116251636	-	RL1871	-	putative transmembrane cation ATPase transporter
1869	 61.56	0	1968184..1969005	-	273	116251637	-	RL1872	-	putative universal stress response protein
1870	 59.26	0	1969135..1969593	+	152	116251638	-	RL1873	-	putative pyridoxine oxidase protein
1871	 59.41	0	1969640..1970011	+	123	116251639	-	RL1874	-	hypothetical protein
1872	 61.00	0	1970356..1970796	+	146	116251640	-	RL1875	-	putative transmembrane protein
1873	 66.37	+1	1970878..1971873	+	331	116251641	adh	RL1876	-	putative alcohol dehydrogenase
1874	 64.16	0	1971982..1973337	+	451	116251642	-	RL1877	-	putative protease
1875	 60.65	0	1973462..1974109	+	215	116251643	-	RL1878	-	putative peptidoglycan binding protein
1876	 63.28	0	1974453..1976372	-	639	116251644	-	RL1879	-	putative nitrogen fixation two component sensor/regulator fusion transcriptional regulator
1877	 61.09	0	1976350..1977084	-	244	116251645	-	RL1880	-	CRP/FNR family transcriptional regulator
1878	 63.04	0	1977207..1977950	+	247	116251646	-	RL1881	-	putative two-component regulator response regulator transcriptional regulatory protein
1879	 59.23	0	1977913..1978356	-	147	116251647	-	RL1882	-	hypothetical protein
1880	 60.07	0	1978497..1979072	+	191	116251648	hspF	RL1883	-	putative small heat shock protein
1881	 63.27	0	1979151..1979798	-	215	116251649	-	RL1884	-	putative phospholipid binding protein
1882	 63.18	0	1980014..1981648	+	544	116251650	-	RL1885	-	putative beta-lactamase family protein
1883	 62.49	0	1981975..1983147	+	390	116251651	pduW	RL1886	-	putative propionate kinase
1884	 61.11	0	1983626..1983931	+	101	116251652	-	RL1887	-	putative transmembrane protein
1885	 66.93	+1	1983953..1984330	+	125	116251653	-	RL1888	-	hypothetical protein
1886	 67.07	+1	1984442..1985920	+	492	116251654	-	RL1889	-	putative multicopper oxidase
1887	 59.77	0	1985977..1986237	+	86	116251655	-	RL1890	-	putative transmembrane protein
1888	 63.42	0	1986230..1986907	+	225	116251656	-	RL1891	-	putative transmembrane protein
1889	 67.34	+1	1986900..1989122	+	740	116251657	-	RL1892	-	putative cation transporting P-type ATPase
1890	 63.41	0	1989134..1989655	+	173	116251658	-	RL1893	-	putative transmembrane protein
1891	 63.96	0	1989754..1990122	+	122	116251659	-	RL1894	-	hypothetical protein
1892	 64.63	0	1990257..1990649	+	130	116251660	-	RL1895	-	hypothetical protein
1893	 54.43	-2	1991107..1992111	+	334	116251661	-	RL1896	-	hypothetical protein
1894	 57.13	-1	1992151..1993974	-	607	116251662	-	RL1897	-	hypothetical protein
1895	 56.26	-1	1993971..1995017	-	348	116251663	-	RL1898	-	hypothetical protein
1896	 57.87	-1	1995014..1997263	-	749	116251664	-	RL1899	-	putative transposase related protein
1897	 58.86	0	1997268..1997984	-	238	116251665	-	RL1900	-	hypothetical protein
1898	 52.27	-2	1997998..1998129	-	43	116251666	-	RL1901	-	hypothetical protein
1899	 62.70	0	1998227..1998655	-	142	116251667	-	RL1902	-	hypothetical protein
1900	 62.48	0	1999427..2000239	-	270	116251668	-	RL1904	-	hypothetical protein
1901	 60.91	0	2000319..2000909	-	196	116251669	-	RL1905	-	hypothetical protein
1902	 58.45	0	2001387..2001800	+	137	116251670	-	RL1906	-	hypothetical protein
1903	 61.11	0	2001843..2002976	-	377	116251671	-	RL1907	-	putative transmembrane protein
1904	 64.59	0	2002978..2004900	-	640	116251672	-	RL1908	-	putative transmembrane ion channel protein
1905	 59.57	0	2004907..2005920	-	337	116251673	-	RL1909	-	putative nonspecific acid phosphataser
1906	 64.08	0	2005917..2006960	-	347	116251674	-	RL1910	-	hypothetical protein
1907	 58.32	0	2006989..2008605	-	538	116251675	-	RL1911	-	putative arylsulfatase
1908	 64.36	0	2008848..2010149	-	433	116251676	-	RL1912	-	hypothetical protein
1909	 63.96	0	2010146..2011699	-	517	116251677	-	RL1913	-	putative transmembrane protein
1910	 65.05	+1	2011696..2012685	-	329	116251678	-	RL1914	-	putative transmembrane protein
1911	 63.60	0	2012672..2013193	-	173	116251679	-	RL1915	-	hypothetical protein
1912	 64.43	0	2013193..2014131	-	312	116251680	-	RL1916	-	hypothetical protein
1913	 60.84	0	2014128..2015105	-	325	116251681	-	RL1917	-	hypothetical protein
1914	 60.55	0	2015162..2016811	-	549	116251682	-	RL1918	-	putative exported arylsulfatase protein
1915	 63.75	0	2016978..2018210	-	410	116251683	-	RL1919	-	hypothetical protein
1916	 62.94	0	2018211..2019203	-	330	116251684	-	RL1920	-	hypothetical protein
1917	 64.63	0	2019225..2021822	-	865	116251685	-	RL1921	-	hypothetical protein
1918	 64.40	0	2021906..2023627	-	573	116251686	-	RL1922	-	hypothetical protein
1919	 60.66	0	2023719..2024051	-	110	116251687	-	RL1923	-	hypothetical protein
1920	 61.65	0	2024203..2025000	+	265	116251688	-	RL1924	-	hypothetical protein
1921	 60.86	0	2025163..2026677	+	504	116251689	-	RL1925	-	hypothetical protein
1922	 57.51	-1	2026740..2027777	+	345	116251690	-	RL1926	-	hypothetical protein
1923	 64.60	0	2028304..2032176	+	1290	116251691	-	RL1927	-	putative adhesin autotransporter
1924	 57.92	-1	2032252..2032434	+	60	116251692	-	RL1928	-	hypothetical protein
1925	 59.78	0	2032564..2033187	+	207	116251693	-	RL1929	-	hypothetical protein
1926	 62.14	0	2033184..2035061	+	625	116251694	-	RL1930	-	putative ATP-dependent hydrolase protein
1927	 59.74	0	2035058..2035360	+	100	116251695	-	RL1931	-	hypothetical protein
1928	 60.57	0	2035350..2037350	-	666	116251696	-	RL1932	-	putative modification methylase
1929	 58.44	0	2037505..2038914	+	469	116251697	-	RL1933	-	hypothetical protein
1930	 60.30	0	2038918..2039451	-	177	116251698	-	RL1934	-	hypothetical protein
1931	 56.74	-1	2039564..2040631	-	355	116251699	-	RL1935	-	hypothetical protein
1932	 56.46	-1	2040618..2041430	-	270	116251700	-	RL1936	-	hypothetical protein
1933	 60.85	0	2041740..2041928	-	62	116251701	-	RL1937	-	hypothetical protein
1934	 59.83	0	2041993..2042826	-	277	116251702	-	RL1938	-	putative phosphatase
1935	 55.81	-1	2042946..2043341	+	131	116251703	-	RL1939	-	hypothetical protein
1936	 58.36	0	2043391..2044413	-	340	116251704	-	RL1940	-	hypothetical protein
1937	 53.37	-2	2045372..2045890	+	172	116251705	-	RL1941	-	hypothetical protein
1938	 60.29	0	2046069..2046680	-	203	116251706	-	RL1942	-	hypothetical protein
1939	 61.06	0	2046747..2047994	-	415	116251707	-	RL1943	-	hypothetical protein
1940	 60.13	0	2048005..2049198	-	397	116251708	-	RL1944	-	hypothetical protein
1941	 62.13	0	2049554..2053369	-	1271	116251709	-	RL1945	-	ribonucleotide-diphosphate reductase subunit alpha
1942	 48.94	-2	2053492..2053773	+	93	116251710	-	RL1946	-	hypothetical protein
1943	 58.04	-1	2054009..2054599	-	196	116251711	-	RL1947	-	hypothetical protein
1944	 61.21	0	2054896..2055390	-	164	116251712	gpt	RL1948	-	xanthine-guanine phosphoribosyltransferase
1945	 61.21	0	2055572..2056414	-	280	116251713	-	RL1949	-	putative universal stress family protein
1946	 62.29	0	2056523..2057299	-	258	116251714	-	RL1950	-	putative molybdenum cofactor biosynthesis protein
1947	 64.15	0	2057585..2058181	+	198	116251715	wrbA	RL1951	-	TrpR binding protein WrbA
1948	 58.39	0	2058772..2059206	-	144	116251716	-	RL1952	-	putative transmembrane protein
1949	 61.87	0	2059345..2060595	+	416	116251717	ilvA	RL1953	-	threonine dehydratase
1950	 58.72	0	2060633..2060959	+	108	116251718	-	RL1954	-	hypothetical protein
1951	 60.85	0	2061195..2062466	+	423	116251719	-	RL1955	-	putative transmembrane GGDEF sensory box protein
1952	 57.60	-1	2062636..2063892	+	418	116251720	-	RL1956	-	putative transmembrane protein
1953	 65.12	+1	2063951..2064727	-	258	116251721	-	RL1957	-	putative short-chain dehydrogenase/oxidoreductase
1954	 63.19	0	2064890..2065465	+	191	116251722	-	RL1958	-	TetR family transcriptional regulator
61.51	MEAN

3.25	STD DEV
