IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

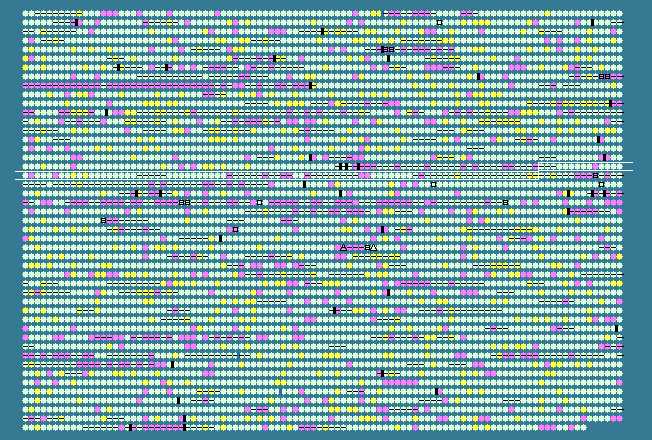

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1787	 58.05	-1	1884080..1884613	+	177	116251555	rplF	RL1789	-	50S ribosomal protein L6
1788	 63.09	0	1884626..1884988	+	120	116251556	rplR	RL1790	-	50S ribosomal protein L18
1789	 63.51	0	1885120..1885689	+	189	116251557	rpsE	RL1791	-	30S ribosomal protein S5
1790	 60.00	0	1885704..1885913	+	69	116251558	rpmD	RL1792	-	50S ribosomal protein L30
1791	 62.05	0	1885930..1886406	+	158	116251559	rplO	RL1793	-	50S ribosomal protein L15
1792	 59.36	0	1886641..1887981	+	446	116251560	secY	RL1794	-	preprotein translocase subunit SecY
1793	 60.52	0	1887978..1888628	+	216	116251561	adk	RL1795	-	putative adenylate kinase
1794	 61.25	0	1888851..1889219	+	122	116251562	rpsM	RL1796	-	30S ribosomal protein S13
1795	 63.59	0	1889353..1889742	+	129	116251563	rpsK	RL1797	-	30S ribosomal protein S11
1796	 57.47	-1	1889840..1890850	+	336	116251564	rpoA	RL1798	-	DNA-directed RNA polymerase subunit alpha
1797	 63.12	0	1890974..1891396	+	140	116251565	rplQ	RL1799	-	50S ribosomal protein L17
1798	 58.10	-1	1891480..1891899	+	139	116251566	-	RL1800	-	putative transmembrane protein
1799	 59.51	0	1891903..1892559	-	218	116251567	-	RL1801	-	putative sulfite oxidase subunit YedZ
1800	 61.89	0	1892559..1893563	-	334	116251568	-	RL1802	-	putative sulfite oxidase subunit YedY
1801	 63.40	0	1893842..1895680	+	612	116251569	ilvD	RL1803	-	dihydroxy-acid dehydratase
1802	 56.78	-1	1895850..1896203	-	117	116251570	-	RL1804	-	hypothetical protein
1803	 60.89	0	1896227..1896607	-	126	116251571	-	RL1805	-	putative transmembrane protein
1804	 63.32	0	1896864..1898267	+	467	116251572	degQ	RL1806	-	putative protease DegQ precursor
1805	 64.16	0	1898264..1899580	+	438	116251573	-	RL1807	-	recombination factor protein RarA
1806	 56.09	-1	1899594..1899905	-	103	116251574	-	RL1808	-	hypothetical protein
1807	 63.95	0	1900038..1900331	-	97	116251575	-	RL1809	-	hypothetical protein
1808	 61.84	0	1900328..1900534	-	68	116251576	-	RL1810	-	hypothetical protein
1809	 66.88	+1	1900628..1901548	-	306	116251577	dapA	RL1811	-	putative dihydrodipicolinate synthase
1810	 62.77	0	1901923..1902846	+	307	116251578	-	RL1812	-	putative hydrolase
1811	 65.57	+1	1902890..1903891	-	333	116251579	-	RL1813	-	putative 2-dehydropantoate 2-reductase
1812	 63.73	0	1903995..1904846	-	283	116251580	-	RL1814	-	putative short-chain dehydrogenase/reductase
1813	 62.61	0	1904973..1905860	+	295	116251581	-	RL1815	-	LysR family transcriptional regulator
1814	 61.76	0	1905835..1906425	-	196	116251582	-	RL1816	-	putative nucleoside 2-deoxyribosyltransferase
1815	 63.97	0	1906905..1907867	+	320	116251583	-	RL1817	-	putative lipase/esterase
1816	 62.46	0	1907908..1908525	-	205	116251584	-	RL1818	-	hypothetical protein
1817	 58.23	-1	1908589..1910283	-	564	116251585	-	RL1819	-	putative two component sensor histidine kinase transcriptional regulatory protein
1818	 63.33	0	1910718..1911767	+	349	116251586	-	RL1820	-	putative HTH-type transcriptional regulator
1819	 61.48	0	1911767..1913386	+	539	116251587	-	RL1821	-	putative CoA-transferase
1820	 62.82	0	1913379..1914158	+	259	116251588	-	RL1822	-	putative enoyl-CoA hydratase
1821	 62.21	0	1914152..1915678	+	508	116251589	-	RL1823	-	putative aldehyde dehydrogenase
1822	 62.07	0	1915869..1917131	+	420	116251590	-	RL1824	-	putative solute-binding component of ABC transporter
1823	 60.38	0	1917260..1918213	+	317	116251591	-	RL1825	-	putative transmembrane component of ABC transporter
1824	 60.23	0	1918210..1919157	+	315	116251592	-	RL1826	-	putative transmembrane component of ABC transporter
1825	 63.89	0	1919161..1920276	+	371	116251593	-	RL1827	-	putative ATP-binding component of ABC transporter
1826	 61.22	0	1920292..1921797	+	501	116251594	-	RL1828	-	putative N-terminal membrane-anchored dehydrogenase
1827	 61.59	0	1921840..1923495	+	551	116251595	-	RL1829	-	putative dehydrogenase/oxidoreductase
1828	 59.74	0	1923520..1924689	+	389	116251596	-	RL1830	-	putative oxidoreductase
1829	 62.59	0	1924696..1926780	+	694	116251597	-	RL1831	-	putative oxidoreductase/dehydrogenase flavoprotein binding
1830	 59.87	0	1927114..1927908	-	264	116251598	exoA	RL1832	-	putative exodeoxyribonuclease
1831	 62.45	0	1928077..1928574	-	165	116251599	-	RL1833	-	hypothetical protein
1832	 59.68	0	1928861..1929361	+	166	116251600	-	RL1834	-	hypothetical protein
1833	 58.81	0	1929389..1930012	-	207	116251601	-	RL1835	-	putative two component response regulator transcriptional regulatory protein
1834	 60.33	0	1930015..1931403	-	462	116251602	-	RL1836	-	putative transmembrane two-component kinase
1835	 54.67	-2	1931466..1931690	-	74	116251603	-	RL1837	-	putative transmembrane protein
1836	 62.14	0	1931816..1932655	+	279	116251604	ubiE	RL1838	-	putative ubiquinone/menaquinone biosynthesis methyltransferase
1837	 61.05	0	1932750..1933016	-	88	116251605	-	RL1839	-	hypothetical protein
1838	 64.91	+1	1933218..1933616	+	132	116251606	-	RL1840	-	putative transmembrane protein
1839	 61.35	0	1933760..1934605	+	281	116251607	-	RL1841	-	hypothetical protein
1840	 61.00	0	1934819..1935400	+	193	116251608	-	RL1842	-	hypothetical protein
1841	 57.46	-1	1935511..1935825	+	104	116251609	-	RL1843	-	hypothetical protein
1842	 60.85	0	1935839..1936732	-	297	116251610	-	RL1844	-	LysR family transcriptional regulator
1843	 61.05	0	1936852..1937865	+	337	116251611	-	RL1845	-	putative exported ErfK/YbiS/YhnG family protein
1844	 53.64	-2	1937961..1938620	-	219	116251612	-	RL1846	-	putative two component response regulator transcriptional regulatory protein
1845	 57.53	-1	1938882..1941728	+	948	116251613	-	RL1847	-	transcriptional regulator
1846	 60.99	0	1941860..1943146	-	428	116251614	-	RL1848	-	putative epoxide hydrolase
1847	 63.68	0	1943629..1944297	-	222	116251615	-	RL1849	-	hypothetical protein
1848	 57.53	-1	1944587..1945210	-	207	116251616	-	RL1850	-	putative isochorismatase family protein
1849	 61.24	0	1945244..1945777	-	177	116251617	-	RL1851	-	hypothetical protein
1850	 61.78	0	1945931..1946932	-	333	116251618	-	RL1852	-	putative enoyl-CoA hydratase family protein
1851	 62.94	0	1946929..1947438	-	169	116251619	-	RL1853	-	putative endoribonuclease L-PSP family protein
1852	 60.33	0	1947432..1948157	-	241	116251620	-	RL1854	-	putative oxidoreductase
1853	 60.16	0	1948508..1949014	+	168	116251621	-	RL1855	-	hypothetical protein
1854	 59.15	0	1949095..1949799	+	234	116251622	-	RL1856	-	putative DJ-1/PfpI family protein
1855	 58.63	0	1950120..1951475	-	451	116251623	-	RL1858	-	putative protease
1856	 58.51	0	1952152..1953942	+	596	116251624	-	RL1859	-	hypothetical protein
1857	 57.45	-1	1954004..1954795	-	263	116251625	phhA	RL1860	-	phenylalanine 4-monooxygenase
1858	 57.79	-1	1954919..1955380	+	153	116251626	-	RL1861	-	AsnC family transcriptional regulator
1859	 58.54	0	1955429..1955908	-	159	116251627	-	RL1862	-	AsnC family transcriptional regulator
1860	 58.65	0	1956039..1957148	+	369	116251628	-	RL1863	-	putative 4-hydroxyphenylpyruvate dioxygenase
1861	 59.84	0	1957210..1958571	+	453	116251629	hmgA	RL1864	-	homogentisate 1,2-dioxygenase
1862	 63.65	0	1958612..1959637	+	341	116251630	-	RL1865	-	putative hydrolase
1863	 58.77	0	1959634..1960266	+	210	116251631	-	RL1866	-	putative maleylacetoacetate isomerase
1864	 59.67	0	1960624..1961952	+	442	116251632	-	RL1867	-	hypothetical protein
1865	 59.23	0	1962155..1962988	-	277	116251633	-	RL1868	-	putative universal stress related protein
1866	 62.71	0	1963055..1965736	-	893	116251634	-	RL1869	-	putative cation-transporting ATPase
1867	 57.41	-1	1965973..1966296	+	107	116251635	dksA	RL1870	-	putative DNAK suppressor protein
1868	 63.77	0	1966325..1968187	+	620	116251636	-	RL1871	-	putative transmembrane cation ATPase transporter
1869	 61.56	0	1968184..1969005	-	273	116251637	-	RL1872	-	putative universal stress response protein
1870	 59.26	0	1969135..1969593	+	152	116251638	-	RL1873	-	putative pyridoxine oxidase protein
1871	 59.41	0	1969640..1970011	+	123	116251639	-	RL1874	-	hypothetical protein
1872	 61.00	0	1970356..1970796	+	146	116251640	-	RL1875	-	putative transmembrane protein
1873	 66.37	+1	1970878..1971873	+	331	116251641	adh	RL1876	-	putative alcohol dehydrogenase
1874	 64.16	0	1971982..1973337	+	451	116251642	-	RL1877	-	putative protease
1875	 60.65	0	1973462..1974109	+	215	116251643	-	RL1878	-	putative peptidoglycan binding protein
1876	 63.28	0	1974453..1976372	-	639	116251644	-	RL1879	-	putative nitrogen fixation two component sensor/regulator fusion transcriptional regulator
1877	 61.09	0	1976350..1977084	-	244	116251645	-	RL1880	-	CRP/FNR family transcriptional regulator
1878	 63.04	0	1977207..1977950	+	247	116251646	-	RL1881	-	putative two-component regulator response regulator transcriptional regulatory protein
1879	 59.23	0	1977913..1978356	-	147	116251647	-	RL1882	-	hypothetical protein
1880	 60.07	0	1978497..1979072	+	191	116251648	hspF	RL1883	-	putative small heat shock protein
1881	 63.27	0	1979151..1979798	-	215	116251649	-	RL1884	-	putative phospholipid binding protein
1882	 63.18	0	1980014..1981648	+	544	116251650	-	RL1885	-	putative beta-lactamase family protein
1883	 62.49	0	1981975..1983147	+	390	116251651	pduW	RL1886	-	putative propionate kinase
1884	 61.11	0	1983626..1983931	+	101	116251652	-	RL1887	-	putative transmembrane protein
1885	 66.93	+1	1983953..1984330	+	125	116251653	-	RL1888	-	hypothetical protein
1886	 67.07	+1	1984442..1985920	+	492	116251654	-	RL1889	-	putative multicopper oxidase
61.51	MEAN

3.25	STD DEV
