IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

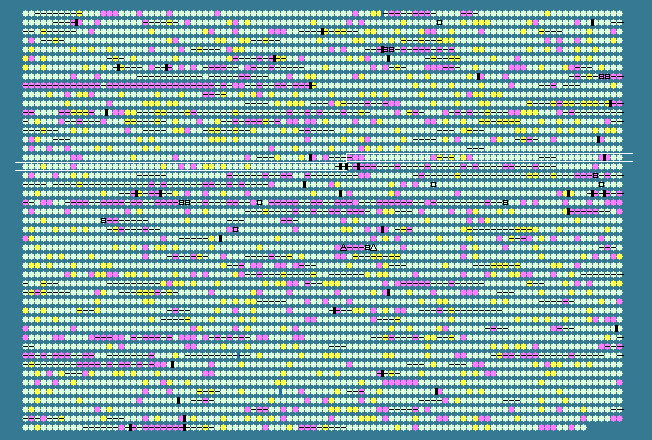

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1655	 56.65	-1	1733347..1734684	+	445	116251423	-	RL1657	-	putative substrate binding component of ABC transporter
1656	 53.47	-2	1734811..1735704	+	297	116251424	-	RL1658	-	putative transmembrane component of ABC transporter
1657	 54.24	-2	1735701..1736537	+	278	116251425	-	RL1659	-	putative transmembrane component of ABC transporter
1658	 62.97	0	1736565..1737809	-	414	116251426	-	RL1660	-	putative transmembrane protein
1659	 62.89	0	1737806..1739368	-	520	116251427	cpsA	RL1661	-	putative transmembrane sugar transferase protein
1660	 62.44	0	1739443..1740624	-	393	116251428	-	RL1662	-	putative glycosyltransferase
1661	 61.98	0	1740628..1741203	-	191	116251429	-	RL1663	-	putative polysaccharide export protein
1662	 63.64	0	1741393..1743573	+	726	116251430	exoP	RL1664	-	putative transmembrane succinoglycan biosynthesis transport protein
1663	 63.04	0	1743578..1744819	-	413	116251431	-	RL1665	-	hypothetical protein
1664	 62.41	0	1745368..1746471	+	367	116251432	cox15	RL1666	-	putative transmembrane heme A synthase
1665	 64.39	0	1746501..1747292	-	263	116251433	-	RL1667	-	putative transmembrane protein
1666	 63.88	0	1747476..1748408	-	310	116251434	argC	RL1668	-	N-acetyl-gamma-glutamyl-phosphate reductase
1667	 62.54	0	1748469..1749461	-	330	116251435	speB	RL1669	-	agmatinase
1668	 61.62	0	1749654..1750841	-	395	116251436	-	RL1670	-	putative transmembrane efflux protein
1669	 55.88	-1	1750866..1751069	-	67	116251437	-	RL1671	-	hypothetical protein
1670	 65.60	+1	1751149..1751616	-	155	116251438	rpsI	RL1672	-	30S ribosomal protein S9
1671	 60.65	0	1751618..1752082	-	154	116251439	rplM	RL1673	-	50S ribosomal protein L13
1672	 65.44	+1	1752397..1753296	-	299	116251440	-	RL1674	-	LysR family transcriptional regulator
1673	 62.45	0	1753696..1754526	+	276	116251441	-	RL1675	-	enoyl-CoA hydratase
1674	 65.11	+1	1754577..1755413	-	278	116251442	-	RL1676	-	putative transmembrane protein
1675	 56.48	-1	1755889..1756212	-	107	116251443	-	RL1677	-	hypothetical protein
1676	 62.47	0	1756351..1756779	+	142	116251444	-	RL1678	-	hypothetical protein
1677	 63.40	0	1756897..1758180	+	427	116251445	cysD	RL1679	-	O-acetylhomoserine aminocarboxypropyltransferase
1678	 58.55	0	1758204..1758548	+	114	116251446	-	RL1680	-	hypothetical protein
1679	 58.92	0	1758780..1760909	+	709	116251447	-	RL1681	-	putative transmembrane GGDEF sensory box protein
1680	 60.20	0	1761175..1762287	+	370	116251448	-	RL1682	-	putative solute-binding component of ABC transporter
1681	 62.37	0	1762486..1763463	+	325	116251449	-	RL1683	-	putative transmembrane component of ABC transporter
1682	 62.00	0	1763466..1764323	+	285	116251450	-	RL1684	-	putative transmembrane component of ABC transporter
1683	 62.70	0	1764320..1765126	+	268	116251451	-	RL1685	-	putative ATP-binding component of ABC transporter
1684	 63.34	0	1765142..1766434	-	430	116251452	-	RL1686	-	putative cytochrome P450
1685	 63.56	0	1766446..1767861	-	471	116251453	-	RL1687	-	putative transmembrane GGDEF sensory box protein
1686	 60.32	0	1768136..1768765	+	209	161501794	clpP	RL1688	-	ATP-dependent Clp protease proteolytic subunit
1687	 60.88	0	1769069..1770346	+	425	116251455	clpX	RL1689	-	ATP-dependent protease ATP-binding subunit
1688	 60.63	0	1770750..1773167	+	805	116251456	lon	RL1690	-	putative ATP-dependent protease
1689	 59.06	0	1773374..1773649	+	91	116251457	hu	RL1691	-	putative DNA-binding protein HU
1690	 63.70	0	1774075..1774983	+	302	116251458	-	RL1692	-	putative transmembrane protein
1691	 62.39	0	1775079..1777277	+	732	116251459	-	RL1693	-	hypothetical protein
1692	 63.93	0	1777351..1778337	-	328	116251460	-	RL1694	-	putative aldo-keto reductase
1693	 64.93	+1	1778484..1778885	+	133	116251461	-	RL1695	-	hypothetical protein
1694	 59.90	0	1778995..1779600	-	201	116251462	-	RL1696	-	hypothetical protein
1695	 60.45	0	1779766..1780119	+	117	116251463	-	RL1697	-	hypothetical protein
1696	 59.56	0	1780253..1780801	+	182	116251464	-	RL1698	-	hypothetical protein
1697	 52.06	-2	1781721..1782035	-	104	116251465	-	RL1699	-	hypothetical protein
1698	 53.93	-2	1783182..1783550	+	122	116251466	nqo1	RL1700	-	NADH dehydrogenase subunit A
1699	 61.71	0	1783541..1784125	+	194	116251467	nqo6	RL1701	-	NADH dehydrogenase subunit B
1700	 60.20	0	1784144..1784746	+	200	116251468	nqo5	RL1702	-	NADH dehydrogenase subunit C
1701	 60.54	0	1784814..1786004	+	396	116251469	nqo4	RL1703	-	NADH dehydrogenase subunit D
1702	 63.24	0	1786293..1787459	+	388	116251470	nqo2	RL1704	-	NADH dehydrogenase subunit E
1703	 62.68	0	1787470..1788774	+	434	116251471	nqo1	RL1705	-	NADH dehydrogenase I subunit F
1704	 66.19	+1	1788858..1789493	+	211	116251472	-	RL1706	-	hypothetical protein
1705	 64.12	0	1789712..1791793	+	693	116251473	nqo3	RL1707	-	NADH dehydrogenase subunit G
1706	 60.44	0	1791806..1792849	+	347	116251474	nuoH	RL1708	-	NADH dehydrogenase subunit H
1707	 60.16	0	1792890..1793381	+	163	116251475	nuoI	RL1709	-	NADH dehydrogenase subunit I
1708	 60.33	0	1793526..1794140	+	204	116251476	nqo10	RL1710	-	NADH dehydrogenase subunit J
1709	 56.96	-1	1794164..1794472	+	102	116251477	nuoK	RL1711	-	NADH dehydrogenase subunit K
1710	 61.72	0	1794480..1796480	+	666	116251478	nqo14	RL1712	-	NADH dehydrogenase subunit L
1711	 59.59	0	1796480..1797991	+	503	116251479	nuoM	RL1713	-	NADH dehydrogenase subunit M
1712	 62.52	0	1798010..1799455	+	481	116251480	nuoN	RL1714	-	NADH dehydrogenase subunit N
1713	 63.14	0	1799455..1800219	+	254	116251481	birA	RL1715	-	putative biotin transcriptional regulator bifunctional protein
1714	 62.60	0	1800237..1801907	+	556	116251482	-	RL1716	-	putative beta-lactamase family protein
1715	 63.21	0	1801910..1802314	+	134	116251483	-	RL1717	-	putative lactoylglutathione lyase
1716	 58.48	0	1802432..1802773	+	113	116251484	-	RL1718	-	putative transmembrane protein
1717	 59.26	0	1803364..1804686	+	440	116251485	proS	RL1719	-	prolyl-tRNA synthetase
1718	 61.61	0	1804702..1806006	+	434	116251486	-	RL1720	-	putative transmembrane component of ABC transporter
1719	 63.16	0	1806021..1806704	+	227	116251487	-	RL1721	-	putative ATP-binding component of ABC transporter
1720	 61.29	0	1806831..1807295	-	154	116251488	-	RL1722	-	hypothetical protein
1721	 61.95	0	1807797..1811294	+	1165	116251489	dnaE	RL1723	-	DNA polymerase III subunit alpha
1722	 62.81	0	1811369..1812640	-	423	116251490	-	RL1724	-	hypothetical protein
1723	 63.05	0	1812714..1813901	-	395	116251491	-	RL1725	-	DNA polymerase IV
1724	 65.17	+1	1814065..1814667	+	200	116251492	-	RL1726	-	hypothetical protein
1725	 61.33	0	1814642..1815316	-	224	116251493	-	RL1727	-	hypothetical protein
1726	 64.40	0	1815319..1815627	-	102	116251494	-	RL1728	-	hypothetical protein
1727	 55.65	-1	1815760..1816131	+	123	116251495	-	RL1729	-	putative two-component response regulator transcriptional regulatory protein
1728	 63.10	0	1816150..1817523	+	457	116251496	pleD	RL1730	-	response regulator PleD
1729	 50.60	-2	1818274..1818441	-	55	116251497	rpmG	RL1731	-	50S ribosomal protein L33
1730	 60.93	0	1818534..1819718	-	394	116251498	-	RL1732	-	putative transmembrane protein
1731	 66.00	+1	1819973..1820425	-	150	116251499	-	RL1733	-	hypothetical protein
1732	 65.36	+1	1820549..1822921	-	790	116251500	rnr	RL1734	-	putative ribonuclease R
1733	 63.13	0	1822923..1825577	-	884	116251501	topA	RL1735	-	DNA topoisomerase I
1734	 67.45	+1	1825826..1826968	-	380	116251502	smf	RL1736	-	putative smf protein
1735	 61.19	0	1826968..1827588	-	206	116251503	-	RL1737	-	putative glycerol-3-phosphate acyltransferase PlsY
1736	 64.19	0	1827665..1828954	-	429	116251504	pyrC	RL1738	-	dihydroorotase
1737	 64.16	0	1828951..1829907	-	318	116251505	pyrB	RL1739	-	aspartate carbamoyltransferase catalytic subunit
1738	 65.34	+1	1830087..1831745	+	552	116251506	-	RL1740	-	putative acyl CoA-like DNA repair protein
1739	 62.73	0	1832169..1835042	-	957	116251507	-	RL1741	-	putative ribonuclease
1740	 63.48	0	1835666..1836922	+	418	116251508	-	RL1742	-	putative N-acetylmuramoyl-L-alanine amidase
1741	 62.52	0	1837298..1839757	+	819	116251509	-	RL1743	-	putative peptidoglycan transglycosylase penicillin-binding protein 1A
1742	 62.10	0	1840089..1841117	+	342	116251510	prfB	RL1744	-	peptide chain release factor 2
1743	 60.04	0	1841441..1842919	+	492	116251511	-	RL1745	-	putative ATP-binding component of ABC transporter
1744	 63.48	0	1842963..1843967	+	334	116251512	-	RL1746	-	putative transmembrane component of ABC transporter
1745	 60.39	0	1844056..1845042	+	328	116251513	-	RL1747	-	putative solute-binding component of ABC transporter
1746	 61.22	0	1845101..1845871	+	256	116251514	-	RL1748	-	short chain dehydrogenase
1747	 61.55	0	1845894..1846889	+	331	116251515	dhaK	RL1749	-	putative PTS-dependent dihydroxyacetone kinase,dihydroxyacetone binding subunit
1748	 60.83	0	1846905..1847555	+	216	116251516	dhaL1	RL1750	-	putative PTS-dependent dihydroxyacetone kinase,ADP-binding subunit
1749	 61.06	0	1847713..1849815	+	700	116251517	-	RL1751	-	putative transcriptional regulator and PTS-dependent dihydroxyacetone kinase, fusion protein
1750	 63.68	0	1849874..1850542	+	222	116251518	dhaL2	RL1752	-	putative PTS-dependent dihydroxyacetone kinase,ADP-binding subunit
1751	 63.26	0	1850602..1851627	-	341	116251519	-	RL1753	-	hypothetical protein
1752	 63.37	0	1851662..1852177	-	171	116251520	-	RL1754	-	hypothetical protein
1753	 60.98	0	1852182..1852955	-	257	116251521	ppnK	RL1755	-	inorganic polyphosphate/ATP-NAD kinase
1754	 63.41	0	1854556..1855446	-	296	116251522	rLmB	RL1756	-	putative 23S rRNA (guanosine-2'-O-)-methyltransferase RlmB
61.51	MEAN

3.25	STD DEV
