IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

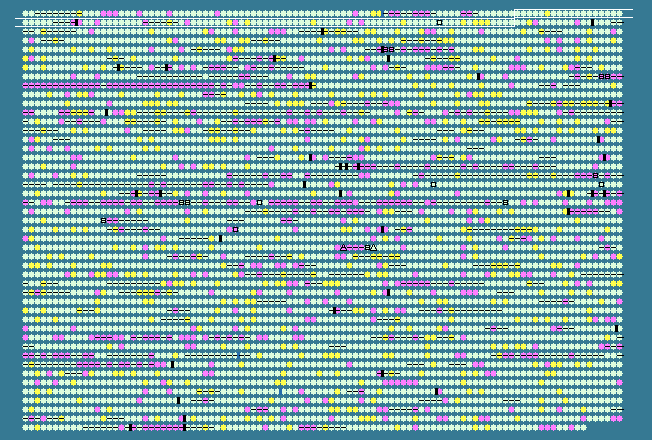

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.51   STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
83	 64.12	0	106182..107201	+	339	116249849	-	RL0083	-	LacI family transcriptional regulator
84	 62.57	0	107329..109185	+	618	116249850	-	RL0084	-	hypothetical protein
85	 62.61	0	109182..110192	+	336	116249851	-	RL0085	-	putative glycerate dehydrogenase
86	 58.84	0	110281..111609	-	442	116249852	-	RL0086	-	GFO/IDH/MocA family oxidoreductase
87	 63.27	0	111710..112534	-	274	116249853	-	RL0087	-	hypothetical protein
88	 65.21	+1	112672..113835	-	387	116249854	-	RL0088	-	hypothetical protein
89	 63.10	0	113839..114987	-	382	116249855	-	RL0089	-	putative oxidoreductase
90	 61.06	0	115119..115796	-	225	116249856	-	RL0090	-	TetR family transcriptional regulator
91	 62.55	0	115995..117281	+	428	116249857	-	RL0091	-	putative ATP-binding component of ABC transporter
92	 59.27	0	117288..118247	+	319	116249858	-	RL0092	-	putative transmembrane component of ABC transporter
93	 59.50	0	118249..119127	+	292	116249859	-	RL0093	-	putative transmembrane component of ABC transporter
94	 61.92	0	119151..120224	+	357	116249860	-	RL0094	-	GFO/IDH/MocA family oxidoreductase
95	 62.67	0	120256..121332	+	358	116249861	-	RL0095	-	putative ATP-binding component of ABC transporter protein
96	 60.51	0	121601..122494	+	297	116249862	-	RL0096	-	hypothetical protein
97	 63.16	0	122495..124945	+	816	116249863	-	RL0097	-	pyruvate dehydrogenase phosphatase regulatory subunit
98	 63.92	0	125075..126532	-	485	116249864	-	RL0098	-	putative mannitol dehydrogenase
99	 64.19	0	126529..127944	-	471	116249865	-	RL0099	-	glucuronate isomerase
100	 61.43	0	128125..128334	+	69	116249866	-	RL0100	-	hypothetical protein
101	 64.84	+1	128390..129871	-	493	116249867	gabD	RL0101	-	succinate-semialdehyde dehydrogenase [NADP+] (SSDH)
102	 64.17	0	130039..131319	-	426	116249868	gabT	RL0102	-	4-aminobutyrate aminotransferase
103	 63.70	0	131486..132295	+	269	116249869	-	RL0103	-	MerR family transcriptional regulator
104	 61.08	0	132535..133161	+	208	116249870	-	RL0104	-	putative ribonuclease
105	 64.62	0	133393..134958	+	521	116249871	-	RL0105	-	hypothetical protein
106	 60.27	0	135131..136834	-	567	116249872	rpsA	RL0106	-	30S ribosomal protein S1
107	 60.96	0	137011..137658	-	215	116249873	cmk	RL0107	-	cytidylate kinase
108	 64.75	0	137731..139089	-	452	116249874	aroA	RL0108	-	3-phosphoshikimate 1-carboxyvinyltransferase
109	 55.21	-1	139366..139749	+	127	116249875	-	RL0109	-	hypothetical protein
110	 53.45	-2	140098..140430	+	110	116249876	-	RL0110	-	hypothetical protein
111	 62.93	0	140531..141253	+	240	116249877	-	RL0111	-	putative transmembrane protein
112	 61.34	0	141322..142110	+	262	116249878	-	RL0112	-	putative transmembrane protein
113	 55.07	-1	142264..142677	+	137	116249879	-	RL0113	-	hypothetical protein
114	 62.89	0	142765..143400	+	211	116249880	-	RL0114	-	putative transmembrane protein
115	 61.70	0	143477..143899	-	140	116249881	irr	RL0115	-	iron response regulator
116	 59.30	0	144197..144712	+	171	116249882	fabA	RL0116	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
117	 61.83	0	144791..145990	+	399	116249883	fabB	RL0117	-	3-oxoacyl-(acyl carrier protein) synthase I
118	 62.21	0	145998..146804	+	268	116249884	fabI	RL0118	-	enoyl-(acyl carrier protein) reductase
119	 64.70	0	146893..147909	-	338	116249885	-	RL0119	-	putative ribosomal RNA small subunit methyltransferase
120	 62.27	0	147985..150123	-	712	116249886	pnp	RL0120	-	polynucleotide phosphorylase/polyadenylase
121	 54.81	-2	150472..150741	-	89	116249887	rpsO	RL0121	-	30S ribosomal protein S15
122	 59.32	0	150895..151833	-	312	116249888	-	RL0122	-	putative oxidoreductase
123	 63.02	0	151863..152795	-	310	116249889	truB	RL0123	-	tRNA pseudouridine synthase B
124	 61.73	0	152809..153213	-	134	116249890	rbfA	RL0124	-	ribosome-binding factor A
125	 65.21	+1	153364..156117	-	917	116249891	infB	RL0125	-	translation initiation factor IF-2
126	 62.19	0	156219..156911	-	230	116249892	-	RL0126	-	hypothetical protein
127	 61.80	0	156908..158509	-	533	116249893	nusA	RL0127	-	transcription elongation factor NusA
128	 57.92	-1	158569..159174	-	201	116249894	-	RL0128	-	hypothetical protein
129	 64.23	0	159373..161052	+	559	116249895	-	RL0129	-	putative transmembrane transport protein
130	 62.32	0	161049..161531	+	160	116249896	-	RL0130	-	putative transcriptional regulator/acetyltransferase
131	 61.18	0	161538..162812	-	424	116249897	-	RL0131	-	hypothetical protein
132	 64.03	0	162809..163414	-	201	116249898	recR	RL0131A	-	recombination protein RecR
133	 61.73	0	163433..164101	+	222	116249899	-	RL0132	-	hypothetical protein
134	 62.65	0	164124..164447	-	107	116249900	-	RL0133	-	hypothetical protein
135	 65.12	+1	164470..166347	-	625	116249901	dnaX	RL0134	-	DNA polymerase III subunits gamma and tau
136	 57.06	-1	166459..166989	+	176	116249902	-	RL0135	-	hypothetical protein
137	 62.92	0	166986..167945	+	319	116249903	-	RL0136	-	putative MutT/nudix family protein
138	 65.23	+1	167950..168645	+	231	116249904	-	RL0137	-	putative transcriptional regulator
139	 61.79	0	169172..169540	+	122	116249905	-	RL0138	-	putative glyoxalase/dioxygenase
140	 60.94	0	169654..170508	-	284	116249906	-	RL0139	-	prephenate dehydratase
141	 63.10	0	170519..171274	-	251	116249907	kdsB	RL0140	-	3-deoxy-manno-octulosonate cytidylyltransferase
142	 60.11	0	171429..171992	+	187	116249908	cycM	RL0141	-	putative cytochrome c
143	 64.87	+1	172062..173009	-	315	116249909	-	RL0142	-	putative transmembrane permease protein
144	 61.53	0	173497..174489	+	330	116249910	-	RL0143	-	Pfk family kinase
145	 64.81	+1	174482..175021	-	179	116249911	-	RL0144	-	hypothetical protein
146	 64.07	0	175207..176208	+	333	116249912	gyaR	RL0145	-	putative glyoxylate reductase
147	 62.78	0	176222..176710	-	162	116249913	-	RL0146	-	putative acetyltransferase
148	 64.85	+1	176707..177531	-	274	116249914	-	RL0147	-	molybdopterin biosynthesis protein MoeB
149	 65.78	+1	177528..178652	-	374	116249915	recF	RL0148	-	recombination protein F
150	 58.74	0	179034..179399	+	121	116249916	-	RL0149	-	putative HTH-type transcriptional regulator
151	 59.20	0	179558..179758	-	66	116249917	-	RL0150	-	hypothetical protein
152	 62.94	0	180070..181197	-	375	116249918	dnaJ	RL0151	-	putative chaperone protein
153	 61.09	0	181283..183199	-	638	116249919	dnaK	RL0152	-	molecular chaperone DnaK
154	 64.61	0	183536..185872	-	778	116249920	-	RL0153	-	putative penicillin-binding transpeptidase/transglycosylase protein
155	 57.21	-1	186083..186304	-	73	116249921	-	RL0154	-	hypothetical protein
156	 61.75	0	186908..187558	-	216	116249922	-	RL0155	-	hypothetical protein
157	 50.78	-2	187564..187821	-	85	116249923	-	RL0156	-	hypothetical protein
158	 62.28	0	187987..189444	-	485	116249924	-	RL0157	-	hypothetical protein
159	 62.35	0	189588..191972	+	794	116249925	-	RL0158	-	GGDEF domain/EAL domain-containing protein
160	 64.03	0	192083..192499	-	138	116249926	-	RL0159	-	MarR family transcriptional regulator protein
161	 62.57	0	192994..196044	+	1016	116249927	polA	RL0160	-	DNA polymerase I
162	 63.55	0	196319..198664	+	781	116249928	-	RL0161	-	putative cell division DNA translocase protein
163	 59.72	0	198700..199203	-	167	116249929	-	RL0162	-	hypothetical protein
164	 65.33	+1	199223..199819	-	198	116249930	phnN	RL0163	-	putative ATP-binding phosphonate metabolism protein
165	 63.94	0	199816..200988	-	390	116249931	phnM	RL0164	-	putative phosphonate metabolism protein
166	 61.78	0	200969..201664	-	231	116249932	-	RL0165	-	hypothetical protein
167	 60.98	0	201786..203138	-	450	116249933	phoT	RL0166	-	putative permease component of phosphate uptake ABC transporter protein
168	 60.65	0	203138..204118	-	326	116249934	phoE	RL0167	-	putative permease component of phosphate uptake ABC transporter
169	 61.47	0	204187..205110	-	307	116249935	phoD	RL0168	-	putative solute-binding component of phosphate uptake ABC transporter
170	 60.02	0	205369..206436	-	355	116249936	-	RL0169	-	putative transposase for insertion element family protein
171	 63.00	0	206639..207484	-	281	116249937	phoC	RL0170	-	putative ATP-binding component of phosphate uptake ABC transporter
172	 63.27	0	207600..208217	-	205	116249938	-	RL0171	-	putative acetyltransferase
173	 64.27	0	208214..208921	-	235	116249939	-	RL0172	-	putative ATP-binding component of phosphate uptake ABC transporter
174	 65.25	+1	208948..209724	-	258	116249940	phnK	RL0173	-	phosphonates transport ATP-binding protein
175	 61.99	0	209721..210596	-	291	116249941	phnJ	RL0174	-	putative phosphonate metabolism protein
176	 65.22	+1	210593..211699	-	368	116249942	phnI	RL0175	-	putative phosphonate metabolism protein
177	 66.17	+1	211704..212312	-	202	116249943	phnH	RL0176	-	carbon-phosphorus lyase complex subunit
178	 67.51	+1	212312..212788	-	158	116249944	phnG	RL0177	-	putative phosphonate utilisation protein
179	 63.69	0	212906..213643	+	245	116249945	-	RL0178	-	GntR family transcriptional regulator
180	 63.05	0	213683..214318	-	211	116249946	gpmA	RL0179	-	phosphoglyceromutase
181	 64.85	+1	214340..215164	-	274	116249947	dapB	RL0180	-	dihydrodipicolinate reductase
182	 63.53	0	215180..216967	-	595	116249948	-	RL0181	-	putative transmembrane component of ABC transporter
61.51	MEAN

3.25	STD DEV
