IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

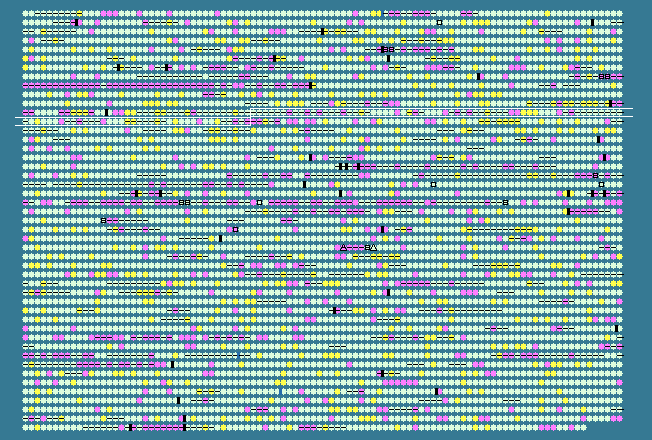

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.51   STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1139	 61.97	0	1213204..1214502	-	432	116250906	-	RL1134	-	hypothetical protein
1140	 60.91	0	1214583..1215242	+	219	116250907	-	RL1135	-	putative transmembrane copper resistance protein
1141	 58.63	0	1215281..1215790	+	169	116250908	-	RL1136	-	hypothetical protein
1142	 59.89	0	1215808..1217268	+	486	116250909	-	RL1137	-	hypothetical protein
1143	 60.98	0	1217320..1217847	+	175	116250910	-	RL1138	-	putative ECF sigma factor
1144	 63.15	0	1217844..1218611	+	255	116250911	-	RL1139	-	putative transmembrane protein
1145	 54.99	-2	1219214..1219744	-	176	116250912	-	RL1141	-	hypothetical protein
1146	 64.88	+1	1219894..1221462	-	522	116250913	-	RL1142	-	putative adenylate cyclase
1147	 59.02	0	1221893..1222402	+	169	116250914	-	RL1144	-	hypothetical protein
1148	 55.97	-1	1222888..1223943	+	351	116250915	-	RL1145	-	putative conjugated bile salt hydrolase
1149	 61.78	0	1224087..1224782	-	231	116250916	-	RL1146	-	hypothetical protein
1150	 54.92	-2	1224769..1225185	-	138	116250917	-	RL1147	-	hypothetical protein
1151	 60.27	0	1225427..1225723	+	98	116250918	-	RL1148	-	hypothetical protein
1152	 59.93	0	1226196..1228616	+	806	116250919	-	RL1149	-	putative exported arylsulfatase
1153	 61.80	0	1228626..1229303	+	225	116250920	-	RL1150	-	hypothetical protein
1154	 57.11	-1	1229358..1230854	+	498	116250921	-	RL1151	-	hypothetical protein
1155	 60.00	0	1230985..1231344	+	119	116250922	-	RL1152	-	putative transmembrane protein
1156	 61.19	0	1231646..1232083	-	145	116250923	-	RL1154	-	hypothetical protein
1157	 65.80	+1	1232414..1233217	+	267	116250924	-	RL1155	-	putative glycosyl transferase
1158	 63.88	0	1233183..1234580	-	465	116250925	-	RL1156	-	putative two component sensor histidine kinase transcriptional regulator
1159	 64.35	0	1234567..1235256	-	229	116250926	-	RL1157	-	putative two-component response regulator transcriptional regulatory protein
1160	 61.87	0	1235723..1236118	+	131	116250927	-	RL1159	-	hypothetical protein
1161	 61.67	0	1236170..1236769	-	199	116250928	-	RL1160	-	putative cytochrome c protein
1162	 63.01	0	1236898..1237689	-	263	116250929	-	RL1161	-	hypothetical protein
1163	 55.46	-1	1237944..1238282	-	112	116250930	-	RL1162	-	putative response regulator
1164	 60.22	0	1238348..1239463	-	371	116250931	-	RL1163	-	putative two-component sensor histidine kinase transcriptional regulatory protein
1165	 68.34	+2	1239888..1240484	-	198	116250932	-	RL1164	-	hypothetical protein
1166	 57.23	-1	1240502..1240819	-	105	116250933	-	RL1165	-	hypothetical protein
1167	 58.46	0	1241165..1241554	-	129	116250934	-	RL1166	-	putative ribonuclease-L-PSP family protein
1168	 62.75	0	1241692..1242303	+	203	116250935	-	RL1167	-	TetR family transcriptional regulator
1169	 58.56	0	1242406..1242738	+	110	116250936	-	RL1168	-	HTH family transcriptional regulator
1170	 59.44	0	1242735..1243094	+	119	116250937	-	RL1169	-	hypothetical protein
1171	 56.37	-1	1243141..1243752	+	203	116250938	clpP	RL1170	-	ATP-dependent Clp protease proteolytic subunit
1172	 60.27	0	1244138..1244356	+	72	116250939	-	RL1171	-	hypothetical protein
1173	 57.60	-1	1244403..1244777	+	124	116250940	-	RL1172	-	putative transmembrane protein
1174	 60.61	0	1244937..1245332	-	131	116250941	-	RL1173	-	putative transmembrane protein
1175	 57.83	-1	1245461..1245811	-	116	116250942	-	RL1174	-	hypothetical protein
1176	 64.15	0	1246261..1247610	+	449	116250943	-	RL1175	-	putative transmembrane efflux protein
1177	 59.72	0	1247675..1247962	+	95	116250944	-	RL1176	-	hypothetical protein
1178	 65.30	+1	1247967..1248404	+	145	116250945	-	RL1177	-	putative transmembrane protein
1179	 63.52	0	1248404..1249135	+	243	116250946	-	RL1178	-	putative transmembrane efflux protein
1180	 63.12	0	1249132..1249695	+	187	116250947	-	RL1179	-	hypothetical protein
1181	 62.78	0	1249965..1251020	+	351	116250948	-	RL1180	-	hypothetical protein
1182	 57.48	-1	1251180..1251821	+	213	116250949	-	RL1181	-	hypothetical protein
1183	 57.41	-1	1251932..1252255	-	107	116250950	-	RL1182	-	hypothetical protein
1184	 65.93	+1	1252528..1253343	+	271	116250951	aacC	RL1183	-	putative aminoglycoside N(3')-acetyltransferase III
1185	 67.37	+1	1253556..1254125	-	189	116250952	-	RL1184	-	hypothetical protein
1186	 65.39	+1	1254221..1254925	-	234	116250953	-	RL1185	-	putative short-chain dehydrogenase/reductase
1187	 63.29	0	1255043..1255930	+	295	116250954	-	RL1186	-	LysR family transcriptional regulator
1188	 60.98	0	1256226..1257932	+	568	116250955	cya3	RL1187	-	putative adenylate cyclase 3
1189	 62.40	0	1258537..1259520	-	327	116250956	-	RL1188	-	putative kinase
1190	 46.90	-2	1259691..1260110	+	139	116250957	-	RL1189	-	hypothetical protein
1191	 63.77	0	1260269..1260613	-	114	116250958	-	RL1190	-	putative HTH-type transcriptional regulator
1192	 56.88	-1	1260630..1261058	-	142	116250959	-	RL1191	-	putative transmembrane protein
1193	 62.90	0	1261418..1261762	-	114	116250960	-	RL1192	-	HTH family transcriptional regulator
1194	 63.72	0	1261869..1262615	+	248	116250961	-	RL1193	-	putative short-chain reductase
1195	 61.44	0	1262712..1263266	-	184	116250962	-	RL1194	-	putative transmembrane protein
1196	 62.91	0	1263584..1266271	-	895	116250963	-	RL1196	-	putative adhesin precursor (autotransporter)
1197	 59.31	0	1266575..1267294	-	239	116250964	-	RL1197	-	putative oxidoreductase/dehydrogenase
1198	 59.21	0	1267418..1267846	-	142	116250965	-	RL1198	-	hypothetical protein
1199	 60.83	0	1267939..1269051	-	370	116250966	-	RL1199	-	hypothetical protein
1200	 61.08	0	1269017..1270180	+	387	116250967	-	RL1200	-	putative transmembrane protein
1201	 61.78	0	1270181..1273087	-	968	116250968	-	RL1201	-	putative transcriptional regulator
1202	 64.91	+1	1273376..1274341	-	321	116250969	-	RL1202	-	LysR family transcriptional regulator
1203	 65.56	+1	1274411..1275403	+	330	116250970	-	RL1203	-	metallo-beta-lactamase family methyl parathion hydrolase
1204	 64.76	0	1275918..1276808	-	296	116250971	-	RL1204	-	LysR family transcriptional regulator
1205	 63.33	0	1276913..1277782	+	289	116250972	-	RL1205	-	hypothetical protein
1206	 62.66	0	1277817..1278290	+	157	116250973	-	RL1206	-	hypothetical protein
1207	 57.08	-1	1278506..1279444	-	312	116250974	-	RL1207	-	hypothetical protein
1208	 62.91	0	1279854..1280546	-	230	116250975	-	RL1208	-	putative chaperone protein
1209	 63.13	0	1280668..1281600	+	310	116250976	-	RL1209	-	LysR family transcriptional regulator
1210	 57.60	-1	1281597..1282037	+	146	116250977	-	RL1210	-	hypothetical protein
1211	 61.07	0	1282092..1282466	-	124	116250978	-	RL1211	-	hypothetical protein
1212	 58.29	0	1282574..1283194	-	206	116250979	-	RL1212	-	putative glutathione S-transferase
1213	 58.44	0	1283187..1283672	-	161	116250980	-	RL1213	-	hypothetical protein
1214	 57.66	-1	1283665..1283997	-	110	116250981	-	RL1214	-	HTH family transcriptional regulator
1215	 64.17	0	1284137..1284457	-	106	116250982	-	RL1215	-	putative transmembrane protein
1216	 61.68	0	1284459..1284839	-	126	116250983	-	RL1216	-	hypothetical protein
1217	 62.07	0	1284958..1285566	+	202	116250984	-	RL1217	-	TetR family transcriptional regulator
1218	 65.03	+1	1285736..1286224	-	162	116250985	-	RL1218	-	hypothetical protein
1219	 65.27	+1	1286199..1286555	-	118	116250986	-	RL1219	-	putative transcriptional regulator
1220	 62.46	0	1286704..1287345	+	213	116250987	-	RL1220	-	hypothetical protein
1221	 64.12	0	1287412..1287765	+	117	116250988	-	RL1221	-	HTH family transcriptional regulator
1222	 62.63	0	1287755..1288249	+	164	116250989	-	RL1222	-	hypothetical protein
1223	 65.03	+1	1288315..1289049	-	244	116250990	-	RL1223	-	hypothetical protein
1224	 61.23	0	1289166..1291097	-	643	116250991	cya1	RL1224	-	putative adenylate/guanylate cyclase
1225	 58.12	-1	1291440..1291790	-	116	116250992	-	RL1225	-	hypothetical protein
1226	 66.32	+1	1291890..1292468	-	192	116250993	-	RL1226	-	putative transmembrane protein
1227	 64.13	0	1292663..1293292	-	209	116250994	-	RL1227	-	hypothetical protein
1228	 63.28	0	1293364..1293954	-	196	116250995	-	RL1228	-	TetR family transcriptional regulator
1229	 61.19	0	1294195..1294869	+	224	116250996	-	RL1229	-	hypothetical protein
1230	 55.14	-1	1294944..1295264	+	106	116250997	-	RL1230	-	hypothetical protein
1231	 63.89	0	1295526..1296353	-	275	116250998	-	RL1231	-	short chain dehydrogenase
1232	 61.34	0	1296433..1297371	+	312	116250999	-	RL1232	-	AraC family transcriptional regulator
1233	 66.17	+1	1297380..1297982	-	200	116251000	-	RL1233	-	TetR family transcriptional regulator
1234	 62.00	0	1298034..1298483	+	149	116251001	-	RL1234	-	putative glyxoylase
1235	 62.50	0	1298480..1298791	+	103	116251002	-	RL1235	-	hypothetical protein
1236	 57.66	-1	1299551..1301104	+	517	116251003	-	RL1236	-	putative arylsulfatase
1237	 60.63	0	1301174..1303558	+	794	116251004	-	RL1237	-	putative arylsulfatase
1238	 57.08	-1	1303712..1305223	+	503	116251005	-	RL1238	-	putative arylsulfatase
61.51	MEAN

3.25	STD DEV
