IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

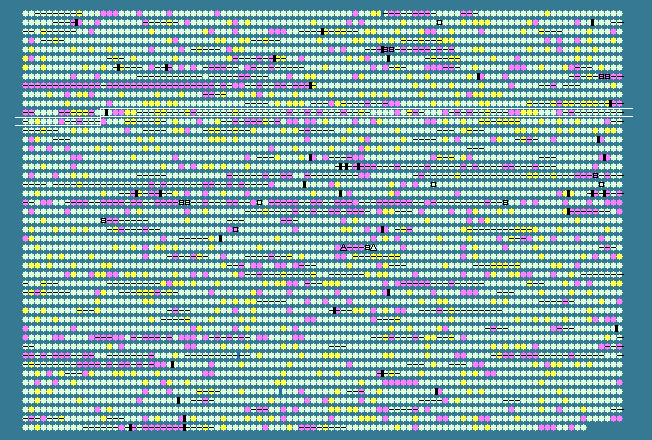

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1114	 64.46	0	1193444..1193851	-	135	116250881	-	RL1109	-	hypothetical protein
1115	 61.78	0	1194321..1194770	-	149	116250882	-	RL1110	-	putative plasmid-stability like protein
1116	 57.46	-1	1194767..1195081	-	104	116250883	-	RL1111	-	hypothetical protein
1117	 54.68	-2	1195117..1195725	-	202	116250884	-	RL1112	-	putative transmembrane protein
1118	 67.74	+1	1195857..1196879	-	340	116250885	-	RL1113	-	putative transcriptional regulator
1119	 66.24	+1	1197748..1197981	-	77	116250886	-	RL1114	-	hypothetical protein
1120	 64.77	+1	1197993..1198256	-	87	116250887	-	RL1115	-	hypothetical protein
1121	 61.57	0	1199102..1199749	-	215	116250888	-	RL1116	-	hypothetical protein
1122	 61.62	0	1199817..1200113	+	98	116250889	-	RL1117	-	hypothetical protein
1123	 69.86	+2	1200110..1200328	+	72	116250890	-	RL1118	-	hypothetical protein
1124	 65.14	+1	1200458..1200850	+	130	116250891	-	RL1119	-	hypothetical protein
1125	 60.20	0	1200847..1201248	+	133	116250892	-	RL1120	-	hypothetical protein
1126	 64.14	0	1201214..1201609	+	131	116250893	-	RL1121	-	hypothetical protein
1127	 63.75	0	1201620..1202099	+	159	116250894	-	RL1122	-	GerE/LuxR family transcriptional regulator
1128	 65.32	+1	1202113..1202706	+	197	116250895	-	RL1123	-	hypothetical protein
1129	 55.96	-1	1202930..1203256	+	108	116250896	-	RL1124	-	hypothetical protein
1130	 59.39	0	1203757..1205295	+	512	116250897	-	RL1125	-	putative carboxylesterase
1131	 60.17	0	1205531..1206976	-	481	116250898	-	RL1126	-	hypothetical protein
1132	 63.52	0	1207465..1209369	+	634	116250899	-	RL1127	-	putative adenylate cyclase
1133	 60.77	0	1209389..1209829	+	146	116250900	-	RL1128	-	hypothetical protein
1134	 59.56	0	1209872..1210237	+	121	116250901	-	RL1129	-	hypothetical protein
1135	 64.90	+1	1210449..1210844	-	131	116250902	-	RL1130	-	hypothetical protein
1136	 65.13	+1	1211252..1212034	-	260	116250903	-	RL1131	-	putative transmembrane protein
1137	 63.75	0	1212459..1212869	-	136	116250904	-	RL1132	-	putative transmembrane protein
1138	 63.22	0	1212866..1213213	-	115	116250905	-	RL1133	-	HTH family transcriptional regulator
1139	 61.97	0	1213204..1214502	-	432	116250906	-	RL1134	-	hypothetical protein
1140	 60.91	0	1214583..1215242	+	219	116250907	-	RL1135	-	putative transmembrane copper resistance protein
1141	 58.63	0	1215281..1215790	+	169	116250908	-	RL1136	-	hypothetical protein
1142	 59.89	0	1215808..1217268	+	486	116250909	-	RL1137	-	hypothetical protein
1143	 60.98	0	1217320..1217847	+	175	116250910	-	RL1138	-	putative ECF sigma factor
1144	 63.15	0	1217844..1218611	+	255	116250911	-	RL1139	-	putative transmembrane protein
1145	 54.99	-2	1219214..1219744	-	176	116250912	-	RL1141	-	hypothetical protein
1146	 64.88	+1	1219894..1221462	-	522	116250913	-	RL1142	-	putative adenylate cyclase
1147	 59.02	0	1221893..1222402	+	169	116250914	-	RL1144	-	hypothetical protein
1148	 55.97	-1	1222888..1223943	+	351	116250915	-	RL1145	-	putative conjugated bile salt hydrolase
1149	 61.78	0	1224087..1224782	-	231	116250916	-	RL1146	-	hypothetical protein
1150	 54.92	-2	1224769..1225185	-	138	116250917	-	RL1147	-	hypothetical protein
1151	 60.27	0	1225427..1225723	+	98	116250918	-	RL1148	-	hypothetical protein
1152	 59.93	0	1226196..1228616	+	806	116250919	-	RL1149	-	putative exported arylsulfatase
1153	 61.80	0	1228626..1229303	+	225	116250920	-	RL1150	-	hypothetical protein
1154	 57.11	-1	1229358..1230854	+	498	116250921	-	RL1151	-	hypothetical protein
1155	 60.00	0	1230985..1231344	+	119	116250922	-	RL1152	-	putative transmembrane protein
1156	 61.19	0	1231646..1232083	-	145	116250923	-	RL1154	-	hypothetical protein
1157	 65.80	+1	1232414..1233217	+	267	116250924	-	RL1155	-	putative glycosyl transferase
1158	 63.88	0	1233183..1234580	-	465	116250925	-	RL1156	-	putative two component sensor histidine kinase transcriptional regulator
1159	 64.35	0	1234567..1235256	-	229	116250926	-	RL1157	-	putative two-component response regulator transcriptional regulatory protein
1160	 61.87	0	1235723..1236118	+	131	116250927	-	RL1159	-	hypothetical protein
1161	 61.67	0	1236170..1236769	-	199	116250928	-	RL1160	-	putative cytochrome c protein
1162	 63.01	0	1236898..1237689	-	263	116250929	-	RL1161	-	hypothetical protein
1163	 55.46	-1	1237944..1238282	-	112	116250930	-	RL1162	-	putative response regulator
1164	 60.22	0	1238348..1239463	-	371	116250931	-	RL1163	-	putative two-component sensor histidine kinase transcriptional regulatory protein
1165	 68.34	+2	1239888..1240484	-	198	116250932	-	RL1164	-	hypothetical protein
1166	 57.23	-1	1240502..1240819	-	105	116250933	-	RL1165	-	hypothetical protein
1167	 58.46	0	1241165..1241554	-	129	116250934	-	RL1166	-	putative ribonuclease-L-PSP family protein
1168	 62.75	0	1241692..1242303	+	203	116250935	-	RL1167	-	TetR family transcriptional regulator
1169	 58.56	0	1242406..1242738	+	110	116250936	-	RL1168	-	HTH family transcriptional regulator
1170	 59.44	0	1242735..1243094	+	119	116250937	-	RL1169	-	hypothetical protein
1171	 56.37	-1	1243141..1243752	+	203	116250938	clpP	RL1170	-	ATP-dependent Clp protease proteolytic subunit
1172	 60.27	0	1244138..1244356	+	72	116250939	-	RL1171	-	hypothetical protein
1173	 57.60	-1	1244403..1244777	+	124	116250940	-	RL1172	-	putative transmembrane protein
1174	 60.61	0	1244937..1245332	-	131	116250941	-	RL1173	-	putative transmembrane protein
1175	 57.83	-1	1245461..1245811	-	116	116250942	-	RL1174	-	hypothetical protein
1176	 64.15	0	1246261..1247610	+	449	116250943	-	RL1175	-	putative transmembrane efflux protein
1177	 59.72	0	1247675..1247962	+	95	116250944	-	RL1176	-	hypothetical protein
1178	 65.30	+1	1247967..1248404	+	145	116250945	-	RL1177	-	putative transmembrane protein
1179	 63.52	0	1248404..1249135	+	243	116250946	-	RL1178	-	putative transmembrane efflux protein
1180	 63.12	0	1249132..1249695	+	187	116250947	-	RL1179	-	hypothetical protein
1181	 62.78	0	1249965..1251020	+	351	116250948	-	RL1180	-	hypothetical protein
1182	 57.48	-1	1251180..1251821	+	213	116250949	-	RL1181	-	hypothetical protein
1183	 57.41	-1	1251932..1252255	-	107	116250950	-	RL1182	-	hypothetical protein
1184	 65.93	+1	1252528..1253343	+	271	116250951	aacC	RL1183	-	putative aminoglycoside N(3')-acetyltransferase III
1185	 67.37	+1	1253556..1254125	-	189	116250952	-	RL1184	-	hypothetical protein
1186	 65.39	+1	1254221..1254925	-	234	116250953	-	RL1185	-	putative short-chain dehydrogenase/reductase
1187	 63.29	0	1255043..1255930	+	295	116250954	-	RL1186	-	LysR family transcriptional regulator
1188	 60.98	0	1256226..1257932	+	568	116250955	cya3	RL1187	-	putative adenylate cyclase 3
1189	 62.40	0	1258537..1259520	-	327	116250956	-	RL1188	-	putative kinase
1190	 46.90	-2	1259691..1260110	+	139	116250957	-	RL1189	-	hypothetical protein
1191	 63.77	0	1260269..1260613	-	114	116250958	-	RL1190	-	putative HTH-type transcriptional regulator
1192	 56.88	-1	1260630..1261058	-	142	116250959	-	RL1191	-	putative transmembrane protein
1193	 62.90	0	1261418..1261762	-	114	116250960	-	RL1192	-	HTH family transcriptional regulator
1194	 63.72	0	1261869..1262615	+	248	116250961	-	RL1193	-	putative short-chain reductase
1195	 61.44	0	1262712..1263266	-	184	116250962	-	RL1194	-	putative transmembrane protein
1196	 62.91	0	1263584..1266271	-	895	116250963	-	RL1196	-	putative adhesin precursor (autotransporter)
1197	 59.31	0	1266575..1267294	-	239	116250964	-	RL1197	-	putative oxidoreductase/dehydrogenase
1198	 59.21	0	1267418..1267846	-	142	116250965	-	RL1198	-	hypothetical protein
1199	 60.83	0	1267939..1269051	-	370	116250966	-	RL1199	-	hypothetical protein
1200	 61.08	0	1269017..1270180	+	387	116250967	-	RL1200	-	putative transmembrane protein
1201	 61.78	0	1270181..1273087	-	968	116250968	-	RL1201	-	putative transcriptional regulator
1202	 64.91	+1	1273376..1274341	-	321	116250969	-	RL1202	-	LysR family transcriptional regulator
1203	 65.56	+1	1274411..1275403	+	330	116250970	-	RL1203	-	metallo-beta-lactamase family methyl parathion hydrolase
1204	 64.76	0	1275918..1276808	-	296	116250971	-	RL1204	-	LysR family transcriptional regulator
1205	 63.33	0	1276913..1277782	+	289	116250972	-	RL1205	-	hypothetical protein
1206	 62.66	0	1277817..1278290	+	157	116250973	-	RL1206	-	hypothetical protein
1207	 57.08	-1	1278506..1279444	-	312	116250974	-	RL1207	-	hypothetical protein
1208	 62.91	0	1279854..1280546	-	230	116250975	-	RL1208	-	putative chaperone protein
1209	 63.13	0	1280668..1281600	+	310	116250976	-	RL1209	-	LysR family transcriptional regulator
1210	 57.60	-1	1281597..1282037	+	146	116250977	-	RL1210	-	hypothetical protein
1211	 61.07	0	1282092..1282466	-	124	116250978	-	RL1211	-	hypothetical protein
1212	 58.29	0	1282574..1283194	-	206	116250979	-	RL1212	-	putative glutathione S-transferase
1213	 58.44	0	1283187..1283672	-	161	116250980	-	RL1213	-	hypothetical protein
61.51	MEAN

3.25	STD DEV
