IslandPath Analysis: Rhizobium leguminosarum bv. viciae 3841

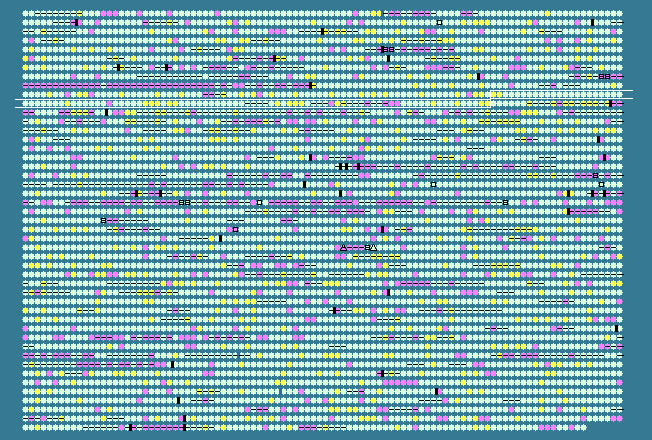

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.51 STD DEV: 3.25
Rhizobium leguminosarum bv. viciae 3841, complete genome - 1..5057142
4694 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
979	 65.01	+1	1049554..1051602	+	682	116250746	-	RL0972	-	putative methyl-accepting chemotaxis protein
980	 65.41	+1	1051866..1053782	-	638	116250747	dxs	RL0973	-	1-deoxy-D-xylulose-5-phosphate synthase
981	 64.29	0	1054028..1054951	-	307	116250748	-	RL0974	-	hypothetical protein
982	 64.02	0	1055038..1055793	-	251	116250749	-	RL0975	-	putative short-chain dehydrogenase
983	 63.18	0	1055892..1056149	-	85	116250750	xseB	RL0976	-	exodeoxyribonuclease VII small subunit
984	 63.68	0	1056146..1057081	-	311	116250751	-	RL0977	-	putative histone deacetylase-like amidohydrolase
985	 59.51	0	1057366..1057770	+	134	116250752	-	RL0978	-	hypothetical protein
986	 61.46	0	1057906..1058577	-	223	116250753	-	RL0979	-	hypothetical protein
987	 61.96	0	1058579..1060003	-	474	116250754	-	RL0980	-	hypothetical protein
988	 62.77	0	1060048..1060869	-	273	116250755	-	RL0981	-	putative transmembrane component of ABC transporter
989	 63.66	0	1060862..1061692	-	276	116250756	-	RL0982	-	putative transmembrane component of ABC transporter
990	 61.71	0	1061699..1062748	-	349	116250757	-	RL0983	-	putative solute-binding component of ABC transporter
991	 62.86	0	1062745..1063980	-	411	116250758	-	RL0984	-	putative ABC transporter component
992	 61.23	0	1064441..1065415	+	324	116250759	-	RL0985	-	putative solute-binding component of ABC transporter
993	 61.28	0	1065421..1066293	+	290	116250760	-	RL0986	-	putative transmembrane component of ABC transporter
994	 62.16	0	1066382..1067512	+	376	116250761	-	RL0987	-	hypothetical protein
995	 61.85	0	1067676..1068422	+	248	116250762	-	RL0988	-	GntR family transcriptional regulator
996	 61.14	0	1068507..1069175	-	222	116250763	-	RL0989	-	GntR family transcriptional regulator
997	 61.40	0	1069335..1070759	+	474	116250764	matA	RL0990	-	putative malonyl-CoA decarboxylase
998	 61.39	0	1070756..1072270	+	504	116250765	matB	RL0991	-	malonyl-CoA synthase
999	 61.54	0	1072367..1073713	+	448	116250766	matC	RL0992	-	putative transmembrane dicarboxylate carrier protein
1000	 64.30	0	1074085..1075353	-	422	116250767	-	RL0994	-	putative hydroxypyruvate reductase
1001	 62.01	0	1075365..1076438	-	357	116250768	-	RL0995	-	putative tartrate dehydrogenase
1002	 61.35	0	1076467..1077858	-	463	116250769	-	RL0996	-	putative transmembrane transporter
1003	 61.64	0	1077906..1078820	+	304	116250770	-	RL0997	-	putative HTH transcriptional regulator
1004	 62.91	0	1079094..1080638	+	514	116250771	-	RL0998	-	putative methionyl-tRNA synthetase
1005	 60.53	0	1081109..1082248	-	379	116250772	-	RL0999	-	putative two-component regulator sensor histidine kinase protein
1006	 58.71	0	1082245..1083036	-	263	116250773	-	RL1000	-	putative hydrolase
1007	 59.96	0	1083169..1083705	-	178	116250774	-	RL1001	-	hypothetical protein
1008	 65.96	+1	1083819..1084388	-	189	116250775	bioY	RL1002	-	putative transmembrane biotin biosynthesis protein
1009	 64.53	0	1084410..1085018	-	202	116250776	-	RL1003	-	putative transmembrane component of ABC transporter
1010	 63.77	0	1085018..1085707	-	229	116250777	-	RL1004	-	putative ATP-binding component of ABC transporter
1011	 63.22	0	1086002..1087192	+	396	116250778	-	RL1005	-	hypothetical protein
1012	 64.31	0	1087363..1088466	-	367	116250779	ribA	RL1006	-	putative riboflavin biosynthesis protein
1013	 64.30	0	1088479..1089576	-	365	116250780	aroC	RL1007	-	chorismate synthase
1014	 62.75	0	1089809..1092949	-	1046	116250781	-	RL1008	-	putative GGDEF/EAL transmembrane sensory box protein
1015	 56.54	-1	1093188..1093493	+	101	116250782	-	RL1009	-	hypothetical protein
1016	 63.45	0	1093702..1094292	-	196	116250783	gpmB	RL1010	-	putative phosphoglycerate mutase
1017	 61.05	0	1094316..1095134	-	272	116250784	fabI	RL1011	-	enoyl-(acyl carrier protein) reductase
1018	 64.56	0	1095256..1096443	-	395	116250785	cbpA	RL1012	-	putative curved DNA-binding protein
1019	 62.96	0	1096744..1097202	-	152	116250786	-	RL1013	-	hypothetical protein
1020	 59.74	0	1097268..1097888	+	206	116250787	pdxH	RL1014	-	pyridoxamine 5'-phosphate oxidase
1021	 66.67	+1	1097895..1098911	-	338	116250788	-	RL1015	-	putative polysaccharide deacetylase protein
1022	 65.02	+1	1099084..1100478	+	464	116250789	-	RL1016	-	putative D-alanyl-D-alanine carboxypeptidase (penicillin-binding protein)
1023	 66.04	+1	1100577..1100894	+	105	116250790	-	RL1017	-	hypothetical protein
1024	 60.77	0	1100945..1101436	-	163	116250791	-	RL1018	-	putative acetyltransferase
1025	 65.40	+1	1101454..1102869	-	471	116250792	tldD	RL1019	-	putative regulator
1026	 65.77	+1	1103236..1103901	-	221	116250793	-	RL1020	-	putative invasion associated protein
1027	 60.81	0	1104215..1105102	+	295	116250794	coxB	RL1021	-	putative cytochrome c oxidase polypeptide II precursor (cytochrome aa3 subunit 2)
1028	 61.73	0	1105120..1106820	+	566	116250795	coxA	RL1022	-	putative cytochrome c oxidase polypeptide I (cytochrome aa3 subunit 1)
1029	 62.67	0	1106888..1107838	+	316	116250796	coxX	RL1023	-	protoheme IX farnesyltransferase
1030	 61.70	0	1107838..1107978	+	46	116250797	coxF	RL1024	-	putative cox locus protein
1031	 58.29	0	1107975..1108583	+	202	116250798	coxZ	RL1025	-	cytochrome C oxidase assembly protein
1032	 61.77	0	1108645..1109523	+	292	116250799	ctaE	RL1026	-	putative cytochrome c oxidase polypeptide III (cytochrome aa3 subunit 3)
1033	 62.62	0	1109826..1110467	-	213	116250800	-	RL1027	-	putative phosphotransferase
1034	 61.68	0	1110705..1111085	+	126	116250801	-	RL1028	-	putative transmembrane protein
1035	 62.96	0	1111078..1111833	+	251	116250802	-	RL1029	-	putative transmembrane cytochrome oxidase biogenesis protein
1036	 63.77	0	1111897..1112898	+	333	116250803	ispH	RL1030	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1037	 63.35	0	1112969..1113934	+	321	116250804	thrB	RL1031	-	homoserine kinase
1038	 61.18	0	1113931..1114386	+	151	116250805	rnhA	RL1032	-	ribonuclease H
1039	 62.52	0	1114673..1115758	-	361	116250806	-	RL1033	-	hypothetical protein
1040	 60.42	0	1115854..1116045	-	63	116250807	-	RL1034	-	hypothetical protein
1041	 61.55	0	1116161..1116766	-	201	116250808	-	RL1035	-	hypothetical protein
1042	 63.36	0	1116974..1117759	+	261	116250809	-	RL1036	-	hypothetical protein
1043	 65.84	+1	1117916..1118401	+	161	116250810	-	RL1037	-	putative thioredoxin family protein
1044	 64.58	0	1118835..1119410	-	191	116250811	-	RL1038	-	hypothetical protein
1045	 68.32	+2	1119407..1119889	-	160	116250812	-	RL1039	-	hypothetical protein
1046	 68.79	+2	1120059..1121048	+	329	116250813	-	RL1040	-	LysR family transcriptional regulatory protein
1047	 66.93	+1	1121045..1122535	+	496	116250814	-	RL1041	-	putative oxidoreductase/monooxygenase
1048	 60.86	0	1122528..1123268	+	246	116250815	-	RL1042	-	putative ABC transporter component
1049	 61.82	0	1123285..1124109	+	274	116250816	-	RL1043	-	putative solute-binding component of ABC transporter
1050	 60.45	0	1124163..1124870	+	235	116250817	-	RL1044	-	putative transmembrane component of ABC transporter
1051	 60.32	0	1124890..1125582	+	230	116250818	-	RL1045	-	putative transmembrane component of ABC transporter
1052	 53.08	-2	1125710..1126099	-	129	116250819	-	RL1046	-	hypothetical protein
1053	 68.13	+2	1126398..1127147	+	249	116250820	-	RL1047	-	putative ATP-binding component of ABC transporter
1054	 65.75	+1	1127144..1128016	+	290	116250821	-	RL1048	-	putative transmembrane component of ABC transporter
1055	 61.00	0	1128033..1128932	+	299	116250822	-	RL1049	-	putative solute-binding component of ABC transporter
1056	 59.87	0	1128969..1129277	-	102	116250823	-	RL1050	-	hypothetical protein
1057	 59.09	0	1129406..1129867	-	153	116250824	-	RL1051	-	hypothetical protein
1058	 46.75	-2	1130261..1131274	+	337	116250825	-	RL1052	-	hypothetical protein
1059	 61.11	0	1131553..1132038	-	161	116250826	-	RL1053	-	putative exported endoribonuclease family protein
1060	 64.38	0	1132228..1132926	+	232	116250827	-	RL1054	-	TetR family transcriptional regulator
1061	 54.42	-2	1133009..1133359	-	116	116250828	-	RL1055	-	hypothetical protein
1062	 54.71	-2	1133662..1134171	+	169	116250829	-	RL1056	-	hypothetical protein
1063	 50.79	-2	1134281..1134973	+	230	116250830	-	RL1057	-	hypothetical protein
1064	 62.74	0	1135025..1136731	-	568	116250831	argS	RL1058	-	putative arginyl-tRNA synthetase
1065	 63.92	0	1137040..1139952	-	970	116250832	-	RL1059	-	GGDEF/EAL domain-containing protein
1066	 58.73	0	1139952..1140518	-	188	116250833	-	RL1060	-	putative ribosomal-protein-alanine acetyltransferase
1067	 64.20	0	1140593..1141891	-	432	116250834	-	RL1061	-	putative peptidase
1068	 62.18	0	1141895..1143319	-	474	116250835	thrC	RL1062	-	threonine synthase
1069	 65.28	+1	1143583..1144230	+	215	116250836	-	RL1063	-	hypothetical protein
1070	 62.32	0	1144551..1145240	-	229	116250837	-	RL1064	-	putative hydrolase
1071	 61.69	0	1145440..1147269	-	609	116250838	-	RL1065	-	putative methyl-accepting chemotaxis protein
1072	 62.89	0	1147609..1148190	+	193	116250839	-	RL1066	-	putative transmembrane protein
1073	 67.28	+1	1148357..1149007	-	216	116250840	-	RL1067	-	hypothetical protein
1074	 59.21	0	1149086..1149970	-	294	116250841	-	RL1068	-	hypothetical protein
1075	 60.20	0	1150046..1153693	+	1215	116250842	-	RL1069	-	putative autotransporter
1076	 59.95	0	1153735..1154106	-	123	116250843	-	RL1070	-	hypothetical protein
1077	 65.40	+1	1154354..1154590	-	78	116250844	-	RL1071	-	hypothetical protein
1078	 66.96	+1	1154672..1155358	-	228	116250845	-	RL1072	-	putative transcriptional regulator
61.51	MEAN

3.25	STD DEV
