IslandPathversion 1.0

IslandPath Analysis: Rhizobium etli CFN 42

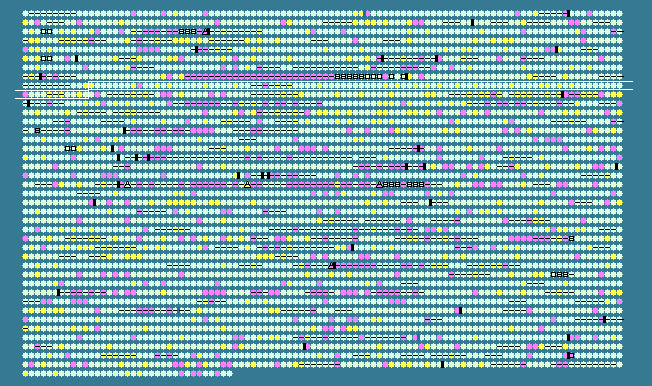

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.61 STD DEV: 3.19
Rhizobium etli CFN 42, complete genome - 1..4381608
4035 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
812	 67.94	+1	875523..877409	+	628	86356481	rluB	RHE_CH00835	-	pseudouridylate synthase, subunit B protein
813	 62.75	0	877390..877950	+	186	86356482	-	RHE_CH00836	-	putative methylase protein
814	 63.27	0	877964..878845	+	293	86356483	-	RHE_CH00837	-	hypothetical protein
815	 60.33	0	878834..879322	-	162	86356484	-	RHE_CH00838	-	hypothetical protein
816	 63.44	0	879326..879697	-	123	86356485	-	RHE_CH00839	-	putative glyoxalase protein
817	 64.81	+1	879809..881527	-	572	86356486	kefB	RHE_CH00840	-	glutathione-regulated potassium-efflux transporter protein
818	 63.47	0	881743..883089	+	448	86356487	pmbA	RHE_CH00841	-	modulator of DNA gyrase protein
819	 65.56	+1	883119..883928	+	269	86356488	-	RHE_CH00842	-	inositol monophosphatase protein
820	 57.03	-1	883991..884239	+	82	86356489	-	RHE_CH00843	-	hypothetical protein
821	 63.71	0	884397..885716	+	439	86356490	kdtA	RHE_CH00844	-	3-deoxy-D-manno-octulosonic-acid transferase
822	 63.76	0	885726..886448	+	240	86356491	-	RHE_CH00845	-	phosphoglycolate phosphatase protein
823	 65.23	+1	886539..887579	+	346	86356492	lpxK	RHE_CH00846	-	tetraacyldisaccharide 4'-kinase
824	 60.61	0	887576..887806	-	76	86356493	-	RHE_CH00847	-	hypothetical protein
825	 66.61	+1	887874..889706	-	610	86356494	mutL	RHE_CH00848	-	DNA mismatch repair protein
826	 60.83	0	889889..891619	+	576	86356495	-	RHE_CH00849	-	two-component sensor histidine kinase protein
827	 62.27	0	891741..893150	+	469	86356496	-	RHE_CH00850	-	putative sensory box/GGDEF family protein
828	 61.55	0	893311..893916	-	201	86356497	-	RHE_CH00851	-	hypothetical protein
829	 63.18	0	894137..895024	-	295	86356498	-	RHE_CH00852	-	gluconolactonase protein (calcium-binding regucalcin-like)
830	 64.77	0	895029..895661	-	210	86356499	kdgA	RHE_CH00853	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
831	 67.21	+1	895675..896592	-	305	86356500	dgoK	RHE_CH00854	-	2-dehydro-3-deoxygalactonokinase protein
832	 63.94	0	896592..897362	-	256	86356501	fabG1	RHE_CH00855	-	3-oxoacyl-(acyl carrier protein) reductase protein
833	 65.03	+1	897493..898287	+	264	86356502	-	RHE_CH00856	-	IclR family transcriptional regulator
834	 59.71	0	898497..899243	+	248	86356503	-	RHE_CH00857	-	LuxR family transcriptional regulator
835	 58.60	0	899391..899861	+	156	86356504	-	RHE_CH00858	-	hypothetical protein
836	 65.38	+1	899858..901027	+	389	86356505	-	RHE_CH00859	-	ATP-binding protein (Mrp protein-like)
837	 59.47	0	901467..902453	+	328	86356506	corAch	RHE_CH00860	-	magnesium/cobalt transporter protein
838	 62.40	0	902472..904370	+	632	86356507	kupch1	RHE_CH00861	-	potassium transporter protein
839	 63.52	0	904671..905846	+	391	86356508	-	RHE_CH00862	-	putative cell wall hydrolase protein involved in spore germination
840	 59.29	0	906117..906455	+	112	86356509	atpI	RHE_CH00863	-	ATP synthase protein, subunit I
841	 57.10	-1	906518..907270	+	250	86356510	atpB	RHE_CH00864	-	F0F1 ATP synthase subunit A
842	 60.96	0	907339..907566	+	75	86356511	atpE	RHE_CH00865	-	F0F1 ATP synthase subunit C
843	 65.87	+1	907644..908267	+	207	86356512	atpF1	RHE_CH00866	-	F0F1 ATP synthase subunit B'
844	 62.80	0	908271..908762	+	163	86356513	atpF2	RHE_CH00867	-	F0F1 ATP synthase subunit B
845	 66.52	+1	909201..909890	-	229	86356514	rnhB	RHE_CH00868	-	ribonuclease HII
846	 64.34	0	910058..911215	-	385	86356515	-	RHE_CH00869	-	hypothetical protein
847	 63.97	0	911355..911873	+	172	86356516	-	RHE_CH00870	-	putative glycosyltransferase protein
848	 59.52	0	912273..912608	+	111	86356517	-	RHE_CH00871	-	hypothetical protein
849	 63.41	0	912689..913240	-	183	86356518	moaB	RHE_CH00872	-	molybdenum cofactor biosynthesis protein
850	 68.36	+2	913240..914124	-	294	86356519	ispE	RHE_CH00873	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase protein
851	 63.78	0	914137..915969	-	610	86356520	-	RHE_CH00874	-	hypothetical protein
852	 63.02	0	916101..917141	-	346	86356521	ispB	RHE_CH00875	-	octaprenyl-diphosphate synthase protein
853	 64.91	+1	917226..917453	+	75	86356522	-	RHE_CH00876	-	hypothetical protein
854	 64.12	0	917551..918258	+	235	86356523	-	RHE_CH00877	-	putative methyltransferase protein
855	 63.83	0	918248..919588	-	446	86356524	mntH	RHE_CH00878	-	manganese transport protein MntH
856	 62.95	0	919771..920631	+	286	86356525	sohB	RHE_CH00879	-	protease protein
857	 59.90	0	920650..920841	+	63	86356526	-	RHE_CH00880	-	hypothetical protein
858	 62.80	0	921168..922124	+	318	86356527	glyQ	RHE_CH00881	-	glycyl-tRNA synthetase subunit alpha
859	 61.41	0	922121..922672	+	183	86356528	-	RHE_CH00882	-	hypothetical protein
860	 61.78	0	922734..923285	+	183	86356529	-	RHE_CH00883	-	hypothetical protein
861	 65.72	+1	923481..924743	+	420	86356530	aroA	RHE_CH00884	-	3-phosphoshikimate 1-carboxyvinyltransferase protein
862	 62.73	0	924783..926714	+	643	86356531	-	RHE_CH00885	-	hypothetical protein
863	 65.81	+1	926781..928064	+	427	86356532	purD	RHE_CH00886	-	phosphoribosylamine--glycine ligase
864	 64.29	0	928158..928619	+	153	86356533	-	RHE_CH00887	-	hypothetical protein
865	 61.94	0	928944..930869	+	641	86356534	mcpV2	RHE_CH00888	-	methyl-accepting chemotaxis protein
866	 67.28	+1	931005..931493	-	162	86356535	-	RHE_CH00889	-	hypothetical protein
867	 64.82	+1	931735..933849	-	704	86356536	glyS	RHE_CH00890	-	glycyl-tRNA synthetase subunit beta
868	 65.80	+1	934096..936405	+	769	86356537	-	RHE_CH00891	-	transcriptional accessory protein
869	 59.76	0	936539..937798	+	419	86356538	cfa	RHE_CH00892	-	cyclopropane-fatty-acyl-phospholipid synthase protein
870	 68.21	+2	937833..938414	+	193	86356539	-	RHE_CH00893	-	phosphoglycerate mutase protein
871	 61.99	0	938723..939535	+	270	86356540	-	RHE_CH00894	-	hypothetical protein
872	 62.08	0	939652..940611	+	319	86356541	ubiA	RHE_CH00895	-	prenyltransferase
873	 66.14	+1	940694..941260	-	188	86356542	-	RHE_CH00896	-	hypothetical protein
874	 59.83	0	941562..944894	+	1110	86356543	-	RHE_CH00897	-	hypothetical protein
875	 64.71	0	945008..946441	-	477	86356544	-	RHE_CH00898	-	FAD-dependent oxidoreductase protein
876	 67.66	+1	946469..947479	-	336	86356545	-	RHE_CH00899	-	translation factor sua5 protein
877	 61.25	0	947518..948126	-	202	86356546	-	RHE_CH00900	-	hypothetical protein
878	 61.12	0	948530..949774	+	414	86356547	-	RHE_CH00901	-	dioxygenase protein
879	 64.25	0	949927..950382	+	151	86356548	-	RHE_CH00902	-	hypothetical protein
880	 58.45	0	950645..951058	+	137	86356549	-	RHE_CH00903	-	hypothetical protein
881	 62.05	0	951442..952437	-	331	86356550	-	RHE_CH00904	-	magnesium/cobalt transporter CorA
882	 66.05	+1	952645..954426	+	593	86356551	-	RHE_CH00905	-	acyl-CoA dehydrogenase protein
883	 64.67	0	954456..955208	+	250	86356552	-	RHE_CH00906	-	enoyl-CoA hydratase
884	 62.59	0	955258..956262	-	334	86356553	-	RHE_CH00907	-	hypothetical protein
885	 63.25	0	956341..957159	-	272	86356554	-	RHE_CH00908	-	short chain dehydrogenase
886	 60.44	0	957245..957694	+	149	86356555	-	RHE_CH00909	-	putative transcriptional regulator protein
887	 66.43	+1	957746..958996	-	416	86356556	-	RHE_CH00910	-	RNA-methyltransferase protein
888	 67.87	+1	958993..959739	-	248	86356557	tlyA	RHE_CH00911	-	hemolysin protein
889	 64.66	0	960013..961956	+	647	86356558	mcpU	RHE_CH00912	-	methyl-accepting chemotaxis protein
890	 65.88	+1	962175..964091	-	638	86356559	dxs	RHE_CH00913	-	1-deoxy-D-xylulose-5-phosphate synthase
891	 63.53	0	964340..965263	-	307	86356560	-	RHE_CH00914	-	hypothetical protein
892	 65.27	+1	965323..966036	+	237	86356561	-	RHE_CH00915	-	putative oxidoreductase protein
893	 63.10	0	966190..966441	-	83	86356562	-	RHE_CH00916	-	exodeoxyribonuclease VII small subunit
894	 63.57	0	966444..967379	-	311	86356563	-	RHE_CH00917	-	deacetylase protein
895	 59.95	0	967568..967969	+	133	86356564	-	RHE_CH00918	-	putative thioesterase protein
896	 62.37	0	967977..968627	-	216	86356565	matR	RHE_CH00919	-	AsnC/GntR family transcriptional regulator
897	 63.02	0	968786..970210	+	474	86356566	matA	RHE_CH00920	-	malonyl-CoA decarboxylase protein
898	 63.25	0	970231..971721	+	496	86356567	matB	RHE_CH00921	-	malonyl-CoA synthase
899	 62.07	0	971815..973164	+	449	86356568	matC	RHE_CH00922	-	dicarboxylate-carrier protein
900	 59.06	0	973433..974497	+	354	86356569	-	RHE_CH00923	-	LuxR family transcriptional regulator
901	 55.81	-1	974547..974933	-	128	86356570	ectC	RHE_CH00924	-	L-ectoine synthase
902	 60.00	0	975113..975997	+	294	86356571	-	RHE_CH00925	-	LysR family transcriptional regulator
903	 62.21	0	976098..976568	-	156	86356572	-	RHE_CH00926	-	hypothetical protein
904	 59.65	0	977113..978252	+	379	86356573	-	RHE_CH00927	-	putative acetyltransferase protein
905	 68.09	+2	978454..979017	-	187	86356574	bioY	RHE_CH00928	-	biotin transporter protein
906	 64.86	+1	979042..979650	-	202	86356575	bioN	RHE_CH00929	-	biotin transporter, permease protein
907	 66.07	+1	979650..980324	-	224	86356576	bioM	RHE_CH00930	-	biotin transporter, ATP-binding protein
908	 63.14	0	980670..981860	+	396	86356577	-	RHE_CH00931	-	hypothetical protein
909	 59.59	0	982198..983130	-	310	86356578	-	RHE_CH00932	-	hypothetical protein
910	 66.77	+1	983275..984273	+	332	86356579	-	RHE_CH00933	-	LysR family transcriptional regulator
911	 64.02	0	984640..985848	+	402	86356580	ribA	RHE_CH00934	-	GTP cyclohydrolase/3,4-dihydroxy-2-butanone 4-phosphate synthase bi-functional protein (ribofalvinbiosynthesis)
61.61	MEAN

3.19	STD DEV
