IslandPathversion 1.0

IslandPath Analysis: Rhizobium etli CFN 42

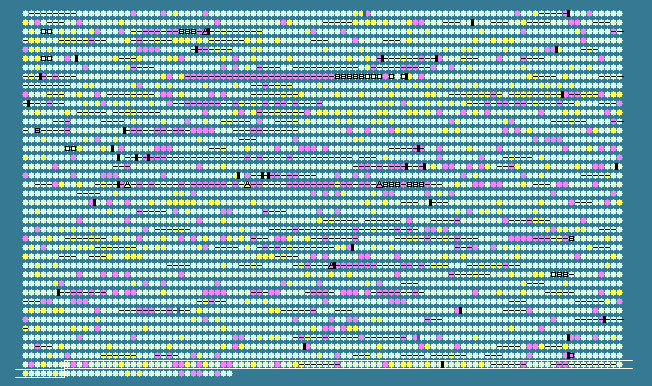

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.61 STD DEV: 3.19
Rhizobium etli CFN 42, complete genome - 1..4381608
4035 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3908	 59.97	0	4231817..4233055	+	412	86359577	-	RHE_CH03998	-	putative protein require for succinylation of osmoregulated periplasmic glucans
3909	 57.06	-1	4233183..4233536	-	117	86359578	-	RHE_CH03999	-	lactoylglutathione lyase protein
3910	 61.73	0	4233809..4235590	-	593	86359579	ndvA	RHE_CH04000	-	cyclic beta-1,2-glucan ABC transporter
3911	 58.07	-1	4235959..4236714	+	251	86359580	-	RHE_CH04001	-	LuxR family transcriptional regulator
3912	 62.71	0	4236888..4240352	+	1154	86359581	pyc	RHE_CH04002	-	pyruvate carboxylase
3913	 58.99	0	4240541..4241113	+	190	86359582	-	RHE_CH04003	-	putative reductase protein
3914	 61.61	0	4241170..4241802	-	210	86359583	-	RHE_CH04004	-	amino acid ABC transporter ATP-binding protein
3915	 63.18	0	4241928..4242587	-	219	86359584	-	RHE_CH04005	-	amino acid ABC transporter permease
3916	 59.04	0	4242808..4243581	-	257	86359585	-	RHE_CH04006	-	amino acid ABC transporter substrate-binding protein
3917	 66.10	+1	4243913..4244623	+	236	86359586	-	RHE_CH04007	-	DeoR family transcriptional regulator
3918	 62.52	0	4244773..4245882	+	369	86359587	-	RHE_CH04008	-	putative transporter, permease protein
3919	 63.15	0	4245979..4247229	+	416	86359588	ispG	RHE_CH04009	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
3920	 61.58	0	4247246..4248307	+	353	86359589	hisCch3	RHE_CH04010	-	histidinol-phosphate aminotransferase
3921	 65.96	+1	4248316..4249311	-	331	86359590	ispA	RHE_CH04011	-	geranyltranstransferase protein
3922	 60.97	0	4249403..4250104	+	233	86359591	mtgA	RHE_CH04012	-	monofunctional biosynthetic peptidoglycan transglycosylase
3923	 61.27	0	4250200..4250922	+	240	86359592	-	RHE_CH04013	-	hypothetical protein
3924	 61.11	0	4250937..4251584	+	215	86359593	-	RHE_CH04014	-	glutathione S-transferase protein
3925	 60.22	0	4251739..4251924	+	61	86359594	rpmF	RHE_CH04015	-	50S ribosomal protein L32
3926	 55.88	-1	4252067..4252474	+	135	86359595	-	RHE_CH04016	-	hypothetical protein
3927	 56.25	-1	4252469..4253044	-	191	86359596	aniA	RHE_CH04017	-	carbon flux regulator protein
3928	 65.40	+1	4253282..4254463	+	393	86359597	phbAch	RHE_CH04018	-	acetyl-CoA acetyltransferase
3929	 58.82	0	4254535..4255260	+	241	86359598	phbB	RHE_CH04019	-	acetoacetyl-CoA reductase protein
3930	 56.86	-1	4255267..4255419	+	50	86359599	-	RHE_CH04020	-	hypothetical protein
3931	 67.82	+1	4255670..4255930	-	86	86359600	-	RHE_CH04021	-	hypothetical protein
3932	 64.10	0	4256943..4260101	+	1052	86359601	mgpS	RHE_CH04022	-	ATP-dependent DNA helicase protein
3933	 63.70	0	4260104..4260508	+	134	86359602	-	RHE_CH04023	-	putative heat shock protein (ribosome-associated)
3934	 53.98	-2	4260700..4261038	+	112	86359603	fdxA	RHE_CH04024	-	ferredoxin III protein
3935	 56.02	-1	4261433..4262005	+	190	86359604	-	RHE_CH04025	-	CarD family transcriptional regulator
3936	 62.50	0	4262380..4263243	+	287	86359605	rpoH2	RHE_CH04026	-	RNA polymerase factor sigma-32
3937	 63.88	0	4263295..4264836	-	513	86359606	-	RHE_CH04027	-	putative metalloprotease protein
3938	 63.27	0	4265229..4266761	-	510	86359607	-	RHE_CH04028	-	putative transporter, permease protein
3939	 65.30	+1	4266966..4267403	+	145	86359608	-	RHE_CH04029	-	MarR family transcriptional regulator
3940	 64.21	0	4267476..4268126	+	216	86359609	-	RHE_CH04030	-	hypothetical protein
3941	 63.87	0	4268130..4269950	+	606	86359610	-	RHE_CH04031	-	putative ABC transporter, ATP-binding protein
3942	 61.98	0	4270014..4271870	-	618	86359611	-	RHE_CH04032	-	ABC transporter permease/ATP-binding protein
3943	 57.34	-1	4272216..4273073	+	285	86359612	metA	RHE_CH04033	-	homoserine O-succinyltransferase
3944	 62.27	0	4273192..4274214	+	340	86359613	galM	RHE_CH04034	-	aldose-1-epimerase protein
3945	 64.06	0	4274317..4275123	+	268	86359614	-	RHE_CH04035	-	GntR family transcriptional regulator
3946	 65.31	+1	4275116..4276147	+	343	86359615	glmS2	RHE_CH04036	-	glucosamine--fructose-6-phosphate aminotransferase protein
3947	 65.89	+1	4276147..4277298	+	383	86359616	nagA	RHE_CH04037	-	n-acetylglucosamine-6-phosphate deacetylase protein
3948	 64.06	0	4277316..4278044	+	242	86359617	-	RHE_CH04038	-	hypothetical protein
3949	 58.74	0	4278067..4278495	-	142	86359618	-	RHE_CH04039	-	hypothetical protein
3950	 61.75	0	4278670..4279239	-	189	86359619	efp	RHE_CH04040	-	elongation factor P
3951	 64.60	0	4279388..4280449	+	353	86359620	genX	RHE_CH04041	-	lysyl-tRNA synthetase protein
3952	 62.57	0	4280446..4281495	+	349	86359621	kamA	RHE_CH04042	-	L-lysine 2,3-aminomutase protein
3953	 57.14	-1	4281761..4282012	+	83	86359622	-	RHE_CH04043	-	acyl carrier protein
3954	 61.25	0	4282012..4283193	+	393	86359623	acd2	RHE_CH04044	-	acyl-CoA dehydrogenase protein
3955	 61.39	0	4283198..4284106	+	302	86359624	-	RHE_CH04045	-	hypothetical protein
3956	 60.64	0	4284115..4285077	+	320	86359625	-	RHE_CH04046	-	hypothetical protein
3957	 63.36	0	4285094..4287574	+	826	86359626	manB3	RHE_CH04047	-	beta-mannosidase protein
3958	 61.24	0	4287616..4288794	+	392	86359627	-	RHE_CH04048	-	putative glycosyltransferase protein
3959	 64.22	0	4288931..4292194	+	1087	86359628	-	RHE_CH04049	-	hypothetical protein
3960	 62.51	0	4292217..4293395	-	392	86359629	aceC	RHE_CH04050	-	cellobiosyl-diphosphoprenyl alpha-mannosyltransferase protein
3961	 55.70	-1	4293537..4293773	-	78	86359630	-	RHE_CH04051	-	putative transcriptional regulator protein
3962	 65.57	+1	4293842..4294750	-	302	86359631	-	RHE_CH04052	-	LysR family transcriptional regulator
3963	 64.69	0	4294854..4296266	+	470	86359632	-	RHE_CH04053	-	hypothetical protein
3964	 65.50	+1	4296334..4297617	+	427	86359633	-	RHE_CH04054	-	oxidoreductase protein
3965	 65.24	+1	4297643..4299181	+	512	86359634	-	RHE_CH04055	-	aldehyde dehydrogenase
3966	 60.51	0	4299369..4300391	+	340	86359635	sfuA	RHE_CH04056	-	iron(III) ABC transporter, substrate-binding protein
3967	 64.27	0	4300495..4302162	+	555	86359636	sfuB	RHE_CH04057	-	iron(III) ABC transporter, permease protein
3968	 66.38	+1	4302159..4303196	+	345	86359637	sfuC	RHE_CH04058	-	iron(III) ABC transporter, ATP-binding protein
3969	 62.16	0	4303232..4304563	-	443	86359638	-	RHE_CH04059	-	hypothetical protein
3970	 63.69	0	4304967..4306409	-	480	86359639	-	RHE_CH04060	-	hypothetical protein
3971	 60.69	0	4307166..4307483	+	105	86359640	rplU	RHE_CH04062	-	50S ribosomal protein L21
3972	 59.26	0	4307518..4307787	+	89	86359641	rpmA	RHE_CH04063	-	50S ribosomal protein L27
3973	 61.19	0	4307913..4308569	+	218	86359642	-	RHE_CH04064	-	putative acetyltransferase protein
3974	 65.99	+1	4308566..4309153	+	195	86359643	-	RHE_CH04065	-	putative acetyltransferase protein
3975	 62.78	0	4309248..4309967	-	239	86359644	-	RHE_CH04066	-	putative endonuclease/exonuclease/phosphatase protein
3976	 62.18	0	4310199..4311290	+	363	86359645	obgE	RHE_CH04067	-	GTPase ObgE
3977	 67.18	+1	4311277..4312446	+	389	86359646	proB	RHE_CH04068	-	gamma-glutamyl kinase
3978	 63.86	0	4312439..4313722	+	427	86359647	proA	RHE_CH04069	-	gamma-glutamyl phosphate reductase
3979	 64.59	0	4313781..4314359	+	192	86359648	nadD	RHE_CH04070	-	nicotinic acid mononucleotide adenylyltransferase
3980	 62.37	0	4314798..4315589	+	263	86359649	modA	RHE_CH04071	-	molybdenum ABC transporter, substrate-binding protein
3981	 64.48	0	4315825..4316556	+	243	86359650	modB	RHE_CH04072	-	molybdate ABC transporter permease protein
3982	 63.58	0	4316553..4317620	+	355	86359651	modC	RHE_CH04073	-	molybdenum ABC transporter, ATP-binding protein
3983	 63.23	0	4317621..4317998	-	125	86359652	modE	RHE_CH04074	-	molybdenum-binding transcriptional regulator-repressor protein (molybdenum transport associatedprotein)
3984	 56.44	-1	4318202..4318651	+	149	86359653	-	RHE_CH04075	-	hypothetical protein
3985	 62.94	0	4318768..4319250	+	160	86359654	-	RHE_CH04076	-	SPOUT methyltransferase superfamily protein
3986	 64.81	+1	4319430..4320830	+	466	86359655	-	RHE_CH04077	-	putative metalloendopeptidase protein
3987	 62.73	0	4320874..4322142	+	422	86359656	ctpA	RHE_CH04078	-	C-terminal processing peptidase protein
3988	 64.73	0	4322282..4323415	+	377	86359657	-	RHE_CH04079	-	hypothetical protein
3989	 62.36	0	4323441..4323974	+	177	86359658	ialA	RHE_CH04080	-	dinucleoside polyphosphate hydrolase
3990	 54.90	-2	4324023..4324532	-	169	86359659	bfr	RHE_CH04081	-	bacterioferritin protein
3991	 50.91	-2	4324474..4324803	-	109	86359660	-	RHE_CH04082	-	hypothetical protein
3992	 58.76	0	4324967..4328419	-	1150	86359661	dnaEch2	RHE_CH04083	-	DNA polymerase III alpha subunit protein
3993	 61.71	0	4328419..4330032	-	537	86359662	-	RHE_CH04084	-	putative nucleotidyltransferase protein
3994	 64.66	0	4329878..4330822	-	314	86359663	-	RHE_CH04085	-	hypothetical protein
3995	 58.68	0	4330986..4331423	+	145	86359664	-	RHE_CH04086	-	hypothetical protein
3996	 59.90	0	4331446..4331652	-	68	86359665	-	RHE_CH04087	-	hypothetical protein
3997	 60.26	0	4331652..4332557	-	301	86359666	citEch	RHE_CH04088	-	citrate lyase, beta subunit protein
3998	 60.26	0	4332670..4332903	+	77	86359667	-	RHE_CH04089	-	hypothetical protein
3999	 60.24	0	4333010..4333429	+	139	86359668	-	RHE_CH04090	-	hypothetical protein
4000	 58.29	-1	4333563..4334171	+	202	86359669	leuD	RHE_CH04091	-	isopropylmalate isomerase small subunit
4001	 65.17	+1	4334234..4335166	-	310	86359670	-	RHE_CH04092	-	putative L-serine dehydratase protein
4002	 63.70	0	4335410..4336522	+	370	86359671	leuB	RHE_CH04093	-	3-isopropylmalate dehydrogenase
4003	 60.37	0	4336751..4337449	+	232	86359672	-	RHE_CH04094	-	putative phosphatase protein
4004	 61.84	0	4337491..4339377	-	628	86359673	-	RHE_CH04095	-	putative transporter, permease protein
4005	 64.86	+1	4339619..4340890	-	423	86359674	-	RHE_CH04096	-	hypothetical protein
4006	 65.37	+1	4340887..4341579	-	230	86359675	-	RHE_CH04097	-	putative ABC transporter, ATP-binding protein
4007	 61.90	0	4341585..4342046	-	153	86359676	-	RHE_CH04098	-	hypothetical protein
61.61	MEAN

3.19	STD DEV
