IslandPath Analysis: Rhizobium etli CFN 42

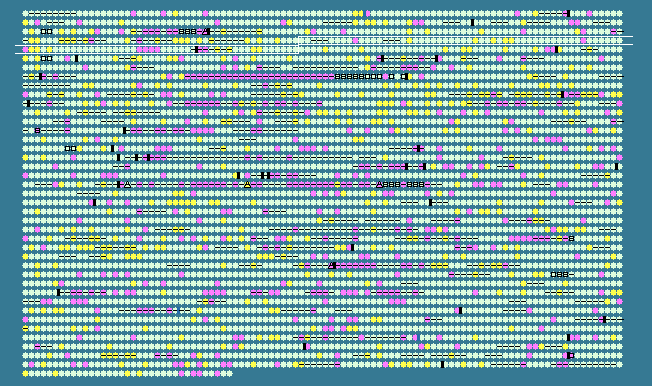

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.61 STD DEV: 3.19
Rhizobium etli CFN 42, complete genome - 1..4381608
4035 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
347	 63.07	0	372206..373288	+	360	86356016	-	RHE_CH00359	-	putative dehydrogenase protein
348	 63.84	0	373352..374554	-	400	86356017	hemNch	RHE_CH00360	-	coproporphyrinogen III oxidase
349	 64.50	0	374562..375206	-	214	86356018	-	RHE_CH00361	-	putative deoxyribonucleotide triphosphate pyrophosphatase
350	 61.39	0	375207..375623	-	138	86356019	-	RHE_CH00362	-	lactoylglutathione lyase protein
351	 63.33	0	375629..376348	-	239	86356020	rph	RHE_CH00363	-	ribonuclease PH
352	 63.23	0	376458..377564	+	368	86356021	hrcA	RHE_CH00364	-	heat-inducible transcription repressor
353	 63.84	0	377676..378311	+	211	86356022	grpE	RHE_CH00365	-	molecular chaperone heat shock protein (hsp-70)
354	 62.33	0	378352..379296	-	314	86356023	iunH1	RHE_CH00366	-	inosine-uridine preferring nucleoside hydrolase protein
355	 62.44	0	379578..380003	+	141	86356024	hsp	RHE_CH00367	-	molecular chaperone small heat shock protein
356	 56.98	-1	380050..380307	+	85	86356025	-	RHE_CH00368	-	hypothetical protein
357	 63.35	0	380592..381284	-	230	86356026	trmB	RHE_CH00369	-	tRNA (guanine-N(7))-methyltransferase
358	 63.64	0	381290..382543	-	417	86356027	metK	RHE_CH00370	-	S-adenosylmethionine synthetase
359	 59.05	0	382724..383143	-	139	86356028	-	RHE_CH00371	-	transcriptional regulator protein
360	 62.65	0	383304..384896	-	530	86356029	lnt	RHE_CH00372	-	apolipoprotein N-acyltransferase
361	 64.75	0	385008..386153	-	381	86356030	-	RHE_CH00373	-	putative hemolysin protein
362	 58.91	0	386150..386665	-	171	86356031	-	RHE_CH00374	-	hypothetical protein
363	 63.72	0	386665..387717	-	350	86356032	phoH	RHE_CH00375	-	phosphate starvation inducible protein
364	 62.70	0	387736..389145	-	469	86356033	-	RHE_CH00376	-	putative 2-methylthioadenine synthetase (miaB-like) protein
365	 66.67	+1	389195..389929	-	244	86356034	olsA	RHE_CH00377	-	1-acyl-sn-glycerol-3-phosphate acyltransferase (phospholipid/glycerol acyltransferase) protein
366	 60.37	0	390020..390448	-	142	86356035	fur	RHE_CH00378	-	ferric uptake regulation protein
367	 64.65	0	390528..391022	-	164	86356036	rimI	RHE_CH00379	-	ribosomal-protein-alanine N-acetyltransferase protein
368	 64.86	+1	391025..391687	-	220	86356037	-	RHE_CH00380	-	O-sialoglycoprotein endopeptidase protein
369	 59.26	0	391775..392341	-	188	86356038	nifUch1	RHE_CH00381	-	nitrogen fixation protein
370	 64.84	+1	392451..392942	-	163	86356039	-	RHE_CH00382	-	putative universal stress protein
371	 62.16	0	393052..394116	-	354	86356040	trpS	RHE_CH00383	-	tryptophanyl-tRNA synthetase
372	 63.16	0	394214..394612	-	132	86356041	-	RHE_CH00384	-	putative glyoxalase protein
373	 62.70	0	394798..395226	+	142	86356042	-	RHE_CH00385	-	hypothetical protein
374	 63.88	0	395395..396975	-	526	86356043	mviN	RHE_CH00386	-	virulence factor transmembrane protein
375	 62.86	0	396986..399820	-	944	86356044	glnD	RHE_CH00387	-	PII uridylyl-transferase
376	 65.71	+1	400314..403040	-	908	86356045	mutS	RHE_CH00388	-	DNA mismatch repair protein
377	 64.35	0	403154..405436	+	760	86356046	tme	RHE_CH00389	-	malic enzyme
378	 62.53	0	405692..406561	-	289	86356047	-	RHE_CH00390	-	hypothetical protein
379	 66.18	+1	406672..408954	-	760	86356048	-	RHE_CH00391	-	two-component sensor histidine kinase/response regulator hybrid protein
380	 60.32	0	409010..409513	-	167	86356049	lpsA	RHE_CH00392	-	lipoprotein signal peptidase protein
381	 65.27	+1	409510..410370	-	286	86356050	spoU	RHE_CH00393	-	rRNA methylase
382	 65.75	+1	410367..411461	-	364	86356051	-	RHE_CH00394	-	SAM-dependent methyltransferase protein
383	 63.69	0	411588..412226	-	212	86356052	-	RHE_CH00395	-	MutT/NUDIX family hydrolase
384	 61.18	0	412294..412749	+	151	86356053	-	RHE_CH00396	-	hypothetical protein
385	 60.38	0	412718..413242	+	174	86356054	-	RHE_CH00397	-	putative acetyltransferase protein
386	 63.36	0	413262..413594	-	110	86356055	-	RHE_CH00398	-	hypothetical protein
387	 60.67	0	413725..414024	-	99	86356056	ihfB	RHE_CH00399	-	integration host factor subunit beta
388	 60.78	0	414054..415004	-	316	86356057	sppA	RHE_CH00400	-	proteinase IV protein
389	 58.26	-1	415223..415888	+	221	86356058	-	RHE_CH00401	-	hypothetical protein
390	 60.19	0	416012..416536	+	174	86356059	-	RHE_CH00402	-	hypothetical protein
391	 62.93	0	416574..417350	+	258	86356060	-	RHE_CH00403	-	amino acid ABC transporter ATP-binding protein
392	 62.95	0	417495..419054	+	519	86356061	rpoNch	RHE_CH00404	-	RNA polymerase factor sigma-54
393	 63.27	0	419137..420048	+	303	86356062	-	RHE_CH00405	-	putative permease protein
394	 54.77	-2	420275..420913	+	212	86356063	-	RHE_CH00406	-	sigma 54 modulation protein
395	 61.08	0	420987..421451	+	154	86356064	ptsNch	RHE_CH00407	-	protein-N(pi)-phosphohistidine-sugar phosphotransferase protein (enzyme II of thephosphotransferase system)
396	 63.31	0	421524..423878	-	784	86356065	mcpX1	RHE_CH00408	-	methyl-accepting chemotaxis protein
397	 64.75	0	424118..425056	-	312	86356066	rbsK	RHE_CH00409	-	ribose kinase protein
398	 63.48	0	425097..426131	-	344	86356067	-	RHE_CH00410	-	hypothetical protein
399	 61.70	0	426441..428012	+	523	86356068	mcpV1	RHE_CH00411	-	methyl-accepting chemotaxis protein
400	 61.05	0	428111..428626	+	171	86356069	def	RHE_CH00412	-	peptide deformylase
401	 57.86	-1	428949..429368	+	139	86356070	stdB	RHE_CH00413	-	plasmid stability protein
402	 65.92	+1	429389..430324	+	311	86356071	fmt	RHE_CH00414	-	methionyl-tRNA formyltransferase
403	 66.79	+1	430324..431127	+	267	86356072	truA	RHE_CH00415	-	tRNA pseudouridine synthase A
404	 63.99	0	431155..431751	-	198	86356073	-	RHE_CH00416	-	hypothetical protein
405	 65.69	+1	431738..432967	-	409	86356074	dapE2	RHE_CH00417	-	succinyl-diaminopimelate desuccinylase
406	 62.83	0	433032..433892	-	286	86356075	dapD	RHE_CH00418	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
407	 61.11	0	433921..434946	+	341	86356076	-	RHE_CH00419	-	hypothetical protein
408	 63.90	0	435021..435635	-	204	86356077	-	RHE_CH00420	-	hypothetical protein
409	 58.72	0	435743..436459	-	238	86356078	-	RHE_CH00421	-	putative hydrolase protein
410	 62.68	0	436645..438174	+	509	86356079	bchE	RHE_CH00422	-	Mg-protoporphyrin IX monomethyl ester oxidative cyclase subunit protein
411	 64.71	0	438230..439303	+	357	86356080	ada	RHE_CH00423	-	methylated-DNA-[protein]-cysteine S-methyltransferase protein
412	 62.91	0	439300..440070	+	256	86356081	-	RHE_CH00424	-	putative carboxyphosphonoenolpyruvate phosphonomutase protein
413	 62.84	0	440134..441282	-	382	86356082	lldD1	RHE_CH00425	-	L-lactate dehydrogenase (cytochrome) protein
414	 61.98	0	441665..442603	-	312	86356083	-	RHE_CH00426	-	fatty acid desaturase protein
415	 60.51	0	442742..443131	+	129	86356084	-	RHE_CH00427	-	ArsR family transcriptional regulator
416	 61.07	0	443228..444316	-	362	86356085	argB	RHE_CH00428	-	acetylglutamate kinase
417	 61.94	0	444378..444800	+	140	86356086	sigK	RHE_CH00429	-	RNA polymerase sigma factor
418	 63.75	0	444797..445516	+	239	86356087	-	RHE_CH00430	-	hypothetical protein
419	 58.71	0	445590..446180	+	196	86356088	-	RHE_CH00431	-	putative transforming growth factor-induced protein (and secreted protein MPB70)
420	 57.61	-1	446286..447356	-	356	86356089	-	RHE_CH00432	-	two-component sensor histidine kinase protein
421	 54.55	-2	447592..448020	-	142	86356090	-	RHE_CH00433	-	hypothetical protein
422	 57.33	-1	448069..448293	-	74	86356091	-	RHE_CH00434	-	hypothetical protein
423	 55.56	-1	448424..448648	-	74	86356092	-	RHE_CH00435	-	cold shock protein
424	 61.47	0	448878..449531	-	217	86356093	engB	RHE_CH00436	-	GTPase EngB
425	 60.87	0	449672..451465	-	597	86356094	-	RHE_CH00437	-	putative inner membrane protein translocase component YidC
426	 61.94	0	451465..451866	-	133	86356095	rnpA	RHE_CH00438	-	ribonuclease P
427	 63.70	0	451888..452022	-	44	86356096	rpmH	RHE_CH00439	-	50S ribosomal protein L34
428	 64.97	+1	452442..454445	+	667	86356097	mcpT	RHE_CH00440	-	methyl-accepting chemotaxis protein
429	 64.10	0	454643..456160	+	505	86356098	regM	RHE_CH00441	-	two-component sensor histidine kinase protein
430	 51.19	-2	456432..457310	-	292	86356099	-	RHE_CH00443	-	hypothetical protein
431	 55.79	-1	457521..457943	-	140	86356100	-	RHE_CH00444	-	hypothetical protein
432	 63.61	0	458206..458793	+	195	86356101	-	RHE_CH00445	-	hypothetical protein
433	 65.42	+1	459016..459336	+	106	86356102	-	RHE_CH00446	-	hypothetical protein
434	 63.27	0	459819..460112	+	97	86356103	-	RHE_CH00447	-	hypothetical protein
435	 65.62	+1	460376..461044	+	222	86356104	pmtA	RHE_CH00448	-	phospholipid N-methyltransferase protein
436	 61.56	0	461301..462182	+	293	86356105	-	RHE_CH00449	-	oxidoreductase protein
437	 64.87	+1	462794..464071	+	425	86356106	-	RHE_CH00450	-	hypothetical protein
438	 64.99	+1	464155..465405	+	416	86356107	-	RHE_CH00451	-	D-amino acid dehydrogenase protein
439	 65.61	+1	465458..466495	+	345	86356108	-	RHE_CH00452	-	proline racemase protein
440	 65.46	+1	466531..466779	-	82	86356109	-	RHE_CH00453	-	hypothetical protein
441	 61.98	0	466903..467265	-	120	86356110	-	RHE_CH00454	-	hypothetical protein
442	 62.03	0	467262..467843	-	193	86356111	-	RHE_CH00455	-	TetR family transcriptional regulator
443	 62.82	0	468071..469603	-	510	86356112	-	RHE_CH00456	-	two-component response regulator protein
444	 64.14	0	469720..470154	+	144	86356113	-	RHE_CH00457	-	hypothetical protein
445	 60.04	0	470266..470748	+	160	86356114	-	RHE_CH00458	-	hypothetical protein
446	 59.21	0	470875..472416	-	513	86356115	-	RHE_CH00459	-	putative sensory box/GGDEF family protein
61.61	MEAN

3.19	STD DEV
