IslandPath Analysis: Rhizobium etli CFN 42

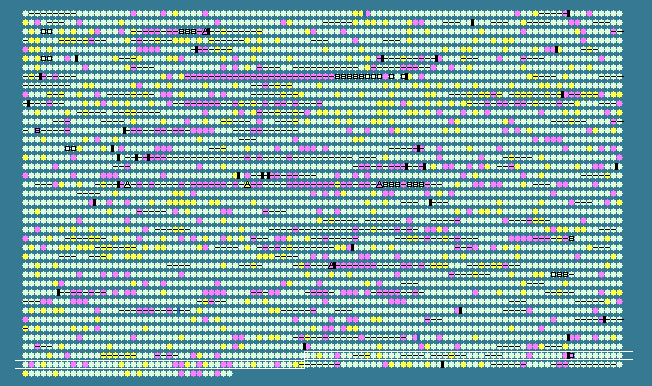

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.61 STD DEV: 3.19
Rhizobium etli CFN 42, complete genome - 1..4381608
4035 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3848	 59.74	0	4164984..4165517	-	177	86359517	tesA	RHE_CH03937	-	acyl-CoA thioesterase protein
3849	 62.99	0	4165701..4166408	+	235	86359518	-	RHE_CH03938	-	putative ABC transporter, ATP-binding protein (involved in lysophospholipase L1 biosynthesis)
3850	 65.37	+1	4166411..4168948	+	845	86359519	-	RHE_CH03939	-	putative ABC transporter, permease protein (involved in lysophospholipase L1 biosynthesis)
3851	 59.95	0	4169130..4169858	+	242	86359520	-	RHE_CH03940	-	hypothetical protein
3852	 63.62	0	4169965..4170522	+	185	86359521	-	RHE_CH03941	-	putative phosphinothricin N-acetyltransferase (antibiotic resistance) protein
3853	 57.21	-1	4170529..4170930	-	133	86359522	-	RHE_CH03942	-	hypothetical protein
3854	 59.51	0	4171244..4171984	-	246	86359523	-	RHE_CH03943	-	hypothetical protein
3855	 61.35	0	4172217..4174907	-	896	86359524	acnA	RHE_CH03944	-	aconitate hydratase
3856	 59.37	0	4175214..4175816	+	200	86359525	ccmA	RHE_CH03945	-	cytochrome c biogenesis protein CcmA
3857	 63.75	0	4175816..4176055	+	79	86359526	-	RHE_CH03946	-	hypothetical protein
3858	 67.27	+1	4176052..4176711	+	219	86359527	ccmB	RHE_CH03947	-	heme ABC transporter, permease protein (involved in cytochrome-c biogenesis)
3859	 64.30	0	4176759..4177520	+	253	86359528	ccmC	RHE_CH03948	-	heme ABC transporter, permease protein (involved in cytochrome-c biogenesis)
3860	 70.83	+2	4177524..4177691	+	55	86359529	cycX	RHE_CH03949	-	heme transporter protein (involved in cytochrome-c biogenesis)
3861	 61.90	0	4177688..4178296	+	202	86359530	cycY	RHE_CH03950	-	thiol disulfide interchange protein (involved in cytochrome-c biogenesis)
3862	 58.84	0	4178464..4179051	-	195	86359531	-	RHE_CH03951	-	hypothetical protein
3863	 58.29	-1	4179048..4179692	-	214	86359532	ispZ	RHE_CH03952	-	intracellular septation protein A
3864	 62.33	0	4179771..4181339	-	522	86359533	ftsY	RHE_CH03953	-	cell division protein
3865	 63.60	0	4181356..4182627	-	423	86359534	-	RHE_CH03954	-	hypothetical protein
3866	 64.57	0	4182624..4183529	-	301	86359535	dapF	RHE_CH03955	-	diaminopimelate epimerase
3867	 58.82	0	4183642..4183845	-	67	86359536	-	RHE_CH03956	-	hypothetical protein
3868	 65.08	+1	4184268..4185845	+	525	86359537	ffh	RHE_CH03957	-	signal recognition particle GTP-binding protein
3869	 58.57	0	4185862..4186182	+	106	86359538	tyrA	RHE_CH03958	-	chorismate mutase
3870	 64.23	0	4186231..4186599	+	122	86359539	rpsP	RHE_CH03959	-	30S ribosomal protein S16
3871	 59.48	0	4186629..4187282	+	217	86359540	rimM	RHE_CH03960	-	16S rRNA-processing protein
3872	 66.21	+1	4187321..4187983	+	220	86359541	trmD	RHE_CH03961	-	tRNA (guanine-N(1)-)-methyltransferase
3873	 63.69	0	4188196..4188732	+	178	86359542	rplS	RHE_CH03962	-	50S ribosomal protein L19
3874	 58.65	0	4188871..4189668	+	265	86359543	-	RHE_CH03963	-	putative amino acid ABC transporter, substrate-binding protein
3875	 59.71	0	4189684..4190502	+	272	86359544	-	RHE_CH03964	-	putative amino acid ABC transporter, permease protein
3876	 62.48	0	4190747..4192156	+	469	86359545	leuC	RHE_CH03965	-	isopropylmalate isomerase large subunit
3877	 59.49	0	4192263..4193168	-	301	86359546	-	RHE_CH03966	-	aldo/keto reductase family oxidoreductase
3878	 64.75	0	4193225..4193746	-	173	86359547	-	RHE_CH03967	-	hypothetical protein
3879	 60.53	0	4193915..4194598	+	227	86359548	-	RHE_CH03968	-	putative two-component response regulator protein
3880	 64.25	0	4194737..4195192	+	151	86359549	-	RHE_CH03969	-	putative cAMP-dependent kinase protein
3881	 60.82	0	4195199..4196002	-	267	86359550	xthA3	RHE_CH03970	-	exodeoxyribonuclease III protein
3882	 60.39	0	4196105..4196773	-	222	86359551	-	RHE_CH03971	-	putative outer membrane lipoproteins carrier protein
3883	 63.61	0	4196913..4199597	-	894	86359552	ftsK2	RHE_CH03972	-	cell division protein
3884	 62.39	0	4199846..4201273	-	475	86359553	amtB	RHE_CH03973	-	ammonium transporter protein
3885	 55.46	-1	4201301..4201639	-	112	86359554	glnK	RHE_CH03974	-	nitrogen regulatory protein P-II
3886	 62.82	0	4201862..4202746	-	294	86359555	tesB	RHE_CH03975	-	acyl-CoA thioesterase II protein
3887	 63.95	0	4202831..4204045	+	404	86359556	-	RHE_CH03976	-	2-octaprenyl-6-methoxyphenyl hydroxylase
3888	 58.20	-1	4204061..4204249	-	62	86359557	-	RHE_CH03977	-	hypothetical protein
3889	 63.46	0	4204259..4204945	-	228	86359558	lonD	RHE_CH03978	-	ATP-dependent protease LA 2 protein
3890	 63.28	0	4205020..4205994	-	324	86359559	trxA2	RHE_CH03979	-	thioredoxin protein
3891	 56.61	-1	4206051..4206716	-	221	86359560	-	RHE_CH03980	-	hypothetical protein
3892	 54.79	-2	4206933..4207235	-	100	86359561	-	RHE_CH03982	-	putative insertion sequence transposase protein
3893	 61.96	0	4207283..4207537	+	84	86359562	-	RHE_CH03983	-	hypothetical protein
3894	 63.41	0	4207600..4208244	-	214	86359563	-	RHE_CH03984	-	hypothetical protein
3895	 60.98	0	4208473..4209456	+	327	86359564	galE3	RHE_CH03985	-	UDP-glucose 4-epimerase protein
3896	 62.06	0	4209434..4210996	+	520	86359565	-	RHE_CH03986	-	sulfatase (sulfuric ester hydrolase) protein
3897	 62.25	0	4211079..4211576	-	165	86359566	-	RHE_CH03987	-	hypothetical protein
3898	 60.00	0	4211943..4212872	+	309	86359567	mocBch2	RHE_CH03988	-	rhizopine ABC transporter, substrate-binding protein
3899	 58.30	-1	4212942..4214483	+	513	86359568	-	RHE_CH03989	-	sugar ABC transporter, ATP-binding protein
3900	 60.72	0	4214518..4215543	+	341	86359569	-	RHE_CH03990	-	sugar ABC transporter, permease protein
3901	 63.08	0	4215711..4216769	+	352	86359570	-	RHE_CH03991	-	putative membrane dipeptidase protein
3902	 57.85	-1	4216868..4218511	+	547	86359571	dppAch3	RHE_CH03992	-	dipeptide ABC transporter, substrate-binding protein
3903	 62.17	0	4218530..4219597	+	355	86359572	dppBch3	RHE_CH03993	-	dipeptide ABC transporter, permease protein
3904	 65.67	+1	4219624..4220529	+	301	86359573	dppCch3	RHE_CH03994	-	dipeptide ABC transporter, permease protein
3905	 63.19	0	4220526..4221359	+	277	86359574	dppDch3	RHE_CH03995	-	dipeptide ABC transporter, ATP-binding protein
3906	 61.20	0	4221356..4222105	+	249	86359575	dppFch3	RHE_CH03996	-	dipeptide ABC transporter, ATP-binding protein
3907	 62.96	0	4223237..4231714	+	2825	86359576	ndvB	RHE_CH03997	-	beta-1,2-glucan production associated transmembrane protein
3908	 59.97	0	4231817..4233055	+	412	86359577	-	RHE_CH03998	-	putative protein require for succinylation of osmoregulated periplasmic glucans
3909	 57.06	-1	4233183..4233536	-	117	86359578	-	RHE_CH03999	-	lactoylglutathione lyase protein
3910	 61.73	0	4233809..4235590	-	593	86359579	ndvA	RHE_CH04000	-	cyclic beta-1,2-glucan ABC transporter
3911	 58.07	-1	4235959..4236714	+	251	86359580	-	RHE_CH04001	-	LuxR family transcriptional regulator
3912	 62.71	0	4236888..4240352	+	1154	86359581	pyc	RHE_CH04002	-	pyruvate carboxylase
3913	 58.99	0	4240541..4241113	+	190	86359582	-	RHE_CH04003	-	putative reductase protein
3914	 61.61	0	4241170..4241802	-	210	86359583	-	RHE_CH04004	-	amino acid ABC transporter ATP-binding protein
3915	 63.18	0	4241928..4242587	-	219	86359584	-	RHE_CH04005	-	amino acid ABC transporter permease
3916	 59.04	0	4242808..4243581	-	257	86359585	-	RHE_CH04006	-	amino acid ABC transporter substrate-binding protein
3917	 66.10	+1	4243913..4244623	+	236	86359586	-	RHE_CH04007	-	DeoR family transcriptional regulator
3918	 62.52	0	4244773..4245882	+	369	86359587	-	RHE_CH04008	-	putative transporter, permease protein
3919	 63.15	0	4245979..4247229	+	416	86359588	ispG	RHE_CH04009	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
3920	 61.58	0	4247246..4248307	+	353	86359589	hisCch3	RHE_CH04010	-	histidinol-phosphate aminotransferase
3921	 65.96	+1	4248316..4249311	-	331	86359590	ispA	RHE_CH04011	-	geranyltranstransferase protein
3922	 60.97	0	4249403..4250104	+	233	86359591	mtgA	RHE_CH04012	-	monofunctional biosynthetic peptidoglycan transglycosylase
3923	 61.27	0	4250200..4250922	+	240	86359592	-	RHE_CH04013	-	hypothetical protein
3924	 61.11	0	4250937..4251584	+	215	86359593	-	RHE_CH04014	-	glutathione S-transferase protein
3925	 60.22	0	4251739..4251924	+	61	86359594	rpmF	RHE_CH04015	-	50S ribosomal protein L32
3926	 55.88	-1	4252067..4252474	+	135	86359595	-	RHE_CH04016	-	hypothetical protein
3927	 56.25	-1	4252469..4253044	-	191	86359596	aniA	RHE_CH04017	-	carbon flux regulator protein
3928	 65.40	+1	4253282..4254463	+	393	86359597	phbAch	RHE_CH04018	-	acetyl-CoA acetyltransferase
3929	 58.82	0	4254535..4255260	+	241	86359598	phbB	RHE_CH04019	-	acetoacetyl-CoA reductase protein
3930	 56.86	-1	4255267..4255419	+	50	86359599	-	RHE_CH04020	-	hypothetical protein
3931	 67.82	+1	4255670..4255930	-	86	86359600	-	RHE_CH04021	-	hypothetical protein
3932	 64.10	0	4256943..4260101	+	1052	86359601	mgpS	RHE_CH04022	-	ATP-dependent DNA helicase protein
3933	 63.70	0	4260104..4260508	+	134	86359602	-	RHE_CH04023	-	putative heat shock protein (ribosome-associated)
3934	 53.98	-2	4260700..4261038	+	112	86359603	fdxA	RHE_CH04024	-	ferredoxin III protein
3935	 56.02	-1	4261433..4262005	+	190	86359604	-	RHE_CH04025	-	CarD family transcriptional regulator
3936	 62.50	0	4262380..4263243	+	287	86359605	rpoH2	RHE_CH04026	-	RNA polymerase factor sigma-32
3937	 63.88	0	4263295..4264836	-	513	86359606	-	RHE_CH04027	-	putative metalloprotease protein
3938	 63.27	0	4265229..4266761	-	510	86359607	-	RHE_CH04028	-	putative transporter, permease protein
3939	 65.30	+1	4266966..4267403	+	145	86359608	-	RHE_CH04029	-	MarR family transcriptional regulator
3940	 64.21	0	4267476..4268126	+	216	86359609	-	RHE_CH04030	-	hypothetical protein
3941	 63.87	0	4268130..4269950	+	606	86359610	-	RHE_CH04031	-	putative ABC transporter, ATP-binding protein
3942	 61.98	0	4270014..4271870	-	618	86359611	-	RHE_CH04032	-	ABC transporter permease/ATP-binding protein
3943	 57.34	-1	4272216..4273073	+	285	86359612	metA	RHE_CH04033	-	homoserine O-succinyltransferase
3944	 62.27	0	4273192..4274214	+	340	86359613	galM	RHE_CH04034	-	aldose-1-epimerase protein
3945	 64.06	0	4274317..4275123	+	268	86359614	-	RHE_CH04035	-	GntR family transcriptional regulator
3946	 65.31	+1	4275116..4276147	+	343	86359615	glmS2	RHE_CH04036	-	glucosamine--fructose-6-phosphate aminotransferase protein
3947	 65.89	+1	4276147..4277298	+	383	86359616	nagA	RHE_CH04037	-	n-acetylglucosamine-6-phosphate deacetylase protein
61.61	MEAN

3.19	STD DEV
