IslandPath Analysis: Rhizobium etli CFN 42

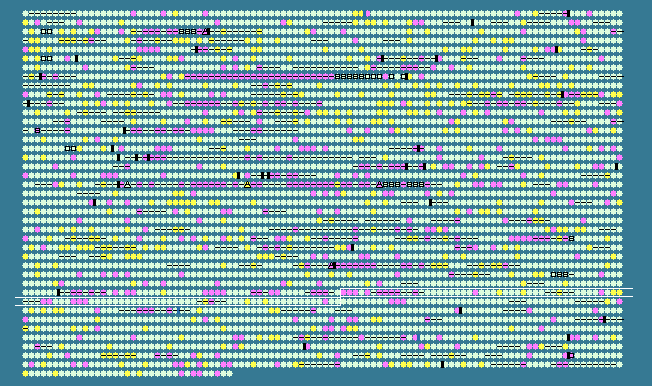

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.61 STD DEV: 3.19
Rhizobium etli CFN 42, complete genome - 1..4381608
4035 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3154	 54.88	-2	3386206..3387579	+	457	86358823	-	RHE_CH03224	-	hypothetical protein
3155	 57.73	-1	3387691..3388149	+	152	86358824	pssD	RHE_CH03225	-	glucuronosyltransferase protein
3156	 57.23	-1	3388146..3388622	+	158	86358825	pssE	RHE_CH03226	-	glucuronosyltransferase protein
3157	 58.50	0	3388662..3389273	-	203	86358826	-	RHE_CH03227	-	putative acyl-CoA thioesterase/lipase protein
3158	 58.10	-1	3389570..3390877	-	435	86358827	prsE	RHE_CH03228	-	HlyD family protein secretion protein
3159	 59.17	0	3390893..3392692	-	599	86358828	prsD	RHE_CH03229	-	protease/lipase ABC transporter, ATP-binding and permease protein
3160	 56.42	-1	3393139..3394758	-	539	86358829	plyA3	RHE_CH03230	-	polysaccharidase protein
3161	 55.51	-1	3395448..3396155	+	235	86358830	rapAch	RHE_CH03231	-	autoaggregation protein
3162	 57.12	-1	3396482..3397183	-	233	86358831	-	RHE_CH03232	-	hypothetical protein
3163	 57.80	-1	3397183..3399459	-	758	86358832	pssP	RHE_CH03233	-	exopolysaccharide polymerization protein
3164	 61.34	0	3399511..3400224	-	237	86358833	pssO	RHE_CH03234	-	exopolysaccharide inner membrane protein
3165	 58.50	0	3400310..3401521	-	403	86358834	pssN	RHE_CH03235	-	exopolysaccharide export protein
3166	 57.16	-1	3401823..3403232	-	469	86358835	pssT2	RHE_CH03236	-	endo-1,4-beta-xylanase (exopolysaccharide export) protein
3167	 59.17	0	3403535..3404134	+	199	86358836	-	RHE_CH03237	-	hypothetical protein
3168	 60.32	0	3404415..3405722	+	435	86358837	rkpK	RHE_CH03238	-	UDP-glucose 6-dehydrogenase protein
3169	 58.88	0	3405904..3406686	-	260	86358838	-	RHE_CH03239	-	serine/threonine specific protein phosphatase protein
3170	 61.55	0	3407793..3408398	-	201	86358839	-	RHE_CH03240	-	esterase/lipase/thioesterase protein
3171	 62.06	0	3408409..3409341	-	310	86358840	-	RHE_CH03241	-	dioxygenase protein
3172	 60.16	0	3409477..3410106	-	209	86358841	ung	RHE_CH03242	-	uracil-DNA glycosylase
3173	 62.11	0	3410408..3411832	+	474	86358842	noeK	RHE_CH03243	-	phosphomannomutase protein
3174	 60.44	0	3411835..3413295	+	486	86358843	noeJ	RHE_CH03244	-	mannose-1-phosphate guanylyltransferase (GDP) protein
3175	 58.17	-1	3413430..3413735	+	101	86358844	-	RHE_CH03245	-	hypothetical protein
3176	 56.95	-1	3413779..3414735	-	318	86358845	-	RHE_CH03246	-	putative endonuclease/exonuclease/phosphatase family protein
3177	 59.19	0	3414996..3416012	+	338	86358846	lpsL	RHE_CH03247	-	UDP-glucuronic acid epimerase protein
3178	 59.02	0	3416092..3416601	+	169	86358847	-	RHE_CH03248	-	hypothetical protein
3179	 62.27	0	3417051..3417755	+	234	86358848	-	RHE_CH03249	-	TetR family transcriptional regulator
3180	 67.26	+1	3417752..3418765	+	337	86358849	-	RHE_CH03250	-	hypothetical protein
3181	 64.78	0	3418762..3420507	+	581	86358850	-	RHE_CH03251	-	ABC  transporter ATP-binding protein
3182	 63.92	0	3420504..3421631	+	375	86358851	-	RHE_CH03252	-	ABC transporter permease
3183	 61.99	0	3421633..3422745	+	370	86358852	-	RHE_CH03253	-	ABC transporter permease
3184	 65.15	+1	3422876..3423271	+	131	86358853	-	RHE_CH03254	-	hypothetical protein
3185	 62.55	0	3423421..3424464	-	347	86358854	thuBch	RHE_CH03255	-	myo-inositol 2-dehydrogenase protein
3186	 62.72	0	3424474..3425259	-	261	86358855	thuAch	RHE_CH03256	-	trehalosemaltose utilization protein
3187	 58.77	0	3425453..3425794	-	113	86358856	-	RHE_CH03257	-	methyl viologen/ethidium resistance transmembrane protein
3188	 60.32	0	3425813..3426442	-	209	86358857	-	RHE_CH03258	-	TetR family transcriptional regulator
3189	 63.24	0	3426545..3426952	+	135	86358858	-	RHE_CH03259	-	putative globin-like protein
3190	 67.47	+1	3426949..3427320	+	123	86358859	-	RHE_CH03260	-	hypothetical protein
3191	 58.60	0	3427317..3427688	-	123	86358860	-	RHE_CH03261	-	putative bleomycin resistance protein
3192	 59.68	0	3427685..3427999	-	104	86358861	-	RHE_CH03262	-	hypothetical protein
3193	 63.74	0	3428009..3428281	-	90	86358862	-	RHE_CH03263	-	hypothetical protein
3194	 62.25	0	3428278..3428685	-	135	86358863	-	RHE_CH03264	-	hypothetical protein
3195	 62.44	0	3428794..3430119	-	441	86358864	-	RHE_CH03265	-	putative membrane protein, transduces energy to outer membrane receptors
3196	 62.44	0	3430178..3430603	-	141	86358865	-	RHE_CH03266	-	hypothetical protein
3197	 56.28	-1	3430781..3430963	+	60	86358866	hmuP	RHE_CH03267	-	hemin transport system, hemin uptake protein
3198	 60.57	0	3430983..3432032	+	349	86358867	hmuS	RHE_CH03268	-	hemin transport system, degrading protein
3199	 65.48	+1	3432044..3432973	+	309	86358868	hmuT	RHE_CH03269	-	hemin transport system, hemin-binding protein
3200	 68.19	+2	3432976..3434088	+	370	86358869	hmuU	RHE_CH03270	-	hemin transport system, permease protein
3201	 64.28	0	3434110..3434904	+	264	86358870	hmuV	RHE_CH03271	-	hemin importer ATP-binding subunit
3202	 63.77	0	3435052..3435396	+	114	86358871	-	RHE_CH03272	-	hypothetical protein
3203	 60.22	0	3436014..3436571	-	185	86358872	rpoE4	RHE_CH03273	-	RNA polymerase sigma factor
3204	 56.04	-1	3436581..3436787	-	68	86358873	-	RHE_CH03274	-	hypothetical protein
3205	 56.23	-1	3437035..3437829	+	264	86358874	tcrX	RHE_CH03275	-	two-component response regulator
3206	 58.49	0	3438060..3439013	+	317	86358875	tcrY	RHE_CH03276	-	two-component sensor histidine kinase protein
3207	 63.58	0	3439426..3440787	+	453	86358876	-	RHE_CH03277	-	putative oxidoreductase
3208	 63.09	0	3440803..3442116	+	437	86358877	-	RHE_CH03278	-	dihydropyrimidine dehydrogenase
3209	 56.56	-1	3442276..3444264	+	662	86358878	-	RHE_CH03279	-	putative 1,4-alpha-glucan branching enzyme protein
3210	 53.56	-2	3444334..3444768	-	144	86358879	-	RHE_CH03280	-	hypothetical protein
3211	 57.28	-1	3444833..3445237	-	134	86358880	-	RHE_CH03281	-	putative dehydrogenase protein
3212	 58.39	-1	3445415..3447094	+	559	86358881	malL	RHE_CH03282	-	oligosaccharide alpha-1,6-glucosidase protein
3213	 63.90	0	3447193..3448203	-	336	86358882	ftrA	RHE_CH03283	-	transcriptional activator FtrA
3214	 64.23	0	3448266..3448676	+	136	86358883	-	RHE_CH03284	-	putative rhodanese-related sulfurtransferase protein
3215	 63.54	0	3448716..3449738	-	340	86358884	-	RHE_CH03285	-	alcohol dehydrogenase protein
3216	 60.23	0	3449715..3450740	+	341	86358885	-	RHE_CH03286	-	LysR family transcriptional regulator
3217	 59.26	0	3450839..3451270	+	143	86358886	-	RHE_CH03287	-	hypothetical protein
3218	 62.50	0	3451273..3451680	+	135	86358887	-	RHE_CH03288	-	two-component response regulator protein
3219	 60.06	0	3451545..3452195	-	216	86358888	-	RHE_CH03289	-	TetR family transcriptional regulator
3220	 62.84	0	3452495..3453748	+	417	162329628	amaB	RHE_CH03290	-	allantoate amidohydrolase
3221	 58.54	0	3453748..3454338	+	196	86358890	-	RHE_CH03291	-	hypothetical protein
3222	 62.27	0	3454335..3455789	+	484	86358891	dht	RHE_CH03292	-	dihydropyrimidinase
3223	 64.01	0	3455848..3456261	-	137	86358892	-	RHE_CH03293	-	hypothetical protein
3224	 63.23	0	3456356..3457141	+	261	86358893	-	RHE_CH03294	-	nitrate/sulfonate ABC transporter, ATP-binding protein
3225	 61.29	0	3457376..3458305	+	309	86358894	-	RHE_CH03295	-	nitrate/sulfonate ABC transporter, permease protein
3226	 64.01	0	3458302..3459429	+	375	86358895	-	RHE_CH03296	-	nitrate/sulfonate ABC transporter, permease protein
3227	 60.15	0	3459525..3460460	+	311	86358896	-	RHE_CH03297	-	nitrate/sulfonate ABC transporter, substrate-binding protein
3228	 63.06	0	3460849..3462039	+	396	86358897	-	RHE_CH03298	-	HlyD family protein secretion protein
3229	 61.40	0	3462053..3465373	+	1106	86358898	-	RHE_CH03299	-	acriflavin resistance efflux transporter
3230	 63.24	0	3465472..3466083	-	203	86358899	ureG	RHE_CH03300	-	urease accessory protein
3231	 65.18	+1	3466172..3466843	-	223	86358900	ureF	RHE_CH03301	-	urease accessory protein
3232	 57.35	-1	3466849..3467535	-	228	86358901	ureE	RHE_CH03302	-	urease accessory protein
3233	 61.03	0	3467519..3468370	-	283	86358902	-	RHE_CH03303	-	urease-associated protein
3234	 60.71	0	3468714..3469385	-	223	86358903	-	RHE_CH03304	-	urease-associated protein
3235	 63.40	0	3469418..3471130	-	570	86358904	ureC	RHE_CH03305	-	urease subunit alpha
3236	 63.38	0	3471134..3471772	-	212	86358905	-	RHE_CH03306	-	urease-associated protein
3237	 60.25	0	3471774..3472178	-	134	86358906	-	RHE_CH03307	-	urease-associated protein
3238	 65.36	+1	3472196..3472501	-	101	86358907	ureB	RHE_CH03308	-	urease subunit beta
3239	 62.70	0	3472512..3472763	-	83	86358908	-	RHE_CH03309	-	urease-associated protein
3240	 62.38	0	3472773..3473075	-	100	86358909	ureA	RHE_CH03310	-	urease subunit gamma
3241	 65.48	+1	3473104..3473775	-	223	86358910	ureD	RHE_CH03311	-	urease accessory protein
3242	 62.79	0	3474073..3474768	-	231	86358911	-	RHE_CH03312	-	urea or short-chain amide ABC transporter, ATP-binding protein
3243	 60.31	0	3474788..3475306	-	172	86358912	-	RHE_CH03313	-	hypothetical protein
3244	 59.66	0	3475382..3476137	-	251	86358913	-	RHE_CH03314	-	urea or short-chain amide ABC transporter, ATP-binding protein
3245	 63.14	0	3476143..3477306	-	387	86358914	-	RHE_CH03315	-	urea or short-chain amide ABC transporter, permease protein
3246	 62.03	0	3477303..3478919	-	538	86358915	-	RHE_CH03316	-	urea or short-chain amide ABC transporter, permease protein
3247	 59.47	0	3479029..3480321	-	430	86358916	-	RHE_CH03317	-	urea or short-chain amide ABC transporter, substrate-binding protein
3248	 62.49	0	3480503..3482587	-	694	86358917	-	RHE_CH03318	-	putative phosphatase protein
3249	 63.94	0	3485963..3486880	+	305	86358918	-	RHE_CH03320	-	two-component response regulator protein
3250	 60.96	0	3487057..3488178	-	373	86358919	braC2	RHE_CH03321	-	amino acid ABC transporter, substrate-binding protein
3251	 55.08	-2	3488299..3488652	-	117	86358920	-	RHE_CH03322	-	hypothetical protein
3252	 61.42	0	3488672..3489415	-	247	86358921	braG	RHE_CH03323	-	amino acid ABC transporter, ATP-binding protein
3253	 58.45	0	3489415..3490290	-	291	86358922	braF	RHE_CH03324	-	amino acid ABC transporter, ATP-binding protein
61.61	MEAN

3.19	STD DEV
