IslandPathversion 1.0

IslandPath Analysis: Rhizobium etli CFN 42

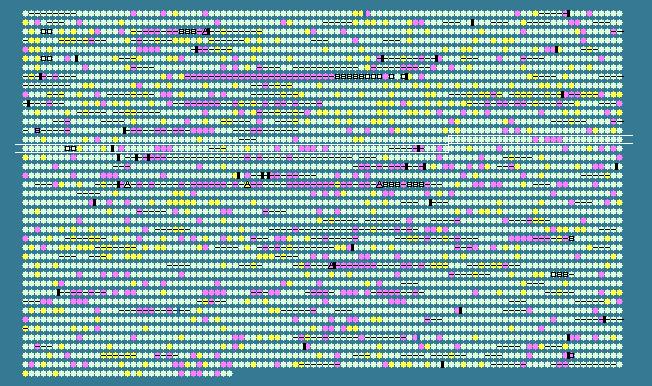

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.61 STD DEV: 3.19
Rhizobium etli CFN 42, complete genome - 1..4381608
4035 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1472	 61.87	0	1580798..1581256	-	152	86357141	-	RHE_CH01503	-	hypothetical protein
1473	 62.33	0	1581331..1582344	-	337	86357142	hemB	RHE_CH01504	-	delta-aminolevulinic acid dehydratase
1474	 60.19	0	1582390..1582914	+	174	86357143	-	RHE_CH01505	-	hypothetical protein
1475	 58.33	-1	1583044..1583559	+	171	86357144	-	RHE_CH01506	-	MarR family transcriptional regulator
1476	 62.21	0	1583995..1585296	+	433	86357145	-	RHE_CH01507	-	putative peptidoglycan binding protein (involved in cell wall degradation)
1477	 61.51	0	1585515..1586813	+	432	86357146	glyA	RHE_CH01508	-	serine hydroxymethyltransferase
1478	 61.64	0	1586823..1587299	+	158	86357147	-	RHE_CH01509	-	transcriptional regulator NrdR
1479	 64.98	+1	1587303..1588610	+	435	86357148	ribD	RHE_CH01510	-	5-amino-6-(5-phosphoribosylamino)uracil reductase/diaminohydroxyphosphoribosylaminopyrimidinedeaminase protein
1480	 62.25	0	1588610..1589221	+	203	86357149	ribE	RHE_CH01511	-	riboflavin synthase subunit alpha
1481	 59.43	0	1589340..1590209	-	289	86357150	-	RHE_CH01512	-	glucose-1-phosphate thymidylyltransferase protein
1482	 62.61	0	1590219..1591106	-	295	86357151	rfbD	RHE_CH01513	-	dTDP-4-dehydrorhamnose reductase protein
1483	 59.85	0	1591110..1592165	-	351	86357152	rffB	RHE_CH01514	-	dTDP-glucose-4,6-dehydratase protein
1484	 59.07	0	1592172..1592750	-	192	86357153	-	RHE_CH01515	-	dTDP-rhamnose-3,5-epimerase protein
1485	 60.50	0	1592740..1594587	-	615	86357154	-	RHE_CH01516	-	hypothetical protein
1486	 56.42	-1	1594870..1596030	+	386	86357155	-	RHE_CH01517	-	putative nucleotide sugar transaminase protein
1487	 59.26	0	1596248..1597462	-	404	86357156	-	RHE_CH01518	-	putative oxidoreductase protein
1488	 58.12	-1	1597459..1598652	-	397	86357157	-	RHE_CH01519	-	putative carbamoyl-phosphate-synthetase protein
1489	 55.58	-1	1598817..1601189	-	790	86357158	-	RHE_CH01520	-	putative beta-D-1,6 glucosyltransferase protein
1490	 54.74	-2	1601297..1602193	-	298	86357159	-	RHE_CH01521	-	putative glucosyltransferase protein
1491	 62.21	0	1602486..1603001	-	171	86357160	-	RHE_CH01522	-	putative acetyltransferase protein
1492	 61.31	0	1603026..1603529	-	167	86357161	-	RHE_CH01523	-	hypothetical protein
1493	 63.33	0	1603707..1604066	-	119	86357162	-	RHE_CH01524	-	hypothetical protein
1494	 60.09	0	1604413..1604868	+	151	86357163	ribH	RHE_CH01525	-	riboflavin synthase subunit beta
1495	 62.32	0	1604872..1605354	+	160	86357164	nusB	RHE_CH01526	-	transcription antitermination protein NusB
1496	 64.24	0	1605551..1607689	+	712	86357165	hppA	RHE_CH01527	-	membrane-bound proton-translocating pyrophosphatase
1497	 61.68	0	1607987..1608487	-	166	86357166	-	RHE_CH01528	-	hypothetical protein
1498	 60.22	0	1608849..1609298	+	149	86357167	-	RHE_CH01529	-	hypothetical protein
1499	 61.08	0	1609310..1609864	+	184	86357168	-	RHE_CH01530	-	hypothetical protein
1500	 59.73	0	1609988..1611010	+	340	86357169	plsX	RHE_CH01531	-	putative glycerol-3-phosphate acyltransferase PlsX
1501	 63.17	0	1611031..1612002	+	323	162329643	fabH	RHE_CH01532	-	3-oxoacyl-(acyl carrier protein) synthase III
1502	 59.00	0	1612109..1612447	+	112	86357171	ihfA	RHE_CH01533	-	integration host factor subunit alpha
1503	 62.06	0	1612598..1613140	+	180	86357172	-	RHE_CH01534	-	MerR family transcriptional regulator
1504	 62.93	0	1613145..1613492	-	115	86357173	-	RHE_CH01535	-	putative two-component response regulator protein
1505	 60.11	0	1613764..1615410	+	548	86357174	-	RHE_CH01536	-	putative two-component sensor histidine kinase protein
1506	 61.27	0	1615447..1615761	-	104	86357175	-	RHE_CH01537	-	hypothetical protein
1507	 62.61	0	1615933..1616697	+	254	86357176	-	RHE_CH01538	-	hypothetical protein
1508	 58.89	0	1616732..1617091	+	119	86357177	-	RHE_CH01539	-	insertion sequence transposase protein, ISRM11/ISRM2011-2 element
1509	 60.00	0	1617201..1617680	+	159	86357178	-	RHE_CH01540	-	insertion sequence transposase protein, ISRM11/ISRM2011-2 element
1510	 72.22	+2	1617845..1618150	-	101	86357179	-	RHE_CH01541	-	hypothetical protein
1511	 60.35	0	1618113..1620359	+	748	86357180	celA	RHE_CH01542	-	cellulose synthase protein
1512	 63.91	0	1620356..1622788	+	810	86357181	celB	RHE_CH01543	-	cellulose synthase protein
1513	 61.60	0	1622785..1623831	+	348	86357182	celC	RHE_CH01544	-	endoglucanase (glycoside hydrolase) protein
1514	 66.17	+1	1623960..1626179	+	739	86357183	-	RHE_CH01545	-	hypothetical protein
1515	 63.38	0	1626257..1626925	+	222	86357184	-	RHE_CH01546	-	putative 2-deoxyglucose-6-phosphate phosphatase protein
1516	 62.37	0	1627275..1627670	+	131	86357185	-	RHE_CH01548	-	hypothetical protein
1517	 56.56	-1	1628023..1628655	-	210	86357186	-	RHE_CH01549	-	3-demethylubiquinone-9 3-methyltransferase protein
1518	 59.24	0	1629316..1629948	+	210	86357187	-	RHE_CH01550	-	hypothetical protein
1519	 62.59	0	1629993..1630286	-	97	86357188	-	RHE_CH01551	-	hypothetical protein
1520	 61.34	0	1630357..1631538	-	393	86357189	-	RHE_CH01552	-	ROK family transcriptional regulator
1521	 61.38	0	1631898..1633655	+	585	86357190	-	RHE_CH01553	-	hypothetical protein
1522	 60.81	0	1633676..1634290	-	204	86357191	-	RHE_CH01554	-	acetyltransferase protein
1523	 57.70	-1	1634467..1635804	+	445	86357192	-	RHE_CH01555	-	sugar ABC transporter, substrate-binding protein
1524	 55.03	-2	1635930..1636823	+	297	86357193	-	RHE_CH01556	-	sugar ABC transporter, permease protein
1525	 57.07	-1	1636823..1637656	+	277	86357194	-	RHE_CH01557	-	sugar ABC transporter, permease protein
1526	 61.53	0	1637673..1638917	-	414	86357195	-	RHE_CH01558	-	hypothetical protein
1527	 61.61	0	1638914..1640476	-	520	86357196	-	RHE_CH01559	-	glycosyltransferase
1528	 61.05	0	1640522..1641697	-	391	86357197	-	RHE_CH01560	-	glycosyltransferase
1529	 61.46	0	1641701..1642276	-	191	86357198	-	RHE_CH01561	-	polysaccharide export system protein
1530	 62.94	0	1642466..1644640	+	724	86357199	-	RHE_CH01562	-	polysaccharide transporter
1531	 59.30	0	1644704..1645843	-	379	86357200	-	RHE_CH01563	-	hypothetical protein
1532	 61.43	0	1646063..1646272	-	69	86357201	-	RHE_CH01564	-	hypothetical protein
1533	 62.86	0	1646387..1647490	+	367	86357202	-	RHE_CH01565	-	cytochrome-c oxidase protein
1534	 65.40	+1	1647513..1648304	-	263	86357203	-	RHE_CH01566	-	hypothetical protein
1535	 62.81	0	1648309..1649241	-	310	86357204	argC	RHE_CH01567	-	N-acetyl-gamma-glutamyl-phosphate reductase
1536	 63.27	0	1649303..1650331	-	342	86357205	speB1	RHE_CH01568	-	agmatinase
1537	 61.80	0	1650500..1651690	-	396	86357206	floR	RHE_CH01569	-	florfenicol/chloramphenicol resistance transporter protein
1538	 65.17	+1	1651993..1652460	-	155	86357207	rpsI	RHE_CH01570	-	30S ribosomal protein S9
1539	 60.22	0	1652463..1652927	-	154	86357208	rplM	RHE_CH01571	-	50S ribosomal protein L13
1540	 64.11	0	1653220..1654119	-	299	86357209	-	RHE_CH01572	-	LysR family transcriptional regulator
1541	 60.14	0	1654503..1655330	+	275	86357210	-	RHE_CH01573	-	enoyl-CoA hydratase
1542	 61.18	0	1655331..1656260	-	309	86357211	-	RHE_CH01574	-	putative transporter, permease protein
1543	 43.30	-2	1656255..1656575	+	106	86357212	-	RHE_CH01575	-	hypothetical protein
1544	 63.17	0	1657074..1657502	+	142	86357213	-	RHE_CH01576	-	hypothetical protein
1545	 62.38	0	1657620..1658903	+	427	86357214	-	RHE_CH01577	-	O-acetylhomoserine aminocarboxypropyltransferase
1546	 58.44	0	1659686..1659928	-	80	86357215	-	RHE_CH01578	-	hypothetical protein
1547	 53.85	-2	1660562..1660756	+	64	86357216	-	RHE_CH01579	-	hypothetical protein
1548	 57.31	-1	1661428..1662015	+	195	86357217	-	RHE_CH01580	-	hypothetical protein
1549	 56.08	-1	1662108..1662485	+	125	86357218	-	RHE_CH01581	-	putative glyoxalase protein
1550	 62.18	0	1662765..1663076	+	103	86357219	-	RHE_CH01582	-	hypothetical protein
1551	 57.89	-1	1663264..1663605	+	113	86357220	-	RHE_CH01583	-	hypothetical protein
1552	 59.33	0	1663823..1665949	+	708	86357221	-	RHE_CH01584	-	putative sensory box/GGDEF family protein
1553	 62.73	0	1666011..1667255	-	414	86357222	-	RHE_CH01585	-	cytochrome P450 hydroxylase protein
1554	 63.77	0	1667408..1668754	-	448	86357223	-	RHE_CH01586	-	putative sensory box/GGDEF family protein
1555	 60.63	0	1669050..1669679	+	209	86357224	clpP	RHE_CH01587	-	ATP-dependent Clp protease proteolytic subunit
1556	 60.80	0	1669980..1671257	+	425	86357225	clpX	RHE_CH01588	-	ATP-dependent protease ATP-binding subunit
1557	 60.46	0	1671670..1674087	+	805	86357226	lon	RHE_CH01589	-	ATP-dependent protease LA protein
1558	 60.51	0	1674294..1674569	+	91	86357227	hrm	RHE_CH01590	-	nucleoid DNA-binding protein
1559	 64.08	0	1674987..1675682	+	231	86357228	-	RHE_CH01591	-	putative permease protein
1560	 61.71	0	1675924..1678122	+	732	86357229	-	RHE_CH01592	-	putative alkaline phosphatase protein
1561	 63.73	0	1678232..1679218	-	328	86357230	-	RHE_CH01593	-	oxidoreductase protein
1562	 62.09	0	1679307..1679765	+	152	86357231	-	RHE_CH01594	-	hypothetical protein
1563	 59.69	0	1679771..1680487	-	238	86357232	-	RHE_CH01595	-	hypothetical protein
1564	 60.88	0	1680542..1680904	+	120	86357233	-	RHE_CH01596	-	hypothetical protein
1565	 60.11	0	1681033..1681581	+	182	86357234	btuE	RHE_CH01597	-	glutathione peroxidase protein
1566	 57.59	-1	1681879..1682418	-	179	86357235	-	RHE_CH01598	-	hypothetical protein
1567	 54.64	-2	1683077..1683442	+	121	86357236	nuoA1	RHE_CH01602	-	NADH dehydrogenase subunit A
1568	 63.08	0	1683433..1684017	+	194	86357237	nuoB1	RHE_CH01603	-	NADH dehydrogenase subunit B
1569	 61.03	0	1684036..1684638	+	200	86357238	nuoC1	RHE_CH01604	-	NADH dehydrogenase subunit C
1570	 53.57	-2	1684736..1685071	+	111	86357239	-	RHE_CH01605	-	hypothetical protein
1571	 60.29	0	1685131..1686321	+	396	86357240	nuoD1	RHE_CH01606	-	NADH dehydrogenase subunit D
61.61	MEAN

3.19	STD DEV
