IslandPath Analysis: Ralstonia pickettii 12J

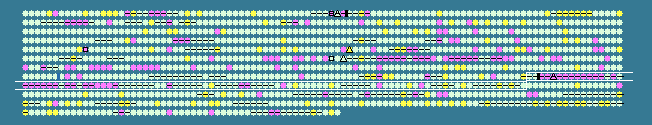

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
785	 62.84	0	903743..904264	+	173	187926743	-	Rpic_4572	-	putative transmembrane protein
786	 62.25	0	904319..905269	-	316	187926744	-	Rpic_4573	-	response regulator receiver modulated CheW protein
787	 59.12	-1	906009..907307	-	432	187926745	-	Rpic_4575	-	hypothetical protein
788	 56.36	-2	907304..908341	-	345	187926746	-	Rpic_4576	-	AAA ATPase
789	 56.97	-2	908351..911053	-	900	187926747	-	Rpic_4577	-	Integrase catalytic region
790	 59.00	-1	911202..911501	+	99	187926748	-	Rpic_4578	-	hypothetical protein
791	 58.28	-1	911565..912053	-	162	187926749	-	Rpic_4579	-	hypothetical protein
792	 53.85	-2	912336..912725	+	129	187926750	-	Rpic_4580	-	hypothetical protein
793	 56.97	-2	913000..913329	-	109	187926751	-	Rpic_4581	-	hypothetical protein
794	 60.78	-1	913687..913839	-	50	187926752	-	Rpic_4582	-	hypothetical protein
795	 53.26	-2	914093..914383	-	96	187926753	-	Rpic_4583	-	hypothetical protein
796	 56.61	-2	914690..915703	-	337	187926754	-	Rpic_4584	-	hypothetical protein
797	 50.20	-2	915706..916713	-	335	187926755	-	Rpic_4585	-	hypothetical protein
798	 65.56	0	918105..918830	-	241	187926756	-	Rpic_4587	-	17 kDa surface antigen
799	 58.33	-1	919197..919400	-	67	187926757	-	Rpic_4588	-	hypothetical protein
800	 62.09	0	920374..920766	+	130	187926758	-	Rpic_4589	-	hypothetical protein
801	 56.37	-2	920934..921584	+	216	187926759	-	Rpic_4590	-	hypothetical protein
802	 56.44	-2	921848..922150	-	100	187926760	-	Rpic_4591	-	hypothetical protein
803	 57.18	-2	922432..923190	-	252	187926761	-	Rpic_4592	-	protein of unknown function DUF347
804	 58.75	-1	923899..925212	+	437	187926762	-	Rpic_4594	-	major facilitator superfamily MFS_1
805	 54.19	-2	925330..925890	-	186	187926763	-	Rpic_4595	-	alkylhydroperoxidase like protein, AhpD family
806	 55.82	-2	925934..926182	-	82	187926764	-	Rpic_4596	-	hypothetical protein
807	 61.23	-1	926216..926767	-	183	187926765	-	Rpic_4597	-	RNA polymerase, sigma-24 subunit, ECF subfamily
808	 59.05	-1	926771..926980	-	69	187926766	-	Rpic_4598	-	hypothetical protein
809	 60.09	-1	927086..927526	-	146	187926767	-	Rpic_4599	-	hypothetical protein
810	 61.45	0	927639..928367	-	242	187926768	-	Rpic_4600	-	cytochrome c biogenesis protein transmembrane region
811	 57.11	-2	928367..928753	-	128	187926769	-	Rpic_4601	-	Thioredoxin domain
812	 59.58	-1	928937..929176	+	79	187926770	-	Rpic_4602	-	hypothetical protein
813	 58.71	-1	929146..929874	+	242	187926771	-	Rpic_4603	-	hypothetical protein
814	 60.44	-1	930187..931086	-	299	187926772	-	Rpic_4604	-	transcriptional regulator, LysR family
815	 55.38	-2	931152..931718	+	188	187926773	-	Rpic_4605	-	hypothetical protein
816	 59.35	-1	932054..932422	+	122	187926774	-	Rpic_4607	-	copper resistance protein CopC
817	 62.33	0	932422..933366	+	314	187926775	-	Rpic_4608	-	copper resistance D domain protein
818	 62.09	0	933578..935938	+	786	187926776	-	Rpic_4609	-	heavy metal translocating P-type ATPase
819	 63.18	0	936293..937123	-	276	187926777	-	Rpic_4610	-	disulfide isomerase/thiol-disulfide oxidase
820	 61.47	0	937217..938332	+	371	187926778	-	Rpic_4611	-	transcriptional regulator, TetR family
821	 61.37	0	938591..940423	+	610	187926779	-	Rpic_4612	-	diguanylate cyclase/phosphodiesterase
822	 63.02	0	940699..942123	+	474	187926780	-	Rpic_4613	-	Phospholipase C
823	 64.77	0	942127..943341	+	404	187926781	-	Rpic_4614	-	phosphoesterase
824	 66.50	0	943496..944722	+	408	187926782	-	Rpic_4615	-	chromate transporter, chromate ion transporter (CHR) family
825	 58.85	-1	944985..945176	-	63	187926783	-	Rpic_4616	-	4-oxalocrotonate tautomerase family enzyme
826	 63.04	0	945221..946267	-	348	187926784	-	Rpic_4617	-	4-hydroxy-2-oxovalerate aldolase
827	 65.49	0	946281..947216	-	311	187926785	-	Rpic_4618	-	acetaldehyde dehydrogenase (acetylating)
828	 62.88	0	947254..948045	-	263	187926786	-	Rpic_4619	-	4-oxalocrotonate decarboxylase
829	 65.52	0	948075..948857	-	260	187926787	-	Rpic_4620	-	2-oxopent-4-enoate hydratase
830	 67.02	0	948883..949734	-	283	187926788	-	Rpic_4621	-	alpha/beta hydrolase fold
831	 65.98	0	949731..951185	-	484	187926789	-	Rpic_4622	-	2-hydroxymuconic semialdehyde dehydrogenase
832	 69.32	+1	951235..951687	-	150	187926790	-	Rpic_4623	-	protein of unknown function DUF336
833	 63.92	0	951746..952690	-	314	187926791	-	Rpic_4624	-	catechol 2,3 dioxygenase
834	 66.39	0	952714..953079	-	121	187926792	-	Rpic_4625	-	ferredoxin
835	 67.04	0	953095..954159	-	354	187926793	-	Rpic_4626	-	Oxidoreductase FAD-binding domain protein
836	 63.66	0	954163..954528	-	121	187926794	-	Rpic_4627	-	Phenol hydroxylase conserved region
837	 60.32	-1	954525..956069	-	514	187926795	-	Rpic_4628	-	methane/phenol/toluene hydroxylase
838	 61.11	-1	956115..956384	-	89	187926796	-	Rpic_4629	-	monooxygenase component MmoB/DmpM
839	 67.76	0	956420..957427	-	335	187926797	-	Rpic_4630	-	Phenol 2-monooxygenase
840	 62.38	0	957483..957692	-	69	187926798	-	Rpic_4631	-	Phenol hydroxylase subunit
841	 62.28	0	958407..959912	+	501	187926799	-	Rpic_4632	-	methane/phenol/toluene hydroxylase
842	 61.30	0	959937..960197	+	86	187926800	-	Rpic_4633	-	Toluene-4-monooxygenase system B
843	 63.69	0	960205..960540	+	111	187926801	-	Rpic_4634	-	Rieske (2Fe-2S) domain protein
844	 60.32	-1	960560..960874	+	104	187926802	-	Rpic_4635	-	monooxygenase component MmoB/DmpM
845	 66.77	0	960887..961876	+	329	187926803	-	Rpic_4636	-	methane/phenol/toluene hydroxylase
846	 68.70	+1	961914..962945	+	343	187926804	-	Rpic_4637	-	Oxidoreductase FAD-binding domain protein
847	 65.32	0	963199..964977	+	592	187926805	-	Rpic_4638	-	putative sigma54 specific transcriptional regulator
848	 64.12	0	965041..966417	-	458	187926806	-	Rpic_4639	-	membrane protein involved in aromatic hydrocarbon degradation
849	 67.14	0	966863..968557	+	564	187926807	-	Rpic_4640	-	putative sigma54 specific transcriptional regulator
850	 66.67	0	968554..969303	+	249	187926808	-	Rpic_4641	-	transcriptional regulator, GntR family
851	 66.85	0	969388..972048	-	886	187926809	-	Rpic_4642	-	formate dehydrogenase, alpha subunit
852	 68.88	+1	972036..973478	-	480	187926810	-	Rpic_4643	-	NADH dehydrogenase (quinone)
853	 66.55	0	973724..975490	+	588	187926811	-	Rpic_4644	-	AMP-dependent synthetase and ligase
854	 66.67	0	975487..976512	+	341	187926812	-	Rpic_4645	-	pyruvate dehydrogenase (acetyl-transferring) E1 component, alpha subunit
855	 67.48	0	976509..977492	+	327	187926813	-	Rpic_4646	-	Transketolase central region
856	 67.55	0	977530..978657	+	375	187926814	-	Rpic_4647	-	catalytic domain of components of various dehydrogenase complexes
857	 62.22	0	978654..978923	+	89	187926815	-	Rpic_4648	-	hypothetical protein
858	 62.94	0	978978..979406	-	142	187926816	-	Rpic_4649	-	hypothetical protein
859	 61.24	-1	979488..980888	-	466	187926817	-	Rpic_4650	-	multi-sensor signal transduction histidine kinase
860	 59.59	-1	981255..981593	+	112	187926818	-	Rpic_4651	-	sigma 54 modulation protein, putative
861	 61.67	0	981597..981836	+	79	187926819	-	Rpic_4652	-	hypothetical protein
862	 67.03	0	982190..983827	+	545	187926820	-	Rpic_4653	-	chaperonin GroEL
863	 66.81	0	983869..985230	+	453	187926821	-	Rpic_4654	-	nicotinate phosphoribosyltransferase
864	 64.58	0	985338..986009	-	223	187926822	-	Rpic_4655	-	protein of unknown function DUF542 ScdA domain protein
865	 68.95	+1	986174..987709	+	511	187926823	-	Rpic_4656	-	transcriptional regulator, NifA subfamily, Fis Family
866	 63.89	0	987896..989947	+	683	187926824	-	Rpic_4657	-	anaerobic ribonucleoside-triphosphate reductase
867	 57.63	-2	989944..990120	+	58	187926825	-	Rpic_4658	-	hypothetical protein
868	 67.09	0	990083..990796	+	237	187926826	-	Rpic_4659	-	anaerobic ribonucleoside-triphosphate reductase activating protein
869	 62.39	0	990801..991478	+	225	187926827	-	Rpic_4660	-	transcriptional regulator, Crp/Fnr family
870	 67.84	0	991575..992000	-	141	187926828	-	Rpic_4661	-	DGC domain protein
871	 69.78	+1	992033..992449	-	138	187926829	-	Rpic_4662	-	hypothetical protein
872	 67.34	0	992446..993330	-	294	187926830	-	Rpic_4663	-	peptidase U32
873	 65.88	0	993341..994357	-	338	187926831	-	Rpic_4664	-	peptidase U32
874	 70.25	+1	994402..995685	-	427	187926832	-	Rpic_4665	-	putative transmembrane protein
875	 65.22	0	995921..997237	+	438	187926833	-	Rpic_4666	-	major facilitator superfamily MFS_1
876	 64.29	0	997287..998672	+	461	187926834	-	Rpic_4667	-	nitrite transporter
877	 65.47	0	998685..999353	-	222	187926835	-	Rpic_4668	-	protein of unknown function DUF161
878	 65.22	0	999638..1003375	+	1245	187926836	-	Rpic_4669	-	nitrate reductase, alpha subunit
879	 63.75	0	1003372..1004916	+	514	187926837	-	Rpic_4670	-	nitrate reductase, beta subunit
880	 68.23	+1	1004934..1005635	+	233	187926838	-	Rpic_4671	-	nitrate reductase molybdenum cofactor assembly chaperone
881	 65.64	0	1005632..1006315	+	227	187926839	-	Rpic_4672	-	respiratory nitrate reductase, gamma subunit
882	 68.20	+1	1006317..1006838	+	173	187926840	-	Rpic_4673	-	molybdopterin-guanine dinucleotide biosynthesis protein B
883	 67.84	0	1006900..1008855	+	651	187926841	-	Rpic_4674	-	multi-sensor signal transduction histidine kinase
884	 66.21	0	1008883..1009539	+	218	187926842	-	Rpic_4675	-	two component transcriptional regulator, LuxR family
64.67	MEAN

3.41	STD DEV
