IslandPathversion 1.0

IslandPath Analysis: Ralstonia pickettii 12J

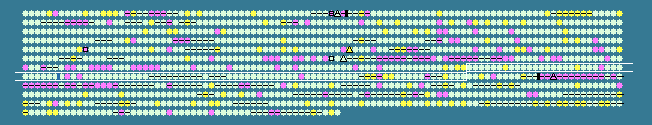

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
675	 65.32	0	773304..774341	-	345	187926633	-	Rpic_4458	-	binding-protein-dependent transport systems inner membrane component
676	 63.29	0	774377..775384	-	335	187926634	-	Rpic_4459	-	NMT1/THI5 like domain protein
677	 66.90	0	775434..776273	-	279	187926635	-	Rpic_4460	-	class II aldolase/adducin family protein
678	 64.93	0	776283..777374	-	363	187926636	-	Rpic_4461	-	Alkanesulfonate monooxygenase
679	 67.74	0	777572..778780	+	402	187926637	-	Rpic_4462	-	Acyl-CoA dehydrogenase type 2 domain
680	 65.15	0	778841..779500	+	219	187926638	-	Rpic_4463	-	cysteine dioxygenase type I
681	 68.91	+1	779497..781146	+	549	187926639	-	Rpic_4464	-	Rhodanese domain protein
682	 66.44	0	781518..782405	+	295	187926640	-	Rpic_4465	-	protein of unknown function DUF6 transmembrane
683	 66.42	0	782421..784433	-	670	187926641	-	Rpic_4466	-	diguanylate cyclase/phosphodiesterase
684	 63.70	0	784430..785002	-	190	187926642	-	Rpic_4467	-	putative transmembrane protein
685	 63.24	0	784999..787014	-	671	187926643	-	Rpic_4468	-	TonB-dependent receptor
686	 63.81	0	787273..787692	-	139	187926644	-	Rpic_4469	-	ATP synthase F1, epsilon subunit
687	 65.28	0	787929..788864	+	311	187926645	-	Rpic_4470	-	transcriptional regulator, LysR family
688	 65.94	0	788910..789593	+	227	187926646	-	Rpic_4471	-	HAD-superfamily subfamily IB hydrolase, TIGR01490
689	 66.26	0	789653..790876	-	407	187926647	-	Rpic_4472	-	FAD dependent oxidoreductase TIGR03364
690	 63.35	0	790877..791902	-	341	187926648	-	Rpic_4473	-	2-aminoethylphosphonate ABC transport system, 1-aminoethylphosphonate-binding protein component
691	 67.35	0	791958..792836	-	292	187926649	-	Rpic_4474	-	phosphonoacetaldehyde hydrolase
692	 66.33	0	792881..794644	-	587	187926650	-	Rpic_4475	-	2-aminoethylphosphonate ABC transport system, permease protein
693	 68.94	+1	794652..795794	-	380	187926651	-	Rpic_4476	-	2-aminoethylphosphonate ABC transport system, ATP-binding protein component
694	 65.63	0	795873..796739	-	288	187926652	-	Rpic_4477	-	transcriptional regulator, LysR family
695	 65.85	0	797063..798766	+	567	187926653	-	Rpic_4478	-	putative hemagglutinin-related transmembrane protein
696	 64.39	0	798921..801506	-	861	187926654	-	Rpic_4479	-	aconitate hydratase 2
697	 60.77	-1	801717..802055	+	112	187926655	-	Rpic_4480	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
698	 67.27	0	802085..802906	+	273	187926656	-	Rpic_4481	-	Enoyl-CoA hydratase/isomerase
699	 64.42	0	802935..803468	-	177	187926657	-	Rpic_4482	-	protein of unknown function DUF962
700	 66.26	0	803616..804347	+	243	187926658	-	Rpic_4483	-	transcriptional regulator, Crp/Fnr family
701	 63.39	0	804477..806579	+	700	187926659	-	Rpic_4484	-	translation elongation factor G
702	 62.69	0	806859..808016	-	385	187926660	-	Rpic_4486	-	Citrate transporter
703	 67.23	0	808158..808691	-	177	187926661	-	Rpic_4487	-	transcriptional regulator, XRE family
704	 63.09	0	809216..812455	-	1079	187926662	-	Rpic_4488	-	DNA polymerase III, alpha subunit
705	 65.91	0	812463..814046	-	527	187926663	-	Rpic_4489	-	hypothetical protein
706	 64.26	0	813979..814935	-	318	187926664	-	Rpic_4490	-	hypothetical protein
707	 65.27	0	821861..822433	-	190	187926665	-	Rpic_4493	-	putative transmembrane protein
708	 58.37	-1	822739..823944	+	401	187926666	-	Rpic_4494	-	fatty acid hydroxylase
709	 64.93	0	823962..824480	+	172	187926667	-	Rpic_4495	-	protein of unknown function DUF985
710	 59.35	-1	824481..824603	-	40	187926668	-	Rpic_4496	-	hypothetical protein
711	 63.48	0	824906..825784	+	292	187926669	-	Rpic_4497	-	2-hydroxy-3-oxopropionate reductase
712	 62.75	0	825853..827256	-	467	187926670	-	Rpic_4498	-	major facilitator superfamily MFS_1
713	 63.40	0	827328..828428	-	366	187926671	-	Rpic_4499	-	porin Gram-negative type
714	 64.56	0	828605..829555	-	316	187926672	-	Rpic_4500	-	ferredoxin
715	 64.59	0	829577..830539	-	320	187926673	-	Rpic_4501	-	Glyoxalase/bleomycin resistance protein/dioxygenase
716	 64.54	0	830576..832078	-	500	187926674	-	Rpic_4502	-	Aldehyde Dehydrogenase
717	 65.92	0	832095..832898	-	267	187926675	-	Rpic_4503	-	Aspartate dehydrogenase
718	 66.26	0	832931..834670	-	579	187926676	-	Rpic_4504	-	thiamine pyrophosphate protein domain protein TPP-binding
719	 65.43	0	834663..835472	-	269	187926677	-	Rpic_4505	-	short-chain dehydrogenase/reductase SDR
720	 64.49	0	835469..836296	-	275	187926678	-	Rpic_4506	-	transcriptional regulator, IclR family
721	 65.23	0	836309..837211	-	300	187926679	-	Rpic_4507	-	alpha/beta hydrolase fold
722	 62.20	0	837216..837752	-	178	187926680	-	Rpic_4508	-	Cupin 2 conserved barrel domain protein
723	 66.80	0	837785..838558	-	257	187926681	-	Rpic_4509	-	short-chain dehydrogenase/reductase SDR
724	 63.95	0	838551..839618	-	355	187926682	-	Rpic_4510	-	Rieske (2Fe-2S) domain protein
725	 66.34	0	839699..840004	-	101	187926683	-	Rpic_4511	-	hypothetical protein
726	 62.08	0	840187..840753	-	188	187926684	-	Rpic_4512	-	transcriptional regulator, TetR family
727	 65.17	0	840843..841244	+	133	187926685	-	Rpic_4513	-	transcriptional regulator, AraC family
728	 62.26	0	841293..841769	-	158	187926686	-	Rpic_4514	-	protein of unknown function DUF1348
729	 61.32	0	841913..842380	-	155	187926687	-	Rpic_4515	-	GCN5-related N-acetyltransferase
730	 61.51	0	842788..843039	-	83	187926688	-	Rpic_4516	-	hypothetical protein
731	 66.45	0	843146..844081	+	311	187926689	-	Rpic_4517	-	transcriptional regulator, LysR family
732	 66.38	0	844191..845219	+	342	187926690	-	Rpic_4518	-	alpha/beta hydrolase fold
733	 61.33	0	845360..845584	+	74	187926691	-	Rpic_4519	-	hypothetical protein
734	 67.54	0	845612..846184	-	190	187926692	-	Rpic_4520	-	putative transmembrane protein
735	 64.49	0	846250..847122	-	290	187926693	-	Rpic_4521	-	aminotransferase class IV
736	 67.64	0	847283..847795	+	170	187926694	-	Rpic_4522	-	GCN5-related N-acetyltransferase
737	 66.04	0	847891..848208	+	105	187926695	-	Rpic_4523	-	putative signal peptide protein
738	 63.58	0	848212..848955	-	247	187926696	-	Rpic_4524	-	ABC transporter related
739	 64.64	0	848967..850793	-	608	187926697	-	Rpic_4525	-	ABC transporter related
740	 64.77	0	850798..851850	-	350	187926698	-	Rpic_4526	-	inner-membrane translocator
741	 67.57	0	851965..852852	-	295	187926699	-	Rpic_4527	-	transcriptional regulator, IclR family
742	 65.10	0	853119..854078	+	319	187926700	-	Rpic_4528	-	beta-lactamase domain protein
743	 66.13	0	854135..855814	+	559	187926701	-	Rpic_4529	-	monooxygenase FAD-binding
744	 63.29	0	855820..856026	+	68	187926702	-	Rpic_4530	-	hypothetical protein
745	 64.57	0	856067..857116	-	349	187926703	-	Rpic_4531	-	aldo/keto reductase
746	 65.69	0	857316..858233	-	305	187926704	-	Rpic_4532	-	transcriptional regulator, LysR family
747	 47.75	-2	858258..858368	-	36	187926705	-	Rpic_4533	-	hypothetical protein
748	 66.59	0	858510..859856	+	448	187926706	-	Rpic_4534	-	homogentisate 1,2-dioxygenase
749	 65.33	0	860163..861434	+	423	187926707	-	Rpic_4535	-	fumarylacetoacetase
750	 63.85	0	861474..862112	-	212	187926708	-	Rpic_4536	-	FMN-binding negative transcriptional regulator
751	 66.29	0	862236..863546	-	436	187926709	-	Rpic_4537	-	ABC transporter related
752	 66.03	0	863552..865285	-	577	187926710	-	Rpic_4538	-	binding-protein-dependent transport systems inner membrane component
753	 64.68	0	865423..866580	-	385	187926711	-	Rpic_4539	-	acyl-CoA dehydrogenase domain protein
754	 67.10	0	866693..867613	+	306	187926712	-	Rpic_4540	-	transcriptional regulator, LysR family
755	 65.69	0	867614..868531	-	305	187926713	-	Rpic_4541	-	transcriptional regulator, LysR family
756	 66.32	0	868652..870982	+	776	187926714	-	Rpic_4542	-	5-methyltetrahydropteroyltriglutamate/homocysteine S-methyltransferase
757	 65.96	0	871099..874200	-	1033	187926715	-	Rpic_4543	-	acriflavin resistance protein
758	 70.26	+1	874197..875336	-	379	187926716	-	Rpic_4544	-	efflux transporter, RND family, MFP subunit
759	 70.15	+1	875333..876910	-	525	187926717	-	Rpic_4545	-	RND efflux system, outer membrane lipoprotein, NodT family
760	 59.62	-1	877043..877198	-	51	187926718	-	Rpic_4546	-	hypothetical protein
761	 71.88	+2	877385..878266	+	293	187926719	-	Rpic_4547	-	NADP oxidoreductase coenzyme F420-dependent
762	 69.47	+1	878353..879567	+	404	187926720	-	Rpic_4548	-	major facilitator superfamily MFS_1
763	 64.90	0	879578..880144	-	188	187926721	-	Rpic_4549	-	DNA-3-methyladenine glycosylase I
764	 62.86	0	880156..881127	-	323	187926722	-	Rpic_4550	-	Mg2 transporter protein CorA family protein
765	 65.26	0	881146..881643	-	165	187926723	-	Rpic_4551	-	transcriptional regulator, MarR family
766	 65.03	0	881706..883298	-	530	187926724	-	Rpic_4552	-	major facilitator superfamily MFS_1
767	 64.50	0	883487..886072	-	861	187926725	-	Rpic_4553	-	aconitate hydratase 2
768	 59.86	-1	886445..886738	+	97	187926726	-	Rpic_4554	-	Antibiotic biosynthesis monooxygenase
769	 63.17	0	886852..887796	-	314	187926727	-	Rpic_4555	-	permease of drug/metabolite transporter
770	 65.42	0	887919..888797	-	292	187926728	-	Rpic_4556	-	transcriptional regulator, LysR family
771	 68.56	+1	888895..890478	+	527	187926729	-	Rpic_4557	-	NADH/Ubiquinone/plastoquinone (complex I)
772	 67.91	0	890499..893081	+	860	187926730	-	Rpic_4558	-	hypothetical protein
773	 65.91	0	893148..894335	+	395	187926731	-	Rpic_4559	-	acyltransferase 3
774	 66.67	0	894325..895143	-	272	187926732	-	Rpic_4560	-	Methyltransferase type 11
64.67	MEAN

3.41	STD DEV
