IslandPath Analysis: Ralstonia pickettii 12J

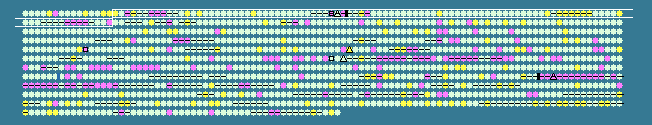

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.67   STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
16	 68.26	+1	14139..15458	-	439	187925974	-	Rpic_3776	-	protein of unknown function UPF0118
17	 67.00	0	15460..17844	-	794	187925975	-	Rpic_3777	-	PAS/PAC sensor hybrid histidine kinase
18	 60.92	-1	17929..18711	-	260	187925976	-	Rpic_3778	-	hypothetical protein
19	 69.31	+1	19004..20287	+	427	187925977	-	Rpic_3779	-	putative proline-rich protein
20	 63.45	0	20561..21865	-	434	187925978	-	Rpic_3780	-	Xanthine/uracil/vitamin C permease
21	 61.45	0	23271..24344	+	357	187925979	-	Rpic_3781	-	plasmid encoded RepA protein
22	 57.35	-2	24421..24624	-	67	187925980	-	Rpic_3782	-	cold-shock DNA-binding domain protein
23	 59.49	-1	25030..25698	+	222	187925981	-	Rpic_3783	-	Cobyrinic acid ac-diamide synthase
24	 57.84	-2	25695..26702	+	335	187925982	-	Rpic_3784	-	parB-like partition protein
25	 65.59	0	27001..27837	+	278	187925983	-	Rpic_3785	-	hypothetical protein
26	 62.79	0	28088..29041	+	317	187925984	-	Rpic_3786	-	UTP-glucose-1-phosphate uridylyltransferase
27	 63.18	0	29300..30646	+	448	187925985	-	Rpic_3787	-	General substrate transporter
28	 68.40	+1	30651..32558	+	635	187925986	-	Rpic_3788	-	integral membrane sensor signal transduction histidine kinase
29	 65.05	0	32555..33913	+	452	187925987	-	Rpic_3789	-	two component, sigma54 specific, transcriptional regulator, Fis family
30	 69.41	+1	33910..34710	-	266	187925988	-	Rpic_3790	-	putative lipoprotein transmembrane
31	 66.67	0	34823..35263	+	146	187925989	-	Rpic_3791	-	conserved hypothetical signal peptide protein
32	 66.26	0	35376..38057	+	893	187925990	-	Rpic_3792	-	diguanylate cyclase with PAS/PAC sensor
33	 63.22	0	38492..39652	+	386	187925991	-	Rpic_3793	-	Extracellular ligand-binding receptor
34	 65.99	0	39749..40630	+	293	187925992	-	Rpic_3794	-	inner-membrane translocator
35	 64.91	0	40644..41552	+	302	187925993	-	Rpic_3795	-	inner-membrane translocator
36	 63.53	0	41560..42357	+	265	187925994	-	Rpic_3796	-	ABC transporter related
37	 64.88	0	42354..43079	+	241	187925995	-	Rpic_3797	-	ABC transporter related
38	 68.12	+1	43153..44049	-	298	187925996	-	Rpic_3798	-	transcriptional regulator, LysR family
39	 68.37	+1	44225..45223	+	332	187925997	-	Rpic_3799	-	Alcohol dehydrogenase zinc-binding domain protein
40	 65.41	0	45319..45636	+	105	187925998	-	Rpic_3800	-	YCII-related
41	 66.88	0	45689..47083	+	464	187925999	-	Rpic_3801	-	Chloride channel core
42	 63.71	0	47353..49581	+	742	187926000	-	Rpic_3802	-	TonB-dependent siderophore receptor
43	 64.34	0	49630..50316	+	228	187926001	-	Rpic_3803	-	2OG-Fe(II) oxygenase
44	 66.67	0	50377..50523	-	48	187926002	-	Rpic_3804	-	hypothetical protein
45	 67.77	0	50648..53176	-	842	187926003	-	Rpic_3805	-	Pyruvate, water dikinase
46	 65.24	0	53176..53805	-	209	187926004	-	Rpic_3806	-	transcriptional regulator, TetR family
47	 65.41	0	53925..54878	+	317	187926005	-	Rpic_3807	-	proline iminopeptidase
48	 65.02	0	54933..57359	+	808	187926006	-	Rpic_3808	-	multi-sensor hybrid histidine kinase
49	 62.59	0	57801..58388	+	195	187926007	-	Rpic_3809	-	Fimbrial protein
50	 62.23	0	58473..59216	+	247	187926008	-	Rpic_3810	-	Pili assembly chaperone, N-terminal
51	 62.94	0	59300..61927	+	875	187926009	-	Rpic_3811	-	fimbrial biogenesis outer membrane usher protein
52	 59.93	-1	63686..63982	+	98	187926010	-	Rpic_3814	-	transposase IS3/IS911 family protein
53	 61.74	0	63979..64872	+	297	187926011	-	Rpic_3815	-	Integrase catalytic region
54	 54.41	-2	64884..65552	+	222	187926012	-	Rpic_3816	-	Fimbrial protein
55	 65.70	0	66041..66868	+	275	187926013	-	Rpic_3817	-	Beta-lactamase
56	 67.36	0	66878..67603	-	241	187926014	-	Rpic_3818	-	transcriptional regulator, ArsR family
57	 69.43	+1	67725..69101	+	458	187926015	-	Rpic_3819	-	major facilitator superfamily MFS_1
58	 52.78	-2	69918..70097	+	59	187926016	-	Rpic_3820	-	hypothetical protein
59	 63.82	0	70097..71605	+	502	187926017	-	Rpic_3821	-	Na+/solute symporter
60	 63.91	0	71890..72288	+	132	187926018	-	Rpic_3822	-	hypothetical protein
61	 62.11	0	72406..72690	+	94	187926019	-	Rpic_3823	-	hypothetical protein
62	 65.25	0	72842..73264	-	140	187926020	-	Rpic_3824	-	GCN5-related N-acetyltransferase
63	 61.90	0	73316..74386	-	356	187926021	-	Rpic_3825	-	arsenical-resistance protein
64	 66.07	0	74460..74963	-	167	187926022	-	Rpic_3826	-	protein tyrosine phosphatase
65	 64.39	0	74974..75456	-	160	187926023	-	Rpic_3827	-	Glyoxalase/bleomycin resistance protein/dioxygenase
66	 65.88	0	75468..75722	-	84	187926024	-	Rpic_3828	-	putative transcriptional regulator, ArsR family
67	 65.58	0	76071..76991	+	306	187926025	-	Rpic_3829	-	putative exonuclease RdgC
68	 65.78	0	77049..77726	-	225	187926026	-	Rpic_3830	-	putative periplasmic ligand-binding sensor protein
69	 65.32	0	77993..80371	+	792	187926027	-	Rpic_3831	-	NADH:flavin oxidoreductase/NADH oxidase
70	 68.20	+1	80373..81155	+	260	187926028	-	Rpic_3832	-	short-chain dehydrogenase/reductase SDR
71	 65.47	0	81152..81736	+	194	187926029	-	Rpic_3833	-	transcriptional regulator, MarR family
72	 66.43	0	81754..82614	+	286	187926030	-	Rpic_3834	-	Enoyl-CoA hydratase/isomerase
73	 68.03	0	82616..83791	+	391	187926031	-	Rpic_3835	-	acyl-CoA dehydrogenase domain protein
74	 67.22	0	83828..85444	+	538	187926032	-	Rpic_3836	-	AMP-dependent synthetase and ligase
75	 61.81	0	85441..85872	+	143	187926033	-	Rpic_3837	-	putative 4-hydroxybenzoyl-CoA thioesterase protein
76	 65.65	0	85886..86278	+	130	187926034	-	Rpic_3838	-	Endoribonuclease L-PSP
77	 62.86	0	86584..87660	-	358	187926035	-	Rpic_3839	-	transcriptional regulator, AraC family
78	 61.36	0	87800..88195	+	131	187926036	-	Rpic_3840	-	Carboxymuconolactone decarboxylase
79	 63.81	0	88231..89280	+	349	187926037	-	Rpic_3841	-	protein of unknown function DUF849
80	 61.31	0	89396..90217	+	273	187926038	-	Rpic_3842	-	short-chain dehydrogenase/reductase SDR
81	 64.02	0	90335..91618	+	427	187926039	-	Rpic_3843	-	major facilitator superfamily MFS_1
82	 64.60	0	92176..93480	-	434	187926040	-	Rpic_3844	-	metabolite/H+ symporter, major facilitator superfamily (MFS)
83	 66.99	0	93664..94884	-	406	187926041	-	Rpic_3845	-	major facilitator superfamily MFS_1
84	 67.26	0	94984..95820	-	278	187926042	-	Rpic_3846	-	transcriptional regulator, GntR family
85	 67.21	0	95985..96536	-	183	187926043	-	Rpic_3847	-	transcriptional regulator, HxlR family
86	 67.70	0	96670..97248	+	192	187926044	-	Rpic_3848	-	GCN5-related N-acetyltransferase
87	 65.06	0	97487..97921	+	144	187926045	-	Rpic_3849	-	Glyoxalase/bleomycin resistance protein/dioxygenase
88	 68.50	+1	97972..98844	+	290	187926046	-	Rpic_3850	-	transcriptional regulator, LysR family
89	 67.30	0	98945..99730	+	261	187926047	-	Rpic_3851	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
90	 68.67	+1	99735..101033	-	432	187926048	-	Rpic_3852	-	major facilitator superfamily MFS_1
91	 68.22	+1	101195..101836	+	213	187926049	-	Rpic_3853	-	transcriptional regulator, TetR family
92	 69.75	+1	101968..102939	+	323	187926050	-	Rpic_3854	-	ATPase associated with various cellular activities AAA_3
93	 71.04	+1	102952..104025	+	357	187926051	-	Rpic_3855	-	protein of unknown function DUF58
94	 69.98	+1	104022..106046	+	674	187926052	-	Rpic_3856	-	transglutaminase domain protein
95	 70.03	+1	106559..107629	+	356	187926053	-	Rpic_3857	-	putative lipoprotein
96	 67.59	0	107724..108911	-	395	187926054	-	Rpic_3858	-	AcnD-accessory protein PrpF
97	 65.20	0	108908..111505	-	865	187926055	-	Rpic_3859	-	2-methylisocitrate dehydratase, Fe/S-dependent
98	 63.33	0	111821..112990	-	389	187926056	-	Rpic_3860	-	2-methylcitrate synthase/citrate synthase II
99	 64.21	0	113027..113923	-	298	187926057	-	Rpic_3861	-	methylisocitrate lyase
100	 68.26	+1	114117..116063	+	648	187926058	-	Rpic_3862	-	proprionate catabolism activator, Fis family
101	 64.37	0	116177..116872	+	231	187926059	-	Rpic_3863	-	metal dependent phosphohydrolase
102	 64.96	0	117113..118459	+	448	187926060	-	Rpic_3864	-	diguanylate cyclase
103	 61.23	-1	118482..119051	-	189	187926061	-	Rpic_3865	-	isochorismatase hydrolase
104	 63.46	0	119260..120567	+	435	187926062	-	Rpic_3866	-	Chloride channel core
105	 67.08	0	120619..121098	-	159	187926063	-	Rpic_3867	-	3-demethylubiquinone-9 3-methyltransferase
106	 67.72	0	121558..122412	-	284	187926064	-	Rpic_3869	-	putative lipoprotein transmembrane
107	 66.56	0	123313..124284	+	323	187926065	-	Rpic_3871	-	DNA topoisomerase type IA zn finger domain protein
108	 51.84	-2	124391..125287	+	298	187926066	-	Rpic_3872	-	DEAD/DEAH box helicase domain protein
109	 44.05	-2	125450..125953	+	167	187926067	-	Rpic_3873	-	hypothetical protein
110	 43.52	-2	126085..127125	-	346	187926068	-	Rpic_3874	-	hypothetical protein
111	 55.91	-2	127550..127828	+	92	187926069	-	Rpic_3875	-	hypothetical protein
112	 66.48	0	128552..129622	-	356	187926070	-	Rpic_3878	-	putative transmembrane protein
113	 65.33	0	129908..132079	+	723	187926071	-	Rpic_3879	-	PTS system, lactose/cellobiose family IIC subunit
114	 63.83	0	132095..132694	-	199	187926072	-	Rpic_3880	-	hypothetical protein
115	 58.59	-1	133388..133783	+	131	187926073	-	Rpic_3881	-	putative transcriptional regulator
64.67	MEAN

3.41	STD DEV
