IslandPath Analysis: Ralstonia pickettii 12J

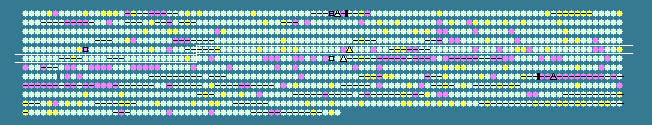

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
430	 68.12	+1	491963..492790	-	275	187926388	-	Rpic_4209	-	transcriptional regulator, AraC family
431	 67.37	0	493003..494559	+	518	187926389	-	Rpic_4210	-	integral membrane sensor signal transduction histidine kinase
432	 65.61	0	494543..495202	+	219	187926390	-	Rpic_4211	-	two component transcriptional regulator, winged helix family
433	 68.59	+1	495308..495880	+	190	187926391	-	Rpic_4212	-	putative lipoprotein signal peptide
434	 62.59	0	495942..496382	-	146	187926392	-	Rpic_4213	-	UspA domain protein
435	 67.76	0	496537..497454	-	305	187926393	-	Rpic_4214	-	transcriptional regulator, AraC family
436	 67.59	0	497507..497938	-	143	187926394	-	Rpic_4215	-	putative signal peptide protein
437	 67.77	0	497935..498297	-	120	187926395	-	Rpic_4216	-	putative glycoprotein
438	 65.83	0	499011..501761	+	916	187926396	-	Rpic_4217	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and GAF sensor(s)
439	 66.07	0	501885..502388	+	167	187926397	-	Rpic_4218	-	putative transmembrane protein
440	 68.88	+1	502447..503259	+	270	187926398	-	Rpic_4219	-	transcriptional regulator, ModE family
441	 66.67	0	503267..503764	+	165	187926399	-	Rpic_4220	-	flavodoxin/nitric oxide synthase
442	 66.80	0	503767..504510	-	247	187926400	-	Rpic_4221	-	ABC transporter related
443	 67.98	0	504507..505193	-	228	187926401	-	Rpic_4222	-	molybdate ABC transporter, inner membrane subunit
444	 70.91	+1	505450..506982	-	510	187926402	-	Rpic_4223	-	RND efflux system, outer membrane lipoprotein, NodT family
445	 64.17	0	507044..510250	-	1068	187926403	-	Rpic_4224	-	transporter, hydrophobe/amphiphile efflux-1 (HAE1) family
446	 68.27	+1	510280..511590	-	436	187926404	-	Rpic_4225	-	efflux transporter, RND family, MFP subunit
447	 68.13	+1	511706..512797	-	363	187926405	-	Rpic_4226	-	Alpha/beta hydrolase fold-3 domain protein
448	 62.22	0	513138..514082	+	314	187926406	-	Rpic_4227	-	transcriptional regulator, LysR family
449	 65.89	0	514180..514437	+	85	187926407	-	Rpic_4228	-	hypothetical protein
450	 66.67	0	514586..515362	+	258	187926408	-	Rpic_4229	-	protein of unknown function DUF82
451	 63.94	0	515363..516793	-	476	187926409	-	Rpic_4230	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
452	 67.79	0	516790..517590	-	266	187926410	-	Rpic_4231	-	HAD-superfamily hydrolase, subfamily IIB
453	 66.33	0	517752..519803	-	683	187926411	-	Rpic_4232	-	NADH:flavin oxidoreductase/NADH oxidase
454	 57.00	-2	519911..520117	-	68	187926412	-	Rpic_4233	-	hypothetical protein
455	 68.50	+1	520204..521184	+	326	187926413	-	Rpic_4234	-	integrase family protein
456	 63.16	0	521352..522377	+	341	187926414	-	Rpic_4235	-	UDP-glucose 4-epimerase
457	 66.67	0	522416..523843	+	475	187926415	-	Rpic_4236	-	putative PAS/PAC sensor protein
458	 62.13	0	524024..525565	+	513	187926416	-	Rpic_4237	-	methyl-accepting chemotaxis sensory transducer
459	 58.58	-1	525686..525994	-	102	187926417	-	Rpic_4238	-	histone family protein nucleoid-structuring protein H-NS
460	 64.32	0	526408..528495	-	695	187926418	-	Rpic_4239	-	diguanylate cyclase/phosphodiesterase
461	 64.19	0	528800..530053	-	417	187926419	-	Rpic_4240	-	transcriptional regulator, LuxR family
462	 63.29	0	530185..531930	-	581	187926420	-	Rpic_4241	-	Polypeptide-transport-associated domain protein ShlB-type
463	 70.12	+1	532137..533612	-	491	187926421	-	Rpic_4242	-	putative hemagglutinin-related transmembrane protein
464	 69.33	+1	534101..535225	+	374	187926422	-	Rpic_4243	-	putative hemagglutinin-related transmembrane protein
465	 56.11	-2	535791..535970	+	59	187926423	-	Rpic_4244	-	Flp/Fap pilin component
466	 61.05	-1	535980..536531	+	183	187926424	-	Rpic_4245	-	peptidase A24A prepilin type IV
467	 67.26	0	536596..537099	+	167	187926425	-	Rpic_4246	-	TadE family protein
468	 66.34	0	537152..538075	+	307	187926426	-	Rpic_4247	-	Flp pilus assembly protein CpaB
469	 62.93	0	538068..539432	+	454	187926427	-	Rpic_4248	-	type II and III secretion system protein
470	 64.73	0	539442..540785	+	447	187926428	-	Rpic_4249	-	putative pilus assembly protein
471	 64.16	0	540782..542137	+	451	187926429	-	Rpic_4250	-	type II secretion system protein E
472	 64.08	0	542130..543056	+	308	187926430	-	Rpic_4251	-	type II secretion system protein
473	 65.76	0	543066..544055	+	329	187926431	-	Rpic_4252	-	type II secretion system protein
474	 66.88	0	544057..544980	+	307	187926432	-	Rpic_4253	-	Tetratricopeptide TPR_2 repeat protein
475	 63.64	0	544977..545306	+	109	187926433	-	Rpic_4254	-	putative signal peptide protein
476	 60.52	-1	545398..547056	+	552	187926434	-	Rpic_4255	-	putative transmembrane protein
477	 64.62	0	547072..548487	+	471	187926435	-	Rpic_4256	-	sigma54 specific transcriptional regulator, Fis family
478	 65.39	0	548594..549376	+	260	187926436	-	Rpic_4257	-	putative lipoprotein
479	 67.56	0	549527..552766	+	1079	187926437	-	Rpic_4258	-	cytochrome P450
480	 60.48	-1	552935..553225	+	96	187926438	-	Rpic_4259	-	putative transmembrane protein
481	 64.33	0	553278..554432	-	384	187926439	-	Rpic_4260	-	oxidoreductase domain protein
482	 66.38	0	554585..554929	-	114	187926440	-	Rpic_4261	-	Antibiotic biosynthesis monooxygenase
483	 71.23	+1	554978..556117	-	379	187926441	-	Rpic_4262	-	cytochrome P450-like protein
484	 68.34	+1	556206..556922	+	238	187926442	-	Rpic_4263	-	transcriptional regulator, ArsR family
485	 58.56	-1	556939..557481	-	180	187926443	-	Rpic_4264	-	GCN5-related N-acetyltransferase
486	 66.05	0	557537..558679	-	380	187926444	-	Rpic_4265	-	PepSY-associated TM helix domain protein
487	 64.40	0	558710..560830	-	706	187926445	-	Rpic_4266	-	TonB-dependent siderophore receptor
488	 68.34	+1	561096..562172	+	358	187926446	-	Rpic_4267	-	oxidoreductase domain protein
489	 67.19	0	562169..564280	+	703	187926447	-	Rpic_4268	-	sodium/hydrogen exchanger
490	 64.13	0	564308..565570	-	420	187926448	-	Rpic_4269	-	Patatin
491	 62.60	0	565602..566387	-	261	187926449	-	Rpic_4270	-	3-hydroxybutyrate dehydrogenase
492	 64.38	0	566441..567184	-	247	187926450	-	Rpic_4271	-	Acetoacetate decarboxylase
493	 67.66	0	567377..568780	-	467	187926451	-	Rpic_4272	-	transcriptional regulator, GntR family with aminotransferase domain
494	 67.41	0	568936..570273	+	445	187926452	-	Rpic_4273	-	aminotransferase class-III
495	 64.30	0	570275..571798	+	507	187926453	-	Rpic_4274	-	methylmalonate-semialdehyde dehydrogenase
496	 55.56	-2	571875..572081	-	68	187926454	-	Rpic_4275	-	putative cold-shock DNA-binding domain protein
497	 53.43	-2	572259..572462	-	67	187926455	-	Rpic_4276	-	cold-shock DNA-binding domain protein
498	 62.08	0	572814..574709	+	631	187926456	-	Rpic_4277	-	K potassium transporter
499	 65.20	0	574728..575543	-	271	187926457	-	Rpic_4278	-	formate dehydrogenase family accessory protein FdhD
500	 70.73	+1	575540..575785	-	81	187926458	-	Rpic_4279	-	hypothetical protein
501	 65.85	0	575785..578124	-	779	187926459	-	Rpic_4280	-	oxidoreductase alpha (molybdopterin) subunit
502	 64.41	0	578153..579880	-	575	187926460	-	Rpic_4281	-	major facilitator superfamily MFS_1
503	 63.12	0	580089..580568	-	159	187926461	-	Rpic_4282	-	Hpt protein
504	 61.82	0	580661..583756	-	1031	187926462	-	Rpic_4283	-	heavy metal efflux pump, CzcA family
505	 65.10	0	583759..584907	-	382	187926463	-	Rpic_4284	-	efflux transporter, RND family, MFP subunit
506	 63.97	0	584912..586282	-	456	187926464	-	Rpic_4285	-	outer membrane efflux protein
507	 65.17	0	586440..586841	-	133	187926465	-	Rpic_4286	-	transcriptional regulator, MerR family
508	 66.43	0	586943..587365	+	140	187926466	-	Rpic_4287	-	hypothetical protein
509	 69.54	+1	587379..587795	-	138	187926467	-	Rpic_4288	-	transport-associated
510	 63.27	0	587857..588327	-	156	187926468	-	Rpic_4289	-	DoxX family protein
511	 65.09	0	588324..589082	-	252	187926469	-	Rpic_4290	-	hypothetical protein
512	 64.94	0	589069..589935	-	288	187926470	-	Rpic_4291	-	protein of unknown function DUF692
513	 67.79	0	589957..590223	-	88	187926471	-	Rpic_4292	-	putative signal peptide protein
514	 64.76	0	590452..590976	-	174	187926472	-	Rpic_4293	-	hypothetical protein
515	 65.19	0	591097..591366	-	89	187926473	-	Rpic_4294	-	hypothetical protein
516	 64.54	0	591525..592466	-	313	187926474	-	Rpic_4295	-	protein of unknown function DUF6 transmembrane
517	 62.25	0	592562..593014	+	150	187926475	-	Rpic_4296	-	transcriptional regulator, AsnC family
518	 63.52	0	594314..594790	+	158	187926476	-	Rpic_4298	-	transcriptional regulator, AsnC family
519	 63.89	0	594934..596664	+	576	187926477	-	Rpic_4299	-	gamma-glutamyltransferase
520	 65.36	0	596741..597814	-	357	187926478	-	Rpic_4300	-	4-hydroxyphenylpyruvate dioxygenase
521	 67.00	0	597896..599086	-	396	187926479	-	Rpic_4301	-	major facilitator superfamily MFS_1
522	 64.87	0	599091..599924	-	277	187926480	-	Rpic_4302	-	Shikimate dehydrogenase substrate binding domain protein
523	 63.35	0	599944..601329	-	461	187926481	-	Rpic_4303	-	major facilitator superfamily MFS_1
524	 65.36	0	601561..602328	-	255	187926482	-	Rpic_4304	-	transcriptional regulator, IclR family
525	 65.45	0	602459..604345	+	628	187926483	-	Rpic_4305	-	4-hydroxyphenylpyruvate dioxygenase
526	 63.57	0	604467..605531	+	354	187926484	-	Rpic_4306	-	porin Gram-negative type
527	 64.43	0	605599..606852	-	417	187926485	-	Rpic_4307	-	D-amino-acid dehydrogenase
528	 68.94	+1	607168..607959	-	263	187926486	-	Rpic_4308	-	Ethanolamine ammonia-lyase
529	 64.06	0	607980..609362	-	460	187926487	-	Rpic_4309	-	Ethanolamine ammonia lyase large subunit
64.67	MEAN

3.41	STD DEV
