IslandPath Analysis: Ralstonia pickettii 12J

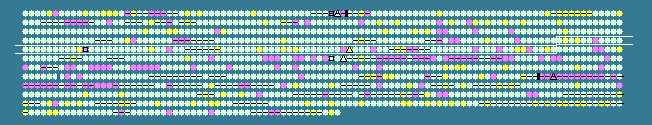

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
390	 67.03	0	435846..438593	+	915	187926348	-	Rpic_4167	-	Nitrate reductase
391	 69.43	+1	438704..439318	+	204	187926349	-	Rpic_4168	-	hypothetical protein
392	 65.28	0	439315..440682	+	455	187926350	-	Rpic_4169	-	MATE efflux family protein
393	 68.96	+1	440739..442001	-	420	187926351	-	Rpic_4170	-	major facilitator superfamily MFS_1
394	 64.50	0	442094..443527	-	477	187926352	-	Rpic_4171	-	phospholipase D/Transphosphatidylase
395	 65.66	0	443713..445407	+	564	187926353	-	Rpic_4172	-	phospholipase D/Transphosphatidylase
396	 59.57	-1	445484..445624	-	46	187926354	-	Rpic_4173	-	Entericidin EcnAB
397	 64.56	0	445916..447484	+	522	187926355	-	Rpic_4174	-	methyl-accepting chemotaxis sensory transducer
398	 66.67	0	447541..448956	-	471	187926356	-	Rpic_4175	-	diguanylate cyclase/phosphodiesterase
399	 65.01	0	449181..450086	-	301	187926357	-	Rpic_4176	-	type IV pilus assembly PilZ
400	 64.33	0	450206..450718	+	170	187926358	-	Rpic_4177	-	GtrA family protein
401	 66.87	0	450735..451217	-	160	187926359	-	Rpic_4178	-	hypothetical protein
402	 66.14	0	451870..453210	+	446	187926360	-	Rpic_4179	-	diguanylate cyclase with PAS/PAC sensor
403	 61.70	0	453289..453852	-	187	187926361	-	Rpic_4180	-	putative signal peptide protein
404	 66.60	0	454153..455658	-	501	187926362	-	Rpic_4181	-	RND efflux system, outer membrane lipoprotein, NodT family
405	 64.22	0	455661..458762	-	1033	187926363	-	Rpic_4182	-	acriflavin resistance protein
406	 64.43	0	458759..461893	-	1044	187926364	-	Rpic_4183	-	acriflavin resistance protein
407	 67.03	0	461951..463339	-	462	187926365	-	Rpic_4184	-	efflux transporter, RND family, MFP subunit
408	 67.08	0	463593..464324	+	243	187926366	-	Rpic_4185	-	two component transcriptional regulator, winged helix family
409	 66.43	0	464308..465594	+	428	187926367	-	Rpic_4186	-	integral membrane sensor signal transduction histidine kinase
410	 71.69	+2	465701..466138	+	145	187926368	-	Rpic_4187	-	protein of unknown function DUF333
411	 59.98	-1	467180..467986	+	268	187926369	-	Rpic_4189	-	transposase IS4 family protein
412	 65.01	0	469423..470148	+	241	187926370	-	Rpic_4191	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
413	 66.99	0	470183..470809	-	208	187926371	-	Rpic_4192	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
414	 64.08	0	470844..472196	-	450	187926372	-	Rpic_4193	-	gluconate transporter
415	 64.08	0	472277..472663	-	128	187926373	-	Rpic_4194	-	Endoribonuclease L-PSP
416	 67.27	0	472705..474189	-	494	187926374	-	Rpic_4195	-	N-acyl-D-amino-acid deacylase
417	 66.67	0	474191..475084	-	297	187926375	-	Rpic_4196	-	transcriptional regulator, RpiR family
418	 63.77	0	475223..476500	+	425	187926376	-	Rpic_4197	-	putative D-serine deaminase (D-serine dehydratase) protein
419	 65.70	0	476513..477439	+	308	187926377	-	Rpic_4198	-	PfkB domain protein
420	 65.35	0	477767..480196	-	809	187926378	-	Rpic_4199	-	peptidase S45 penicillin amidase
421	 67.45	0	480464..482500	-	678	187926379	-	Rpic_4200	-	multi-sensor hybrid histidine kinase
422	 68.75	+1	482652..483950	-	432	187926380	-	Rpic_4201	-	major facilitator superfamily MFS_1
423	 65.27	0	484103..484459	+	118	187926381	-	Rpic_4202	-	hypothetical protein
424	 62.72	0	484478..484756	-	92	187926382	-	Rpic_4203	-	hypothetical protein
425	 58.63	-1	485110..485358	+	82	187926383	-	Rpic_4204	-	protein of unknown function DUF1458
426	 63.89	0	485424..487586	-	720	187926384	-	Rpic_4205	-	acid phosphatase
427	 66.67	0	487861..489252	+	463	187926385	-	Rpic_4206	-	Di-haem cytochrome c peroxidase
428	 65.28	0	489376..490956	+	526	187926386	-	Rpic_4207	-	Integral membrane protein TerC
429	 67.32	0	490953..491870	-	305	187926387	-	Rpic_4208	-	protein of unknown function DUF6 transmembrane
430	 68.12	+1	491963..492790	-	275	187926388	-	Rpic_4209	-	transcriptional regulator, AraC family
431	 67.37	0	493003..494559	+	518	187926389	-	Rpic_4210	-	integral membrane sensor signal transduction histidine kinase
432	 65.61	0	494543..495202	+	219	187926390	-	Rpic_4211	-	two component transcriptional regulator, winged helix family
433	 68.59	+1	495308..495880	+	190	187926391	-	Rpic_4212	-	putative lipoprotein signal peptide
434	 62.59	0	495942..496382	-	146	187926392	-	Rpic_4213	-	UspA domain protein
435	 67.76	0	496537..497454	-	305	187926393	-	Rpic_4214	-	transcriptional regulator, AraC family
436	 67.59	0	497507..497938	-	143	187926394	-	Rpic_4215	-	putative signal peptide protein
437	 67.77	0	497935..498297	-	120	187926395	-	Rpic_4216	-	putative glycoprotein
438	 65.83	0	499011..501761	+	916	187926396	-	Rpic_4217	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and GAF sensor(s)
439	 66.07	0	501885..502388	+	167	187926397	-	Rpic_4218	-	putative transmembrane protein
440	 68.88	+1	502447..503259	+	270	187926398	-	Rpic_4219	-	transcriptional regulator, ModE family
441	 66.67	0	503267..503764	+	165	187926399	-	Rpic_4220	-	flavodoxin/nitric oxide synthase
442	 66.80	0	503767..504510	-	247	187926400	-	Rpic_4221	-	ABC transporter related
443	 67.98	0	504507..505193	-	228	187926401	-	Rpic_4222	-	molybdate ABC transporter, inner membrane subunit
444	 70.91	+1	505450..506982	-	510	187926402	-	Rpic_4223	-	RND efflux system, outer membrane lipoprotein, NodT family
445	 64.17	0	507044..510250	-	1068	187926403	-	Rpic_4224	-	transporter, hydrophobe/amphiphile efflux-1 (HAE1) family
446	 68.27	+1	510280..511590	-	436	187926404	-	Rpic_4225	-	efflux transporter, RND family, MFP subunit
447	 68.13	+1	511706..512797	-	363	187926405	-	Rpic_4226	-	Alpha/beta hydrolase fold-3 domain protein
448	 62.22	0	513138..514082	+	314	187926406	-	Rpic_4227	-	transcriptional regulator, LysR family
449	 65.89	0	514180..514437	+	85	187926407	-	Rpic_4228	-	hypothetical protein
450	 66.67	0	514586..515362	+	258	187926408	-	Rpic_4229	-	protein of unknown function DUF82
451	 63.94	0	515363..516793	-	476	187926409	-	Rpic_4230	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
452	 67.79	0	516790..517590	-	266	187926410	-	Rpic_4231	-	HAD-superfamily hydrolase, subfamily IIB
453	 66.33	0	517752..519803	-	683	187926411	-	Rpic_4232	-	NADH:flavin oxidoreductase/NADH oxidase
454	 57.00	-2	519911..520117	-	68	187926412	-	Rpic_4233	-	hypothetical protein
455	 68.50	+1	520204..521184	+	326	187926413	-	Rpic_4234	-	integrase family protein
456	 63.16	0	521352..522377	+	341	187926414	-	Rpic_4235	-	UDP-glucose 4-epimerase
457	 66.67	0	522416..523843	+	475	187926415	-	Rpic_4236	-	putative PAS/PAC sensor protein
458	 62.13	0	524024..525565	+	513	187926416	-	Rpic_4237	-	methyl-accepting chemotaxis sensory transducer
459	 58.58	-1	525686..525994	-	102	187926417	-	Rpic_4238	-	histone family protein nucleoid-structuring protein H-NS
460	 64.32	0	526408..528495	-	695	187926418	-	Rpic_4239	-	diguanylate cyclase/phosphodiesterase
461	 64.19	0	528800..530053	-	417	187926419	-	Rpic_4240	-	transcriptional regulator, LuxR family
462	 63.29	0	530185..531930	-	581	187926420	-	Rpic_4241	-	Polypeptide-transport-associated domain protein ShlB-type
463	 70.12	+1	532137..533612	-	491	187926421	-	Rpic_4242	-	putative hemagglutinin-related transmembrane protein
464	 69.33	+1	534101..535225	+	374	187926422	-	Rpic_4243	-	putative hemagglutinin-related transmembrane protein
465	 56.11	-2	535791..535970	+	59	187926423	-	Rpic_4244	-	Flp/Fap pilin component
466	 61.05	-1	535980..536531	+	183	187926424	-	Rpic_4245	-	peptidase A24A prepilin type IV
467	 67.26	0	536596..537099	+	167	187926425	-	Rpic_4246	-	TadE family protein
468	 66.34	0	537152..538075	+	307	187926426	-	Rpic_4247	-	Flp pilus assembly protein CpaB
469	 62.93	0	538068..539432	+	454	187926427	-	Rpic_4248	-	type II and III secretion system protein
470	 64.73	0	539442..540785	+	447	187926428	-	Rpic_4249	-	putative pilus assembly protein
471	 64.16	0	540782..542137	+	451	187926429	-	Rpic_4250	-	type II secretion system protein E
472	 64.08	0	542130..543056	+	308	187926430	-	Rpic_4251	-	type II secretion system protein
473	 65.76	0	543066..544055	+	329	187926431	-	Rpic_4252	-	type II secretion system protein
474	 66.88	0	544057..544980	+	307	187926432	-	Rpic_4253	-	Tetratricopeptide TPR_2 repeat protein
475	 63.64	0	544977..545306	+	109	187926433	-	Rpic_4254	-	putative signal peptide protein
476	 60.52	-1	545398..547056	+	552	187926434	-	Rpic_4255	-	putative transmembrane protein
477	 64.62	0	547072..548487	+	471	187926435	-	Rpic_4256	-	sigma54 specific transcriptional regulator, Fis family
478	 65.39	0	548594..549376	+	260	187926436	-	Rpic_4257	-	putative lipoprotein
479	 67.56	0	549527..552766	+	1079	187926437	-	Rpic_4258	-	cytochrome P450
480	 60.48	-1	552935..553225	+	96	187926438	-	Rpic_4259	-	putative transmembrane protein
481	 64.33	0	553278..554432	-	384	187926439	-	Rpic_4260	-	oxidoreductase domain protein
482	 66.38	0	554585..554929	-	114	187926440	-	Rpic_4261	-	Antibiotic biosynthesis monooxygenase
483	 71.23	+1	554978..556117	-	379	187926441	-	Rpic_4262	-	cytochrome P450-like protein
484	 68.34	+1	556206..556922	+	238	187926442	-	Rpic_4263	-	transcriptional regulator, ArsR family
485	 58.56	-1	556939..557481	-	180	187926443	-	Rpic_4264	-	GCN5-related N-acetyltransferase
486	 66.05	0	557537..558679	-	380	187926444	-	Rpic_4265	-	PepSY-associated TM helix domain protein
487	 64.40	0	558710..560830	-	706	187926445	-	Rpic_4266	-	TonB-dependent siderophore receptor
488	 68.34	+1	561096..562172	+	358	187926446	-	Rpic_4267	-	oxidoreductase domain protein
489	 67.19	0	562169..564280	+	703	187926447	-	Rpic_4268	-	sodium/hydrogen exchanger
64.67	MEAN

3.41	STD DEV
