IslandPath Analysis: Ralstonia pickettii 12J

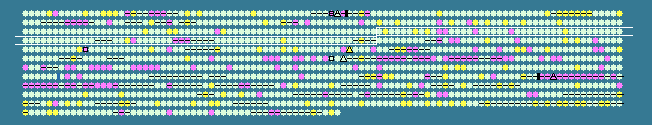

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
260	 65.82	0	300214..300921	+	235	187926218	-	Rpic_4033	-	GCN5-related N-acetyltransferase
261	 69.08	+1	300931..302544	-	537	187926219	-	Rpic_4034	-	putative transmembrane protein
262	 65.50	0	302703..303215	-	170	187926220	-	Rpic_4035	-	hypothetical protein
263	 64.72	0	303474..304295	+	273	187926221	-	Rpic_4036	-	ABC transporter related
264	 64.02	0	304279..305109	+	276	187926222	-	Rpic_4037	-	binding-protein-dependent transport systems inner membrane component
265	 62.09	0	305143..306147	+	334	187926223	-	Rpic_4038	-	NMT1/THI5 like domain protein
266	 68.55	+1	306168..306962	+	264	187926224	-	Rpic_4039	-	transcriptional regulator, IclR family
267	 67.34	0	307034..308221	+	395	187926225	-	Rpic_4040	-	L-carnitine dehydratase/bile acid-inducible protein F
268	 68.19	+1	308224..309078	+	284	187926226	-	Rpic_4041	-	citrate synthase
269	 66.11	0	309075..309971	+	298	187926227	-	Rpic_4042	-	SMP-30/Gluconolaconase/LRE domain protein
270	 56.60	-2	310832..311149	+	105	187926228	-	Rpic_4043	-	flagellar transcriptional activator
271	 58.65	-1	311227..311787	+	186	187926229	-	Rpic_4044	-	flagellar transcriptional activator FlhC
272	 61.67	0	312328..313188	+	286	187926230	-	Rpic_4045	-	flagellar motor protein MotA
273	 65.30	0	313389..314336	+	315	187926231	-	Rpic_4046	-	OmpA/MotB domain protein
274	 66.43	0	314362..314775	+	137	187926232	-	Rpic_4047	-	response regulator receiver protein
275	 64.97	0	314794..316968	+	724	187926233	-	Rpic_4048	-	CheA signal transduction histidine kinase
276	 60.57	-1	317049..317540	+	163	187926234	-	Rpic_4049	-	CheW protein
277	 65.85	0	317664..319511	+	615	187926235	-	Rpic_4050	-	methyl-accepting chemotaxis sensory transducer
278	 65.93	0	319736..321640	+	634	187926236	-	Rpic_4051	-	methyl-accepting chemotaxis sensory transducer
279	 62.70	0	321744..322625	+	293	187926237	-	Rpic_4052	-	MCP methyltransferase, CheR-type
280	 64.56	0	322622..323332	+	236	187926238	-	Rpic_4053	-	CheD
281	 66.40	0	323356..324483	+	375	187926239	-	Rpic_4054	-	response regulator receiver modulated CheB methylesterase
282	 60.45	-1	324633..325034	+	133	187926240	-	Rpic_4055	-	response regulator receiver protein
283	 63.98	0	325034..325702	+	222	187926241	-	Rpic_4056	-	chemotaxis phosphatase, CheZ
284	 65.42	0	325778..326818	-	346	187926242	-	Rpic_4057	-	ApbE family lipoprotein
285	 66.43	0	326823..327245	-	140	187926243	-	Rpic_4058	-	cytochrome c class I
286	 61.69	0	327484..329433	+	649	187926244	-	Rpic_4059	-	Nitrous-oxide reductase
287	 64.45	0	329452..332115	+	887	187926245	-	Rpic_4060	-	FMN-binding domain protein
288	 64.27	0	332112..333407	+	431	187926246	-	Rpic_4061	-	periplasmic copper-binding
289	 66.98	0	333385..334341	+	318	187926247	-	Rpic_4062	-	ABC transporter related
290	 65.58	0	334338..335162	+	274	187926248	-	Rpic_4063	-	putative NosY transmembrane protein
291	 68.36	+1	335159..335689	+	176	187926249	-	Rpic_4064	-	NosL family protein
292	 67.66	0	335692..336294	+	200	187926250	-	Rpic_4065	-	hypothetical protein
293	 66.84	0	336488..337651	+	387	187926251	-	Rpic_4066	-	flagellar biosynthetic protein FlhB
294	 64.79	0	337945..340071	+	708	187926252	-	Rpic_4067	-	flagellar biosynthesis protein FlhA
295	 66.51	0	340068..341966	+	632	187926253	-	Rpic_4068	-	GTP-binding signal recognition particle SRP54 G- domain
296	 66.41	0	341982..342773	+	263	187926254	-	Rpic_4069	-	hypothetical protein
297	 63.25	0	342782..343543	+	253	187926255	-	Rpic_4070	-	RNA polymerase, sigma 28 subunit, FliA/WhiG
298	 64.43	0	343922..345349	+	475	187926256	-	Rpic_4071	-	xanthine permease
299	 65.00	0	345378..346460	-	360	187926257	-	Rpic_4072	-	Aldose 1-epimerase
300	 63.48	0	346457..347680	-	407	187926258	-	Rpic_4073	-	transcriptional regulator, AraC family
301	 61.71	0	347950..348978	+	342	187926259	-	Rpic_4074	-	D-xylose ABC transporter, periplasmic substrate-binding protein
302	 63.06	0	349060..350613	+	517	187926260	-	Rpic_4075	-	D-xylose ABC transporter, ATPase subunit
303	 63.59	0	350616..351818	+	400	187926261	-	Rpic_4076	-	Monosaccharide-transporting ATPase
304	 62.76	0	351865..352632	+	255	187926262	-	Rpic_4077	-	short-chain dehydrogenase/reductase SDR
305	 65.67	0	352629..353534	+	301	187926263	-	Rpic_4078	-	SMP-30/Gluconolaconase/LRE domain protein
306	 65.74	0	353525..354709	-	394	187926264	-	Rpic_4079	-	hypothetical protein
307	 66.14	0	354849..355604	+	251	187926265	-	Rpic_4080	-	transcriptional regulator, IclR family
308	 66.86	0	355694..356710	+	338	187926266	-	Rpic_4081	-	transcriptional regulator, LacI family
309	 65.21	0	356732..358516	-	594	187926267	-	Rpic_4082	-	Dihydroxy-acid dehydratase
310	 67.78	0	358820..359359	+	179	187926268	-	Rpic_4083	-	hypothetical protein
311	 64.24	0	359364..360023	-	219	187926269	-	Rpic_4084	-	isochorismatase hydrolase
312	 66.27	0	360158..361153	+	331	187926270	-	Rpic_4085	-	transcriptional regulator, AraC family
313	 67.76	0	361195..361377	-	60	187926271	-	Rpic_4086	-	17 kDa surface antigen
314	 64.35	0	361450..362010	-	186	187926272	-	Rpic_4087	-	protein of unknown function YGGT
315	 65.96	0	362188..362751	+	187	187926273	-	Rpic_4088	-	PEBP family protein
316	 65.45	0	362801..363787	-	328	187926274	-	Rpic_4089	-	aliphatic sulfonates family ABC transporter, periplsmic ligand-binding protein
317	 66.33	0	363885..364178	-	97	187926275	-	Rpic_4090	-	hypothetical protein
318	 68.85	+1	364165..365124	-	319	187926276	-	Rpic_4091	-	PBS lyase HEAT domain protein repeat-containing protein
319	 61.05	-1	365132..365398	-	88	187926277	-	Rpic_4092	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
320	 64.52	0	365401..367125	-	574	187926278	-	Rpic_4093	-	fumarate reductase/succinate dehydrogenase flavoprotein domain protein
321	 66.16	0	367122..367907	-	261	187926279	-	Rpic_4094	-	transcriptional regulator, GntR family
322	 62.01	0	368303..369289	+	328	187926280	-	Rpic_4095	-	periplasmic binding protein/LacI transcriptional regulator
323	 66.29	0	369390..370967	+	525	187926281	-	Rpic_4096	-	ABC transporter related
324	 63.52	0	370964..372013	+	349	187926282	-	Rpic_4097	-	Monosaccharide-transporting ATPase
325	 63.31	0	372010..373083	+	357	187926283	-	Rpic_4098	-	Monosaccharide-transporting ATPase
326	 59.50	-1	373130..373492	+	120	187926284	-	Rpic_4099	-	3-dehydroquinate dehydratase
327	 57.89	-1	373541..374110	-	189	187926285	-	Rpic_4100	-	hypothetical protein
328	 60.33	-1	374148..374573	-	141	187926286	-	Rpic_4101	-	hypothetical protein
329	 62.59	0	374596..375258	-	220	187926287	-	Rpic_4102	-	bifunctional deaminase-reductase domain protein
330	 64.18	0	375434..376357	+	307	187926288	-	Rpic_4103	-	putative exonuclease RdgC
331	 62.50	0	377283..377714	-	143	187926289	-	Rpic_4106	-	hypothetical protein
332	 66.39	0	378084..379184	+	366	187926290	-	Rpic_4107	-	branched-chain amino acid aminotransferase
333	 67.16	0	379192..380004	+	270	187926291	-	Rpic_4108	-	alpha/beta hydrolase fold
334	 62.63	0	380307..381470	+	387	187926292	-	Rpic_4109	-	Alkane 1-monooxygenase
335	 65.91	0	381480..381743	-	87	187926293	-	Rpic_4110	-	Cupin 2 conserved barrel domain protein
336	 67.11	0	381972..382871	+	299	187926294	-	Rpic_4111	-	transcriptional regulator, AraC family
337	 67.68	0	382967..383857	+	296	187926295	-	Rpic_4112	-	NmrA family protein
338	 63.87	0	383983..384768	+	261	187926296	-	Rpic_4113	-	hypothetical protein
339	 63.81	0	384843..385367	+	174	187926297	-	Rpic_4114	-	conserved hypothetical signal peptide protein
340	 66.67	0	385400..385879	-	159	187926298	-	Rpic_4115	-	PEBP family protein
341	 62.53	0	386098..386460	-	120	187926299	-	Rpic_4116	-	protein of unknown function DUF1304
342	 65.41	0	386646..387362	+	238	187926300	-	Rpic_4117	-	Carboxymethylenebutenolidase
343	 63.74	0	387783..388055	+	90	187926301	-	Rpic_4118	-	hypothetical protein
344	 68.21	+1	388079..389701	-	540	187926302	-	Rpic_4119	-	amine oxidase
345	 64.13	0	389701..391278	-	525	187926303	-	Rpic_4120	-	Spermine synthase
346	 63.41	0	391456..391854	+	132	187926304	-	Rpic_4121	-	protein of unknown function DUF350
347	 65.14	0	391904..392953	+	349	187926305	-	Rpic_4122	-	putative transmembrane protein
348	 66.46	0	393041..394486	+	481	187926306	-	Rpic_4123	-	putative transmembrane protein
349	 64.55	0	394483..394671	+	62	187926307	-	Rpic_4124	-	putative serine-rich transmembrane protein
350	 68.08	+1	394668..395093	+	141	187926308	-	Rpic_4125	-	S-adenosylmethionine decarboxylase proenzyme
351	 63.99	0	395095..396141	-	348	187926309	-	Rpic_4126	-	diguanylate cyclase with GAF sensor
352	 63.71	0	396242..397627	-	461	187926310	-	Rpic_4127	-	fumarate hydratase, class II
353	 65.24	0	397763..399235	+	490	187926311	-	Rpic_4128	-	drug resistance transporter, EmrB/QacA subfamily
354	 66.11	0	399261..401411	-	716	187926312	-	Rpic_4129	-	UvrD/REP helicase
355	 64.78	0	401512..401829	-	105	187926313	-	Rpic_4130	-	hypothetical protein
356	 66.07	0	401976..402308	-	110	187926314	-	Rpic_4131	-	protein of unknown function UPF0060
357	 69.81	+1	402391..402804	-	137	187926315	-	Rpic_4132	-	PfkB domain protein
358	 66.08	0	402932..403954	-	340	187926316	-	Rpic_4133	-	GumN family protein
359	 65.48	0	404038..405219	-	393	187926317	-	Rpic_4134	-	hypothetical protein
64.67	MEAN

3.41	STD DEV
