IslandPath Analysis: Ralstonia pickettii 12J

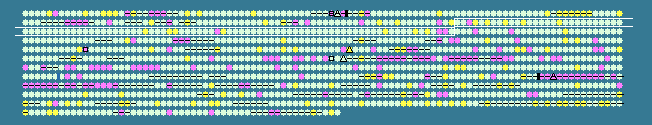

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
173	 64.69	0	203210..203665	+	151	187926131	-	Rpic_3944	-	ferric uptake regulator, Fur family
174	 63.89	0	203762..204013	+	83	187926132	-	Rpic_3945	-	hypothetical protein
175	 60.13	-1	204023..204328	-	101	187926133	-	Rpic_3946	-	hypothetical protein
176	 69.16	+1	204435..204755	-	106	187926134	-	Rpic_3947	-	putative transmembrane protein
177	 65.49	0	204752..206617	-	621	187926135	-	Rpic_3948	-	ferrous iron transport protein B
178	 69.90	+1	206664..206972	-	102	187926136	-	Rpic_3949	-	FeoA family protein
179	 65.34	0	207660..211211	+	1183	187926137	-	Rpic_3950	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
180	 66.42	0	211233..212822	-	529	187926138	-	Rpic_3951	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
181	 70.63	+1	213039..213290	+	83	187926139	-	Rpic_3952	-	hypothetical protein
182	 68.12	+1	213304..214131	-	275	187926140	-	Rpic_3953	-	FAD-binding 9 siderophore-interacting domain protein
183	 63.64	0	214232..214891	-	219	187926141	-	Rpic_3954	-	transcriptional regulator, PadR-like family
184	 68.22	+1	215004..215519	-	171	187926142	-	Rpic_3955	-	transcriptional regulator, MarR family
185	 67.07	0	215598..216095	+	165	187926143	-	Rpic_3956	-	alkylhydroperoxidase like protein, AhpD family
186	 64.67	0	216092..216541	+	149	187926144	-	Rpic_3957	-	GCN5-related N-acetyltransferase
187	 64.91	0	216538..217164	+	208	187926145	-	Rpic_3958	-	NAD(P)H dehydrogenase (quinone)
188	 64.04	0	217230..217877	-	215	187926146	-	Rpic_3959	-	pyrrolidone-carboxylate peptidase
189	 65.24	0	217956..218375	-	139	187926147	-	Rpic_3960	-	transcriptional regulator, MarR family
190	 69.23	+1	218461..220059	-	532	187926148	-	Rpic_3961	-	hypothetical protein
191	 64.83	0	220251..221066	+	271	187926149	-	Rpic_3962	-	Beta-lactamase
192	 68.02	0	221233..221676	+	147	187926150	-	Rpic_3963	-	hypothetical protein
193	 65.55	0	221728..223341	-	537	187926151	-	Rpic_3964	-	periplasmic glucan biosynthesis protein MdoG
194	 65.53	0	223539..224681	+	380	187926152	-	Rpic_3965	-	beta-lactamase
195	 65.83	0	224712..225191	-	159	187926153	-	Rpic_3966	-	Domain of unknown function DUF1854
196	 65.41	0	225205..227511	-	768	187926154	-	Rpic_3967	-	ABC transporter related
197	 65.88	0	227801..230461	+	886	187926155	-	Rpic_3968	-	cyanophycin synthetase
198	 67.02	0	230515..233082	+	855	187926156	-	Rpic_3969	-	cyanophycin synthetase
199	 63.75	0	233728..234309	+	193	187926157	-	Rpic_3970	-	flavin reductase domain protein FMN-binding
200	 62.77	0	234306..234818	+	170	187926158	-	Rpic_3971	-	GCN5-related N-acetyltransferase
201	 65.29	0	234815..235831	-	338	187926159	-	Rpic_3972	-	transcriptional regulator, AraC family
202	 66.93	0	235997..237130	+	377	187926160	-	Rpic_3973	-	acyl-CoA dehydrogenase domain protein
203	 65.55	0	237192..238886	+	564	187926161	-	Rpic_3974	-	AMP-dependent synthetase and ligase
204	 64.79	0	238959..240506	+	515	187926162	-	Rpic_3975	-	methylmalonate-semialdehyde dehydrogenase
205	 65.32	0	240526..241419	+	297	187926163	-	Rpic_3976	-	3-hydroxyisobutyrate dehydrogenase
206	 66.54	0	241419..242216	+	265	187926164	-	Rpic_3977	-	Enoyl-CoA hydratase/isomerase
207	 67.01	0	242213..243364	+	383	187926165	-	Rpic_3978	-	Enoyl-CoA hydratase/isomerase
208	 63.79	0	243716..245485	+	589	187926166	-	Rpic_3979	-	hypothetical protein
209	 66.67	0	245513..247006	-	497	187926167	-	Rpic_3980	-	AMP-dependent synthetase and ligase
210	 65.81	0	247489..248769	+	426	187926168	-	Rpic_3981	-	Chloride channel core
211	 66.10	0	248808..249518	-	236	187926169	-	Rpic_3982	-	transcriptional regulator, IclR family
212	 66.95	0	249688..250386	+	232	187926170	-	Rpic_3983	-	Dimethylmenaquinone methyltransferase
213	 66.14	0	250386..251336	+	316	187926171	-	Rpic_3984	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
214	 64.05	0	251336..252292	+	318	187926172	-	Rpic_3985	-	SMP-30/Gluconolaconase/LRE domain protein
215	 65.93	0	252355..253719	+	454	187926173	-	Rpic_3986	-	major facilitator superfamily MFS_1
216	 64.40	0	253796..255121	+	441	187926174	-	Rpic_3987	-	major facilitator superfamily MFS_1
217	 66.50	0	255157..255753	+	198	187926175	-	Rpic_3988	-	amidohydrolase 2
218	 65.12	0	255986..257926	-	646	187926176	-	Rpic_3989	-	peptidase S8 and S53 subtilisin kexin sedolisin
219	 66.86	0	258219..259235	-	338	187926177	-	Rpic_3990	-	transcriptional regulator, AraC family
220	 66.47	0	259323..260840	-	505	187926178	-	Rpic_3991	-	diguanylate cyclase
221	 68.72	+1	261135..261329	+	64	187926179	-	Rpic_3992	-	hypothetical protein
222	 68.07	0	261614..264247	+	877	187926180	-	Rpic_3993	-	protein of unknown function DUF470
223	 67.97	0	264244..266010	+	588	187926181	-	Rpic_3994	-	virulence factor family protein
224	 67.25	0	266070..267791	-	573	187926182	-	Rpic_3995	-	sulphate transporter
225	 71.01	+1	267871..268422	-	183	187926183	-	Rpic_3996	-	putative alanine-rich signal peptide protein
226	 69.26	+1	268632..269558	-	308	187926184	-	Rpic_3997	-	transcriptional regulator, MarR family
227	 65.62	0	269671..270432	+	253	187926185	-	Rpic_3998	-	short-chain dehydrogenase/reductase SDR
228	 65.89	0	270729..271370	+	213	187926186	-	Rpic_3999	-	YheO domain protein
229	 65.85	0	271367..272344	+	325	187926187	-	Rpic_4000	-	Pyridoxal-5'-phosphate-dependent protein beta subunit
230	 66.67	0	272341..272730	+	129	187926188	-	Rpic_4001	-	Endoribonuclease L-PSP
231	 64.97	0	272882..273763	+	293	187926189	-	Rpic_4002	-	type IV pilus assembly PilZ
232	 65.42	0	273768..274652	-	294	187926190	-	Rpic_4003	-	transcriptional regulator, LysR family
233	 60.27	-1	274768..275205	+	145	187926191	-	Rpic_4004	-	transmembrane pair domain protein
234	 68.85	+1	275320..275961	+	213	187926192	-	Rpic_4005	-	transcriptional regulator, LuxR family
235	 65.75	0	275979..276197	-	72	187926193	-	Rpic_4006	-	hypothetical protein
236	 65.41	0	276892..277290	-	132	187926194	-	Rpic_4008	-	hypothetical protein
237	 63.85	0	277326..278354	-	342	187926195	-	Rpic_4009	-	putative periplasmic substrate-binding transmembrane protein
238	 62.88	0	278658..279554	-	298	187926196	-	Rpic_4010	-	binding-protein-dependent transport systems inner membrane component
239	 65.03	0	279544..280338	-	264	187926197	-	Rpic_4011	-	ABC transporter related
240	 65.56	0	280395..281117	-	240	187926198	-	Rpic_4012	-	transcriptional regulator, GntR family
241	 64.25	0	281264..283540	-	758	187926199	-	Rpic_4013	-	putative nitric oxide reductase (subunit B) transmembrane protein
242	 67.70	0	283573..283863	-	96	187926200	-	Rpic_4014	-	hypothetical protein
243	 64.20	0	284137..285636	+	499	187926201	-	Rpic_4015	-	nitrite reductase, copper-containing
244	 66.79	0	285653..286444	+	263	187926202	-	Rpic_4016	-	protein of unknown function DUF323
245	 65.81	0	286441..287025	+	194	187926203	-	Rpic_4017	-	electron transport protein SCO1/SenC
246	 64.78	0	287044..287892	-	282	187926204	-	Rpic_4018	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
247	 64.32	0	287889..288656	-	255	187926205	-	Rpic_4019	-	transcriptional regulator, GntR family
248	 62.46	0	288887..290194	+	435	187926206	-	Rpic_4020	-	major facilitator superfamily MFS_1
249	 63.24	0	290357..291085	+	242	187926207	-	Rpic_4021	-	Asp/Glu/hydantoin racemase
250	 65.11	0	291107..292522	+	471	187926208	-	Rpic_4022	-	dihydropyrimidinase
251	 66.26	0	292553..293290	+	245	187926209	-	Rpic_4023	-	Asp/Glu/hydantoin racemase
252	 65.48	0	293705..293872	-	55	187926210	-	Rpic_4025	-	putative linoleoyl-CoA desaturase
253	 64.82	0	293966..294670	-	234	187926211	-	Rpic_4026	-	cyclic nucleotide-binding protein
254	 65.72	0	294663..295298	-	211	187926212	-	Rpic_4027	-	DSBA oxidoreductase
255	 66.07	0	295308..295982	-	224	187926213	-	Rpic_4028	-	3-oxoacid CoA-transferase, B subunit
256	 67.58	0	296011..296775	-	254	187926214	-	Rpic_4029	-	coenzyme A transferase
257	 65.85	0	297014..298231	+	405	187926215	-	Rpic_4030	-	sodium/hydrogen exchanger
258	 64.86	0	298275..298829	+	184	187926216	-	Rpic_4031	-	NADPH-dependent FMN reductase
259	 65.01	0	299241..300083	-	280	187926217	-	Rpic_4032	-	hypothetical protein
260	 65.82	0	300214..300921	+	235	187926218	-	Rpic_4033	-	GCN5-related N-acetyltransferase
261	 69.08	+1	300931..302544	-	537	187926219	-	Rpic_4034	-	putative transmembrane protein
262	 65.50	0	302703..303215	-	170	187926220	-	Rpic_4035	-	hypothetical protein
263	 64.72	0	303474..304295	+	273	187926221	-	Rpic_4036	-	ABC transporter related
264	 64.02	0	304279..305109	+	276	187926222	-	Rpic_4037	-	binding-protein-dependent transport systems inner membrane component
265	 62.09	0	305143..306147	+	334	187926223	-	Rpic_4038	-	NMT1/THI5 like domain protein
266	 68.55	+1	306168..306962	+	264	187926224	-	Rpic_4039	-	transcriptional regulator, IclR family
267	 67.34	0	307034..308221	+	395	187926225	-	Rpic_4040	-	L-carnitine dehydratase/bile acid-inducible protein F
268	 68.19	+1	308224..309078	+	284	187926226	-	Rpic_4041	-	citrate synthase
269	 66.11	0	309075..309971	+	298	187926227	-	Rpic_4042	-	SMP-30/Gluconolaconase/LRE domain protein
270	 56.60	-2	310832..311149	+	105	187926228	-	Rpic_4043	-	flagellar transcriptional activator
271	 58.65	-1	311227..311787	+	186	187926229	-	Rpic_4044	-	flagellar transcriptional activator FlhC
272	 61.67	0	312328..313188	+	286	187926230	-	Rpic_4045	-	flagellar motor protein MotA
64.67	MEAN

3.41	STD DEV
