IslandPath Analysis: Ralstonia pickettii 12J

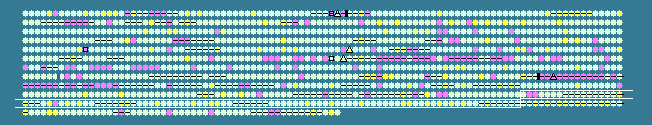

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.67 STD DEV: 3.41
Ralstonia pickettii 12J chromosome 2, complete sequence - 1..1302238
1153 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
984	 63.45	0	1113772..1114206	+	144	187926942	-	Rpic_4776	-	conserved hypothetical signal peptide protein
985	 58.39	-1	1114264..1114698	+	144	187926943	-	Rpic_4777	-	putative excinuclease, ATPase subunit
986	 61.04	-1	1114743..1115471	-	242	187926944	-	Rpic_4778	-	Methyltransferase type 11
987	 64.29	0	1115623..1116882	+	419	187926945	-	Rpic_4779	-	monooxygenase FAD-binding
988	 65.32	0	1116930..1117673	-	247	187926946	-	Rpic_4780	-	protein of unknown function DUF1275
989	 61.98	0	1117736..1118695	-	319	187926947	-	Rpic_4781	-	flagellar hook-associated protein 3
990	 62.85	0	1118763..1120700	-	645	187926948	-	Rpic_4782	-	flagellar hook-associated protein FlgK
991	 66.02	0	1120816..1121901	-	361	187926949	-	Rpic_4783	-	flagellar rod assembly protein/muramidase FlgJ
992	 64.61	0	1121918..1123036	-	372	187926950	-	Rpic_4784	-	flagellar P-ring protein
993	 67.34	0	1123047..1123790	-	247	187926951	-	Rpic_4785	-	flagellar L-ring protein
994	 63.60	0	1123824..1124606	-	260	187926952	-	Rpic_4786	-	flagellar basal-body rod protein FlgG
995	 63.28	0	1124643..1125380	-	245	187926953	-	Rpic_4787	-	flagellar basal-body rod protein FlgF
996	 63.44	0	1125410..1126618	-	402	187926954	-	Rpic_4788	-	flagellar basal body FlaE domain protein
997	 62.50	0	1126658..1127305	-	215	187926955	-	Rpic_4789	-	flagellar hook capping protein
998	 62.25	0	1127343..1127750	-	135	187926956	-	Rpic_4790	-	flagellar basal-body rod protein FlgC
999	 62.94	0	1127908..1128363	-	151	187926957	-	Rpic_4791	-	flagellar basal-body rod protein FlgB
1000	 68.84	+1	1128759..1129634	+	291	187926958	-	Rpic_4792	-	flagella basal body P-ring formation protein FlgA
1001	 69.16	+1	1129746..1130066	+	106	187926959	-	Rpic_4793	-	anti-sigma-28 factor, FlgM
1002	 67.32	0	1130188..1130649	+	153	187926960	-	Rpic_4794	-	FlgN family protein
1003	 63.96	0	1131133..1131798	+	221	187926961	-	Rpic_4795	-	two component transcriptional regulator, LuxR family
1004	 63.36	0	1131911..1132969	-	352	187926962	-	Rpic_4796	-	porin Gram-negative type
1005	 68.31	+1	1133230..1133958	-	242	187926963	-	Rpic_4797	-	transcriptional regulator, GntR family
1006	 61.17	-1	1134080..1134370	-	96	187926964	-	Rpic_4798	-	histone family protein nucleoid-structuring protein H-NS
1007	 66.63	0	1135305..1137959	+	884	187926965	-	Rpic_4799	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
1008	 71.08	+1	1138005..1138208	-	67	187926966	-	Rpic_4800	-	putative osmotically inducible lipoprotein B2 transmembrane
1009	 61.63	0	1138686..1140272	-	528	187926967	-	Rpic_4801	-	isocitrate lyase and phosphorylmutase
1010	 70.69	+1	1140781..1141377	-	198	187926968	-	Rpic_4802	-	hypothetical protein
1011	 62.30	0	1141377..1141811	-	144	187926969	-	Rpic_4803	-	OsmC family protein
1012	 67.11	0	1141931..1144174	-	747	187926970	-	Rpic_4804	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
1013	 62.75	0	1144194..1144652	-	152	187926971	-	Rpic_4805	-	(2Fe-2S)-binding domain protein
1014	 64.39	0	1145298..1147010	+	570	187926972	-	Rpic_4806	-	2-isopropylmalate synthase
1015	 62.27	0	1147138..1147524	+	128	187926973	-	Rpic_4807	-	protein of unknown function DUF326
1016	 65.63	0	1147542..1148024	+	160	187926974	-	Rpic_4808	-	transcriptional regulator, MerR family
1017	 69.26	+1	1148076..1150427	-	783	187926975	-	Rpic_4809	-	heavy metal translocating P-type ATPase
1018	 70.13	+1	1150479..1151027	-	182	187926976	-	Rpic_4810	-	protein of unknown function DUF1234
1019	 64.36	0	1151217..1152515	+	432	187926977	-	Rpic_4811	-	citrate/H+ symporter, CitMHS family
1020	 67.77	0	1152520..1153875	+	451	187926978	-	Rpic_4812	-	protein of unknown function DUF1446
1021	 67.29	0	1153877..1154197	+	106	187926979	-	Rpic_4813	-	hypothetical protein
1022	 67.67	0	1154224..1155123	+	299	187926980	-	Rpic_4814	-	transcriptional regulator, LysR family
1023	 68.16	+1	1155214..1155681	+	155	187926981	-	Rpic_4815	-	UspA domain protein
1024	 65.09	0	1155797..1156240	+	147	187926982	-	Rpic_4816	-	protein of unknown function DUF1486
1025	 65.17	0	1156295..1157299	+	334	187926983	-	Rpic_4817	-	2-nitropropane dioxygenase NPD
1026	 64.44	0	1157304..1157843	-	179	187926984	-	Rpic_4818	-	transcriptional regulator, PadR-like family
1027	 61.70	0	1158267..1158689	-	140	187926985	-	Rpic_4819	-	conserved hypothetical secreted protein
1028	 65.24	0	1158888..1160150	-	420	187926986	-	Rpic_4820	-	beta-lactamase
1029	 70.04	+1	1160489..1161406	+	305	187926987	-	Rpic_4821	-	transcriptional regulator, LysR family
1030	 67.88	0	1161640..1162710	-	356	187926988	-	Rpic_4822	-	2-nitropropane dioxygenase NPD
1031	 68.05	0	1162860..1163438	+	192	187926989	-	Rpic_4823	-	protein of unknown function DUF1470
1032	 69.15	+1	1163547..1164311	+	254	187926990	-	Rpic_4824	-	short-chain dehydrogenase/reductase SDR
1033	 70.00	+1	1164536..1165795	-	419	187926991	-	Rpic_4825	-	major facilitator superfamily MFS_1
1034	 68.12	+1	1165885..1166847	+	320	187926992	-	Rpic_4826	-	transcriptional regulator, AraC family
1035	 63.36	0	1166941..1167606	+	221	187926993	-	Rpic_4827	-	Glutathione S-transferase domain
1036	 67.25	0	1167627..1168487	+	286	187926994	-	Rpic_4828	-	methyltransferase
1037	 61.56	0	1168501..1168833	-	110	187926995	-	Rpic_4829	-	hypothetical protein
1038	 67.18	0	1168989..1169378	-	129	187926996	-	Rpic_4830	-	putative transmembrane protein
1039	 62.30	0	1169468..1169833	-	121	187926997	-	Rpic_4831	-	response regulator receiver protein
1040	 61.80	0	1169854..1170387	-	177	187926998	-	Rpic_4832	-	hypothetical protein
1041	 66.67	0	1170384..1171118	-	244	187926999	-	Rpic_4833	-	methyl-accepting chemotaxis sensory transducer
1042	 63.10	0	1171118..1173502	-	794	187927000	-	Rpic_4834	-	putative CheA signal transduction histidine kinase
1043	 64.14	0	1173971..1174366	+	131	187927001	-	Rpic_4835	-	Domain of unknown function DUF1801
1044	 65.47	0	1174453..1174785	+	110	187927002	-	Rpic_4836	-	hypothetical protein
1045	 66.48	0	1174831..1175379	-	182	187927003	-	Rpic_4837	-	GCN5-related N-acetyltransferase
1046	 66.85	0	1175565..1180481	+	1638	187927004	-	Rpic_4838	-	NAD-glutamate dehydrogenase
1047	 64.68	0	1180557..1180808	-	83	187927005	-	Rpic_4839	-	hypothetical protein
1048	 68.71	+1	1181203..1182183	-	326	187927006	-	Rpic_4840	-	putative transmembrane protein
1049	 63.07	0	1182180..1183457	-	425	187927007	-	Rpic_4841	-	glycosyl transferase family 2
1050	 64.89	0	1183459..1185597	-	712	187927008	-	Rpic_4842	-	polysaccharide deacetylase
1051	 67.40	0	1185648..1188113	-	821	187927009	-	Rpic_4843	-	putative hemin-binding outer membrane transmembrane protein
1052	 68.53	+1	1188189..1189100	-	303	187927010	-	Rpic_4844	-	two component transcriptional regulator, LuxR family
1053	 67.92	0	1189646..1189804	-	52	187927011	-	Rpic_4845	-	putative transmembrane protein
1054	 67.67	0	1190030..1191025	-	331	187927012	-	Rpic_4846	-	NAD-dependent epimerase/dehydratase
1055	 64.15	0	1191025..1192254	-	409	187927013	-	Rpic_4847	-	2-amino-3-ketobutyrate coenzyme A ligase
1056	 67.00	0	1192342..1192938	+	198	187927014	-	Rpic_4848	-	transcriptional regulator, XRE family
1057	 69.40	+1	1192944..1194296	-	450	187927015	-	Rpic_4849	-	MATE efflux family protein
1058	 65.45	0	1194561..1196291	+	576	187927016	-	Rpic_4850	-	amino acid permease-associated region
1059	 67.22	0	1196555..1197457	-	300	187927017	-	Rpic_4851	-	transcriptional regulator, LysR family
1060	 65.31	0	1197560..1198444	+	294	187927018	-	Rpic_4852	-	aldo/keto reductase
1061	 67.89	0	1198559..1198804	-	81	187927019	-	Rpic_4853	-	transcriptional regulator, MerR family
1062	 65.43	0	1199099..1200883	+	594	187927020	-	Rpic_4854	-	diguanylate cyclase/phosphodiesterase
1063	 63.42	0	1201424..1202842	+	472	187927021	-	Rpic_4855	-	coagulation factor 5/8 type domain protein
1064	 68.71	+1	1203015..1204682	+	555	187927022	-	Rpic_4856	-	hypothetical protein
1065	 68.44	+1	1204705..1205718	+	337	187927023	-	Rpic_4857	-	2-dehydropantoate 2-reductase
1066	 65.51	0	1205715..1206407	-	230	187927024	-	Rpic_4858	-	transcriptional regulator, Crp/Fnr family
1067	 64.72	0	1206572..1207084	-	170	187927025	-	Rpic_4859	-	hypothetical protein
1068	 68.83	+1	1207113..1207712	+	199	187927026	-	Rpic_4860	-	chorismate mutase
1069	 66.33	0	1207797..1209275	-	492	187927027	-	Rpic_4861	-	protease Do
1070	 71.45	+1	1209422..1210738	-	438	187927028	-	Rpic_4862	-	integral membrane sensor signal transduction histidine kinase
1071	 67.62	0	1210742..1211476	-	244	187927029	-	Rpic_4863	-	two component transcriptional regulator, winged helix family
1072	 69.63	+1	1211599..1212441	+	280	187927030	-	Rpic_4864	-	transcriptional regulator, RpiR family
1073	 67.61	0	1212464..1213519	-	351	187927031	-	Rpic_4865	-	glucokinase
1074	 69.79	+1	1213500..1214204	-	234	187927032	-	Rpic_4866	-	6-phosphogluconolactonase
1075	 65.85	0	1214204..1215673	-	489	187927033	-	Rpic_4867	-	glucose-6-phosphate 1-dehydrogenase
1076	 67.92	0	1215981..1217819	+	612	187927034	-	Rpic_4868	-	6-phosphogluconate dehydratase
1077	 64.04	0	1217836..1218291	-	151	187927035	-	Rpic_4869	-	UspA domain protein
1078	 68.38	+1	1218425..1218892	+	155	187927036	-	Rpic_4870	-	hypothetical protein
1079	 63.74	0	1218992..1219504	+	170	187927037	-	Rpic_4871	-	hypothetical protein
1080	 65.62	0	1219733..1220881	+	382	187927038	-	Rpic_4872	-	cytochrome c oxidase subunit II
1081	 63.09	0	1220894..1222654	+	586	187927039	-	Rpic_4873	-	cytochrome c oxidase, subunit I
1082	 67.00	0	1222651..1223259	+	202	187927040	-	Rpic_4874	-	cytochrome c oxidase subunit III
1083	 63.92	0	1223256..1223948	+	230	187927041	-	Rpic_4875	-	cytochrome c oxidase subunit III
64.67	MEAN

3.41	STD DEV
