IslandPath Analysis: Ralstonia metallidurans CH34

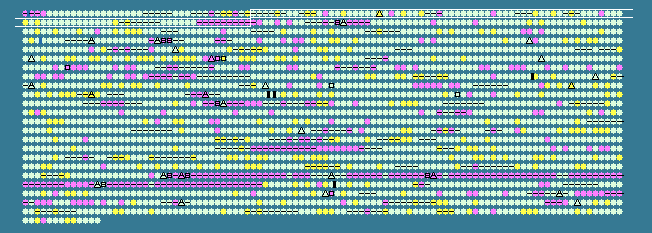

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.77   STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
39	 65.89	0	41058..42479	+	473	94312586	-	Rmet_3654	-	type II and III secretion system protein
40	 67.23	0	42491..43729	+	412	94312587	-	Rmet_3655	-	response regulator receiver domain-containing protein
41	 64.69	0	43731..45047	+	438	94312588	-	Rmet_3656	-	type II secretion system protein E
42	 67.20	0	45037..45966	+	309	94312589	-	Rmet_3657	-	type II secretion system protein
43	 69.28	+1	45976..47085	+	369	94312590	-	Rmet_3658	-	type II secretion system protein
44	 66.67	0	47086..47907	+	273	94312591	-	Rmet_3659	-	TPR repeat-containing protein
45	 66.67	0	47904..48272	+	122	94312592	-	Rmet_3660	-	putative lipoprotein
46	 64.70	0	48281..50008	+	575	94312593	-	Rmet_3661	-	putative transmembrane protein
47	 66.81	0	50020..51384	+	454	94312594	-	Rmet_3662	-	sigma-54 dependent trancsriptional regulator
48	 67.54	+1	51481..52626	+	381	94312595	-	Rmet_3663	-	exodeoxyribonuclease I subunit D
49	 68.83	+1	52623..55676	+	1017	94312596	-	Rmet_3664	-	exonuclease SbcC, putative
50	 65.07	0	55921..57357	+	478	94312597	-	Rmet_3665	-	hypothetical protein
51	 58.95	-1	57577..57861	+	94	94312598	-	Rmet_3666	-	hypothetical protein
52	 65.47	0	57882..58547	+	221	94312599	-	Rmet_3667	-	3-oxoacid CoA-transferase, subunit A
53	 66.51	0	58576..59223	+	215	94312600	-	Rmet_3668	-	butyryl-CoA:acetate CoA transferase
54	 67.83	+1	59252..60454	+	400	94312601	-	Rmet_3669	-	beta-ketoadipyl CoA thiolase
55	 65.71	0	60714..61445	+	243	94312602	-	Rmet_3670	-	short-chain dehydrogenase/reductase SDR
56	 64.88	0	61549..62553	+	334	94312603	-	Rmet_3671	-	hypothetical protein
57	 64.76	0	62750..62959	-	69	94312604	-	Rmet_3672	-	hypothetical protein
58	 63.51	0	63286..63855	+	189	94312605	-	Rmet_3673	-	PadR family transcriptional regulator
59	 66.46	0	63889..64878	-	329	94312606	-	Rmet_3674	-	2-nitropropane dioxygenase, NPD
60	 67.60	+1	65059..66135	+	358	94312607	-	Rmet_3675	-	phage integrase
61	 60.49	0	66228..67247	+	339	94312608	-	Rmet_3676	-	UDP-galactose 4-epimerase
62	 59.55	-1	67449..67757	-	102	94312609	-	Rmet_3677	-	nucleoid protein H-NS
63	 65.29	0	68309..70126	+	605	94312610	-	Rmet_3678	-	methyl-accepting chemotaxis sensory transducer
64	 68.13	+1	70263..72245	+	660	94312611	-	Rmet_3679	-	diguanylate cyclase/phosphodiesterase
65	 65.10	0	72405..72788	+	127	94312612	-	Rmet_3680	-	response regulator receiver domain-containing protein
66	 61.78	0	72876..73427	+	183	94312613	-	Rmet_3681	-	CheW protein
67	 67.33	+1	73545..75203	+	552	94312614	-	Rmet_3682	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
68	 66.29	0	75242..77083	+	613	94312615	-	Rmet_3683	-	methyl-accepting chemotaxis sensory transducer
69	 64.28	0	77192..77944	+	250	94312616	-	Rmet_3684	-	hypothetical protein
70	 56.92	-1	78343..78660	+	105	94312617	-	Rmet_3685	-	transcriptional activator FlhD
71	 63.04	0	78657..79262	+	201	94312618	-	Rmet_3686	-	transcriptional activator FlhC
72	 62.11	0	79349..80248	+	299	94312619	-	Rmet_3687	-	chemotaxis MotA protein
73	 63.50	0	80262..81239	+	325	94312620	motB	Rmet_3688	-	flagellar motor protein MotB
74	 65.28	0	81300..83315	+	671	94312621	-	Rmet_3689	-	CheA signal transduction histidine kinases
75	 61.62	0	83340..83834	+	164	94312622	-	Rmet_3690	-	CheW protein
76	 64.58	0	83898..84809	+	303	94312623	-	Rmet_3691	-	MCP methyltransferase, CheR-type
77	 63.95	0	84806..85468	+	220	94312624	-	Rmet_3692	-	chemoreceptor glutamine deamidase CheD
78	 66.01	0	85536..86609	+	357	94312625	-	Rmet_3693	-	chemotaxis-specific methylesterase
79	 58.81	-1	86649..87068	+	139	94312626	-	Rmet_3694	-	response regulator receiver domain-containing protein
80	 64.31	0	87081..87716	+	211	94312627	-	Rmet_3695	-	chemotaxis regulator CheZ
81	 65.27	0	87845..89203	+	452	94312628	-	Rmet_3696	-	peptidase M20
82	 66.94	0	89319..90050	+	243	94312629	-	Rmet_3697	-	hypothetical protein
83	 65.44	0	90329..91471	+	380	94312630	flhB	Rmet_3698	-	flagellar biosynthesis protein FlhB
84	 65.76	0	91468..93555	+	695	94312631	flhA	Rmet_3699	-	flagellar biosynthesis protein FlhA
85	 66.79	0	93565..96042	+	825	94312632	flhF	Rmet_3700	-	flagellar biosynthesis regulator FlhF
86	 68.12	+1	96046..96870	+	274	94312633	-	Rmet_3701	-	flagellar biosynthesis protein FlhG
87	 62.34	0	96978..97694	+	238	94312634	-	Rmet_3702	-	sigma 28 (flagella/sporulation)
88	 64.88	0	97694..98140	+	148	94312635	-	Rmet_3703	-	flagellar FlhE
89	 67.31	+1	98326..99417	-	363	94312636	-	Rmet_3704	-	porin
90	 61.99	0	99496..100521	-	341	94312637	-	Rmet_3705	-	amidohydrolase 2
91	 66.58	0	100518..101666	-	382	94312638	-	Rmet_3706	-	methylitaconate delta2-delta3-isomerase
92	 68.63	+1	101838..103058	+	406	94312639	-	Rmet_3707	-	LysR family transcriptional regulator
93	 65.69	0	103228..104553	+	441	94312640	-	Rmet_3708	-	major facilitator transporter
94	 63.81	0	104563..105855	+	430	94312641	-	Rmet_3709	-	protocatechuate 4,5-dioxygenase
95	 63.89	0	105837..106376	+	179	94312642	-	Rmet_3710	-	rubredoxin-type Fe(Cys)4 protein
96	 63.61	0	106666..107253	+	195	94312643	-	Rmet_3711	-	GCN5-related N-acetyltransferase
97	 58.49	-1	107288..107764	-	158	94312644	-	Rmet_3712	-	putative salicylate-5-hydroxylase small oxygenase component oxidoreductase protein
98	 60.64	0	108087..109049	+	320	94312645	-	Rmet_3713	-	LysR family transcriptional regulator
99	 62.19	0	109030..109230	-	66	94312646	-	Rmet_3714	-	hypothetical protein
100	 61.32	0	109285..109602	-	105	94312647	-	Rmet_3715	-	putative signal peptide protein
101	 68.17	+1	109757..110287	+	176	94312648	-	Rmet_3716	-	hypothetical protein
102	 65.29	0	110388..111041	-	217	161621310	-	Rmet_3717	-	dihydropteridine reductase
103	 67.74	+1	111123..111587	-	154	94312650	-	Rmet_3718	-	hypothetical protein
104	 66.12	0	111721..112629	+	302	94312651	-	Rmet_3719	-	LysR family transcriptional regulator
105	 65.70	0	112713..114473	+	586	94312652	-	Rmet_3720	-	sulfate permease
106	 63.39	0	114576..115613	-	345	94312653	-	Rmet_3721	-	hypothetical protein
107	 63.48	0	115800..116270	+	156	94312654	-	Rmet_3722	-	CMP/dCMP deaminase, zinc-binding
108	 64.49	0	116271..118157	-	628	94312655	-	Rmet_3723	-	methyl-accepting chemotaxis sensory transducer
109	 62.07	0	118420..120030	+	536	94312656	-	Rmet_3724	-	EAL-containing signal transduction protein
110	 63.90	0	120087..121424	+	445	94312657	-	Rmet_3725	-	uracil-xanthine permease
111	 63.45	0	121507..122097	-	196	94312658	-	Rmet_3726	-	hypothetical protein
112	 67.17	0	122186..123385	+	399	94312659	-	Rmet_3727	-	acyl-CoA dehydrogenase-like protein
113	 65.88	0	123409..124554	+	381	94312660	-	Rmet_3728	-	acyl-CoA dehydrogenase-like protein
114	 62.66	0	124707..126950	-	747	94312661	-	Rmet_3729	-	isocitrate dehydrogenase, NADP-dependent
115	 65.66	0	127318..128406	-	362	94312662	-	Rmet_3730	-	putative transmembrane protein
116	 67.31	+1	128471..128935	-	154	94312663	-	Rmet_3731	-	FlgN
117	 65.88	0	128943..129323	-	126	94312664	-	Rmet_3732	-	anti-sigma-28 factor, FlgM
118	 69.65	+1	129502..130239	-	245	94312665	flgA	Rmet_3733	-	flagellar basal body P-ring biosynthesis protein FlgA
119	 64.20	0	130518..130922	+	134	94312666	flgB	Rmet_3734	-	flagellar basal body rod protein FlgB
120	 63.73	0	130934..131341	+	135	94312667	-	Rmet_3735	-	flagellar basal-body rod protein FlgC
121	 64.57	0	131383..132051	+	222	94312668	flgD	Rmet_3736	-	flagellar basal body rod modification protein
122	 65.14	0	132125..133372	+	415	94312669	flgE	Rmet_3737	-	flagellar hook protein FlgE
123	 66.80	0	133399..134142	+	247	94312670	flgF	Rmet_3738	-	flagellar basal body rod protein FlgF
124	 62.47	0	134191..134976	+	261	94312671	flgG	Rmet_3739	-	flagellar basal body rod protein FlgG
125	 64.57	0	134983..135696	+	237	94312672	flgH	Rmet_3740	-	flagellar basal body L-ring protein
126	 66.58	0	135704..136888	+	394	94312673	flgI	Rmet_3741	-	flagellar basal body P-ring protein
127	 65.88	0	136888..137910	+	340	94312674	flgJ	Rmet_3742	-	peptidoglycan hydrolase
128	 64.19	0	138176..140071	+	631	94312675	flgK	Rmet_3743	-	flagellar hook-associated protein FlgK
129	 64.33	0	140127..141365	+	412	94312676	flgL	Rmet_3744	-	flagellar hook-associated protein FlgL
130	 56.74	-1	141728..142906	-	392	94312677	-	Rmet_3745	-	diguanylate cyclase
131	 57.85	-1	143187..143549	-	120	94312678	-	Rmet_3746	-	hypothetical protein
132	 59.07	-1	143806..144885	-	359	94312679	-	Rmet_3747	-	hypothetical protein
133	 58.33	-1	145207..145566	+	119	94312680	-	Rmet_3748	-	hypothetical protein
134	 57.45	-1	145586..146692	+	368	94312681	-	Rmet_3749	-	hypothetical protein
135	 54.61	-2	146751..148376	+	541	94312682	-	Rmet_3750	-	hypothetical protein
136	 56.03	-2	148373..148654	+	93	94312683	-	Rmet_3751	-	hypothetical protein
137	 57.76	-1	149244..149546	+	100	94312684	-	Rmet_3752	-	hypothetical protein
138	 59.12	-1	149882..150199	+	105	94312685	-	Rmet_3754	-	hypothetical protein
63.77	MEAN

3.52	STD DEV
