IslandPath Analysis: Ralstonia metallidurans CH34

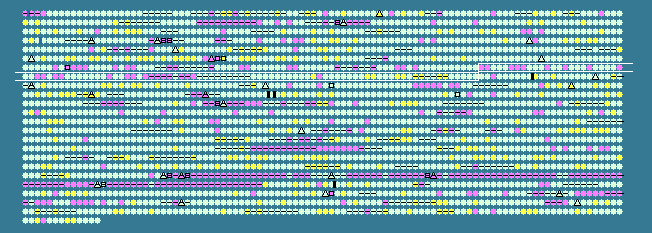

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
677	 56.57	-2	744752..745048	+	98	94313224	-	Rmet_4298	-	hypothetical protein
678	 56.95	-1	745275..746633	-	452	94313225	-	Rmet_4299	-	C4-dicarboxylate transporter DctA
679	 61.85	0	746749..747993	-	414	94313226	-	Rmet_4300	-	respiratory-chain NADH dehydrogenase domain-containing protein
680	 66.12	0	748013..749662	-	549	94313227	-	Rmet_4301	-	fumarate reductase/succinate dehydrogenase flavoprotein-like protein
681	 62.75	0	749677..750315	-	212	94313228	-	Rmet_4302	-	ferredoxin
682	 59.56	-1	750706..752211	+	501	94313229	-	Rmet_4303	-	anion transporter
683	 56.84	-1	752307..752591	-	94	94313230	-	Rmet_4304	-	hypothetical protein
684	 60.29	0	752864..753208	-	114	94313231	-	Rmet_4305	-	hypothetical protein
685	 63.45	0	753517..754758	-	413	94313232	-	Rmet_4306	-	major facilitator transporter
686	 62.19	0	754837..755439	-	200	94313233	-	Rmet_4307	-	TetR family transcriptional regulator
687	 61.39	0	755590..756555	-	321	94313234	-	Rmet_4308	-	AraC family transcriptional regulator
688	 56.35	-2	756797..757048	+	83	94313235	-	Rmet_4309	-	hypothetical protein
689	 62.70	0	757376..758584	+	402	94313236	-	Rmet_4310	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
690	 61.28	0	758929..759504	-	191	94313237	-	Rmet_4312	-	BadM/Rrf2 family transcriptional regulator
691	 59.10	-1	759630..761189	-	519	94313238	-	Rmet_4313	-	EmrB/QacA family drug resistance transporter
692	 63.60	0	761222..762493	-	423	94313239	-	Rmet_4314	-	secretion protein HlyD
693	 62.84	0	762523..764037	-	504	94313240	-	Rmet_4315	-	RND efflux system, outer membrane lipoprotein, NodT
694	 60.54	0	764307..764747	-	146	94313241	-	Rmet_4316	-	cupin 2, barrel
695	 60.27	0	764756..765193	-	145	94313242	-	Rmet_4317	-	alkylhydroperoxidase AhpD core
696	 62.51	0	765325..766839	-	504	94313243	-	Rmet_4318	-	GntR family transcriptional regulator
697	 62.50	0	766962..767681	+	239	94313244	-	Rmet_4319	-	short-chain dehydrogenase/reductase SDR
698	 63.67	0	767963..768964	+	333	94313245	-	Rmet_4320	-	AraC family transcriptional regulator
699	 64.40	0	768968..769939	+	323	94313246	-	Rmet_4321	-	hypothetical protein
700	 59.81	-1	770096..771685	+	529	94313247	-	Rmet_4322	-	cytochrome c oxidase, subunit I
701	 62.33	0	771682..772281	+	199	94313248	-	Rmet_4323	-	cytochrome C oxidase, mono-heme subunit/FixO
702	 64.20	0	772297..772905	+	202	94313249	-	Rmet_4324	-	cytochrome c, class I
703	 58.83	-1	772973..773521	+	182	94313250	-	Rmet_4325	-	putative transmembrane protein
704	 57.64	-1	773518..774093	+	191	94313251	-	Rmet_4326	-	putative transmembrane protein
705	 65.72	0	774100..774522	-	140	94313252	-	Rmet_4327	-	hypothetical protein
706	 58.56	-1	774566..775540	-	324	94313253	-	Rmet_4328	-	alpha/beta hydrolase fold
707	 57.88	-1	775625..776068	+	147	94313254	-	Rmet_4329	-	BadM/Rrf2 family transcriptional regulator
708	 60.94	0	776317..777363	+	348	94313255	-	Rmet_4330	-	twin-arginine translocation pathway signal
709	 62.65	0	777370..778140	+	256	94313256	-	Rmet_4331	-	ABC transporter related
710	 61.43	0	778137..779033	+	298	94313257	-	Rmet_4332	-	binding-protein-dependent transport systems inner membrane component
711	 64.22	0	779037..780710	+	557	94313258	-	Rmet_4333	-	amidohydrolase 3
712	 61.61	0	780797..781132	-	111	94313259	-	Rmet_4334	-	4Fe-4S ferredoxin, iron-sulfur binding
713	 64.55	0	781129..782778	-	549	94313260	-	Rmet_4335	-	fumarate reductase/succinate dehydrogenase flavoprotein-like protein
714	 60.76	0	782899..783930	-	343	94313261	-	Rmet_4336	-	fatty acid desaturase
715	 59.33	-1	784145..785152	+	335	94313262	-	Rmet_4337	-	hypothetical protein
716	 65.88	0	785216..786865	+	549	94313263	-	Rmet_4338	-	rhodanese-like protein
717	 62.60	0	786978..787223	+	81	94313264	-	Rmet_4339	-	histidine kinase
718	 59.97	-1	787494..789209	+	571	94313265	-	Rmet_4340	-	malate:quinone oxidoreductase
719	 58.57	-1	789641..790603	-	320	94313266	-	Rmet_4341	-	hypothetical protein
720	 61.94	0	790650..792152	-	500	94313267	-	Rmet_4342	-	argininosuccinate lyase
721	 59.71	-1	792437..793342	-	301	94313268	-	Rmet_4343	-	LysR family transcriptional regulator
722	 58.78	-1	793592..794707	+	371	94313269	-	Rmet_4344	-	porin
723	 55.65	-2	794798..795169	+	123	94313270	-	Rmet_4345	-	hypothetical protein
724	 56.50	-2	796268..796798	-	176	94313271	-	Rmet_4346	-	hypothetical protein
725	 57.06	-1	797085..797594	-	169	94313272	-	Rmet_4347	-	alkylhydroperoxidase AhpD core
726	 62.82	0	797616..798005	-	129	94313273	-	Rmet_4348	-	hypothetical protein
727	 59.26	-1	798109..798459	+	116	94313274	-	Rmet_4349	-	hypothetical protein
728	 54.07	-2	799799..800044	-	81	94313275	-	Rmet_4350	-	UvrD/REP helicase family protein
729	 59.68	-1	800167..800352	+	61	94313276	-	Rmet_4351	-	hypothetical protein
730	 62.17	0	800495..800872	-	125	94313277	-	Rmet_4352	-	hypothetical protein
731	 64.38	0	801188..802060	-	290	94313278	-	Rmet_4353	-	GntR family transcriptional regulator
732	 60.92	0	802128..802979	-	283	94313279	-	Rmet_4354	-	LuxR family transcriptional regulator
733	 62.86	0	803116..803877	-	253	94313280	-	Rmet_4355	-	integral membrane protein TerC
734	 65.58	0	804073..805080	+	335	94313281	-	Rmet_4356	-	2-dehydropantoate 2-reductase
735	 62.66	0	805329..806051	+	240	94313282	-	Rmet_4357	-	GntR family transcriptional regulator
736	 66.32	0	806164..807036	-	290	94313283	-	Rmet_4358	-	succinyl-CoA synthetase (ADP-forming) alpha subunit
737	 64.44	0	807038..808249	-	403	94313284	-	Rmet_4359	-	succinyl-CoA synthetase (ADP-forming) beta subunit
738	 63.39	0	808477..810399	+	640	94313285	-	Rmet_4360	-	thiamine pyrophosphate enzyme-like TPP binding region
739	 65.61	0	810454..811686	+	410	94313286	-	Rmet_4361	-	formyl-coenzyme A transferase
740	 63.94	0	811853..813982	+	709	94313287	-	Rmet_4362	-	CoA-binding
741	 65.38	0	814130..814906	+	258	94313288	-	Rmet_4363	-	fumarylacetoacetate (FAA) hydrolase
742	 61.81	0	814973..815281	-	102	94313289	-	Rmet_4364	-	hypothetical protein
743	 61.41	0	815394..816344	-	316	94313290	-	Rmet_4365	-	LysR family transcriptional regulator
744	 64.51	0	816561..817904	+	447	94313291	-	Rmet_4366	-	major facilitator transporter
745	 65.16	0	817937..818866	+	309	94313292	-	Rmet_4367	-	LysR family transcriptional regulator
746	 66.67	0	819085..819303	+	72	94313293	-	Rmet_4368	-	hypothetical protein
747	 62.14	0	819914..821239	+	441	94313294	-	Rmet_4369	-	major facilitator transporter
748	 62.73	0	821395..822411	+	338	94313295	-	Rmet_4370	-	alcohol dehydrogenase GroES-like protein
749	 69.09	+1	822519..823550	-	343	94313296	-	Rmet_4371	-	hypothetical protein
750	 59.70	-1	823748..824422	-	224	94313297	-	Rmet_4372	-	TetR family transcriptional regulator
751	 65.86	0	824651..825022	+	123	94313298	-	Rmet_4373	-	XRE family transcriptional regulator
752	 64.03	0	825478..826806	+	442	94313299	-	Rmet_4374	-	homogentisate 1,2-dioxygenase
753	 64.37	0	826845..828107	+	420	94313300	-	Rmet_4375	-	fumarylacetoacetate hydrolase
754	 65.62	0	828244..829104	+	286	94313301	-	Rmet_4376	-	hypothetical protein
755	 65.90	0	829097..829876	+	259	94313302	-	Rmet_4377	-	phospholipid/glycerol acyltransferase
756	 60.74	0	829863..830132	+	89	94313303	-	Rmet_4378	-	putative acyl carrier protein
757	 62.40	0	830185..830442	+	85	94313304	-	Rmet_4379	-	putative acyl-carrier-protein
758	 67.38	+1	830450..831007	+	185	94313305	-	Rmet_4380	-	hypothetical protein
759	 68.58	+1	831000..832673	+	557	94313306	-	Rmet_4381	-	AMP-dependent synthetase and ligase
760	 64.67	0	832670..833422	+	250	94313307	-	Rmet_4382	-	glycosyl transferase family protein
761	 66.76	0	833419..834450	+	343	94313308	-	Rmet_4383	-	lipid A biosynthesis acyltransferase
762	 60.43	0	834428..834844	+	138	94313309	-	Rmet_4384	-	thioesterase superfamily protein
763	 67.62	+1	834841..835470	+	209	94313310	-	Rmet_4385	-	outer membrane lipoprotein carrier protein LolA
764	 68.78	+1	835490..837850	+	786	94313311	-	Rmet_4386	-	putative lipoprotein transmembrane
765	 63.33	0	837847..839076	+	409	94313312	-	Rmet_4387	-	tryptophan halogenase
766	 69.28	+1	839073..839645	+	190	94313313	-	Rmet_4388	-	hypothetical protein
767	 68.35	+1	839642..840832	+	396	94313314	-	Rmet_4389	-	beta-ketoacyl synthase
768	 66.67	0	840835..841308	+	157	94313315	-	Rmet_4390	-	hypothetical protein
769	 65.57	0	841305..842036	+	243	94313316	fabG	Rmet_4391	-	3-ketoacyl-(acyl-carrier-protein) reductase
770	 67.32	+1	842033..843262	+	409	94313317	-	Rmet_4392	-	3-oxoacyl-(acyl carrier protein) synthase II
771	 68.58	+1	843405..844031	+	208	94313318	-	Rmet_4393	-	4'-phosphopantetheinyl transferase
772	 65.18	0	844038..845048	-	336	94313319	-	Rmet_4394	-	IclR family transcriptional regulator
773	 64.85	0	845066..845560	+	164	94313320	-	Rmet_4395	-	hypothetical protein
774	 63.54	0	845593..846681	-	362	94313321	-	Rmet_4396	-	extracellular solute-binding protein
775	 64.62	0	846678..847460	-	260	94313322	-	Rmet_4397	-	binding-protein-dependent transport systems inner membrane component
776	 65.09	0	847457..848473	-	338	94313323	-	Rmet_4398	-	binding-protein-dependent transport systems inner membrane component
63.77	MEAN

3.52	STD DEV
