IslandPath Analysis: Ralstonia metallidurans CH34

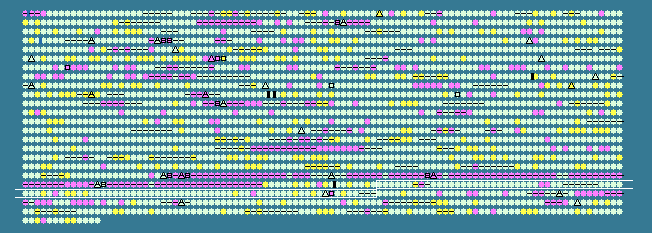

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1960	 64.80	0	2193586..2195190	-	534	94314507	-	Rmet_5588	-	phospholipase D/transphosphatidylase
1961	 63.16	0	2195212..2196039	-	275	94314508	-	Rmet_5589	-	MscS mechanosensitive ion channel
1962	 67.08	0	2196343..2197800	-	485	94314509	-	Rmet_5590	-	RND efflux system, outer membrane lipoprotein, NodT
1963	 64.76	0	2197803..2199377	-	524	94314510	-	Rmet_5591	-	EmrB/QacA family drug resistance transporter
1964	 66.49	0	2199370..2200515	-	381	94314511	-	Rmet_5592	-	secretion protein HlyD
1965	 64.53	0	2200623..2201324	+	233	94314512	-	Rmet_5593	-	TetR family transcriptional regulator
1966	 68.47	+1	2201748..2202245	+	165	94314513	-	Rmet_5594	-	hypothetical protein
1967	 59.14	-1	2202631..2203095	+	154	94314514	-	Rmet_5595	-	Kef-type K+ transport system NAD-binding component-related membrane protein
1968	 65.56	0	2203277..2204176	+	299	94314515	-	Rmet_5596	-	MltA-interacting MipA
1969	 66.53	0	2204200..2204913	-	237	94314516	-	Rmet_5597	-	alpha/beta family hydrolase
1970	 64.10	0	2204992..2205303	-	103	94314517	-	Rmet_5598	-	hypothetical protein
1971	 62.17	0	2205973..2207418	+	481	94314518	-	Rmet_5599	-	catalase-like protein
1972	 65.30	0	2207511..2208023	+	170	94314519	-	Rmet_5600	-	ankyrin
1973	 64.69	0	2208081..2208839	-	252	94314520	-	Rmet_5601	-	short-chain dehydrogenase/reductase SDR
1974	 67.22	0	2208949..2210040	-	363	94314521	-	Rmet_5602	-	L-threonine ammonia-lyase
1975	 65.82	0	2210511..2212280	+	589	94314522	-	Rmet_5603	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
1976	 66.25	0	2212280..2213722	+	480	94314523	-	Rmet_5604	-	putative signal transduction protein
1977	 64.52	0	2213742..2214392	-	216	94314524	-	Rmet_5605	-	carbonic anhydrase
1978	 66.89	0	2214500..2215402	+	300	161621308	-	Rmet_5606	-	DNA-binding transcriptional regulator CynR
1979	 63.48	0	2215371..2216690	-	439	94314526	-	Rmet_5607	-	major facilitator transporter
1980	 62.57	0	2216840..2217889	+	349	94314527	-	Rmet_5608	-	ubiquinol oxidase, subunit II
1981	 61.83	0	2217971..2219974	+	667	94314528	-	Rmet_5609	-	cytochrome c oxidase, subunit I
1982	 63.17	0	2219967..2220623	+	218	94314529	-	Rmet_5610	-	cytochrome c oxidase, subunit III
1983	 60.61	0	2220620..2221048	+	142	94314530	-	Rmet_5611	-	cytochrome C oxidase subunit IV
1984	 64.01	0	2221067..2222608	-	513	94314531	-	Rmet_5612	-	methyl-accepting chemotaxis sensory transducer
1985	 65.28	0	2222821..2224119	-	432	94314532	-	Rmet_5613	-	major facilitator transporter
1986	 66.15	0	2224226..2224996	-	256	94314533	-	Rmet_5614	-	CDP-diacylglycerol pyrophosphatase
1987	 57.95	-1	2225208..2225597	-	129	94314534	-	Rmet_5615	-	hypothetical protein
1988	 58.69	-1	2225634..2226623	-	329	94314535	-	Rmet_5616	-	hypothetical protein
1989	 65.16	0	2226806..2227867	+	353	94314536	-	Rmet_5617	-	farnesyl-diphosphate farnesyltransferase
1990	 63.03	0	2227888..2228958	-	356	94314537	-	Rmet_5618	-	glycosyl transferase family protein
1991	 65.84	0	2229112..2230314	-	400	94314538	-	Rmet_5619	-	triple helix repeat-containing collagen
1992	 61.11	0	2231025..2231348	-	107	94314539	-	Rmet_5620	-	hypothetical protein
1993	 63.77	0	2231477..2231614	-	45	94314540	-	Rmet_5621	-	hypothetical protein
1994	 63.45	0	2231706..2232452	-	248	94314541	-	Rmet_5622	-	hypothetical protein
1995	 66.67	0	2232551..2232946	-	131	94314542	-	Rmet_5623	-	peptidylprolyl isomerase, FKBP-type
1996	 63.92	0	2233118..2233735	+	205	94314543	-	Rmet_5624	-	hemolysin III family channel protein
1997	 65.95	0	2233751..2234998	-	415	94314544	-	Rmet_5625	-	L-carnitine dehydratase/bile acid-inducible protein F
1998	 66.79	0	2235014..2235811	-	265	94314545	-	Rmet_5626	-	enoyl-CoA hydratase/isomerase
1999	 64.37	0	2235808..2237334	-	508	94314546	-	Rmet_5627	-	hypothetical protein
2000	 63.15	0	2237346..2237885	-	179	94314547	-	Rmet_5628	-	hypothetical protein
2001	 62.28	0	2237928..2238929	-	333	94314548	-	Rmet_5629	-	hypothetical protein
2002	 64.93	0	2239032..2240237	-	401	94314549	-	Rmet_5630	-	aminotransferase, class V
2003	 65.94	0	2240488..2241177	+	229	94314550	-	Rmet_5631	-	GntR family transcriptional regulator
2004	 67.29	+1	2241264..2244287	+	1007	94314551	-	Rmet_5632	-	FAD linked oxidase-like protein
2005	 63.25	0	2244374..2245309	+	311	94314552	-	Rmet_5633	-	hypothetical protein
2006	 58.04	-1	2245558..2245893	+	111	94314553	-	Rmet_5634	-	hypothetical protein
2007	 65.85	0	2246013..2248451	-	812	94314554	-	Rmet_5635	-	peptidase S45, penicillin amidase
2008	 67.73	+1	2248579..2250180	-	533	94314555	-	Rmet_5636	-	flavodoxin/nitric oxide synthase
2009	 68.93	+1	2250177..2251190	-	337	94314556	-	Rmet_5637	-	ApbE-like lipoprotein
2010	 66.91	0	2251213..2252046	-	277	94314557	-	Rmet_5638	-	hypothetical protein
2011	 68.20	+1	2252098..2252619	-	173	94314558	-	Rmet_5639	-	hypothetical protein
2012	 64.43	0	2252647..2253318	-	223	94314559	-	Rmet_5640	-	PepSY-associated TM helix
2013	 64.74	0	2253694..2255253	+	519	94314560	-	Rmet_5641	-	methyl-accepting chemotaxis sensory transducer
2014	 62.16	0	2255442..2256905	-	487	94314561	-	Rmet_5642	-	flagellar hook-associated 2-like protein
2015	 67.24	0	2257117..2257815	-	232	94314562	-	Rmet_5643	-	TetR family transcriptional regulator
2016	 67.01	0	2257832..2259268	-	478	94314563	-	Rmet_5644	-	carotenoid oxygenase
2017	 64.53	0	2259481..2260554	+	357	94314564	-	Rmet_5645	-	zinc-binding alcohol dehydrogenase
2018	 64.08	0	2260747..2261442	+	231	94314565	-	Rmet_5646	-	LuxR family transcriptional regulator
2019	 63.98	0	2261488..2262009	-	173	94314566	-	Rmet_5647	-	hypothetical protein
2020	 64.54	0	2262246..2262668	+	140	94314567	-	Rmet_5648	-	AsnC family transcriptional regulator
2021	 63.47	0	2262688..2263125	-	145	94314568	-	Rmet_5649	-	hypothetical protein
2022	 64.05	0	2263518..2263823	+	101	94314569	-	Rmet_5650	-	hypothetical protein
2023	 61.84	0	2264000..2264206	+	68	94314570	-	Rmet_5651	-	hypothetical protein
2024	 62.94	0	2264651..2265133	+	160	94314571	-	Rmet_5652	-	hypothetical protein
2025	 62.65	0	2265139..2266680	+	513	94314572	-	Rmet_5653	-	hypothetical protein
2026	 63.08	0	2266858..2267247	+	129	94314573	-	Rmet_5654	-	putative dehydrogenase
2027	 66.97	0	2267349..2267681	+	110	94314574	-	Rmet_5655	-	hypothetical protein
2028	 66.25	0	2267694..2268170	-	158	94314575	-	Rmet_5656	-	hypothetical protein
2029	 65.95	0	2268480..2269733	+	417	94314576	-	Rmet_5657	-	putative heat shock protein
2030	 64.06	0	2269758..2270945	-	395	94314577	-	Rmet_5658	-	diguanylate cyclase
2031	 62.55	0	2270994..2271527	-	177	94314578	-	Rmet_5659	-	isochorismatase hydrolase
2032	 63.61	0	2271683..2274202	-	839	94314579	-	Rmet_5660	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
2033	 63.11	0	2274377..2274742	-	121	94314580	-	Rmet_5661	-	hypothetical protein
2034	 61.99	0	2274815..2275156	+	113	94314581	-	Rmet_5662	-	hypothetical protein
2035	 64.61	0	2275206..2276273	-	355	94314582	-	Rmet_5663	-	periplasmic phosphate binding protein
2036	 70.08	+1	2276464..2276961	-	165	94314583	-	Rmet_5664	-	hypothetical protein
2037	 66.05	0	2277130..2278104	-	324	94314584	-	Rmet_5665	-	NmrA-like protein
2038	 66.45	0	2278221..2279141	+	306	94314585	-	Rmet_5666	-	LysR family transcriptional regulator
2039	 56.17	-2	2279403..2279783	+	126	94314586	-	Rmet_5667	-	hypothetical protein
2040	 66.22	0	2279814..2280713	-	299	94314587	-	Rmet_5668	-	copper resistance D
2041	 64.86	0	2280732..2281118	-	128	94314588	-	Rmet_5669	-	copper resistance protein CopC
2042	 64.54	0	2281157..2282239	-	360	94314589	-	Rmet_5670	-	copper resistance B precursor
2043	 64.41	0	2282236..2284053	-	605	94314590	-	Rmet_5671	-	copper-resistance protein CopA
2044	 65.07	0	2284249..2284935	+	228	94314591	-	Rmet_5672	-	two component heavy metal response transcriptional regulator
2045	 65.08	0	2284935..2286323	+	462	94314592	-	Rmet_5673	-	heavy metal sensor signal transduction histidine kinase
2046	 68.06	+1	2286324..2286755	-	143	94314593	-	Rmet_5674	-	protein of unknown function DUF395, YeeE/YedE
2047	 66.67	0	2286757..2287194	-	145	94314594	-	Rmet_5675	-	protein of unknown function DUF395, YeeE/YedE
2048	 62.62	0	2287204..2287524	-	106	94314595	-	Rmet_5676	-	ArsR family transcriptional regulator
2049	 68.65	+1	2287658..2288917	-	419	94314596	-	Rmet_5677	-	hypothetical protein
2050	 66.58	0	2288914..2290011	-	365	94314597	-	Rmet_5678	-	heavy metal efflux pump CzcA
2051	 61.74	0	2290023..2290916	-	297	94314598	-	Rmet_5679	-	integrase catalytic subunit
2052	 59.93	-1	2290913..2291209	-	98	94314599	-	Rmet_5680	-	transposase IS3/IS911
2053	 66.23	0	2291237..2293312	-	691	94314600	-	Rmet_5681	-	acriflavin resistance protein
2054	 70.30	+1	2293312..2294412	-	366	94314601	-	Rmet_5682	-	secretion protein HlyD
2055	 62.89	0	2294500..2294949	-	149	94314602	-	Rmet_5683	-	hypothetical protein
2056	 64.88	0	2295247..2295750	+	167	94314603	-	Rmet_5684	-	pilus assembly protein PilE
2057	 66.67	0	2295754..2296248	+	164	94314604	-	Rmet_5685	-	pilus assembly protein FimT
2058	 67.16	0	2296248..2296856	+	202	94314605	-	Rmet_5686	-	Tfp pilus assembly protein PilV-like protein
2059	 65.13	0	2296853..2297896	+	347	94314606	-	Rmet_5687	-	type 4 fimbrial biogenesis pilw-related protein transmembrane precursor
63.77	MEAN

3.52	STD DEV
