IslandPath Analysis: Ralstonia metallidurans CH34

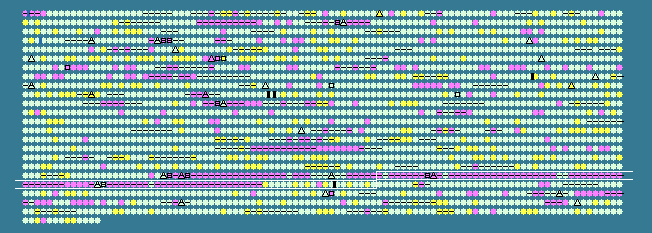

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1860	 54.26	-2	2083641..2085437	-	598	94314407	-	Rmet_5488	-	putative exonuclease
1861	 61.54	0	2086242..2086475	+	77	94314408	-	Rmet_5489	-	hypothetical protein
1862	 56.91	-1	2087533..2088711	-	392	94314409	-	Rmet_5490	-	4-hydroxybenzoate 3-monooxygenase
1863	 60.25	-1	2089080..2090045	+	321	94314410	-	Rmet_5491	-	hypothetical protein
1864	 57.51	-1	2090060..2091763	+	567	94314411	-	Rmet_5492	-	putative succinate dehydrogenase
1865	 58.05	-1	2091760..2092107	+	115	94314412	-	Rmet_5493	-	NIPSNAP domain-containing protein
1866	 57.17	-1	2092203..2093192	+	329	94314413	-	Rmet_5494	-	hypothetical protein
1867	 58.27	-1	2093344..2094141	-	265	94314414	-	Rmet_5495	-	zinc-binding alcohol dehydrogenase
1868	 57.51	-1	2094179..2094451	+	90	94314415	-	Rmet_5496	-	transposase IS3/IS911
1869	 58.22	-1	2094469..2095320	+	283	94314416	-	Rmet_5497	-	integrase catalytic subunit
1870	 57.32	-1	2095325..2095570	-	81	94314417	-	Rmet_5498	-	oxidoreductase, zinc-binding
1871	 60.54	0	2095745..2096920	+	391	94314418	-	Rmet_5499	-	acetyl-CoA acetyltransferase
1872	 55.39	-2	2096924..2097322	+	132	94314419	-	Rmet_5500	-	hypothetical protein
1873	 57.86	-1	2097334..2098128	+	264	94314420	-	Rmet_5501	-	enoyl-CoA hydratase
1874	 57.11	-1	2098131..2098946	+	271	94314421	-	Rmet_5502	-	short chain dehydrogenase
1875	 57.07	-1	2099156..2100124	+	322	94314422	-	Rmet_5503	-	hypothetical protein
1876	 56.32	-2	2100263..2101402	-	379	94314423	-	Rmet_5504	-	porin
1877	 57.03	-1	2102113..2102994	+	293	94314424	-	Rmet_5505	-	enoyl-CoA hydratase
1878	 56.40	-2	2103113..2103667	-	184	94314425	-	Rmet_5506	-	hypothetical protein
1879	 55.09	-2	2103729..2104886	-	385	94314426	-	Rmet_5507	-	acyl-CoA dehydrogenase-like protein
1880	 57.84	-1	2104904..2106931	-	675	94314427	-	Rmet_5508	-	AMP-dependent synthetase and ligase
1881	 58.68	-1	2107020..2107595	+	191	94314428	-	Rmet_5509	-	short-chain dehydrogenase/reductase SDR
1882	 59.39	-1	2107627..2108835	+	402	94314429	-	Rmet_5510	-	thiolase
1883	 57.76	-1	2108844..2110988	+	714	94314430	-	Rmet_5511	-	short chain enoyl-CoA hydratase / 3-hydroxyacyl-CoA dehydrogenase
1884	 58.54	-1	2111002..2111862	+	286	94314431	-	Rmet_5512	-	enoyl-CoA hydratase/isomerase
1885	 57.69	-1	2111901..2112947	+	348	94314432	-	Rmet_5513	-	AraC family transcriptional regulator
1886	 58.99	-1	2112944..2113738	-	264	94314433	-	Rmet_5514	-	short-chain dehydrogenase/reductase SDR
1887	 57.64	-1	2113775..2115214	-	479	94314434	-	Rmet_5515	-	aldehyde dehydrogenase
1888	 55.12	-2	2115211..2116500	-	429	94314435	-	Rmet_5516	-	cytochrome P450
1889	 57.03	-1	2116530..2117525	-	331	94314436	-	Rmet_5517	-	ferredoxin
1890	 64.63	0	2117960..2118892	-	310	94314437	-	Rmet_5518	-	electron transfer flavoprotein, alpha subunit
1891	 63.33	0	2118911..2119660	-	249	94314438	-	Rmet_5519	-	electron transfer flavoprotein beta-subunit
1892	 57.19	-1	2119733..2120608	-	291	94314439	-	Rmet_5520	-	MaoC-like dehydratase
1893	 58.39	-1	2120601..2121422	-	273	94314440	-	Rmet_5521	-	enoyl-CoA hydratase/isomerase
1894	 55.11	-2	2121419..2122456	-	345	94314441	-	Rmet_5522	-	hypothetical protein
1895	 58.31	-1	2122497..2123561	-	354	94314442	-	Rmet_5523	-	aminoglycoside phosphotransferase
1896	 59.43	-1	2123564..2124337	-	257	94314443	-	Rmet_5524	-	short-chain dehydrogenase/reductase SDR
1897	 58.75	-1	2124495..2125631	+	378	94314444	-	Rmet_5525	-	L-carnitine dehydratase/bile acid-inducible protein F
1898	 57.65	-1	2125688..2126053	-	121	94314445	-	Rmet_5526	-	hypothetical protein
1899	 58.23	-1	2126070..2127005	-	311	94314446	-	Rmet_5527	-	aminoglycoside phosphotransferase
1900	 57.12	-1	2127077..2128606	-	509	94314447	-	Rmet_5528	-	acyl-CoA synthetase
1901	 59.56	-1	2128642..2129781	-	379	94314448	-	Rmet_5529	-	acyl-CoA dehydrogenase-like protein
1902	 57.71	-1	2129791..2130951	-	386	94314449	-	Rmet_5530	-	acyl-CoA dehydrogenase-like protein
1903	 57.24	-1	2131041..2131952	+	303	94314450	-	Rmet_5531	-	GntR family transcriptional regulator
1904	 57.34	-1	2131973..2132776	+	267	94314451	-	Rmet_5532	-	GntR family transcriptional regulator
1905	 59.88	-1	2132777..2133469	-	230	94314452	-	Rmet_5533	-	nitroreductase
1906	 57.92	-1	2133521..2134492	-	323	94314453	-	Rmet_5534	-	2-nitropropane dioxygenase, NPD
1907	 57.31	-1	2134587..2135708	-	373	94314454	-	Rmet_5535	-	L-carnitine dehydratase/bile acid-inducible protein F
1908	 56.65	-2	2135915..2136493	+	192	94314455	-	Rmet_5536	-	hypothetical protein
1909	 55.70	-2	2136499..2136972	+	157	94314456	-	Rmet_5537	-	MaoC-like dehydratase
1910	 58.10	-1	2137149..2138303	-	384	94314457	-	Rmet_5538	-	acyl-CoA dehydrogenase-like protein
1911	 59.15	-1	2138402..2138827	-	141	94314458	-	Rmet_5539	-	hypothetical protein
1912	 57.90	-1	2138824..2139918	-	364	94314459	-	Rmet_5540	-	thiolase family protein
1913	 63.64	0	2140031..2140888	-	285	94314460	-	Rmet_5541	-	integrase catalytic subunit
1914	 65.19	0	2140942..2141280	-	112	94314461	-	Rmet_5542	-	transposase IS3/IS911
1915	 58.85	-1	2141365..2142630	-	421	94314462	-	Rmet_5543	-	L-carnitine dehydratase/bile acid-inducible protein F
1916	 56.33	-2	2143067..2144527	-	486	94314463	-	Rmet_5544	-	aldehyde dehydrogenase
1917	 58.26	-1	2144544..2145602	-	352	94314464	-	Rmet_5545	-	alcohol dehydrogenase GroES-like protein
1918	 56.03	-2	2145616..2146659	-	347	94314465	-	Rmet_5546	-	Rieske (2Fe-2S) region
1919	 56.08	-2	2146780..2147610	-	276	94314466	-	Rmet_5547	-	LuxR family transcriptional regulator
1920	 59.92	-1	2148097..2149416	+	439	94314467	-	Rmet_5548	-	Rieske (2Fe-2S) region
1921	 58.90	-1	2149432..2150397	+	321	94314468	-	Rmet_5549	-	ferredoxin
1922	 60.86	0	2150439..2151161	+	240	94314469	-	Rmet_5550	-	GntR family transcriptional regulator
1923	 59.55	-1	2151207..2152175	+	322	94314470	-	Rmet_5551	-	hypothetical protein
1924	 60.00	-1	2152190..2153479	+	429	94314471	-	Rmet_5552	-	L-carnitine dehydratase/bile acid-inducible protein F
1925	 59.64	-1	2153506..2154657	+	383	94314472	-	Rmet_5553	-	hypothetical protein
1926	 58.02	-1	2154654..2155127	+	157	94314473	-	Rmet_5554	-	hypothetical protein
1927	 59.35	-1	2155187..2156854	+	555	94314474	-	Rmet_5555	-	putative FAD-binding dehydrogenase
1928	 58.56	-1	2156859..2157968	+	369	94314475	-	Rmet_5556	-	L-carnitine dehydratase/bile acid-inducible protein F
1929	 57.23	-1	2158007..2158801	+	264	94314476	-	Rmet_5557	-	short chain enoyl-CoA hydratase
1930	 57.92	-1	2159068..2159490	-	140	94314477	-	Rmet_5558	-	histone-like DNA-binding protein
1931	 46.28	-2	2160214..2162616	+	800	94314478	-	Rmet_5559	-	hypothetical protein
1932	 50.72	-2	2162721..2163692	+	323	94314479	-	Rmet_5560	-	hypothetical protein
1933	 56.22	-2	2163928..2167968	-	1346	94314480	-	Rmet_5561	-	XRE family transcriptional regulator
1934	 60.00	-1	2168168..2168482	-	104	94314481	-	Rmet_5562	-	H-NS family DNA-binding protein
1935	 54.64	-2	2168617..2170995	+	792	94314482	-	Rmet_5563	-	hypothetical protein
1936	 55.49	-2	2171170..2171706	-	178	94314483	-	Rmet_5564	-	hypothetical protein
1937	 59.33	-1	2172041..2172340	+	99	94314484	-	Rmet_5565	-	hypothetical protein
1938	 55.11	-2	2172992..2173666	-	224	94314485	-	Rmet_5566	-	hypothetical protein
1939	 54.00	-2	2173673..2174272	-	199	94314486	-	Rmet_5567	-	hypothetical protein
1940	 58.06	-1	2174559..2175209	-	216	94314487	-	Rmet_5568	-	hypothetical protein
1941	 67.94	+1	2176137..2176844	+	235	94314488	-	Rmet_5569	-	ArsR family transcriptional regulator
1942	 60.75	0	2176835..2177341	+	168	94314489	-	Rmet_5570	-	hypothetical protein
1943	 64.86	0	2177345..2178343	-	332	94314490	-	Rmet_5571	-	LysR family transcriptional regulator
1944	 63.19	0	2178697..2179644	-	315	94314491	-	Rmet_5572	-	Dyp-type peroxidase
1945	 66.67	0	2179855..2180760	-	301	94314492	-	Rmet_5573	-	LysR family transcriptional regulator
1946	 68.08	+1	2180921..2181913	+	330	94314493	-	Rmet_5574	-	hypothetical protein
1947	 66.86	0	2181971..2182990	+	339	94314494	-	Rmet_5575	-	hypothetical protein
1948	 69.04	+1	2183020..2184243	+	407	94314495	-	Rmet_5576	-	aminotransferase, class I and II
1949	 62.04	0	2184253..2184576	-	107	94314496	-	Rmet_5577	-	hypothetical protein
1950	 54.31	-2	2184785..2185051	+	88	94314497	-	Rmet_5578	-	hypothetical protein
1951	 67.75	+1	2185054..2185608	+	184	94314498	-	Rmet_5579	-	cytochrome B561
1952	 65.96	0	2185916..2187184	+	422	94314499	-	Rmet_5580	-	D-amino acid dehydrogenase small subunit
1953	 66.00	0	2187411..2189057	-	548	94314500	-	Rmet_5581	-	diguanylate cyclase
1954	 66.07	0	2189095..2189601	+	168	94314501	-	Rmet_5582	-	hypothetical protein
1955	 69.30	+1	2189634..2189975	+	113	94314502	-	Rmet_5583	-	hypothetical protein
1956	 61.01	0	2190040..2190552	-	170	94314503	-	Rmet_5584	-	putative transmembrane protein
1957	 66.39	0	2190686..2192128	-	480	94314504	-	Rmet_5585	-	major facilitator transporter
1958	 68.06	+1	2192127..2193128	+	333	94314505	-	Rmet_5586	-	LysR family transcriptional regulator
1959	 64.60	0	2193179..2193565	+	128	94314506	-	Rmet_5587	-	hypothetical protein
63.77	MEAN

3.52	STD DEV
