IslandPath Analysis: Ralstonia metallidurans CH34

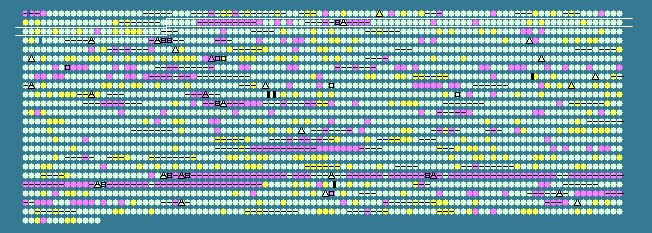

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.77   STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
125	 64.57	0	134983..135696	+	237	94312672	flgH	Rmet_3740	-	flagellar basal body L-ring protein
126	 66.58	0	135704..136888	+	394	94312673	flgI	Rmet_3741	-	flagellar basal body P-ring protein
127	 65.88	0	136888..137910	+	340	94312674	flgJ	Rmet_3742	-	peptidoglycan hydrolase
128	 64.19	0	138176..140071	+	631	94312675	flgK	Rmet_3743	-	flagellar hook-associated protein FlgK
129	 64.33	0	140127..141365	+	412	94312676	flgL	Rmet_3744	-	flagellar hook-associated protein FlgL
130	 56.74	-1	141728..142906	-	392	94312677	-	Rmet_3745	-	diguanylate cyclase
131	 57.85	-1	143187..143549	-	120	94312678	-	Rmet_3746	-	hypothetical protein
132	 59.07	-1	143806..144885	-	359	94312679	-	Rmet_3747	-	hypothetical protein
133	 58.33	-1	145207..145566	+	119	94312680	-	Rmet_3748	-	hypothetical protein
134	 57.45	-1	145586..146692	+	368	94312681	-	Rmet_3749	-	hypothetical protein
135	 54.61	-2	146751..148376	+	541	94312682	-	Rmet_3750	-	hypothetical protein
136	 56.03	-2	148373..148654	+	93	94312683	-	Rmet_3751	-	hypothetical protein
137	 57.76	-1	149244..149546	+	100	94312684	-	Rmet_3752	-	hypothetical protein
138	 59.12	-1	149882..150199	+	105	94312685	-	Rmet_3754	-	hypothetical protein
139	 56.75	-1	150269..150520	+	83	94312686	-	Rmet_3755	-	hypothetical protein
140	 58.97	-1	150604..151227	-	207	94312687	-	Rmet_3756	-	endoribonuclease L-PSP
141	 62.18	0	151582..151737	-	51	94312688	-	Rmet_3757	-	acyl-CoA dehydrogenase-like protein
142	 60.92	0	151827..152174	+	115	94312689	-	Rmet_3758	-	hypothetical protein
143	 54.36	-2	152188..152577	+	129	94312690	-	Rmet_3759	-	hypothetical protein
144	 65.17	0	152666..153664	+	332	94312691	-	Rmet_3760	-	glutaminase
145	 57.55	-1	154115..154498	-	127	94312692	-	Rmet_3762	-	hypothetical protein
146	 61.36	0	155099..155437	-	112	94312693	-	Rmet_3763	-	hypothetical protein
147	 62.70	0	155427..156131	-	234	94312694	-	Rmet_3764	-	hypothetical protein
148	 64.41	0	156146..157210	-	354	94312695	-	Rmet_3765	-	AraC family transcriptional regulator
149	 64.69	0	157294..157950	-	218	94312696	-	Rmet_3766	-	HhH-GPD
150	 66.49	0	157953..158504	-	183	94312697	-	Rmet_3767	-	methylated-DNA--protein-cysteine methyltransferase
151	 58.85	-1	158553..158744	-	63	94312698	-	Rmet_3768	-	hypothetical protein
152	 62.74	0	158829..159413	-	194	94312699	-	Rmet_3769	-	DNA-N1-methyladenine dioxygenase
153	 60.00	-1	159585..159884	+	99	94312700	-	Rmet_3770	-	transposase IS3/IS911
154	 61.74	0	159881..160774	+	297	94312701	-	Rmet_3771	-	integrase catalytic subunit
155	 54.61	-2	160848..161129	+	93	94312702	-	Rmet_3772	-	hypothetical protein
156	 56.12	-2	161126..162433	+	435	94312703	-	Rmet_3773	-	hypothetical protein
157	 55.01	-2	162430..164145	+	571	94312704	-	Rmet_3774	-	hypothetical protein
158	 59.42	-1	164427..164702	-	91	94312705	-	Rmet_3775	-	hypothetical protein
159	 62.37	0	164820..166007	+	395	94312706	-	Rmet_3776	-	hypothetical protein
160	 60.97	0	166051..167754	+	567	94312707	-	Rmet_3777	-	AMP-dependent synthetase and ligase
161	 61.55	0	167768..168646	+	292	94312708	-	Rmet_3778	-	glyoxalase/bleomycin resistance protein/dioxygenase
162	 61.07	0	168643..169803	+	386	94312709	-	Rmet_3779	-	monooxygenase, FAD-binding
163	 65.56	0	169800..170249	+	149	94312710	-	Rmet_3780	-	thioesterase-like protein
164	 64.03	0	170270..171028	+	252	94312711	-	Rmet_3781	-	Asp/Glu racemase
165	 64.50	0	171094..172341	+	415	94312712	-	Rmet_3782	-	major facilitator transporter
166	 60.98	0	172355..173233	+	292	94312713	-	Rmet_3783	-	TetR family transcriptional regulator
167	 62.49	0	173389..174345	+	318	94312714	-	Rmet_3784	-	hypothetical protein
168	 64.21	0	174381..175562	+	393	94312715	-	Rmet_3785	-	beta-lactamase-like protein
169	 58.59	-1	175703..176878	+	391	94312716	-	Rmet_3786	-	porin
170	 62.73	0	177251..177682	+	143	94312717	-	Rmet_3787	-	hypothetical protein
171	 62.15	0	178023..179594	+	523	94312718	-	Rmet_3788	-	acyl-CoA synthetase
172	 62.69	0	179660..180640	+	326	94312719	-	Rmet_3789	-	hypothetical protein
173	 64.10	0	180804..182594	-	596	94312720	-	Rmet_3790	-	acyl-CoA dehydrogenase-like protein
174	 62.50	0	182655..183878	-	407	94312721	-	Rmet_3791	-	L-carnitine dehydratase/bile acid-inducible protein F
175	 63.71	0	183894..184874	-	326	94312722	-	Rmet_3792	-	hypothetical protein
176	 59.67	-1	185022..185936	+	304	94312723	-	Rmet_3793	-	LysR family transcriptional regulator
177	 62.69	0	185948..186550	-	200	94312724	-	Rmet_3794	-	TetR family transcriptional regulator
178	 66.38	0	186741..187796	-	351	94312725	-	Rmet_3795	-	lipase chaperone
179	 65.43	0	187783..188916	-	377	94312726	-	Rmet_3796	-	alpha/beta hydrolase fold
180	 62.51	0	189231..190193	+	320	94312727	-	Rmet_3797	-	hypothetical protein
181	 65.23	0	190398..191930	+	510	94312728	-	Rmet_3798	-	AMP-dependent synthetase and ligase
182	 63.46	0	191965..192867	-	300	94312729	-	Rmet_3799	-	LysR family transcriptional regulator
183	 65.05	0	192976..193839	+	287	94312730	-	Rmet_3800	-	enoyl-CoA hydratase / short chain enoyl-CoA hydratase
184	 65.06	0	193903..194895	-	330	94312731	-	Rmet_3801	-	hypothetical protein
185	 67.28	0	194906..196543	-	545	94312732	-	Rmet_3802	-	AMP-dependent synthetase and ligase
186	 63.32	0	196633..197826	+	397	94312733	-	Rmet_3803	-	acyl-CoA dehydrogenase-like protein
187	 67.75	+1	197844..198953	+	369	94312734	-	Rmet_3804	-	acyl-CoA dehydrogenase-like protein
188	 65.04	0	198980..200146	+	388	94312735	-	Rmet_3805	-	acetyl-CoA acetyltransferase
189	 64.66	0	200161..200559	+	132	94312736	-	Rmet_3806	-	hypothetical protein
190	 66.22	0	200573..201466	+	297	94312737	-	Rmet_3807	-	MaoC-like dehydratase
191	 65.51	0	201484..202776	+	430	94312738	-	Rmet_3808	-	L-carnitine dehydratase/bile acid-inducible protein F
192	 65.32	0	202832..204022	-	396	94312739	-	Rmet_3809	-	L-carnitine dehydratase/bile acid-inducible protein F
193	 63.36	0	204129..205247	-	372	94312740	-	Rmet_3810	-	LysR family transcriptional regulator
194	 67.58	+1	205246..206229	+	327	94312741	-	Rmet_3811	-	hypothetical protein
195	 61.36	0	206261..206731	+	156	94312742	-	Rmet_3812	-	MaoC-like dehydratase
196	 65.24	0	206721..207698	+	325	94312743	-	Rmet_3813	-	hypothetical protein
197	 64.38	0	208109..208720	-	203	94312744	-	Rmet_3814	-	hypothetical protein
198	 65.19	0	208717..210339	-	540	94312745	-	Rmet_3815	-	peptidoglycan binding domain-containing protein
199	 67.10	0	210454..211149	-	231	94312746	-	Rmet_3816	-	TetR family transcriptional regulator
200	 65.45	0	211247..212893	+	548	94312747	-	Rmet_3817	-	acyl-CoA dehydrogenase-like protein
201	 65.87	0	213032..214537	+	501	94312748	-	Rmet_3818	-	AMP-dependent synthetase and ligase
202	 64.51	0	214661..215635	+	324	94312749	-	Rmet_3819	-	cysteine synthase A
203	 67.45	+1	215755..216906	+	383	94312750	-	Rmet_3820	-	putative cytochrome p450 oxidoreductase
204	 65.83	0	216922..217278	+	118	94312751	-	Rmet_3821	-	antibiotic biosynthesis monooxygenase
205	 67.20	0	217297..218052	+	251	94312752	-	Rmet_3822	-	hypothetical protein
206	 71.02	+2	218156..219280	+	374	94312753	-	Rmet_3823	-	esterase, PHB depolymerase
207	 64.40	0	219350..219658	-	102	94312754	-	Rmet_3824	-	ferredoxin
208	 66.67	0	219655..220392	-	245	94312755	-	Rmet_3825	-	hypothetical protein
209	 65.51	0	220465..222453	+	662	94312756	-	Rmet_3826	-	hypothetical protein
210	 67.80	+1	222534..223148	+	204	94312757	-	Rmet_3827	-	hypothetical protein
211	 63.41	0	223145..223819	+	224	94312758	-	Rmet_3828	-	HD superfamily hydrolase
212	 62.72	0	223991..224548	+	185	94312759	-	Rmet_3829	-	hypothetical protein
213	 59.07	-1	224545..225255	+	236	94312760	-	Rmet_3830	-	hypothetical protein
214	 66.07	0	225379..226212	-	277	94312761	-	Rmet_3831	-	hypothetical protein
215	 66.05	0	226293..227261	-	322	94312762	-	Rmet_3832	-	hypothetical protein
216	 67.84	+1	227446..228384	-	312	94312763	-	Rmet_3833	-	LysR family transcriptional regulator
217	 66.92	0	228527..229699	+	390	94312764	-	Rmet_3834	-	L-carnitine dehydratase/bile acid-inducible protein F
218	 68.59	+1	229712..230542	+	276	94312765	-	Rmet_3835	-	HpcH/HpaI aldolase
219	 69.28	+1	230873..232210	+	445	94312766	-	Rmet_3836	-	outer membrane efflux protein
220	 67.32	+1	232194..233411	+	405	94312767	-	Rmet_3837	-	secretion protein HlyD
221	 62.14	0	236768..237784	+	338	94312768	-	Rmet_3840	-	diguanylate cyclase
222	 62.87	0	238081..239895	+	604	94312769	-	Rmet_3841	-	tannase and feruloyl esterase
223	 64.97	0	239916..240446	-	176	94312770	-	Rmet_3842	-	hypothetical protein
224	 62.90	0	240562..241065	+	167	94312771	-	Rmet_3843	-	alkylhydroperoxidase AhpD core
63.77	MEAN

3.52	STD DEV
