IslandPath Analysis: Ralstonia metallidurans CH34

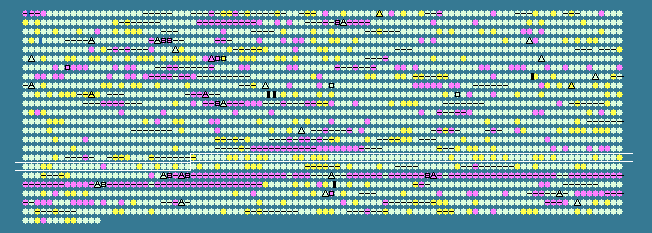

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1629	 68.38	+1	1809358..1810701	+	447	94314176	-	Rmet_5257	-	hypothetical protein
1630	 63.41	0	1810698..1810973	+	91	94314177	-	Rmet_5258	-	putative flagellar protein
1631	 63.86	0	1811044..1811364	-	106	94314178	-	Rmet_5259	-	flagellar hook-basal body complex protein (FliE)
1632	 60.74	0	1811468..1811737	+	89	94314179	-	Rmet_5260	-	hypothetical protein
1633	 66.13	0	1811734..1813425	+	563	94314180	fliF	Rmet_5261	-	flagellar MS-ring protein
1634	 63.81	0	1813412..1814425	+	337	94314181	fliG	Rmet_5262	-	flagellar motor switch protein G
1635	 70.37	+1	1814412..1815248	+	278	94314182	fliH	Rmet_5263	-	flagellar assembly protein H
1636	 68.04	+1	1815241..1816701	+	486	94314183	-	Rmet_5264	-	ATPase FliI/YscN
1637	 66.67	0	1816694..1817146	+	150	94314184	-	Rmet_5265	-	flagellar export FliJ
1638	 70.09	+1	1817162..1818649	+	495	94314185	-	Rmet_5266	-	flagellar hook-length control protein
1639	 62.42	0	1818832..1819866	+	344	94314186	-	Rmet_5267	-	alpha/beta hydrolase fold
1640	 67.56	+1	1819924..1820595	+	223	94314187	-	Rmet_5268	-	DNA-N1-methyladenine dioxygenase
1641	 67.55	+1	1820629..1822221	+	530	94314188	-	Rmet_5269	-	sodium/sulphate symporter
1642	 65.03	0	1822273..1822578	-	101	94314189	-	Rmet_5270	-	XRE family transcriptional regulator
1643	 65.21	0	1822767..1824551	+	594	94314190	-	Rmet_5271	-	dihydroxy-acid dehydratase
1644	 65.83	0	1824559..1825278	+	239	94314191	-	Rmet_5272	-	hypothetical protein
1645	 65.12	0	1825358..1826326	+	322	94314192	-	Rmet_5273	-	hypothetical protein
1646	 67.94	+1	1826370..1827308	+	312	94314193	-	Rmet_5274	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1647	 69.18	+1	1827416..1828249	+	277	94314194	-	Rmet_5275	-	intradiol ring-cleavage dioxygenase
1648	 65.60	0	1828535..1830124	+	529	94314195	-	Rmet_5276	-	EAL-containing signal transduction protein
1649	 68.61	+1	1830199..1830816	+	205	94314196	-	Rmet_5277	-	lysine exporter protein LysE/YggA
1650	 67.27	0	1830871..1831866	-	331	94314197	-	Rmet_5278	-	hypothetical protein
1651	 69.26	+1	1831967..1832893	-	308	94314198	-	Rmet_5279	-	LysR family transcriptional regulator
1652	 61.79	0	1832956..1833591	+	211	94314199	-	Rmet_5280	-	hypothetical protein
1653	 65.20	0	1833756..1834097	+	113	94314200	-	Rmet_5281	-	putative signal peptide protein
1654	 60.50	0	1834261..1835265	-	334	94314201	-	Rmet_5282	-	dienelactone hydrolase
1655	 61.94	0	1835532..1836884	+	450	94314202	-	Rmet_5283	-	beta-lactamase
1656	 65.03	0	1837047..1838450	-	467	94314203	-	Rmet_5284	-	ATP-dependent RNA helicase DbpA
1657	 63.40	0	1838782..1839762	+	326	94314204	-	Rmet_5285	-	zinc-binding alcohol dehydrogenase
1658	 60.39	0	1839833..1840900	+	355	94314205	-	Rmet_5286	-	hypothetical protein
1659	 62.94	0	1841018..1842010	+	330	94314206	-	Rmet_5287	-	hypothetical protein
1660	 61.76	0	1842320..1843480	+	386	94314207	-	Rmet_5288	-	porin
1661	 63.64	0	1843575..1844333	+	252	94314208	-	Rmet_5289	-	short-chain dehydrogenase/reductase SDR
1662	 62.91	0	1844413..1845237	-	274	94314209	-	Rmet_5290	-	short-chain dehydrogenase/reductase SDR
1663	 62.71	0	1845221..1846156	-	311	94314210	-	Rmet_5291	-	hypothetical protein
1664	 63.71	0	1846357..1847202	+	281	94314211	-	Rmet_5292	-	taurine catabolism dioxygenase TauD/TfdA
1665	 62.63	0	1847230..1847799	+	189	94314212	-	Rmet_5293	-	hypothetical protein
1666	 63.95	0	1847854..1848846	-	330	94314213	-	Rmet_5294	-	hypothetical protein
1667	 64.46	0	1849133..1850176	+	347	94314214	-	Rmet_5295	-	AraC family transcriptional regulator
1668	 63.58	0	1850421..1853012	-	863	94314215	-	Rmet_5296	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1669	 65.89	0	1853434..1853949	+	171	94314216	-	Rmet_5297	-	flagellar basal body-associated protein FliL
1670	 63.40	0	1854096..1855106	+	336	94314217	-	Rmet_5298	-	flagellar motor switch protein FliM
1671	 64.97	0	1855099..1855569	+	156	94314218	-	Rmet_5299	-	flagellar motor switch FliN
1672	 67.91	+1	1855566..1856126	+	186	94314219	-	Rmet_5300	-	flagellar biosynthesis protein, FliO
1673	 65.53	0	1856123..1856917	+	264	94314220	fliP	Rmet_5301	-	flagellar biosynthesis protein FliP
1674	 61.85	0	1856931..1857200	+	89	94314221	fliQ	Rmet_5302	-	flagellar biosynthesis protein FliQ
1675	 64.89	0	1857246..1858031	+	261	94314222	-	Rmet_5303	-	flagellar biosynthetic protein FliR
1676	 68.04	+1	1858267..1859796	+	509	94314223	-	Rmet_5304	-	metallophosphoesterase
1677	 67.74	+1	1859807..1861108	+	433	94314224	-	Rmet_5305	-	di-haem cytochrome c peroxidase
1678	 64.61	0	1861078..1862775	-	565	94314225	-	Rmet_5306	-	methyl-accepting chemotaxis sensory transducer
1679	 67.83	+1	1863022..1864227	+	401	94314226	-	Rmet_5307	-	NnrS
1680	 61.33	0	1864464..1864763	-	99	94314227	-	Rmet_5308	-	hypothetical protein
1681	 67.77	+1	1864924..1870158	-	1744	94314228	-	Rmet_5309	-	ATP-binding region, ATPase-like protein
1682	 65.36	0	1870208..1870894	-	228	94314229	-	Rmet_5310	-	two component LuxR family transcriptional regulator
1683	 63.03	0	1871209..1871895	+	228	94314230	-	Rmet_5311	-	isochorismatase hydrolase
1684	 65.33	0	1871953..1872774	+	273	94314231	-	Rmet_5312	-	alpha/beta hydrolase fold
1685	 65.22	0	1872861..1874726	+	621	94314232	-	Rmet_5313	-	amidohydrolase 3
1686	 67.38	+1	1874757..1875179	+	140	94314233	-	Rmet_5314	-	DoxX
1687	 69.01	+1	1875198..1876817	+	539	94314234	-	Rmet_5315	-	protein of unknown function DUF894, DitE
1688	 65.58	0	1876883..1877158	+	91	94314235	-	Rmet_5316	-	hypothetical protein
1689	 67.57	+1	1877249..1877581	+	110	94314236	-	Rmet_5317	-	response regulator receiver domain-containing protein
1690	 65.46	0	1877590..1878333	-	247	94314237	-	Rmet_5318	-	two component LuxR family transcriptional regulator
1691	 62.65	0	1878408..1881545	-	1045	94314238	-	Rmet_5319	-	heavy metal efflux pump CzcA
1692	 64.61	0	1881597..1882811	-	404	94314239	-	Rmet_5320	-	secretion protein HlyD
1693	 66.47	0	1882981..1884537	+	518	94314240	-	Rmet_5321	-	RND efflux system, outer membrane lipoprotein, NodT
1694	 64.28	0	1884527..1886116	-	529	94314241	-	Rmet_5322	-	periplasmic sensor signal transduction histidine kinase
1695	 62.96	0	1886226..1886846	+	206	94314242	-	Rmet_5323	-	two component LuxR family transcriptional regulator
1696	 69.23	+1	1886854..1887165	-	103	94314243	-	Rmet_5324	-	putative signal peptide protein
1697	 65.88	0	1887470..1888234	+	254	94314244	-	Rmet_5325	-	hypothetical protein
1698	 65.92	0	1888283..1888948	+	221	94314245	-	Rmet_5326	-	two component transcriptional regulator
1699	 66.25	0	1888924..1890366	+	480	94314246	-	Rmet_5327	-	periplasmic sensor signal transduction histidine kinase
1700	 69.66	+1	1890351..1891886	-	511	94314247	-	Rmet_5328	-	RND efflux system, outer membrane lipoprotein, NodT
1701	 64.23	0	1891886..1895005	-	1039	94314248	-	Rmet_5329	-	heavy metal efflux pump CzcA
1702	 65.72	0	1894998..1896155	-	385	94314249	-	Rmet_5330	-	secretion protein HlyD
1703	 64.31	0	1896333..1897010	+	225	94314250	-	Rmet_5331	-	two component transcriptional regulator
1704	 69.28	+1	1897012..1898427	+	471	94314251	-	Rmet_5332	-	periplasmic sensor signal transduction histidine kinase
1705	 68.63	+1	1898610..1899017	-	135	94314252	-	Rmet_5333	-	hypothetical protein
1706	 64.87	0	1899029..1899751	+	240	94314253	-	Rmet_5334	-	MgtC/SapB transporter
1707	 65.62	0	1899791..1900846	-	351	94314254	-	Rmet_5335	-	beta-lactamase-like protein
1708	 63.79	0	1901038..1901523	+	161	94314255	-	Rmet_5336	-	hypothetical protein
1709	 65.45	0	1901643..1902302	-	219	94314256	-	Rmet_5337	-	hypothetical protein
1710	 61.87	0	1902299..1902736	-	145	94314257	-	Rmet_5338	-	hypothetical protein
1711	 61.93	0	1902783..1903457	-	224	94314258	-	Rmet_5339	-	curli production assembly/transport component CsgG
1712	 63.95	0	1903516..1905282	-	588	94314259	-	Rmet_5340	-	TonB box-like protein
1713	 64.35	0	1906532..1915546	-	3004	94314260	-	Rmet_5341	-	adhesin
1714	 49.19	-2	1915682..1915990	+	102	94314261	-	Rmet_5342	-	hypothetical protein
1715	 62.36	0	1915968..1916315	-	115	94314262	-	Rmet_5343	-	hypothetical protein
1716	 61.62	0	1916411..1917004	+	197	94314263	-	Rmet_5344	-	hypothetical protein
1717	 62.92	0	1916934..1917761	-	275	94314264	-	Rmet_5345	-	transcription regulator XpsR transcription regulator protein
1718	 64.91	0	1917970..1918881	+	303	94314265	-	Rmet_5346	-	hypothetical protein
1719	 65.93	0	1918901..1919719	-	272	94314266	-	Rmet_5347	-	cytochrome c, class I
1720	 68.07	+1	1919768..1920763	-	331	94314267	-	Rmet_5348	-	hypothetical protein
1721	 65.32	0	1920846..1923371	-	841	94314268	-	Rmet_5349	-	sigma-54 factor, interaction region
1722	 65.99	0	1923397..1924587	+	396	94314269	-	Rmet_5350	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1723	 68.07	+1	1924657..1925871	+	404	94314270	-	Rmet_5351	-	major facilitator transporter
1724	 65.99	0	1926047..1926340	+	97	94314271	-	Rmet_5352	-	hypothetical protein
1725	 64.83	0	1926656..1927309	+	217	94314272	-	Rmet_5353	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1726	 68.46	+1	1927572..1928906	+	444	94314273	-	Rmet_5354	-	hypothetical protein
1727	 65.23	0	1928919..1929824	+	301	94314274	-	Rmet_5355	-	hypothetical protein
1728	 64.18	0	1929873..1930838	-	321	94314275	-	Rmet_5356	-	hypothetical protein
63.77	MEAN

3.52	STD DEV
