IslandPath Analysis: Ralstonia metallidurans CH34

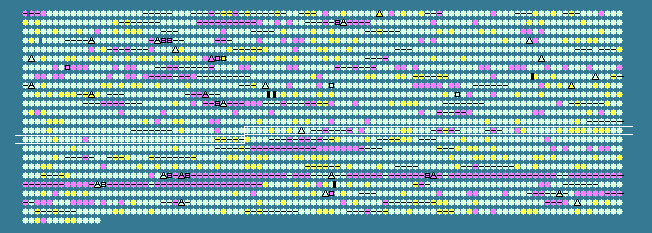

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1338	 63.88	0	1484588..1487956	-	1122	94313885	-	Rmet_4963	-	histidine kinase
1339	 63.24	0	1488210..1488881	-	223	94313886	-	Rmet_4964	-	two component LuxR family transcriptional regulator
1340	 62.17	0	1489159..1489803	-	214	94313887	-	Rmet_4965	-	two component LuxR family transcriptional regulator
1341	 65.51	0	1489978..1492833	-	951	94313888	-	Rmet_4966	-	histidine kinase
1342	 69.70	+1	1493114..1493377	+	87	94313889	-	Rmet_4967	-	hypothetical protein
1343	 60.45	0	1493459..1494487	-	342	94313890	-	Rmet_4968	-	di-haem cytochrome c peroxidase
1344	 63.74	0	1494741..1495835	-	364	94313891	-	Rmet_4969	-	hypothetical protein
1345	 67.76	+1	1495832..1498303	-	823	94313892	-	Rmet_4970	-	L-carnitine dehydratase/bile acid-inducible protein F
1346	 66.78	0	1498386..1501844	-	1152	94313893	-	Rmet_4971	-	carbamoyl-phosphate synthase L chain, ATP-binding
1347	 64.77	0	1501854..1503542	+	562	94313894	-	Rmet_4972	-	integrase catalytic subunit
1348	 64.03	0	1503545..1504453	+	302	94313895	-	Rmet_4973	-	TniB
1349	 61.66	0	1504450..1505667	+	405	94313896	-	Rmet_4974	-	TniQ
1350	 61.30	0	1505728..1506342	+	204	94313897	-	Rmet_4975	-	resolvase-like protein
1351	 55.56	-2	1506409..1506840	-	143	94313898	-	Rmet_4976	-	hypothetical protein
1352	 60.44	0	1506869..1508200	-	443	94313899	-	Rmet_4977	-	periplasmic sensor signal transduction histidine kinase
1353	 62.16	0	1508197..1508862	-	221	94313900	-	Rmet_4978	-	two component transcriptional regulator
1354	 62.85	0	1508885..1509643	-	252	94313901	-	Rmet_4979	-	hypothetical protein
1355	 59.33	-1	1509653..1510102	-	149	94313902	-	Rmet_4980	-	putative signal peptide protein
1356	 61.94	0	1510132..1510914	-	260	94313903	-	Rmet_4981	-	hypothetical protein
1357	 58.12	-1	1510985..1511581	-	198	94313904	-	Rmet_4982	-	undecaprenyl-diphosphatase
1358	 61.31	0	1511638..1511973	-	111	94313905	-	Rmet_4983	-	peptidase
1359	 66.41	0	1512097..1512864	+	255	94313906	-	Rmet_4984	-	hypothetical protein
1360	 64.91	0	1512871..1514178	-	435	94313907	-	Rmet_4985	-	sodium/hydrogen exchanger
1361	 65.55	0	1514538..1515251	+	237	94313908	-	Rmet_4986	-	two component LuxR family transcriptional regulator
1362	 66.82	0	1515260..1517245	+	661	94313909	-	Rmet_4987	-	periplasmic sensor signal transduction histidine kinase
1363	 61.62	0	1517421..1518233	+	270	94313910	-	Rmet_4988	-	NLPA lipoprotein
1364	 67.29	+1	1518762..1521308	+	848	94313911	-	Rmet_4989	-	endonuclease/exonuclease/phosphatase
1365	 71.34	+2	1521296..1521958	+	220	94313912	-	Rmet_4990	-	rhomboid-like protein
1366	 63.96	0	1521917..1523098	-	393	94313913	-	Rmet_4991	-	porin
1367	 65.81	0	1523286..1524800	-	504	94313914	-	Rmet_4992	-	major facilitator transporter
1368	 65.59	0	1524799..1526379	+	526	94313915	-	Rmet_4993	-	major facilitator transporter
1369	 65.10	0	1526702..1527847	+	381	94313916	-	Rmet_4994	-	porin
1370	 57.36	-1	1527863..1528507	+	214	94313917	-	Rmet_4995	-	hypothetical protein
1371	 68.29	+1	1528756..1529310	-	184	94313918	-	Rmet_4996	-	hypothetical protein
1372	 51.60	-2	1529538..1529849	-	103	94313919	-	Rmet_4997	-	hypothetical protein
1373	 61.10	0	1530030..1531376	-	448	94313920	-	Rmet_4998	-	citrate carrier protein
1374	 61.21	0	1531904..1533424	-	506	94313921	-	Rmet_4999	-	hypothetical protein
1375	 61.86	0	1533468..1535006	-	512	94313922	-	Rmet_5000	-	hypothetical protein
1376	 61.46	0	1535347..1535442	-	31	94313923	-	Rmet_5001	-	hypothetical protein
1377	 63.80	0	1535544..1536869	-	441	94313924	-	Rmet_5002	-	major facilitator transporter
1378	 66.89	0	1536903..1537355	-	150	94313925	-	Rmet_5003	-	MarR family transcriptional regulator
1379	 60.28	0	1537595..1537876	+	93	94313926	-	Rmet_5004	-	antibiotic biosynthesis monooxygenase
1380	 61.93	0	1538204..1538773	-	189	94313927	-	Rmet_5005	-	isochorismatase hydrolase
1381	 63.70	0	1538776..1539213	-	145	94313928	-	Rmet_5006	-	hypothetical protein
1382	 62.50	0	1539295..1539870	+	191	94313929	-	Rmet_5007	-	hypothetical protein
1383	 57.84	-1	1539965..1540168	+	67	94313930	-	Rmet_5008	-	CsbD-like protein
1384	 67.77	+1	1540427..1541692	-	421	94313931	-	Rmet_5009	-	HI0933-like protein
1385	 60.66	0	1541767..1542399	+	210	94313932	-	Rmet_5010	-	hypothetical protein
1386	 65.14	0	1542425..1543804	-	459	94313933	-	Rmet_5011	-	mercuric reductase
1387	 64.53	0	1544106..1544573	+	155	94313934	-	Rmet_5012	-	cupin 2, barrel
1388	 65.40	0	1544735..1546309	+	524	94313935	-	Rmet_5013	-	FAD dependent oxidoreductase
1389	 66.07	0	1546368..1547375	+	335	94313936	-	Rmet_5014	-	aldo/keto reductase
1390	 68.04	+1	1547708..1549381	+	557	94313937	-	Rmet_5015	-	glucose-methanol-choline oxidoreductase
1391	 66.16	0	1549414..1551180	+	588	94313938	-	Rmet_5016	-	hypothetical protein
1392	 68.50	+1	1551212..1552633	+	473	94313939	-	Rmet_5017	-	aldehyde dehydrogenase
1393	 72.30	+2	1552713..1553351	-	212	94313940	-	Rmet_5018	-	hypothetical protein
1394	 69.75	+1	1553502..1554668	+	388	94313941	-	Rmet_5019	-	L-carnitine dehydratase/bile acid-inducible protein F
1395	 66.20	0	1554665..1555096	+	143	94313942	-	Rmet_5020	-	thioesterase superfamily protein
1396	 70.60	+1	1555148..1557715	-	855	94313943	-	Rmet_5021	-	ATP-dependent transcription regulator LuxR
1397	 67.41	+1	1557966..1560809	+	947	94313944	-	Rmet_5022	-	ATP-dependent transcription regulator LuxR
1398	 68.09	+1	1560983..1562878	+	631	94313945	-	Rmet_5023	-	feruloyl-CoA synthase
1399	 63.77	0	1562916..1564055	+	379	94313946	-	Rmet_5024	-	acyl-CoA dehydrogenase-like protein
1400	 65.91	0	1564108..1565295	+	395	94313947	-	Rmet_5025	-	lipid-transfer protein
1401	 64.85	0	1565307..1565747	+	146	94313948	-	Rmet_5026	-	hypothetical protein
1402	 63.55	0	1565761..1566177	+	138	94313949	-	Rmet_5027	-	MaoC-like dehydratase
1403	 64.85	0	1566220..1567044	+	274	94313950	-	Rmet_5028	-	short-chain dehydrogenase/reductase SDR
1404	 62.70	0	1567176..1568510	-	444	94313951	-	Rmet_5029	-	lipolytic enzyme, G-D-S-L
1405	 63.93	0	1568927..1569328	+	133	94313952	-	Rmet_5030	-	hypothetical protein
1406	 67.28	0	1569401..1570702	+	433	94313953	-	Rmet_5031	-	putative outer membrane cation efflux protein
1407	 64.95	0	1570699..1572216	+	505	94313954	-	Rmet_5032	-	secretion protein HlyD
1408	 64.46	0	1572213..1575380	+	1055	94313955	-	Rmet_5033	-	heavy metal efflux pump CzcA
1409	 63.98	0	1575377..1575748	+	123	94313956	-	Rmet_5034	-	putative signal peptide protein
1410	 61.64	0	1575870..1576088	-	72	94313957	-	Rmet_5035	-	hypothetical protein
1411	 58.97	-1	1576116..1576349	-	77	94313958	-	Rmet_5036	-	hypothetical protein
1412	 62.59	0	1576563..1577003	-	146	94313959	-	Rmet_5037	-	phenylacetic acid degradation-related protein
1413	 67.05	0	1577105..1578151	-	348	94313960	-	Rmet_5038	-	hypothetical protein
1414	 65.58	0	1578194..1580029	-	611	94313961	-	Rmet_5039	-	acetolactate synthase, large subunit
1415	 63.80	0	1580047..1580778	+	243	94313962	-	Rmet_5040	-	GntR family transcriptional regulator
1416	 63.51	0	1580857..1582059	-	400	94313963	-	Rmet_5041	-	diguanylate cyclase
1417	 62.79	0	1582181..1582438	-	85	94313964	-	Rmet_5042	-	hypothetical protein
1418	 61.19	0	1582483..1583139	+	218	94313965	-	Rmet_5043	-	phasin
1419	 63.59	0	1583253..1584326	-	357	94313966	-	Rmet_5044	-	MscS mechanosensitive ion channel
1420	 67.17	0	1584488..1585477	-	329	94313967	-	Rmet_5045	-	formimidoylglutamase
1421	 63.79	0	1585467..1586891	-	474	94313968	-	Rmet_5046	-	amino acid permease-associated region
1422	 66.60	0	1586935..1588491	-	518	94313969	-	Rmet_5047	-	histidine ammonia-lyase
1423	 65.60	0	1588507..1590186	-	559	94313970	-	Rmet_5048	-	urocanate hydratase
1424	 64.81	0	1590405..1591160	-	251	94313971	-	Rmet_5049	-	histidine utilization repressor
1425	 65.57	0	1591434..1593536	-	700	94313972	-	Rmet_5050	-	hypothetical protein
1426	 65.97	0	1593585..1594445	-	286	94313973	-	Rmet_5051	-	hypothetical protein
1427	 66.67	0	1594741..1595799	+	352	94313974	-	Rmet_5052	-	twin-arginine translocation pathway signal
1428	 66.05	0	1595868..1597478	-	536	94313975	-	Rmet_5053	-	ABC transporter related
1429	 64.32	0	1597672..1598865	-	397	94313976	-	Rmet_5054	-	peptidase M24
1430	 63.78	0	1598894..1599862	-	322	94313977	-	Rmet_5055	-	hypothetical protein
1431	 62.07	0	1599988..1600422	+	144	94313978	-	Rmet_5056	-	hypothetical protein
1432	 63.72	0	1600491..1601135	-	214	94313979	-	Rmet_5057	-	TetR family transcriptional regulator
1433	 67.58	+1	1601383..1602369	+	328	94313980	-	Rmet_5058	-	hypothetical protein
1434	 67.40	+1	1602411..1603091	+	226	94313981	-	Rmet_5059	-	3-oxoacid CoA-transferase, subunit A
1435	 65.38	0	1603084..1603785	+	233	94313982	-	Rmet_5060	-	butyryl-CoA:acetate CoA transferase
1436	 68.15	+1	1603838..1604845	+	335	94313983	-	Rmet_5061	-	hypothetical protein
1437	 66.89	0	1604864..1605754	-	296	94313984	-	Rmet_5062	-	intradiol ring-cleavage dioxygenase
63.77	MEAN

3.52	STD DEV
