IslandPathversion 1.0

IslandPath Analysis: Ralstonia metallidurans CH34

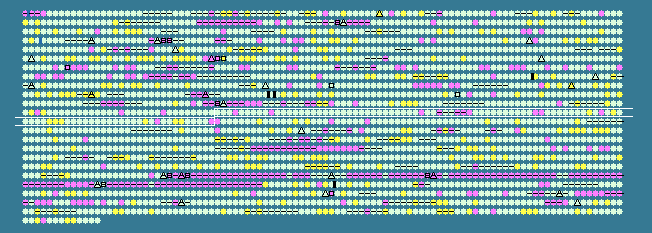

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1133	 64.63	0	1257351..1258037	-	228	94313680	-	Rmet_4758	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1134	 62.71	0	1258083..1258385	+	100	94313681	-	Rmet_4759	-	hypothetical protein
1135	 65.99	0	1258390..1259280	-	296	94313682	-	Rmet_4760	-	XRE family transcriptional regulator
1136	 50.68	-2	1259590..1259808	+	72	94313683	-	Rmet_4761	-	hypothetical protein
1137	 63.28	0	1259810..1260961	+	383	94313684	-	Rmet_4762	-	hypothetical protein
1138	 61.75	0	1261138..1261422	+	94	94313685	-	Rmet_4763	-	plasmid maintenance system killer
1139	 63.79	0	1261432..1261779	+	115	94313686	-	Rmet_4764	-	XRE family plasmid maintenance system antidote protein
1140	 63.62	0	1261894..1263207	+	437	94313687	-	Rmet_4765	-	hypothetical protein
1141	 64.05	0	1263607..1264944	+	445	94313688	-	Rmet_4766	-	diguanylate cyclase/phosphodiesterase
1142	 55.04	-2	1265089..1265217	+	42	94313689	-	Rmet_4767	-	entericidin EcnAB
1143	 64.02	0	1265336..1265977	-	213	94313690	-	Rmet_4768	-	2-keto-3-deoxy-phosphogluconate aldolase
1144	 64.21	0	1266081..1267016	-	311	94313691	-	Rmet_4769	-	PfkB
1145	 64.94	0	1267074..1268345	-	423	94313692	-	Rmet_4770	-	D-serine deaminase (D-serine dehydratase)
1146	 65.89	0	1268478..1269383	+	301	94313693	-	Rmet_4771	-	RpiR family transcriptional regulator
1147	 67.14	0	1269386..1270849	+	487	94313694	-	Rmet_4772	-	amidohydrolase 3
1148	 63.61	0	1270864..1271256	+	130	94313695	-	Rmet_4773	-	endoribonuclease L-PSP
1149	 64.17	0	1271430..1272791	+	453	94313696	-	Rmet_4774	-	gluconate transporter
1150	 63.71	0	1272926..1274107	+	393	94313697	-	Rmet_4775	-	extracellular ligand-binding receptor
1151	 64.32	0	1274145..1274612	-	155	94313698	-	Rmet_4776	-	GCN5-related N-acetyltransferase
1152	 64.00	0	1274801..1275325	+	174	94313699	-	Rmet_4777	-	hypothetical protein
1153	 66.52	0	1275346..1276047	-	233	94313700	-	Rmet_4778	-	ABC transporter related
1154	 66.14	0	1276040..1276792	-	250	94313701	-	Rmet_4779	-	ABC transporter related
1155	 64.46	0	1276789..1277784	-	331	94313702	-	Rmet_4780	-	inner-membrane translocator
1156	 66.21	0	1277781..1278647	-	288	94313703	-	Rmet_4781	-	inner-membrane translocator
1157	 65.80	0	1278816..1279739	+	307	94313704	-	Rmet_4782	-	twin-arginine translocation pathway signal
1158	 66.15	0	1279779..1281140	+	453	94313705	-	Rmet_4783	-	major facilitator transporter
1159	 64.32	0	1281251..1282357	+	368	94313706	-	Rmet_4784	-	zinc-binding alcohol dehydrogenase
1160	 66.31	0	1282369..1283217	+	282	94313707	-	Rmet_4785	-	putative esterase
1161	 61.59	0	1283270..1283584	-	104	94313708	-	Rmet_4786	-	cold-shock protein, DNA-binding
1162	 63.70	0	1283694..1285211	+	505	94313709	-	Rmet_4787	-	amidase
1163	 62.91	0	1285266..1285931	-	221	94313710	-	Rmet_4788	-	NADPH-dependent FMN reductase
1164	 63.35	0	1286169..1286981	-	270	94313711	-	Rmet_4789	-	lipoprotein YaeC
1165	 66.13	0	1287213..1288703	-	496	94313712	-	Rmet_4790	-	RND efflux system, outer membrane lipoprotein, NodT
1166	 65.86	0	1288700..1289686	-	328	94313713	-	Rmet_4791	-	secretion protein HlyD
1167	 59.62	-1	1289683..1289895	-	70	94313714	-	Rmet_4792	-	hypothetical protein
1168	 64.85	0	1289892..1291871	-	659	94313715	-	Rmet_4793	-	fusaric acid resistance protein region
1169	 65.80	0	1291877..1292335	-	152	94313716	-	Rmet_4794	-	MarR family transcriptional regulator
1170	 57.59	-1	1292366..1293037	+	223	94313717	-	Rmet_4795	-	hypothetical protein
1171	 62.90	0	1293333..1296068	+	911	94313718	-	Rmet_4796	-	Rhs element Vgr protein
1172	 64.82	0	1296119..1300999	+	1626	94313719	-	Rmet_4797	-	YD repeat-containing protein
1173	 35.34	-2	1301011..1301259	+	82	94313720	-	Rmet_4798	-	hypothetical protein
1174	 42.32	-2	1301802..1302335	+	177	94313721	-	Rmet_4799	-	hypothetical protein
1175	 58.67	-1	1302332..1302781	+	149	94313722	-	Rmet_4800	-	hypothetical protein
1176	 61.42	0	1302813..1303079	+	88	94313723	-	Rmet_4801	-	PAAR
1177	 64.77	0	1303340..1303603	+	87	94313724	-	Rmet_4802	-	hypothetical protein
1178	 64.42	0	1303619..1304242	+	207	94313725	-	Rmet_4803	-	hypothetical protein
1179	 63.67	0	1304260..1305261	-	333	94313726	-	Rmet_4804	-	L-threonine 3-dehydrogenase
1180	 63.84	0	1305258..1306460	-	400	94313727	-	Rmet_4805	-	2-amino-3-ketobutyrate coenzyme A ligase
1181	 66.34	0	1306554..1307165	+	203	94313728	-	Rmet_4806	-	XRE family transcriptional regulator
1182	 63.51	0	1307451..1307735	+	94	94313729	-	Rmet_4807	-	hypothetical protein
1183	 64.11	0	1307772..1309139	-	455	94313730	-	Rmet_4808	-	di-haem cytochrome c peroxidase
1184	 65.40	0	1309379..1311508	+	709	94313731	-	Rmet_4809	-	phosphoesterase
1185	 66.60	0	1311582..1313126	+	514	94313732	-	Rmet_4810	-	major facilitator transporter
1186	 52.86	-2	1313142..1313438	+	98	94313733	-	Rmet_4811	-	hypothetical protein
1187	 59.08	-1	1313435..1313737	+	100	94313734	-	Rmet_4812	-	hypothetical protein
1188	 65.28	0	1314043..1314762	-	239	94313735	-	Rmet_4813	-	short-chain dehydrogenase/reductase SDR
1189	 63.55	0	1314942..1315808	+	288	94313736	-	Rmet_4814	-	hypothetical protein
1190	 64.69	0	1315805..1316410	-	201	94313737	-	Rmet_4815	-	GCN5-related N-acetyltransferase
1191	 62.65	0	1316472..1316969	+	165	94313738	-	Rmet_4816	-	putative transcriptional regulator
1192	 66.29	0	1317282..1318595	+	437	94313739	-	Rmet_4817	-	major facilitator transporter
1193	 64.99	0	1318633..1321194	+	853	94313740	-	Rmet_4818	-	assimilatory nitrite reductase (NAD(P)H) large subunit precursor
1194	 66.42	0	1321220..1321621	+	133	94313741	-	Rmet_4819	-	assimilatory nitrite reductase (NAD(P)H) small subunit
1195	 67.47	+1	1321675..1322916	+	413	94313742	-	Rmet_4820	-	assimilatory nitrate reductase (NADH) beta subunit
1196	 66.63	0	1322935..1325682	+	915	94313743	-	Rmet_4821	-	assimilatory nitrate reductase (NADH) alpha subunit apoprotein
1197	 53.11	-2	1325883..1328087	-	734	94313744	-	Rmet_4822	-	hypothetical protein
1198	 65.07	0	1328631..1329257	+	208	94313745	-	Rmet_4823	-	hypothetical protein
1199	 68.30	+1	1329247..1330227	+	326	94313746	-	Rmet_4824	-	ornithine cyclodeaminase
1200	 64.81	0	1330251..1331219	+	322	94313747	-	Rmet_4825	-	serine/threonine dehydratase
1201	 63.57	0	1331282..1332736	-	484	94313748	-	Rmet_4826	-	EmrB/QacA family drug resistance transporter
1202	 62.42	0	1332905..1333963	-	352	94313749	-	Rmet_4827	-	hypothetical protein
1203	 66.32	0	1334032..1335759	-	575	94313750	-	Rmet_4828	-	glycosyl transferase family protein
1204	 66.67	0	1335998..1336705	+	235	94313751	-	Rmet_4829	-	two component transcriptional regulator
1205	 67.69	+1	1336702..1338075	+	457	94313752	-	Rmet_4830	-	histidine kinase
1206	 69.52	+1	1338124..1339350	+	408	94313753	-	Rmet_4831	-	chromate transporter
1207	 67.85	+1	1339331..1340008	+	225	94313754	-	Rmet_4832	-	hypothetical protein
1208	 62.86	0	1340685..1340999	+	104	94313755	-	Rmet_4833	-	hypothetical protein
1209	 64.41	0	1341126..1342187	-	353	94313756	-	Rmet_4834	-	porin
1210	 66.91	0	1342504..1344984	+	826	94313757	-	Rmet_4835	-	glycosyl transferase family protein
1211	 66.67	0	1345012..1345776	-	254	94313758	-	Rmet_4836	-	diguanylate phosphodiesterase
1212	 66.90	0	1345976..1347268	-	430	94313759	-	Rmet_4837	-	twin-arginine translocation pathway signal
1213	 66.60	0	1347287..1348867	-	526	94313760	-	Rmet_4838	-	hypothetical protein
1214	 66.30	0	1349163..1350239	+	358	94313761	-	Rmet_4839	-	LacI family transcription regulator
1215	 64.42	0	1350302..1351324	+	340	94313762	-	Rmet_4840	-	putative periplasmic solute-binding protein
1216	 66.42	0	1351348..1352166	+	272	94313763	-	Rmet_4841	-	binding-protein-dependent transport systems inner membrane component
1217	 64.38	0	1352300..1353175	+	291	94313764	-	Rmet_4842	-	binding-protein-dependent transport systems inner membrane component
1218	 67.23	0	1353168..1354226	+	352	94313765	-	Rmet_4843	-	ABC transporter related
1219	 67.24	0	1354223..1355095	+	290	94313766	-	Rmet_4844	-	metallophosphoesterase
1220	 61.45	0	1355217..1356002	+	261	94313767	-	Rmet_4845	-	hypothetical protein
1221	 67.61	+1	1356162..1357217	+	351	94313768	-	Rmet_4846	-	TRAP dicarboxylate transporter- DctP subunit
1222	 65.14	0	1357451..1359154	+	567	94313769	-	Rmet_4847	-	YidE/YbjL duplication
1223	 59.80	-1	1359250..1359642	-	130	94313770	-	Rmet_4848	-	alkylphosphonate utilization operon protein PhnA
1224	 65.77	0	1359796..1360689	+	297	94313771	-	Rmet_4849	-	hypothetical protein
1225	 64.04	0	1360736..1361686	-	316	94313772	-	Rmet_4850	-	LysR family transcriptional regulator
1226	 68.28	+1	1361777..1363015	+	412	94313773	-	Rmet_4851	-	L-carnitine dehydratase/bile acid-inducible protein F
1227	 68.25	+1	1363015..1364025	+	336	94313774	-	Rmet_4852	-	zinc-binding alcohol dehydrogenase
1228	 66.77	0	1364082..1365026	+	314	94313775	-	Rmet_4853	-	hypothetical protein
1229	 64.62	0	1365282..1365917	+	211	94313776	-	Rmet_4854	-	two component LuxR family transcriptional regulator
1230	 65.93	0	1365930..1367705	+	591	94313777	-	Rmet_4855	-	periplasmic sensor hybrid histidine kinase
1231	 67.15	0	1367862..1369313	+	483	94313778	-	Rmet_4856	-	aldehyde dehydrogenase (acceptor)
1232	 57.74	-1	1369426..1369593	-	55	94313779	-	Rmet_4857	-	hypothetical protein
63.77	MEAN

3.52	STD DEV
