IslandPath Analysis: Pyrobaculum islandicum DSM 4184

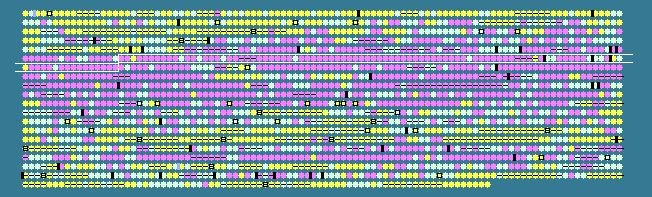

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.97 STD DEV: 7.27
Pyrobaculum islandicum DSM 4184, complete genome - 1..1826402
1978 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
517	 40.07	-1	486406..486954	-	182	119872037	-	Pisl_0523	-	thiol:disulphide interchange protein, putative
518	 41.06	-1	487027..487764	+	245	119872038	-	Pisl_0524	-	hypothetical protein
519	 60.28	+1	487836..490370	+	844	119872039	-	Pisl_0525	-	ribonucleoside-diphosphate reductase, adenosylcobalamin-dependent
520	 41.35	-1	490417..490890	+	157	119872040	-	Pisl_0526	-	hypothetical protein
521	 42.70	0	490950..491216	+	88	119872041	-	Pisl_0527	-	hypothetical protein
522	 44.47	0	491248..492594	+	448	119872042	-	Pisl_0528	-	seryl-tRNA synthetase
523	 39.64	-1	492694..493200	+	168	119872043	-	Pisl_0529	-	hypothetical protein
524	 44.80	0	493197..493850	+	217	119872044	pyrH	Pisl_0530	-	uridylate kinase
525	 41.79	0	493970..494383	+	137	119872045	-	Pisl_0531	-	histidine triad (HIT) protein
526	 43.51	0	494415..494876	+	153	119872046	-	Pisl_0532	-	bacterio-opsin activator
527	 45.85	0	494877..496082	-	401	119872047	-	Pisl_0533	-	translation-associated GTPase
528	 44.61	0	496100..497323	+	407	119872048	-	Pisl_0534	-	hypothetical protein
529	 44.11	0	497353..499329	+	658	119872049	-	Pisl_0535	-	CBS domain-containing protein
530	 50.16	0	499363..501579	+	738	119872050	-	Pisl_0536	-	AAA family ATPase, CDC48 subfamily protein
531	 43.49	0	501612..502133	+	173	119872051	-	Pisl_0537	-	heat shock protein Hsp20
532	 43.78	0	502130..502579	-	149	119872052	-	Pisl_0538	-	hypothetical protein
533	 44.72	0	502645..503733	+	362	119872053	-	Pisl_0539	-	THUMP domain-containing protein
534	 50.48	0	503768..504187	+	139	119872054	rps11p	Pisl_0540	-	30S ribosomal protein S11P
535	 37.73	-1	504187..504459	+	90	119872055	-	Pisl_0541	-	hypothetical protein
536	 45.11	0	504558..505712	+	384	119872056	-	Pisl_0542	-	radical SAM domain-containing protein
537	 39.85	-1	505732..506391	+	219	119872057	-	Pisl_0543	-	hypothetical protein
538	 42.08	0	506392..507168	+	258	119872058	-	Pisl_0544	-	hypothetical protein
539	 43.45	0	507125..507796	-	223	119872059	-	Pisl_0545	-	hypothetical protein
540	 43.10	0	507835..508008	-	57	119872060	-	Pisl_0546	-	paREP4
541	 38.18	-1	508260..508589	+	109	119872061	-	Pisl_0547	-	hypothetical protein
542	 39.81	-1	508830..509354	-	174	119872062	-	Pisl_0548	-	putative NTPase
543	 40.18	-1	509398..510186	-	262	119872063	-	Pisl_0549	-	polyprenyl synthetase
544	 39.68	-1	510233..510421	-	62	119872064	-	Pisl_0550	-	hypothetical protein
545	 43.04	0	510483..510956	+	157	119872065	ribH	Pisl_0551	-	riboflavin synthase subunit beta
546	 46.08	0	510966..511961	-	331	119872066	-	Pisl_0552	-	ketol-acid reductoisomerase
547	 38.96	-1	511974..512204	-	76	119872067	-	Pisl_0553	-	acetolactate synthase small subunit
548	 45.13	0	512197..513840	-	547	119872068	-	Pisl_0554	-	acetolactate synthase, large subunit, biosynthetic type
549	 41.33	-1	513984..514433	-	149	119872069	-	Pisl_0555	-	NUDIX hydrolase
550	 39.72	-1	514478..514978	+	166	119872070	-	Pisl_0556	-	hypothetical protein
551	 43.22	0	514952..515224	-	90	119872071	-	Pisl_0557	-	hypothetical protein
552	 43.62	0	515429..516721	-	430	119872072	-	Pisl_0558	-	beta-lactamase domain-containing protein
553	 40.32	-1	516932..517303	+	123	119872073	rpl24p	Pisl_0559	-	50S ribosomal protein L24P
554	 39.19	-1	517306..518022	+	238	119872074	-	Pisl_0560	-	30S ribosomal protein S4e
555	 43.36	0	518019..518447	-	142	119872075	-	Pisl_0561	-	hypothetical protein
556	 41.98	0	518471..519442	-	323	119872076	-	Pisl_0562	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
557	 39.63	-1	519444..520412	-	322	119872077	-	Pisl_0563	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
558	 39.43	-1	520461..521231	+	256	119872078	-	Pisl_0564	-	ribokinase-like domain-containing protein
559	 39.95	-1	521209..522069	-	286	119872079	-	Pisl_0565	-	signal transduction protein
560	 40.48	-1	522229..523152	+	307	119872080	-	Pisl_0566	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
561	 42.93	0	523149..524159	+	336	119872081	-	Pisl_0567	-	aminotransferase, class V
562	 42.26	0	524149..524943	+	264	119872082	-	Pisl_0568	-	hypothetical protein
563	 38.78	-1	524927..525367	-	146	119872083	-	Pisl_0569	-	hypothetical protein
564	 41.53	-1	525383..526639	-	418	119872084	-	Pisl_0570	-	tRNA CCA-pyrophosphorylase
565	 37.41	-1	526636..527199	-	187	119872085	-	Pisl_0571	-	2'-5' RNA ligase
566	 42.63	0	527196..527636	-	146	119872086	-	Pisl_0572	-	MarR family transcriptional regulator
567	 44.15	0	527673..528569	-	298	119872087	-	Pisl_0573	-	zinc finger TFIIB-type domain-containing protein
568	 38.21	-1	528566..528811	-	81	119872088	-	Pisl_0574	-	H/ACA RNA-protein complex component Gar1
569	 44.95	0	529357..529752	+	131	119872089	-	Pisl_0575	-	30S ribosomal protein S8e
570	 44.79	0	529749..530036	+	95	119872090	-	Pisl_0576	-	ribonucleoprotein complex SRP, Srp19 component
571	 43.07	0	530036..530785	+	249	119872091	-	Pisl_0577	-	GTPase
572	 43.56	0	530770..531072	-	100	119872092	-	Pisl_0578	-	50S ribosomal protein L21e
573	 35.42	-1	531151..531486	+	111	119872093	-	Pisl_0579	-	RNA polymerase Rpb4
574	 40.99	-1	531483..532070	+	195	119872094	-	Pisl_0580	-	putative nucleotide binding protein
575	 45.86	0	532599..532997	-	132	119872095	-	Pisl_0581	-	translation initiation factor IF-5A
576	 44.01	0	533028..533870	-	280	119872096	-	Pisl_0582	-	5'-methylthioadenosine phosphorylase II
577	 40.08	-1	533902..534390	+	162	119872097	-	Pisl_0583	-	hypothetical protein
578	 41.60	-1	534417..534779	+	120	119872098	-	Pisl_0584	-	translation initiation factor SUI1
579	 42.00	0	535037..535555	-	172	119872099	-	Pisl_0585	-	hypothetical protein
580	 42.76	0	535588..537486	-	632	119872100	argS	Pisl_0586	-	arginyl-tRNA synthetase
581	 45.30	0	537687..537920	+	77	119872101	rps28e	Pisl_0587	-	30S ribosomal protein S28e
582	 42.94	0	537917..538093	+	58	119872102	-	Pisl_0588	-	ribosomal protein L24E
583	 45.29	0	538094..538603	-	169	119872103	rpl7ae	Pisl_0589	-	50S ribosomal protein L7Ae
584	 41.58	-1	539040..540131	-	363	119872104	-	Pisl_0590	-	inner-membrane translocator
585	 40.54	-1	540128..541084	-	318	119872105	-	Pisl_0591	-	inner-membrane translocator
586	 54.17	0	541191..542534	+	447	119872106	-	Pisl_0592	-	extracellular ligand-binding receptor
587	 44.40	0	542563..543330	+	255	119872107	-	Pisl_0593	-	ABC transporter related
588	 48.04	0	543742..544836	+	364	119872108	-	Pisl_0594	-	major facilitator transporter
589	 45.71	0	544818..545237	+	139	119872109	-	Pisl_0595	-	hypothetical protein
590	 41.25	-1	545312..546157	+	281	119872110	-	Pisl_0596	-	putative circadian clock protein, KaiC
591	 43.16	0	546184..547485	+	433	119872111	-	Pisl_0597	-	GTP-binding signal recognition particle
592	 44.15	0	547500..547952	+	150	119872112	-	Pisl_0598	-	hypothetical protein
593	 40.74	-1	547973..549214	+	413	119872113	-	Pisl_0599	-	THUMP domain-containing protein
594	 44.66	0	549242..550759	+	505	119872114	guaA	Pisl_0600	-	bifunctional GMP synthase/glutamine amidotransferase protein
595	 48.74	0	550889..552277	+	462	119872115	-	Pisl_0601	-	gamma-glutamyltransferase
596	 47.92	0	552674..554311	+	545	119872116	-	Pisl_0602	-	extracellular solute-binding protein
597	 45.88	0	554308..555096	-	262	119872117	-	Pisl_0603	-	binding-protein-dependent transport systems inner membrane component
598	 41.32	-1	555093..556106	-	337	119872118	-	Pisl_0604	-	binding-protein-dependent transport systems inner membrane component
599	 60.88	+1	556494..556856	+	120	119872119	-	Pisl_0605	-	hypothetical protein
600	 51.98	0	556904..557584	+	226	119872120	-	Pisl_0606	-	hypothetical protein
601	 55.47	0	557586..557978	+	130	119872121	-	Pisl_0607	-	hypothetical protein
602	 41.79	0	558305..558895	+	196	119872122	-	Pisl_0608	-	ribosomal protein L6
603	 44.60	0	559110..559979	-	289	119872123	-	Pisl_0609	-	4-hydroxybenzoate polyprenyltransferase, putative
604	 41.84	0	560042..560464	+	140	119872124	-	Pisl_0610	-	thioredoxin domain-containing protein
605	 45.36	0	560491..561837	+	448	119872125	-	Pisl_0611	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
606	 46.02	0	561907..562836	+	309	119872126	-	Pisl_0612	-	malate dehydrogenase
607	 38.71	-1	562867..563238	+	123	119872127	-	Pisl_0613	-	hypothetical protein
608	 44.08	0	563288..564022	+	244	119872128	-	Pisl_0614	-	glutaredoxin-like domain-containing protein
609	 44.44	0	564022..564579	+	185	119872129	-	Pisl_0615	-	RdgB/HAM1 family non-canonical purine NTP pyrophosphatase
610	 41.87	0	564605..565447	+	280	119872130	-	Pisl_0616	-	CBS domain-containing protein
611	 44.32	0	565415..565960	-	181	119872131	-	Pisl_0617	-	hypothetical protein
612	 44.47	0	566002..568785	+	927	119872132	-	Pisl_0618	-	DEAD/DEAH box helicase domain-containing protein
613	 43.08	0	568762..569766	-	334	119872133	-	Pisl_0619	-	sugar phospate transferase
614	 41.91	0	569807..570529	+	240	119872134	-	Pisl_0620	-	hypothetical protein
615	 37.54	-1	570517..570801	-	94	119872135	-	Pisl_0621	-	hypothetical protein
616	 41.18	-1	570839..571348	-	169	119872136	-	Pisl_0622	-	CopG/DNA-binding domain-containing protein
48.97	MEAN

7.27	STD DEV
