IslandPath Analysis: Pyrobaculum islandicum DSM 4184

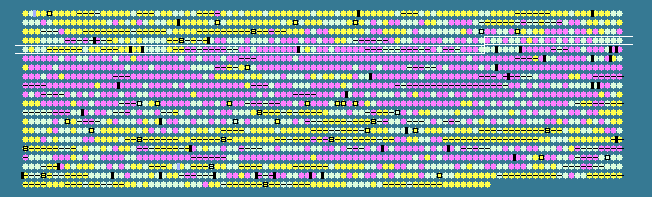

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.97 STD DEV: 7.27
Pyrobaculum islandicum DSM 4184, complete genome - 1..1826402
1978 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
378	 43.24	0	370211..370876	+	221	119871898	-	Pisl_0384	-	GTP cyclohydrolase IIA
379	 45.87	0	370873..371526	+	217	119871899	-	Pisl_0385	-	hypothetical protein
380	 46.11	0	371566..372207	+	213	119871900	-	Pisl_0386	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
381	 40.14	-1	372530..372955	-	141	119871901	-	Pisl_0387	-	hypothetical protein
382	 47.93	0	373013..374101	+	362	119871902	-	Pisl_0388	-	geranylgeranyl reductase
383	 45.74	0	374090..375250	-	386	119871903	-	Pisl_0389	-	nicotinate phosphoribosyltransferase
384	 40.33	-1	375283..377025	+	580	119871904	-	Pisl_0390	-	DEAD_2 domain-containing protein
385	 52.94	0	376997..377455	-	152	119871905	-	Pisl_0391	-	hypothetical protein
386	 42.87	0	377524..379338	+	604	119871906	-	Pisl_0392	-	DNA topoisomerase
387	 45.50	0	379325..380236	+	303	119871907	-	Pisl_0393	-	diphthamide biosynthesis protein
388	 34.65	-1	380301..380603	+	100	119871908	-	Pisl_0394	-	hypothetical protein
389	 44.40	0	381080..382651	+	523	119871909	-	Pisl_0395	-	hypothetical protein
390	 48.60	0	382868..383260	+	130	119871910	-	Pisl_0396	-	hypothetical protein
391	 44.87	0	383289..384623	-	444	119871911	-	Pisl_0397	-	elongation factor 1-alpha
392	 48.63	0	384703..384957	+	84	119871912	-	Pisl_0398	-	ribosomal protein L34e
393	 42.52	0	384964..385518	+	184	119871913	-	Pisl_0399	-	cytidylate kinase
394	 49.81	0	385571..386620	+	349	119871914	-	Pisl_0400	-	putative glutamate synthase subunit beta
395	 44.35	0	386621..387328	-	235	119871915	-	Pisl_0401	-	fibrillarin
396	 47.19	0	387381..388643	-	420	119871916	-	Pisl_0402	-	Pre-mRNA processing ribonucleoprotein, binding region
397	 47.75	0	388665..390488	-	607	119871917	-	Pisl_0403	-	glutamyl-tRNA(Gln) amidotransferase subunit E
398	 48.31	0	390521..391228	+	235	119871918	-	Pisl_0404	-	dimethyladenosine transferase
399	 48.84	0	391216..392079	+	287	119871919	-	Pisl_0405	-	beta-lactamase domain-containing protein
400	 47.66	0	392069..392815	-	248	119871920	-	Pisl_0406	-	methyltransferase type 11
401	 52.14	0	392812..394374	-	520	119871921	-	Pisl_0407	-	ATPase
402	 52.64	0	394413..395417	+	334	119871922	-	Pisl_0408	-	putative RNA methylase
403	 48.28	0	395918..396787	-	289	119871923	-	Pisl_0409	-	hypothetical protein
404	 47.65	0	396784..398334	-	516	119871924	-	Pisl_0410	-	XRE family transcriptional regulator
405	 60.53	+1	398757..400109	-	450	119871925	-	Pisl_0411	-	hypothetical protein
406	 60.61	+1	400162..400821	-	219	119871926	-	Pisl_0412	-	hypothetical protein
407	 59.57	+1	400802..401407	-	201	119871927	-	Pisl_0413	-	isochorismatase hydrolase
408	 53.60	0	401455..401829	+	124	119871928	-	Pisl_0414	-	putative endoribonuclease L-PSP
409	 62.22	+1	401852..402166	+	104	119871929	-	Pisl_0415	-	hypothetical protein
410	 59.87	+1	402145..402762	+	205	119871930	-	Pisl_0416	-	hypothetical protein
411	 49.60	0	402980..403231	+	83	119871931	-	Pisl_0417	-	hypothetical protein
412	 60.39	+1	403466..403879	+	137	119871932	-	Pisl_0418	-	hypothetical protein
413	 55.43	0	404415..404690	-	91	119871933	-	Pisl_0419	-	hypothetical protein
414	 62.50	+1	404662..405309	-	215	119871934	-	Pisl_0420	-	hypothetical protein
415	 59.25	+1	405384..406178	-	264	119871935	-	Pisl_0421	-	hypothetical protein
416	 53.54	0	406228..407781	-	517	119871936	-	Pisl_0422	-	hypothetical protein
417	 62.05	+1	408124..408600	-	158	119871937	-	Pisl_0423	-	hypothetical protein
418	 68.99	+2	408681..408938	-	85	119871938	-	Pisl_0424	-	carbon nitrogen hydrolase, conjectural
419	 58.92	+1	409947..410708	+	253	119871939	-	Pisl_0425	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
420	 57.87	+1	410714..411202	+	162	119871940	-	Pisl_0426	-	hypothetical protein
421	 50.55	0	411366..412457	-	363	119871941	-	Pisl_0427	-	nucleotidyl transferase
422	 49.39	0	412459..414270	-	603	119871942	-	Pisl_0428	-	D-fructose-6-phosphate amidotransferase
423	 48.58	0	414412..415362	-	316	119871943	-	Pisl_0429	-	Fis family transcriptional regulator
424	 47.40	0	415421..415939	+	172	119871944	-	Pisl_0430	-	hypothetical protein
425	 60.19	+1	416683..419028	+	781	119871945	-	Pisl_0431	-	oligosaccharyl transferase, STT3 subunit
426	 55.56	0	419025..419249	-	74	119871946	-	Pisl_0432	-	H/ACA RNA-protein complex component Nop10p
427	 54.09	0	419246..420040	-	264	119871947	-	Pisl_0433	-	translation initiation factor IF-2 subunit alpha
428	 44.61	0	420076..420279	-	67	119871948	rps27e	Pisl_0434	-	30S ribosomal protein S27e
429	 40.58	-1	420281..420556	-	91	119871949	rpl44e	Pisl_0435	-	50S ribosomal protein L44e
430	 46.12	0	420657..421133	-	158	119871950	-	Pisl_0436	-	hypothetical protein
431	 41.75	0	421126..422064	-	312	119871951	-	Pisl_0437	-	putative DNA primase, small subunit
432	 43.47	0	422061..422810	-	249	119871952	-	Pisl_0438	-	proliferating cell nuclear antigen PcnA
433	 41.14	-1	422853..423185	-	110	119871953	-	Pisl_0439	-	transcription termination factor Tfs
434	 44.86	0	423259..423735	+	158	119871954	-	Pisl_0440	-	30S ribosomal protein S19e
435	 45.95	0	423735..424067	+	110	119871955	-	Pisl_0441	-	hypothetical protein
436	 48.08	0	424099..424254	+	51	119871956	-	Pisl_0442	-	ribosomal protein L39e
437	 44.72	0	424251..424970	-	239	119871957	-	Pisl_0443	-	geranylgeranylglyceryl phosphate synthase-like protein
438	 40.70	-1	424957..425241	-	94	119871958	-	Pisl_0444	-	hypothetical protein
439	 47.24	0	425366..426595	+	409	119871959	-	Pisl_0445	-	MoeA domain-containing protein
440	 43.10	0	426566..427282	-	238	119871960	-	Pisl_0446	-	phosphoribosyltransferase
441	 43.20	0	427292..428305	-	337	119871961	-	Pisl_0447	-	hypothetical protein
442	 39.53	-1	428581..428967	-	128	119871962	-	Pisl_0448	-	zinc finger SWIM domain-containing protein
443	 42.23	0	428951..429703	-	250	119871963	-	Pisl_0449	-	inositol monophosphatase
444	 39.50	-1	429910..430266	-	118	119871964	-	Pisl_0450	-	hypothetical protein
445	 42.39	0	430372..430857	-	161	119871965	-	Pisl_0451	-	hypothetical protein
446	 42.25	0	430879..431304	-	141	119871966	-	Pisl_0452	-	hypothetical protein
447	 47.50	0	431740..431979	+	79	119871967	-	Pisl_0453	-	deoxyribonuclease
448	 53.86	0	431972..433111	-	379	119871968	-	Pisl_0454	-	tryptophanyl-tRNA synthetase
449	 46.14	0	433143..433907	-	254	119871969	-	Pisl_0455	-	HhH-GPD family protein
450	 45.38	0	433904..434683	-	259	119871970	-	Pisl_0456	-	radical SAM domain-containing protein
451	 42.39	0	435128..435403	+	91	119871971	-	Pisl_0457	-	ribosomal protein L31e
452	 47.15	0	435400..436065	+	221	119871972	-	Pisl_0458	-	translation initiation factor IF-6
453	 41.77	0	436373..436609	+	78	119871973	-	Pisl_0459	-	ribosomal LX protein
454	 42.36	0	436611..437009	+	132	119871974	-	Pisl_0460	-	prefoldin subunit alpha
455	 42.64	0	437009..437932	+	307	119871975	-	Pisl_0461	-	signal recognition particle-docking protein FtsY
456	 42.00	0	438423..438722	+	99	119871976	-	Pisl_0462	-	hypothetical protein
457	 44.73	0	438722..439186	+	154	119871977	nusG	Pisl_0463	-	transcription antitermination protein NusG
458	 39.29	-1	439217..439720	+	167	119871978	-	Pisl_0464	-	ribosomal protein L11
459	 43.80	0	439717..440385	+	222	119871979	rpl1P	Pisl_0465	-	50S ribosomal protein L1P
460	 43.70	0	440417..441448	+	343	119871980	rplP0	Pisl_0466	-	acidic ribosomal protein P0
461	 45.50	0	441449..442393	+	314	119871981	-	Pisl_0467	-	mevalonate kinase
462	 45.68	0	442390..442632	+	80	119871982	-	Pisl_0468	-	hypothetical protein
463	 48.60	0	442641..443426	+	261	119871983	-	Pisl_0469	-	uridine phosphorylase
464	 42.62	0	443398..443634	+	78	119871984	-	Pisl_0470	-	hypothetical protein
465	 43.82	0	443659..444087	+	142	119871985	-	Pisl_0471	-	hypothetical protein
466	 40.80	-1	444084..444431	-	115	119871986	-	Pisl_0472	-	heat shock protein Hsp20
467	 47.44	0	444458..445357	-	299	119871987	-	Pisl_0473	-	inner-membrane translocator
468	 44.08	0	445354..446358	-	334	119871988	-	Pisl_0474	-	inner-membrane translocator
469	 44.03	0	446355..447794	-	479	119871989	-	Pisl_0475	-	ABC transporter related
470	 45.76	0	447795..449009	-	404	119871990	-	Pisl_0476	-	basic membrane lipoprotein
471	 44.98	0	449165..449473	+	102	119871991	-	Pisl_0477	-	hypothetical protein
472	 42.90	0	449473..449775	+	100	119871992	-	Pisl_0478	-	hypothetical protein
473	 47.53	0	449762..449923	-	53	119871993	rpl40e	Pisl_0479	-	50S ribosomal protein L40e
474	 43.65	0	450059..451978	+	639	119871994	-	Pisl_0480	-	hypothetical protein
475	 42.16	0	451975..452382	-	135	119871995	-	Pisl_0481	-	hypothetical protein
476	 45.26	0	452529..453098	+	189	119871996	-	Pisl_0482	-	hypothetical protein
477	 45.92	0	453095..453817	-	240	119871997	-	Pisl_0483	-	hypothetical protein
48.97	MEAN

7.27	STD DEV
