IslandPathversion 1.0

IslandPath Analysis: Pyrobaculum islandicum DSM 4184

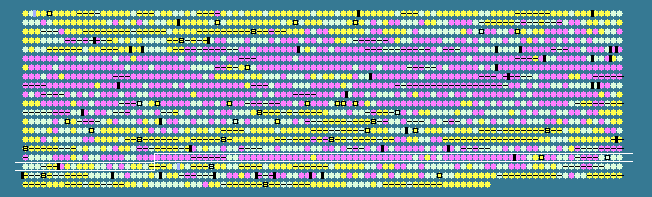

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.97 STD DEV: 7.27
Pyrobaculum islandicum DSM 4184, complete genome - 1..1826402
1978 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1623	 43.12	0	1504675..1505430	+	251	119873143	-	Pisl_1655	-	XRE family transcriptional regulator
1624	 42.87	0	1505427..1506485	+	352	119873144	-	Pisl_1656	-	N(2),N(2)-dimethylguanosine tRNA methyltransferase
1625	 40.16	-1	1506506..1507018	+	170	119873145	-	Pisl_1657	-	adenylate kinase, conjectural
1626	 42.59	0	1507015..1507446	+	143	119873146	-	Pisl_1658	-	hypothetical protein
1627	 41.63	-1	1507443..1508117	-	224	119873147	-	Pisl_1659	-	putative RNA methylase
1628	 37.84	-1	1508114..1509112	-	332	119873148	-	Pisl_1660	-	hypothetical protein
1629	 35.90	-1	1509112..1510164	-	350	119873149	-	Pisl_1661	-	hypothetical protein
1630	 39.23	-1	1510376..1511104	+	242	119873150	-	Pisl_1662	-	XRE family transcriptional regulator
1631	 42.86	0	1511106..1511588	-	160	119873151	-	Pisl_1663	-	ribosomal protein L13
1632	 32.03	-2	1511837..1512142	+	101	119873152	-	Pisl_1664	-	hypothetical protein
1633	 28.91	-2	1512143..1512481	-	112	119873153	-	Pisl_1665	-	hypothetical protein
1634	 36.51	-1	1512478..1512792	-	104	119873154	-	Pisl_1666	-	hypothetical protein
1635	 47.01	0	1512821..1513822	-	333	119873155	tfb	Pisl_1667	-	transcription initiation factor IIB
1636	 45.59	0	1513877..1514839	-	320	119873156	rfc	Pisl_1668	-	replication factor C small subunit
1637	 42.69	0	1514836..1515273	-	145	119873157	-	Pisl_1669	-	hypothetical protein
1638	 44.33	0	1515298..1516461	-	387	119873158	-	Pisl_1670	-	TGS domain-containing protein
1639	 39.85	-1	1516692..1517366	-	224	119873159	-	Pisl_1671	-	enoyl-CoA hydratase/isomerase
1640	 44.04	0	1517414..1518730	+	438	119873160	-	Pisl_1672	-	isocitrate dehydrogenase, NADP-dependent
1641	 40.51	-1	1518732..1519205	-	157	119873161	-	Pisl_1673	-	GCN5-related N-acetyltransferase
1642	 32.87	-2	1519357..1520220	-	287	119873162	-	Pisl_1674	-	hypothetical protein
1643	 45.42	0	1520213..1521172	-	319	119873163	-	Pisl_1675	-	DNA-cytosine methyltransferase
1644	 40.83	-1	1521219..1521818	+	199	119873164	-	Pisl_1676	-	hypothetical protein
1645	 38.24	-1	1521784..1522089	-	101	119873165	-	Pisl_1677	-	hypothetical protein
1646	 42.58	0	1522137..1523693	+	518	119873166	pheT	Pisl_1678	-	phenylalanyl-tRNA synthetase subunit beta
1647	 38.57	-1	1523714..1524076	+	120	119873167	-	Pisl_1679	-	hypothetical protein
1648	 39.27	-1	1524073..1524375	-	100	119873168	-	Pisl_1680	-	hypothetical protein
1649	 62.70	+1	1524574..1524825	+	83	119873169	-	Pisl_1681	-	hypothetical protein
1650	 42.29	0	1524955..1525233	-	92	119873170	-	Pisl_1682	-	hypothetical protein
1651	 42.93	0	1526126..1526521	-	131	119873171	-	Pisl_1684	-	YbaK/prolyl-tRNA synthetase associated region
1652	 40.09	-1	1526525..1526968	-	147	119873172	-	Pisl_1685	-	hypothetical protein
1653	 42.04	0	1527021..1527686	+	221	119873173	-	Pisl_1686	-	orotidine 5'-phosphate decarboxylase
1654	 40.70	-1	1527683..1528279	+	198	119873174	-	Pisl_1687	-	adenylate kinase
1655	 37.30	-1	1528302..1528856	+	184	119873175	-	Pisl_1688	-	hypothetical protein
1656	 44.70	0	1528843..1529871	+	342	119873176	-	Pisl_1689	-	3-dehydroquinate synthase
1657	 31.27	-2	1529972..1530358	-	128	119873177	-	Pisl_1690	-	hypothetical protein
1658	 43.75	0	1530417..1531721	+	434	119873178	-	Pisl_1691	-	malate dehydrogenase
1659	 43.33	0	1531725..1532954	-	409	119873179	-	Pisl_1692	-	2-methylcitrate synthase/citrate synthase II
1660	 42.75	0	1533173..1533703	-	176	119873180	-	Pisl_1693	-	hypothetical protein
1661	 43.81	0	1533792..1535147	+	451	119873181	-	Pisl_1694	-	TIP49-like protein
1662	 39.23	-1	1535116..1535607	-	163	119873182	-	Pisl_1695	-	hypothetical protein
1663	 43.99	0	1535604..1537133	-	509	119873183	-	Pisl_1696	-	peptidase M50
1664	 42.41	0	1537153..1537725	-	190	119873184	-	Pisl_1697	-	hypothetical protein
1665	 35.18	-1	1537754..1538458	+	234	119873185	-	Pisl_1698	-	hypothetical protein
1666	 49.25	0	1538447..1538779	-	110	119873186	rpl12p	Pisl_1699	-	50S ribosomal protein L12P
1667	 42.16	0	1538816..1539019	-	67	119873187	-	Pisl_1700	-	ribosomal protein L38
1668	 53.60	0	1539148..1539675	-	175	119873188	-	Pisl_1701	-	cobalamin adenosyltransferase
1669	 43.50	0	1539837..1540751	+	304	119873189	-	Pisl_1702	-	methylisocitrate lyase
1670	 45.74	0	1540756..1542117	+	453	119873190	-	Pisl_1703	-	Fis family transcriptional regulator
1671	 44.82	0	1542119..1543084	-	321	119873191	-	Pisl_1704	-	thioredoxin-disulfide reductase
1672	 41.41	-1	1543160..1543642	+	160	119873192	rps19p	Pisl_1705	-	30S ribosomal protein S19P
1673	 43.24	0	1543645..1544088	+	147	119873193	rps17p	Pisl_1706	-	30S ribosomal protein S17P
1674	 38.73	-1	1544091..1544738	+	215	119873194	-	Pisl_1707	-	ERCC4 domain-containing protein
1675	 39.59	-1	1544733..1545803	-	356	119873195	-	Pisl_1708	-	glycoside hydrolase family protein
1676	 42.49	0	1545803..1546228	-	141	119873196	-	Pisl_1709	-	UspA domain-containing protein
1677	 43.00	0	1546221..1547255	-	344	119873197	-	Pisl_1710	-	glyceraldehyde-3-phosphate dehydrogenase
1678	 39.36	-1	1547252..1548478	-	408	119873198	-	Pisl_1711	-	phosphoglycerate kinase
1679	 33.85	-2	1548595..1549170	+	191	119873199	-	Pisl_1712	-	hypothetical protein
1680	 41.91	0	1549200..1551029	+	609	119873200	-	Pisl_1713	-	threonyl-tRNA synthetase
1681	 43.83	0	1551086..1551466	+	126	119873201	-	Pisl_1714	-	S-adenosylmethionine decarboxylase proenzyme
1682	 43.74	0	1551488..1552429	+	313	119873202	-	Pisl_1715	-	hypothetical protein
1683	 40.64	-1	1552561..1552998	-	145	119873203	-	Pisl_1716	-	molybdopterin-guanine dinucleotide biosynthesis protein B
1684	 37.95	-1	1553019..1553321	-	100	119873204	-	Pisl_1717	-	PadR-like family transcriptional regulator
1685	 46.12	0	1553318..1554373	-	351	119873205	-	Pisl_1718	-	myo-inositol-1-phosphate synthase
1686	 55.49	0	1554631..1555131	-	166	119873206	-	Pisl_1719	-	hypothetical protein
1687	 55.13	0	1555586..1556851	+	421	119873207	-	Pisl_1720	-	transposase, IS605 OrfB
1688	 41.03	-1	1557108..1558757	-	549	119873208	-	Pisl_1721	-	hypothetical protein
1689	 36.23	-1	1558952..1559608	-	218	119873209	-	Pisl_1722	-	CRISPR-associated Cas4 family protein
1690	 45.96	0	1559589..1561148	-	519	119873210	-	Pisl_1723	-	protein synthesis factor, GTP-binding
1691	 46.99	0	1561177..1563336	-	719	119873211	hppA	Pisl_1724	-	membrane-bound proton-translocating pyrophosphatase
1692	 41.97	0	1563448..1565751	+	767	119873212	-	Pisl_1725	-	V-type ATPase, 116 kDa subunit
1693	 48.67	0	1565751..1566428	+	225	119873213	-	Pisl_1726	-	hypothetical protein
1694	 44.17	0	1566409..1566648	-	79	119873214	-	Pisl_1727	-	hypothetical protein
1695	 41.45	-1	1566649..1566882	-	77	119873215	-	Pisl_1728	-	ribosomal protein L29
1696	 44.19	0	1566913..1567566	-	217	119873216	rps3p	Pisl_1729	-	30S ribosomal protein S3P
1697	 51.55	0	1568280..1568537	+	85	119873217	-	Pisl_1730	-	hypothetical protein
1698	 51.68	0	1568554..1569534	+	326	119873218	-	Pisl_1731	-	transposase, IS605 OrfB
1699	 47.57	0	1569719..1570315	-	198	119873219	rpl22p	Pisl_1732	-	50S ribosomal protein L22P
1700	 51.38	0	1570344..1571174	+	276	119873220	-	Pisl_1733	-	UbiA prenyltransferase
1701	 48.35	0	1571156..1571854	+	232	119873221	-	Pisl_1734	-	hydrolase
1702	 51.48	0	1571879..1572352	-	157	119873222	-	Pisl_1735	-	hypothetical protein
1703	 51.67	0	1572392..1573231	-	279	119873223	-	Pisl_1736	-	TM helix repeat-containing protein
1704	 47.15	0	1573471..1573716	-	81	119873224	-	Pisl_1737	-	H+-transporting ATP synthase subunit I (atpI), conjectural
1705	 58.69	+1	1574252..1574464	+	70	119873225	-	Pisl_1738	-	hypothetical protein
1706	 57.27	+1	1574461..1575024	-	187	119873226	-	Pisl_1739	-	ribonuclease H
1707	 45.41	0	1575162..1575542	-	126	119873227	-	Pisl_1740	-	hypothetical protein
1708	 53.31	0	1575606..1576331	+	241	119873228	-	Pisl_1741	-	hypothetical protein
1709	 46.25	0	1576507..1576746	+	79	119873229	-	Pisl_1742	-	hypothetical protein
1710	 57.89	+1	1576732..1578075	-	447	119873230	-	Pisl_1743	-	4-aminobutyrate aminotransferase
1711	 54.38	0	1578246..1579010	-	254	119873231	-	Pisl_1744	-	FeS assembly ATPase SufC
1712	 56.77	+1	1579083..1580507	+	474	119873232	-	Pisl_1745	-	FeS assembly protein SufB
1713	 47.24	0	1580544..1581140	+	198	119873233	-	Pisl_1746	-	hypothetical protein
1714	 50.11	0	1581155..1582054	+	299	119873234	-	Pisl_1747	-	alpha-L-glutamate ligase
1715	 43.75	0	1582559..1582846	-	95	119873235	-	Pisl_1748	-	hypothetical protein
1716	 46.89	0	1582839..1583369	-	176	119873236	-	Pisl_1749	-	hypothetical protein
1717	 42.02	0	1583353..1583709	-	118	119873237	-	Pisl_1750	-	hypothetical protein
1718	 47.82	0	1583783..1584355	+	190	119873238	-	Pisl_1751	-	50S ribosomal protein L15e
1719	 54.12	0	1584622..1585482	-	286	119873239	-	Pisl_1752	-	hypothetical protein
1720	 61.22	+1	1585475..1586209	-	244	119873240	-	Pisl_1753	-	thymidylate synthase, flavin-dependent
1721	 47.69	0	1586424..1587941	+	505	119873241	-	Pisl_1754	-	glycosyl transferase family protein
1722	 56.38	+1	1587901..1589349	-	482	119873242	-	Pisl_1755	-	lysyl-tRNA synthetase
48.97	MEAN

7.27	STD DEV
