IslandPath Analysis: Pyrobaculum islandicum DSM 4184

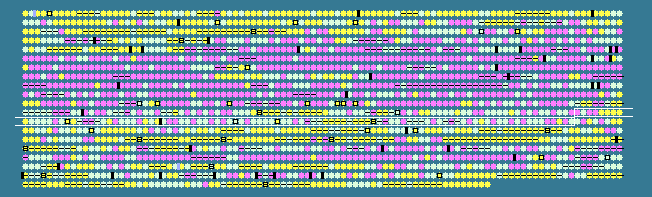

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.97 STD DEV: 7.27
Pyrobaculum islandicum DSM 4184, complete genome - 1..1826402
1978 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1193	 42.23	0	1097164..1097691	+	175	119872713	-	Pisl_1210	-	ZPR1-like zinc finger protein
1194	 46.53	0	1097798..1098244	-	148	119872714	-	Pisl_1211	-	phosphoribosyl-AMP cyclohydrolase
1195	 44.54	0	1098245..1099252	+	335	119872715	-	Pisl_1212	-	aminotransferase, class I and II
1196	 44.52	0	1099291..1100139	+	282	119872716	hisG	Pisl_1213	-	ATP phosphoribosyltransferase
1197	 57.19	+1	1100143..1100427	-	94	119872717	-	Pisl_1214	-	phosphoribosyl-ATP pyrophosphohydrolase
1198	 60.99	+1	1100424..1101533	-	369	119872718	-	Pisl_1215	-	histidinol dehydrogenase
1199	 59.46	+1	1101530..1102306	-	258	119872719	-	Pisl_1216	-	imidazoleglycerol phosphate synthase, cyclase subunit
1200	 60.28	+1	1102333..1102896	+	187	119872720	-	Pisl_1217	-	imidazoleglycerol-phosphate dehydratase
1201	 59.45	+1	1102893..1103585	+	230	119872721	-	Pisl_1218	-	histidine biosynthesis protein
1202	 51.48	0	1103575..1105029	-	484	119872722	-	Pisl_1219	-	hypothetical protein
1203	 49.68	0	1106170..1107423	+	417	119872723	-	Pisl_1221	-	glutamyl-tRNA(Gln) amidotransferase subunit D
1204	 49.81	0	1107420..1107947	+	175	119872724	-	Pisl_1222	-	metal dependent phosphohydrolase
1205	 47.28	0	1108299..1108592	+	97	119872725	-	Pisl_1223	-	hypothetical protein
1206	 42.71	0	1109197..1109580	-	127	119872726	-	Pisl_1225	-	signal-transduction protein
1207	 48.33	0	1109677..1111536	+	619	119872727	-	Pisl_1226	-	aldehyde ferredoxin oxidoreductase (aor)
1208	 53.76	0	1111755..1112978	-	407	119872728	-	Pisl_1227	-	transposase, IS605 OrfB
1209	 59.17	+1	1113328..1113714	-	128	119872729	-	Pisl_1228	-	hypothetical protein
1210	 48.48	0	1113811..1114206	-	131	119872730	-	Pisl_1229	-	dinitrogenase iron-molybdenum cofactor biosynthesis protein
1211	 45.02	0	1114395..1114916	+	173	119872731	-	Pisl_1230	-	pyruvate/ketoisovalerate oxidoreductase, gamma subunit
1212	 43.59	0	1114913..1115224	+	103	119872732	-	Pisl_1231	-	pyruvate ferredoxin/flavodoxin oxidoreductase, delta subunit
1213	 47.12	0	1115221..1116402	+	393	119872733	-	Pisl_1232	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1214	 46.56	0	1116399..1117343	+	314	119872734	-	Pisl_1233	-	thiamine pyrophosphate binding domain-containing protein
1215	 56.96	+1	1117542..1119488	+	648	119872735	-	Pisl_1234	-	hypothetical protein
1216	 38.60	-1	1119535..1119876	+	113	119872736	-	Pisl_1235	-	hypothetical protein
1217	 48.27	0	1120062..1121480	+	472	119872737	-	Pisl_1236	-	glycoside hydrolase family protein
1218	 47.02	0	1121480..1122721	+	413	119872738	-	Pisl_1237	-	major facilitator transporter
1219	 46.69	0	1122760..1123755	+	331	119872739	-	Pisl_1238	-	pyridoxal-5'-phosphate-dependent enzyme, beta subunit
1220	 43.78	0	1123748..1124446	-	232	119872740	-	Pisl_1239	-	hypothetical protein
1221	 54.86	0	1124772..1125152	-	126	119872741	-	Pisl_1240	-	hypothetical protein
1222	 51.06	0	1125917..1126294	+	125	119872742	-	Pisl_1241	-	hypothetical protein
1223	 54.69	0	1126487..1127371	-	294	119872743	-	Pisl_1242	-	Fis family transcriptional regulator
1224	 46.93	0	1128093..1128629	+	178	119872744	-	Pisl_1243	-	hypothetical protein
1225	 40.10	-1	1128621..1129019	-	132	119872745	-	Pisl_1244	-	hypothetical protein
1226	 44.56	0	1129330..1133043	+	1237	119872746	-	Pisl_1245	-	reverse gyrase
1227	 51.06	0	1133188..1136025	-	945	119872747	leuS	Pisl_1246	-	leucyl-tRNA synthetase
1228	 46.03	0	1136046..1136888	-	280	119872748	-	Pisl_1247	-	hypothetical protein
1229	 40.07	-1	1137052..1137318	+	88	119872749	-	Pisl_1248	-	regulatory protein, ArsR
1230	 46.70	0	1137482..1138177	-	231	119872750	-	Pisl_1249	-	rhomboid family protein
1231	 50.48	0	1138294..1139226	-	310	119872751	-	Pisl_1250	-	transcriptional regulator, TrmB
1232	 40.31	-1	1139263..1140165	-	300	119872752	-	Pisl_1251	-	hypothetical protein
1233	 47.27	0	1140232..1141128	-	298	119872753	-	Pisl_1252	-	radical SAM domain-containing protein
1234	 42.75	0	1141179..1141964	+	261	119872754	-	Pisl_1253	-	hypothetical protein
1235	 46.36	0	1142041..1142685	-	214	119872755	-	Pisl_1254	-	metallophosphoesterase
1236	 46.04	0	1142678..1143409	-	243	119872756	-	Pisl_1255	-	transposase, IS605 OrfB
1237	 48.64	0	1143472..1143765	+	97	119872757	-	Pisl_1256	-	translation initiation factor IF-1A
1238	 44.30	0	1144158..1144604	+	148	119872758	-	Pisl_1257	-	hypothetical protein
1239	 46.26	0	1144737..1145471	-	244	119872759	-	Pisl_1258	-	ABC transporter related
1240	 45.80	0	1145459..1146838	-	459	119872760	-	Pisl_1259	-	binding-protein-dependent transport systems inner membrane component
1241	 48.91	0	1146962..1147648	-	228	119872761	-	Pisl_1260	-	glycerophosphoryl diester phosphodiesterase
1242	 47.91	0	1147837..1148577	+	246	119872762	-	Pisl_1261	-	UBA/THIF-type NAD/FAD binding protein
1243	 56.50	+1	1148822..1149637	-	271	119872763	-	Pisl_1262	-	transposase, IS605 OrfB
1244	 50.93	0	1150356..1151759	-	467	119872764	-	Pisl_1264	-	V-type ATP synthase subunit B
1245	 46.55	0	1151803..1152657	+	284	119872765	-	Pisl_1265	-	6-phosphogluconate dehydrogenase, NAD-binding
1246	 41.80	0	1152695..1154005	+	436	119872766	-	Pisl_1266	-	L-carnitine dehydratase/bile acid-inducible protein F
1247	 45.60	0	1154002..1155159	+	385	119872767	-	Pisl_1267	-	L-carnitine dehydratase/bile acid-inducible protein F
1248	 45.05	0	1155143..1155415	-	90	119872768	-	Pisl_1268	-	hypothetical protein
1249	 48.82	0	1155438..1156031	-	197	119872769	-	Pisl_1269	-	GCN5-related N-acetyltransferase
1250	 47.39	0	1156274..1156906	-	210	119872770	-	Pisl_1270	-	hypothetical protein
1251	 60.70	+1	1156896..1157381	-	161	119872771	-	Pisl_1271	-	hypothetical protein
1252	 64.52	+2	1157415..1157786	-	123	119872772	-	Pisl_1272	-	hypothetical protein
1253	 53.45	0	1158123..1158455	+	110	119872773	-	Pisl_1273	-	hypothetical protein
1254	 54.06	0	1158643..1159578	+	311	119872774	-	Pisl_1274	-	nuclease
1255	 48.91	0	1159612..1159932	+	106	119872775	-	Pisl_1275	-	hypothetical protein
1256	 62.65	+1	1159908..1160156	+	82	119872776	-	Pisl_1276	-	hypothetical protein
1257	 52.65	0	1160252..1160515	+	87	119872777	-	Pisl_1277	-	hypothetical protein
1258	 61.16	+1	1160559..1160903	+	114	119872778	-	Pisl_1278	-	hypothetical protein
1259	 54.40	0	1161123..1162394	+	423	119872779	-	Pisl_1279	-	transposase, IS605 OrfB
1260	 47.53	0	1162683..1163450	+	255	119872780	-	Pisl_1280	-	pseudouridylate synthase
1261	 41.36	-1	1163670..1164317	+	215	119872781	-	Pisl_1281	-	hypothetical protein
1262	 46.04	0	1164320..1164799	-	159	119872782	-	Pisl_1282	-	hypothetical protein
1263	 49.07	0	1164844..1165593	+	249	119872783	-	Pisl_1283	-	diphthine synthase
1264	 42.86	0	1165600..1166124	+	174	119872784	-	Pisl_1284	-	hypothetical protein
1265	 46.98	0	1167297..1168454	-	385	119872785	-	Pisl_1286	-	hypothetical protein
1266	 46.92	0	1168475..1169350	-	291	119872786	-	Pisl_1287	-	ABC-3 protein
1267	 46.72	0	1169334..1170095	-	253	119872787	-	Pisl_1288	-	ABC transporter related
1268	 46.28	0	1170238..1171017	+	259	119872788	-	Pisl_1289	-	translation initiation factor aIF-2B subunit, conjectural
1269	 41.32	-1	1171034..1171321	+	95	119872789	-	Pisl_1290	-	zinc finger SWIM domain-containing protein
1270	 49.00	0	1171322..1172170	-	282	119872790	-	Pisl_1291	-	lysine biosynthesis enzyme LysX
1271	 48.79	0	1172252..1172458	+	68	119872791	-	Pisl_1292	-	hypothetical protein
1272	 42.71	0	1172513..1172704	+	63	119872792	-	Pisl_1293	-	hypothetical protein
1273	 50.35	0	1173076..1173363	-	95	119872793	-	Pisl_1294	-	acylphosphatase
1274	 50.15	0	1173417..1174100	+	227	119872794	-	Pisl_1295	-	deoxyribose-phosphate aldolase
1275	 44.97	0	1174584..1174901	-	105	119872795	-	Pisl_1296	-	hypothetical protein
1276	 51.69	0	1174898..1175965	-	355	119872796	-	Pisl_1297	-	phospholipase D/transphosphatidylase
1277	 53.21	0	1175982..1176479	-	165	119872797	-	Pisl_1298	-	methyltransferase type 11
1278	 47.24	0	1176476..1177597	-	373	119872798	-	Pisl_1299	-	hypothetical protein
1279	 44.16	0	1177647..1178717	+	356	119872799	-	Pisl_1300	-	ABC transporter related
1280	 49.15	0	1178775..1179956	+	393	119872800	-	Pisl_1301	-	acetyl-CoA acetyltransferase
1281	 45.68	0	1180020..1180829	+	269	119872801	-	Pisl_1302	-	NAD+ synthetase
1282	 39.49	-1	1180822..1181292	+	156	119872802	-	Pisl_1303	-	PadR-like family transcriptional regulator
1283	 52.04	0	1181530..1182240	+	236	119872803	-	Pisl_1304	-	hypothetical protein
1284	 44.90	0	1182425..1183012	+	195	119872804	-	Pisl_1305	-	ribonuclease HII
1285	 46.14	0	1183062..1183670	+	202	119872805	rps5p	Pisl_1306	-	30S ribosomal protein S5P
1286	 46.63	0	1183667..1184200	+	177	119872806	rpl30p	Pisl_1307	-	50S ribosomal protein L30P
1287	 45.71	0	1184201..1184806	-	201	119872807	-	Pisl_1308	-	peptidase M50
1288	 42.68	0	1185808..1186053	-	81	119872808	-	Pisl_1309	-	hypothetical protein
1289	 44.65	0	1186339..1188105	+	588	119872809	-	Pisl_1310	-	peptidase S9 prolyl oligopeptidase
1290	 56.86	+1	1188152..1188406	+	84	119872810	-	Pisl_1311	-	hypothetical protein
1291	 42.92	0	1188557..1189432	+	291	119872811	-	Pisl_1312	-	spermine synthase
1292	 46.80	0	1189425..1190642	+	405	119872812	-	Pisl_1313	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
48.97	MEAN

7.27	STD DEV
