IslandPath Analysis: Pyrococcus furiosus DSM 3638

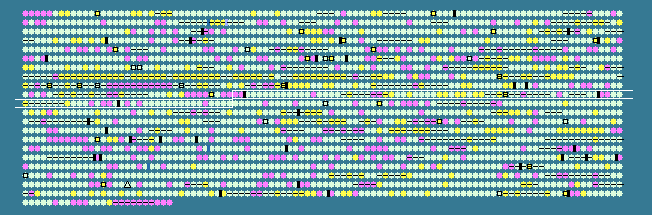

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
936	 35.99	-1	873517..873930	-	137	18977273	-	PF0901	-	hypothetical protein
937	 36.04	-1	874193..875188	+	331	18977274	-	PF0902	-	hypothetical protein
938	 42.31	0	875553..876521	+	322	18977275	-	PF0903	-	hypothetical protein
939	 40.11	0	876522..877259	+	245	33359525	-	PF0904	-	N-glycosylase/DNA lyase
940	 41.83	0	877515..878279	+	254	18977277	-	PF0905	-	putative ABC transporter
941	 39.15	0	878282..879742	+	486	18977278	-	PF0906	-	hypothetical protein
942	 40.98	0	879754..880080	+	108	18977279	-	PF0907	-	hypothetical protein
943	 43.82	0	880081..880929	+	282	33359526	-	PF0908	-	hypothetical protein
944	 40.43	0	880926..881672	-	248	18977281	-	PF0909	-	ferric enterobactin transport ATP-binding protein
945	 43.70	0	881669..882748	-	359	18977282	-	PF0910	-	iron (III) ABC transporter, permease protein
946	 41.16	0	882732..883817	-	361	18977283	-	PF0911	-	iron (III) ABC transporter
947	 42.74	0	883814..883930	-	38	18977284	-	PF0912	-	hypothetical protein
948	 42.33	0	884008..884385	-	125	18977285	-	PF0913	-	hypothetical protein
949	 36.94	-1	884391..884501	-	36	18977286	-	PF0914	-	hypothetical protein
950	 41.88	0	884623..885336	-	237	18977287	-	PF0915	-	hypothetical protein
951	 44.36	0	885394..885783	-	129	18977288	-	PF0916	-	hypothetical protein
952	 43.65	0	885793..886296	-	167	18977289	-	PF0917	-	hypothetical protein
953	 41.07	0	886345..887145	+	266	18977290	truA	PF0918	-	tRNA pseudouridine synthase A
954	 39.27	0	887164..887382	+	72	18977291	-	PF0919	-	hypothetical protein
955	 51.64	+2	887281..887952	-	223	18977292	-	PF0920	-	nucleotidyltransferase
956	 40.92	0	888055..888924	-	289	18977293	-	PF0921	-	putative ABC transporter
957	 40.27	0	888936..889742	-	268	18977294	-	PF0922	-	hypothetical protein
958	 41.61	0	889729..890211	-	160	18977295	-	PF0923	-	hypothetical protein
959	 37.30	0	890208..890636	-	142	18977296	-	PF0924	-	hypothetical protein
960	 37.21	0	890633..891484	-	283	18977297	-	PF0925	-	heme biosynthesis protein
961	 45.18	+1	891798..892025	-	75	18977298	-	PF0926	-	hypothetical protein
962	 51.26	+2	892432..892866	-	144	33359527	-	PF0927	-	hypothetical protein
963	 41.51	0	893178..893336	+	52	18977300	-	PF0928	-	hypothetical protein
964	 39.07	0	893390..893860	+	156	18977301	-	PF0929	-	hypothetical protein
965	 44.40	0	893960..894655	+	231	18977302	-	PF0930	-	hypothetical protein
966	 42.59	0	894645..895130	-	161	18977303	ndk	PF0931	-	nucleoside diphosphate kinase
967	 41.18	0	895117..895371	-	84	18977304	-	PF0932	-	hypothetical protein
968	 41.88	0	895395..897290	-	631	18977305	-	PF0933	-	DNA repair helicase rad3, putative
969	 42.89	0	897630..898016	+	128	18977306	-	PF0934	-	hypothetical protein
970	 45.66	+1	898325..900019	+	564	18977307	-	PF0935	-	acetolactate synthase
971	 46.45	+1	900021..901019	+	332	18977308	-	PF0936	-	ketol-acid reductoisomerase
972	 44.13	0	901054..902553	+	499	18977309	-	PF0937	-	2-isopropylmalate synthase
973	 45.18	+1	902558..903832	+	424	18977310	-	PF0938	-	3-isopropylmalate dehydratase large subunit
974	 45.05	+1	903829..904323	+	164	18977311	leuD	PF0939	-	3-isopropylmalate dehydratase small subunit
975	 44.10	0	904320..905387	+	355	18977312	-	PF0940	-	3-isopropylmalate dehydrogenase 2
976	 45.69	+1	905368..906945	+	525	18977313	-	PF0941	-	alpha-isopropylmalate/homocitrate synthase family transferase
977	 45.11	+1	906942..908597	+	551	18977314	-	PF0942	-	dihydroxy-acid dehydratase
978	 39.29	0	908759..909094	+	111	18977315	-	PF0943	-	hypothetical protein
979	 38.75	0	909057..909425	+	122	18977316	-	PF0944	-	hypothetical protein
980	 48.28	+1	909426..909833	-	135	18977317	-	PF0945	-	hypothetical protein
981	 45.50	+1	909695..910639	+	314	18977318	-	PF0946	-	transposase
982	 42.66	0	910599..911381	-	260	33359528	-	PF0947	-	hypothetical protein
983	 37.91	0	911973..912758	+	261	18977320	-	PF0948	-	hypothetical protein
984	 36.13	-1	912771..913127	+	118	18977321	-	PF0949	-	hypothetical protein
985	 41.24	0	913334..913510	+	58	18977322	-	PF0950	-	hypothetical protein
986	 38.79	0	913536..913865	+	109	18977323	-	PF0951	-	hypothetical protein
987	 40.85	0	913939..915003	+	354	18977324	-	PF0952	-	hypothetical protein
988	 40.23	0	914959..915828	-	289	18977325	-	PF0953	-	hypothetical protein
989	 38.75	0	915933..916301	-	122	18977326	-	PF0954	-	hypothetical protein
990	 36.02	-1	916398..917366	-	322	18977327	-	PF0955	-	hypothetical protein
991	 37.62	0	917540..918403	-	287	18977328	-	PF0956	-	hypothetical protein
992	 39.78	0	918553..918738	-	61	18977329	-	PF0957	-	hypothetical protein
993	 37.60	0	918903..919277	-	124	18977330	-	PF0958	-	hypothetical protein
994	 44.30	0	919736..919963	-	75	33359529	-	PF0958.3n	-	hypothetical protein
995	 44.09	0	920180..920365	-	61	18977331	-	PF0959	-	hypothetical protein
996	 41.30	0	920401..920739	-	112	18977332	-	PF0960	-	hypothetical protein
997	 34.25	-1	921062..921280	-	72	18977333	-	PF0961	-	hypothetical protein
998	 36.80	-1	921442..921960	-	172	18977334	-	PF0962	-	hypothetical protein
999	 43.64	0	922036..924549	-	837	18977335	-	PF0963	-	cell division protein CDC48
1000	 39.41	0	924554..925327	-	257	33359530	-	PF0964	-	hypothetical protein
1001	 46.79	+1	925374..926369	-	331	18977337	-	PF0965	-	pyruvate ferredoxin oxidoreductase subunit beta
1002	 44.25	0	926380..927570	-	396	18977338	porA	PF0966	-	pyruvate ferredoxin oxidoreductase subunit alpha
1003	 40.57	0	927581..927898	-	105	18977339	porD	PF0967	-	pyuvate ferredoxin oxidoreductase subunit delta
1004	 44.34	0	927947..928882	-	311	18977340	-	PF0968	-	2-ketoisovalerate ferredoxin oxidoreductase subunit beta
1005	 43.38	0	928888..930072	-	394	18977341	vorA	PF0969	-	2-ketoisovalerate ferredoxin oxidoreductase subunit alpha
1006	 38.36	0	930085..930402	-	105	18977342	vorD	PF0970	-	2-ketoisovalerate ferredoxin oxidoreductase subunit delta
1007	 42.29	0	930439..930996	-	185	18977343	-	PF0971	-	pyruvate ferredoxin oxidoreductase subunit gamma
1008	 44.54	0	931235..932287	+	350	18977344	-	PF0972	-	hypothetical protein
1009	 44.06	0	932256..933467	+	403	18977345	-	PF0973	-	acetyl-CoA acetyltransferase
1010	 41.85	0	933469..933879	+	136	18977346	-	PF0974	-	hypothetical protein
1011	 37.80	0	933872..934363	+	163	33359531	-	PF0975	-	hypothetical protein
1012	 34.94	-1	934365..934613	+	82	18977348	-	PF0976	-	putative transmembrane protein
1013	 40.57	0	934610..935203	+	197	18977349	-	PF0977	-	hypothetical protein
1014	 35.66	-1	935205..936191	+	328	18977350	-	PF0978	-	hypothetical protein
1015	 37.30	0	936303..936680	+	125	18977351	-	PF0979	-	hypothetical protein
1016	 40.76	0	936677..937363	+	228	18977352	-	PF0980	-	putative aspartate racemase
1017	 38.52	0	937611..938864	+	417	18977353	-	PF0981	-	efflux transport protein
1018	 36.65	-1	938821..939393	-	190	33359532	-	PF0982	-	hypothetical protein
1019	 40.00	0	939418..940167	-	249	18977355	-	PF0983	-	DNA polymerase sliding clamp
1020	 36.67	-1	940157..940336	-	59	18977356	-	PF0984	-	hypothetical protein
1021	 39.02	0	940306..941361	+	351	18977357	-	PF0985	-	DNA-directed RNA polymerase subunit M
1022	 41.74	0	940318..940650	-	110	18977358	-	PF0986	-	DNA-directed RNA polymerase subunit M
1023	 38.54	0	941348..941923	+	191	18977359	-	PF0987	-	hypothetical protein
1024	 37.72	0	941910..942548	+	212	18977360	-	PF0988	-	hypothetical protein
1025	 39.87	0	942767..944266	+	499	18977361	pheS	PF0989	-	phenylalanyl-tRNA synthetase subunit alpha
1026	 40.57	0	944277..945947	+	556	18977362	pheT	PF0990	-	phenylalanyl-tRNA synthetase subunit beta
1027	 43.65	0	946117..947163	-	348	18977363	tdh	PF0991	-	L-threonine 3-dehydrogenase
1028	 42.80	0	947243..948172	-	309	18977364	-	PF0992	-	hypothetical protein
1029	 37.92	0	948183..949250	-	355	18977365	-	PF0993	-	hypothetical protein
1030	 40.11	0	949263..952715	-	1150	18977366	-	PF0994	-	type II secretion system protein
1031	 35.91	-1	952697..953626	-	309	18977367	-	PF0995	-	hypothetical protein
1032	 38.79	0	953631..955040	-	469	18977368	-	PF0996	-	hypothetical protein
1033	 40.48	0	955166..955501	+	111	18977369	-	PF0997	-	hypothetical protein
1034	 38.30	0	955455..956522	+	355	18977370	-	PF0998	-	GTP-binding protein
1035	 41.67	0	956523..956642	-	39	18977371	-	PF0999	-	oligopeptide transport system permease protein appc, c-terminal fragment
40.88	MEAN

3.74	STD DEV
