IslandPath Analysis: Pyrococcus furiosus DSM 3638

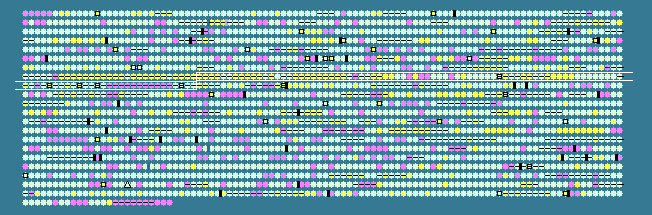

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
730	 48.97	+2	712933..713175	-	80	18977082	-	PF0710	-	hypothetical protein
731	 56.16	+2	713303..713740	+	145	18977083	-	PF0711	-	hypothetical protein
732	 54.76	+2	713727..714104	+	125	18977084	-	PF0712	-	hypothetical protein
733	 53.55	+2	714059..714241	+	60	18977085	-	PF0713	-	hypothetical protein
734	 42.53	0	714293..714814	+	173	18977086	-	PF0714	-	hypothetical protein
735	 41.34	0	715081..715617	-	178	18977087	-	PF0715	-	NAD(P)H oxidase
736	 44.44	0	715679..716515	+	278	18977088	-	PF0716	-	3-hydroxyisobutyrate dehydrogenase
737	 47.05	+1	716903..717427	+	174	18977089	-	PF0717	-	putative methyltransferase
738	 51.88	+2	718003..718746	+	247	18977090	-	PF0718	-	hypothetical protein
739	 47.56	+1	718782..719006	+	74	18977091	-	PF0719	-	hypothetical protein
740	 55.25	+2	719033..719356	+	107	18977092	-	PF0720	-	hypothetical protein
741	 43.92	0	719708..720274	-	188	18977093	-	PF0721	-	hypothetical protein
742	 45.61	+1	720416..720985	+	189	18977094	-	PF0722	-	alkyl hydroperoxide reductase subunit c
743	 43.13	0	721320..722156	+	278	18977095	-	PF0723	-	hypothetical protein
744	 42.05	0	722255..722839	+	194	18977096	-	PF0724	-	hypothetical protein
745	 44.02	0	722875..723267	+	130	18977097	-	PF0725	-	hypothetical protein
746	 45.87	+1	723271..723645	+	124	18977098	-	PF0726	-	hypothetical protein
747	 51.14	+2	723739..723957	+	72	18977099	-	PF0727	-	hypothetical protein
748	 56.39	+2	724074..724715	+	213	18977100	-	PF0728	-	hypothetical protein
749	 56.30	+2	724719..725885	+	388	18977101	-	PF0729	-	mulitcopper oxidase domain-containing protein
750	 57.27	+2	725943..726857	+	304	18977102	-	PF0730	-	hypothetical protein
751	 55.95	+2	726955..727122	+	55	18977103	-	PF0731	-	copper-transporting atpase, p-type
752	 45.70	+1	727140..727325	-	61	33359501	-	PF0731.1n	-	hypothetical protein
753	 51.47	+2	727207..727956	-	249	18977104	-	PF0732	-	daunorubicin resistance ATP-binding protein
754	 44.93	+1	727982..728257	-	91	33359502	-	PF0732.2n	-	hypothetical protein
755	 40.84	0	728694..729599	-	301	18977105	-	PF0733	-	putative ABC transporter
756	 36.74	-1	729599..730714	-	371	18977106	-	PF0734	-	hypothetical protein
757	 40.73	0	730718..731434	-	238	18977107	-	PF0735	-	hypothetical protein
758	 40.46	0	731806..732366	-	186	18977108	-	PF0736	-	hypothetical protein
759	 50.77	+2	732387..732581	+	64	33359503	-	PF0736.1n	-	hypothetical protein
760	 46.67	+1	733209..733343	+	44	18977109	-	PF0737	-	hypothetical protein
761	 44.69	+1	733362..733907	-	181	18977110	-	PF0738	-	ubiquinone/menaquinone biosynthesis methyltransferase
762	 51.39	+2	734123..734482	+	119	33359504	-	PF0738.1n	-	hypothetical protein
763	 41.32	0	735280..736080	-	266	18977111	-	PF0739	-	AsnC family transcriptional regulator
764	 42.79	0	736025..738424	+	799	18977112	-	PF0740	-	heavy-metal transporting cpx-type atpase
765	 35.97	-1	738440..738742	+	100	18977113	-	PF0741	-	hypothetical protein
766	 44.38	0	738843..739367	+	174	18977114	-	PF0742	-	putative ferritin
767	 35.80	-1	739644..739886	+	80	18977115	-	PF0743	-	hypothetical protein
768	 34.97	-1	740116..741705	-	529	18977116	-	PF0744	-	ABC transporter
769	 38.99	0	742393..743028	-	211	18977117	-	PF0745	-	hypothetical protein
770	 40.49	0	743091..743900	+	269	18977118	-	PF0746	-	hypothetical protein
771	 40.48	0	743892..744968	-	358	18977119	-	PF0747	-	putative proline dipeptidase
772	 36.67	-1	745238..745387	+	49	18977120	-	PF0748	-	hypothetical protein
773	 40.17	0	745558..745674	+	38	18977121	-	PF0749	-	hypothetical protein
774	 46.43	+1	745739..746326	+	195	18977122	-	PF0750	-	putative NADH oxidase
775	 41.77	0	746296..747540	-	414	18977123	-	PF0751	-	flavoprotein
776	 37.56	0	747589..748038	-	149	18977124	-	PF0752	-	thioredoxin peroxidase
777	 42.10	0	748043..748909	-	288	18977125	-	PF0753	-	2-oxoacid ferredoxin oxidoreductase subunit beta
778	 41.16	0	748906..750618	-	570	18977126	-	PF0754	-	2-keto acid:ferredoxin oxidoreductase subunit alpha
779	 38.99	0	750669..752189	-	506	18977127	-	PF0755	-	non-phosphorylating glyceraldehyde-3-phosphate dehydrogenase
780	 44.59	0	752343..753044	+	233	18977128	-	PF0756	-	transposase
781	 46.83	+1	753017..753142	-	41	18977129	-	PF0757	-	hypothetical protein
782	 43.59	0	753118..753390	-	90	18977130	-	PF0758	-	hypothetical protein
783	 42.45	0	753633..753950	+	105	18977131	-	PF0759	-	hypothetical protein
784	 45.06	+1	753911..754933	+	340	18977132	-	PF0760	-	hypothetical protein
785	 46.06	+1	755060..755389	-	109	18977133	-	PF0761	-	hypothetical protein
786	 39.89	0	755454..755819	-	121	33359505	-	PF0762	-	hypothetical protein
787	 42.36	0	755893..756036	+	47	18977135	-	PF0763	-	hypothetical protein
788	 44.98	+1	756033..757328	-	431	18977136	-	PF0764	-	DEXX-box atpase
789	 47.13	+1	757388..758677	-	429	18977137	-	PF0765	-	NDP-sugar dehydrogenase
790	 47.21	+1	758735..759685	-	316	18977138	-	PF0766	-	putative dehydrogenase
791	 46.03	+1	759691..760785	-	364	18977139	-	PF0767	-	pleiotropic regulatory protein degT
792	 45.53	+1	760795..761409	-	204	18977140	-	PF0768	-	acetyl / acyl transferase related protein
793	 37.46	0	761479..762375	-	298	18977141	-	PF0769	-	glycosyl transferase
794	 42.78	0	762368..763246	-	292	18977142	-	PF0770	-	glucose-1-phosphate uridylyltransferase
795	 43.82	0	763243..764415	-	390	18977143	-	PF0771	-	NDP-sugar dehydrogenase
796	 39.85	0	764538..764936	+	132	18977144	-	PF0772	-	hypothetical protein
797	 40.62	0	765121..765216	-	31	18977145	-	PF0773	-	hypothetical protein
798	 37.54	0	765189..765497	-	102	18977146	-	PF0774	-	hypothetical protein
799	 38.27	0	765537..765860	+	107	18977147	-	PF0775	-	hypothetical protein
800	 39.14	0	765933..766259	+	108	33359506	-	PF0776	-	hypothetical protein
801	 49.85	+2	766356..767003	+	215	18977149	-	PF0777	-	hypothetical protein
802	 38.81	0	766956..767174	-	72	33359507	-	PF0776.1n	-	hypothetical protein
803	 33.33	-2	767181..767360	-	59	18977150	-	PF0778	-	hypothetical protein
804	 43.70	0	767357..767491	-	44	18977151	-	PF0779	-	hypothetical protein
805	 44.59	0	767568..768269	+	233	18977152	-	PF0780	-	transposase
806	 39.57	0	768446..768862	+	138	18977153	-	PF0781	-	hypothetical protein
807	 43.03	0	769195..769524	+	109	18977154	-	PF0782	-	hypothetical protein
808	 52.13	+2	769551..770768	+	405	18977155	-	PF0783	-	hypothetical protein
809	 41.96	0	770736..771326	-	196	18977156	-	PF0784	-	hypothetical protein
810	 44.59	0	771392..772093	+	233	18977157	-	PF0785	-	transposase
811	 39.18	0	772203..772664	-	153	33359509	-	PF0785.2n	-	hypothetical protein
812	 42.70	0	772786..773244	+	152	33359510	-	PF0785.3n	-	hypothetical protein
813	 44.27	0	772789..773660	+	290	33359508	-	PF0786	-	transposase
814	 37.44	0	773641..774030	-	129	18977159	-	PF0787	-	hypothetical protein
815	 34.70	-1	774027..774686	-	219	18977160	-	PF0788	-	glycosyl transferase
816	 33.97	-1	774691..775161	-	156	18977161	-	PF0789	-	hypothetical protein
817	 34.75	-1	775174..776934	-	586	18977162	-	PF0790	-	hypothetical protein
818	 37.01	-1	776880..778049	-	389	18977163	-	PF0791	-	hypothetical protein
819	 35.44	-1	778050..779660	-	536	18977164	-	PF0792	-	hypothetical protein
820	 33.33	-2	779679..779924	-	81	18977165	-	PF0793	-	hypothetical protein
821	 36.86	-1	779986..781062	-	358	18977166	-	PF0794	-	UDP-n-acetylglucosamine 2-epimerase
822	 34.83	-1	781059..782261	-	400	18977167	-	PF0795	-	capsular polysaccharide biosynthesis protein
823	 36.53	-1	782274..782774	-	166	18977168	-	PF0796	-	galactoside o-acetyltransferase
824	 33.33	-2	782783..783826	-	347	18977169	-	PF0797	-	hypothetical protein
825	 35.75	-1	783839..784747	-	302	18977170	-	PF0798	-	glycosyl transferase
826	 39.52	0	784759..784968	-	69	33359511	-	PF0799	-	hypothetical protein
827	 43.92	0	785140..785879	+	246	33359512	-	PF0800	-	transposase
828	 43.40	0	785149..785595	+	148	18977173	-	PF0801	-	hypothetical protein
829	 43.46	0	786027..786431	-	134	18977174	-	PF0802	-	hypothetical protein
40.88	MEAN

3.74	STD DEV
