IslandPath Analysis: Pyrococcus furiosus DSM 3638

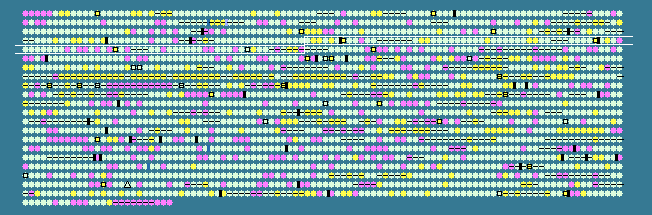

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.88   STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
348	 39.73	0	354894..355643	-	249	33359470	-	PF0342	-	hypothetical protein
349	 44.71	+1	355681..356946	-	421	18976715	-	PF0343	-	S-adenosyl-L-homocysteine hydrolase
350	 44.62	0	356987..358120	-	377	18976716	-	PF0344	-	tungsten-containing aldehyde ferredoxin oxidoreductase cofactor modifying protein
351	 43.78	0	358122..358370	-	82	18976717	-	PF0345	-	molybdopterin converting factor, subunit 1
352	 46.26	+1	358419..360236	-	605	18976718	-	PF0346	-	aldehyde:ferredoxin oxidoreductase
353	 41.31	0	360431..361408	+	325	18976719	-	PF0347	-	hypothetical protein
354	 44.59	0	361528..362229	-	233	18976720	-	PF0348	-	transposase
355	 38.67	0	362400..363074	-	224	18976721	-	PF0349	-	hypothetical protein
356	 40.85	0	363090..363914	-	274	18976722	-	PF0350	-	putative cation antiporter
357	 36.71	-1	364274..365131	-	285	18976723	-	PF0351	-	hypothetical protein
358	 38.41	0	365038..365628	-	196	33359471	-	PF0352	-	hypothetical protein
359	 40.64	0	365787..366935	-	382	33359472	-	PF0353	-	hypothetical protein
360	 40.17	0	367052..367855	+	267	18976726	-	PF0354	-	hypothetical protein
361	 37.50	0	367848..368303	-	151	33359473	-	PF0355	-	hypothetical protein
362	 38.10	0	368300..368509	-	69	33359474	-	PF0355.1n	-	hypothetical protein
363	 38.43	0	368506..369957	-	483	18976728	-	PF0356	-	beta-galactosidase
364	 43.88	0	370134..372029	+	631	18976729	-	PF0357	-	dipeptide-binding protein
365	 41.89	0	372068..373060	+	330	18976730	-	PF0358	-	oppbc family ABC transporter
366	 41.09	0	373064..373978	+	304	18976731	-	PF0359	-	oligopeptide ABC transport system permease
367	 46.05	+1	373975..374949	+	324	18976732	-	PF0360	-	oligopeptide ABC transporter
368	 45.96	+1	374942..375907	+	321	18976733	-	PF0361	-	oligopeptide ABC transporter
369	 41.62	0	375904..376881	+	325	18976734	-	PF0362	-	glucosamine-fructose-6-phosphate aminotransferase
370	 43.77	0	376900..379218	+	772	18976735	-	PF0363	-	beta-galactosidase precursor
371	 42.95	0	379215..380150	-	311	18976736	-	PF0364	-	tyrosine-protein kinase
372	 39.89	0	380352..381266	+	304	18976737	-	PF0365	-	hypothetical protein
373	 41.96	0	381252..381842	-	196	18976738	-	PF0366	-	hypothetical protein
374	 39.33	0	381821..382621	-	266	18976739	-	PF0367	-	hypothetical protein
375	 43.25	0	382631..383386	-	251	18976740	-	PF0368	-	hypothetical protein
376	 42.34	0	383398..384396	-	332	18976741	-	PF0369	-	putative endoglucanase
377	 41.52	0	384410..385411	-	333	18976742	-	PF0370	-	2-hydroxyacid dehydrogenase
378	 45.01	+1	385602..386894	+	430	18976743	-	PF0371	-	putative transporter
379	 41.57	0	387045..387554	+	169	18976744	-	PF0372	-	molybdenum cofactor biosynthesis protein
380	 42.02	0	387603..388580	+	325	18976745	-	PF0373	-	putative ABC transporter, periplasmic binding protein
381	 42.80	0	388629..389822	+	397	18976746	-	PF0374	-	translation-associated GTPase
382	 41.27	0	389836..390276	-	146	18976747	-	PF0375	-	prefoldin subunit alpha
383	 43.16	0	390301..390534	-	77	18976748	rplX	PF0376	-	50S ribosomal protein LX
384	 43.13	0	390548..391231	-	227	18976749	-	PF0377	-	translation initiation factor IF-6
385	 45.12	+1	391258..391554	-	98	33359475	-	PF0378	-	50S ribosomal protein L31e
386	 48.08	+1	391556..391711	-	51	18976751	rpl39e	PF0379	-	50S ribosomal protein L39e
387	 43.09	0	391829..392566	+	245	33359476	-	PF0380	-	hypothetical protein
388	 42.13	0	392615..393535	+	306	18976753	-	PF0381	-	hypothetical protein
389	 43.30	0	393402..393923	+	173	18976754	-	PF0382	-	prefoldin
390	 39.29	0	393960..394295	+	111	18976755	-	PF0383	-	hypothetical protein
391	 41.19	0	394252..395244	+	330	18976756	-	PF0384	-	hypothetical protein
392	 40.98	0	395249..395575	+	108	18976757	-	PF0385	-	hypothetical protein
393	 43.25	0	395581..396306	+	241	18976758	-	PF0386	-	hypothetical protein
394	 41.89	0	396310..396648	+	112	18976759	-	PF0387	-	putative carbohydrate-binding protein
395	 38.94	0	396645..397553	-	302	18976760	-	PF0388	-	hypothetical protein
396	 44.59	0	397700..398401	+	233	18976761	-	PF0389	-	transposase
397	 41.88	0	398596..399753	+	385	18976762	-	PF0390	-	hypothetical protein
398	 45.19	+1	399753..400157	+	134	18976763	-	PF0391	-	hypothetical protein
399	 43.14	0	400111..401364	+	417	18976764	-	PF0392	-	metalloprotease
400	 35.54	-1	401435..402160	+	241	18976765	-	PF0393	-	hypothetical protein
401	 37.90	0	402144..403040	-	298	18976766	-	PF0394	-	UDP-n-acetylglucosamine-dolichyl-phosphate n-acetylglucosaminephosphotransferase
402	 39.36	0	403030..403560	-	176	18976767	-	PF0395	-	oxetanocin-like protein
403	 39.97	0	403571..404143	-	190	18976768	-	PF0396	-	hypothetical protein
404	 39.04	0	403941..404501	+	186	18976769	-	PF0397	-	GTP-binding protein
405	 41.87	0	404502..405005	-	167	18976770	-	PF0398	-	hypothetical protein
406	 43.50	0	405007..407229	-	740	18976771	-	PF0399	-	s1p family ribosomal protein
407	 39.80	0	407242..408231	-	329	18976772	-	PF0400	-	hypothetical protein
408	 36.79	-1	408267..408845	-	192	18976773	-	PF0401	-	methyltransferase
409	 41.22	0	408966..409916	-	316	18976774	-	PF0402	-	UDP- or dTTP-glucose 4-epimerase or 4-6-dehydratase
410	 35.47	-1	409922..410437	-	171	18976775	-	PF0403	-	hypothetical protein
411	 37.31	0	410434..411690	-	418	18976776	-	PF0404	-	hypothetical protein
412	 39.44	0	411687..412619	-	310	18976777	-	PF0405	-	methanol dehydrogenase regulatory protein
413	 35.49	-1	412570..413634	-	354	18976778	-	PF0406	-	hypothetical protein
414	 39.04	0	413429..413656	+	75	33359477	-	PF0406.1n	-	hypothetical protein
415	 34.48	-1	413631..415454	-	607	18976779	-	PF0407	-	hypothetical protein
416	 44.73	+1	415421..416122	-	233	18976780	-	PF0408	-	transposase
417	 38.65	0	416244..417014	+	256	18976781	-	PF0409	-	hypothetical protein
418	 35.98	-1	417004..417267	+	87	18976782	-	PF0410	-	hypothetical protein
419	 39.34	0	417264..419495	+	743	18976783	-	PF0411	-	protein-export membrane protein
420	 39.00	0	419492..420496	-	334	18976784	-	PF0412	-	hypothetical protein
421	 37.48	0	420500..421126	-	208	18976785	-	PF0413	-	hypothetical protein
422	 38.48	0	421177..421662	+	161	18976786	-	PF0414	-	hypothetical protein
423	 39.23	0	421621..422808	-	395	18976787	-	PF0415	-	dehydrogenase
424	 33.82	-1	422811..423626	-	271	18976788	-	PF0416	-	hypothetical protein
425	 38.83	0	423623..424822	-	399	18976789	-	PF0417	-	hypothetical protein
426	 42.66	0	424832..425785	-	317	18976790	-	PF0418	-	methanol dehydrogenase regulatory protein
427	 40.63	0	425775..426761	-	328	18976791	-	PF0419	-	hypothetical protein
428	 39.56	0	426743..429601	-	952	18976792	-	PF0420	-	hypothetical protein
429	 42.52	0	429657..430799	-	380	18976793	purP	PF0421	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
430	 42.42	0	430811..432130	-	439	18976794	-	PF0422	-	phosphoribosylamine--glycine ligase
431	 31.37	-2	432279..432431	+	50	18976795	-	PF0423	-	hypothetical protein
432	 36.42	-1	432443..432961	+	172	18976796	-	PF0424	-	hypothetical protein
433	 39.08	0	432964..433728	+	254	18976797	-	PF0425	-	hypothetical protein
434	 40.48	0	433790..434908	+	372	18976798	-	PF0426	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
435	 41.13	0	434901..435413	+	170	18976799	-	PF0427	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
436	 36.22	-1	435498..435947	+	149	18976800	-	PF0428	-	partial alanyl-tRNA synthetase matches COOH terminus
437	 41.36	0	435969..437450	-	493	18976801	-	PF0429	-	putative proline permease
438	 42.42	0	437779..437877	-	32	33359478	-	PF0429.1n	-	transposase
439	 45.97	+1	438413..439702	-	429	18976802	purT	PF0430	-	phosphoribosylglycinamide formyltransferase 2
440	 41.49	0	439838..440842	+	334	18976803	-	PF0431	-	phosphoribosylaminoimidazole synthetase
441	 40.02	0	440866..441687	+	273	18976804	-	PF0432	-	putative sugar-catabolism phosphotransferase
442	 39.74	0	442034..442189	+	51	18976805	-	PF0433	-	methyl-accepting chemotaxis related protein
443	 35.99	-1	442192..442530	-	112	18976806	-	PF0434	-	hypothetical protein
444	 42.24	0	442921..443268	-	115	33359479	-	PF0432.3n	-	hypothetical protein
445	 48.46	+2	443269..444636	+	455	18976807	-	PF0435	-	DEXX-box atpase
446	 47.69	+1	445419..446393	-	324	18976808	-	PF0436	-	hypothetical protein
447	 37.11	-1	446395..447693	-	432	18976809	-	PF0437	-	hypothetical protein
40.88	MEAN

3.74	STD DEV
